TopMate ES10 3-Wheel Electric Mobility Scooter User Manual

1. Important Safety Information

Read all instructions carefully before operating the TopMate ES10 electric scooter. Failure to follow safety guidelines may result in serious injury or property damage.

• Always wear a helmet and appropriate safety gear.
• Do not operate the scooter under the influence of alcohol or drugs.
• Observe all local traffic laws and regulations.
• Avoid riding in heavy traffic, on uneven terrain, or in adverse weather conditions.
• Ensure the battery is securely installed and charged before each use.
• Do not exceed the maximum load capacity of 300 lbs.
• Regularly inspect brakes, tires, and all components for wear or damage.

2. Product Overview

The TopMate ES10 is a lightweight, folding 3-wheel electric mobility scooter designed for adults and seniors. It features an ergonomic seat, removable battery, and a 350W motor with adjustable speed settings.

Image: The TopMate ES10 electric scooter in its operational state, being ridden by an adult. This image illustrates the scooter's design and its intended use.

3. Setup and Assembly

3.1 Unfolding the Scooter

The TopMate ES10 features a quick and easy one-step folding mechanism for portability. To unfold:

1. Place the folded scooter on a flat, stable surface.
2. Release the folding latch mechanism (refer to the diagram below for location).
3. Gently lift the handlebars and extend the frame until it locks into place.
4. Ensure all locking mechanisms are securely engaged before use.

Image: A person demonstrating the compact folded state of the TopMate ES10 scooter, placing it into a car trunk. This highlights the scooter's portability and ease of transport.

Image: A visual guide illustrating the three-step folding process of the TopMate ES10 scooter, from unfolded to fully folded for storage or transport.

3.2 Battery Installation

The scooter comes with a removable lithium battery. To install or remove:

1. Locate the battery compartment, typically under the seat.
2. Insert the battery pack firmly until it clicks into place.
3. Ensure the battery is properly connected before operating.

4. Operating Instructions

4.1 Powering On/Off

Insert the key into the ignition and turn it to the ON position to power on the scooter. Turn the key to the OFF position to power off.

4.2 Speed Adjustment

The scooter offers three adjustable speed settings (3/7/15 mph). Use the speed adjustment button on the handlebar to cycle through the modes. The current speed setting will be displayed on the LED screen.

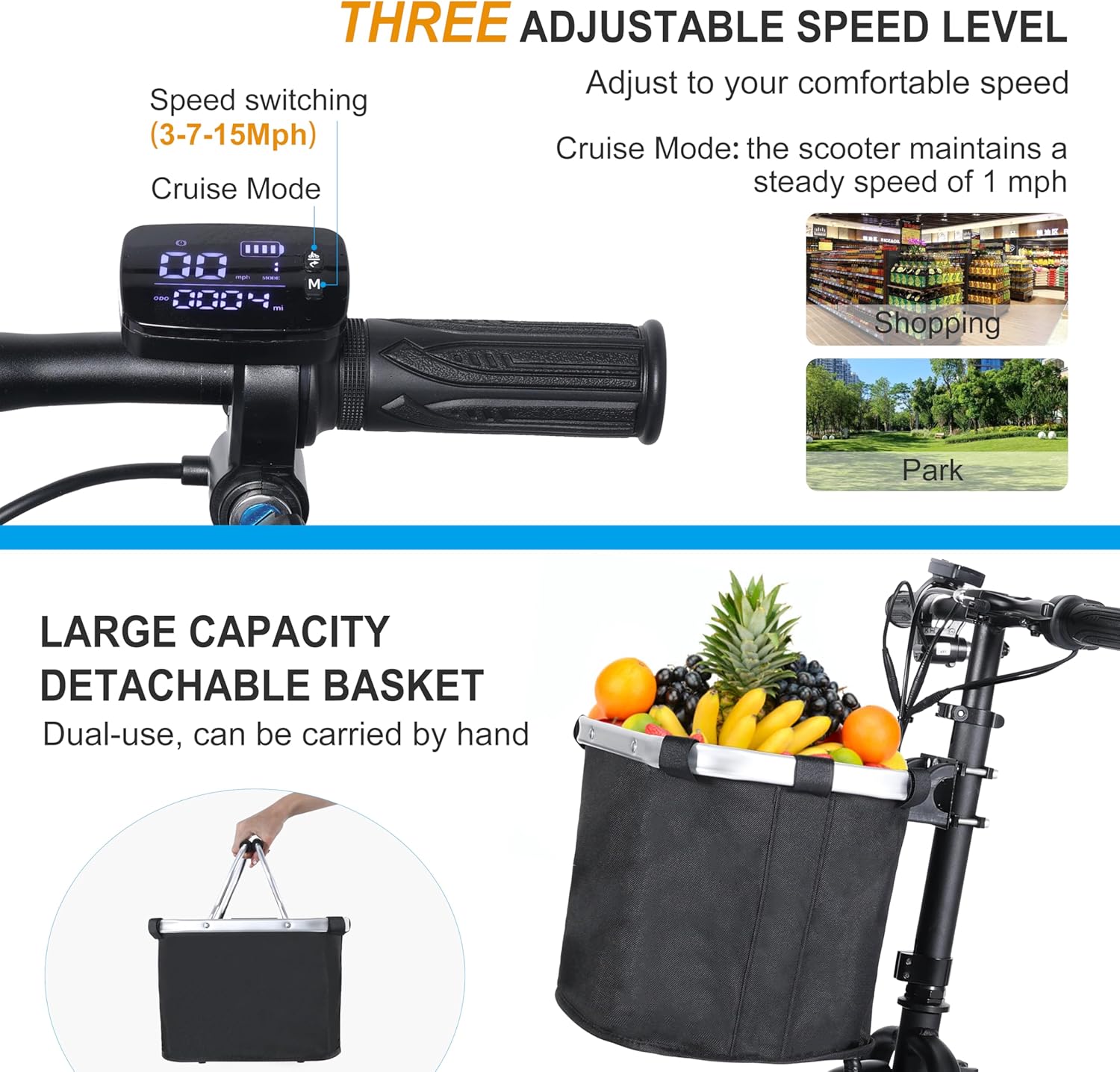

Image: A detailed view of the scooter's handlebar controls and LED display, showing speed settings (3-7-15 mph) and battery status. This image also highlights the cruise mode feature.

4.3 Riding the Scooter

• Sit comfortably on the ergonomic seat.
• Gently press the throttle to accelerate.
• Use the brake levers to slow down or stop. The scooter features dual drum brakes for effective stopping.
• To engage reverse mode, press the reverse button.
• Use the horn to alert pedestrians.
• The front headlight and rear reflectors enhance visibility, especially during night riding.

Image: An illustration of the TopMate ES10 scooter highlighting its 350W motor and key performance metrics like max speed (15 mph) and reverse speed (2 mph).

Image: An elderly man riding the TopMate ES10 scooter, demonstrating its suitability for various road conditions including grassland, city roads, gravel roads, and dirt roads, thanks to its 10-inch tires.

5. Battery and Charging

The TopMate ES10 is equipped with a 48V 10.4Ah removable lithium battery.

5.1 Charging the Battery

The battery can be charged while installed on the scooter or removed for convenience.

• Connect the charger to the charging port on the battery or scooter.
• Plug the charger into a standard power outlet.
• The charging indicator light on the charger will show the charging status.
• A full charge typically takes 5-6 hours, providing a range of 16-20 miles.
• Do not overcharge the battery. Disconnect the charger once fully charged.

Image: A close-up view of the removable 48V 10.4Ah lithium battery, illustrating its connection point to the scooter and highlighting its capacity, range, charging current, and charging time.

6. Maintenance and Care

• Cleaning: Wipe the scooter with a damp cloth. Avoid using high-pressure water or harsh chemicals.
• Tires: Regularly check tire pressure and for any signs of wear or damage. The scooter uses 10-inch pneumatic tires.
• Brakes: Inspect brake functionality periodically. Adjust or replace brake components as needed.
• Battery Storage: If storing the scooter for an extended period, ensure the battery is partially charged (around 50-60%) and store it in a cool, dry place. Charge it every 1-2 months to maintain battery health.
• General Inspection: Periodically check all bolts, nuts, and fasteners to ensure they are tight.

7. Troubleshooting

This section addresses common issues you might encounter with your TopMate ES10 scooter.

8. Specifications

9. Warranty and Support

The TopMate ES10 electric mobility scooter comes with a 2-year warranty.

For warranty claims, technical support, or any inquiries, please contact TopMate customer service through the retailer where the product was purchased or visit the official TopMate website for contact information.

Please retain your proof of purchase for warranty validation.
