1. Introduction
This manual provides essential information for the safe and efficient use of your Anern 12V 30Ah LiFePO4 Lithium Battery. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of your battery.

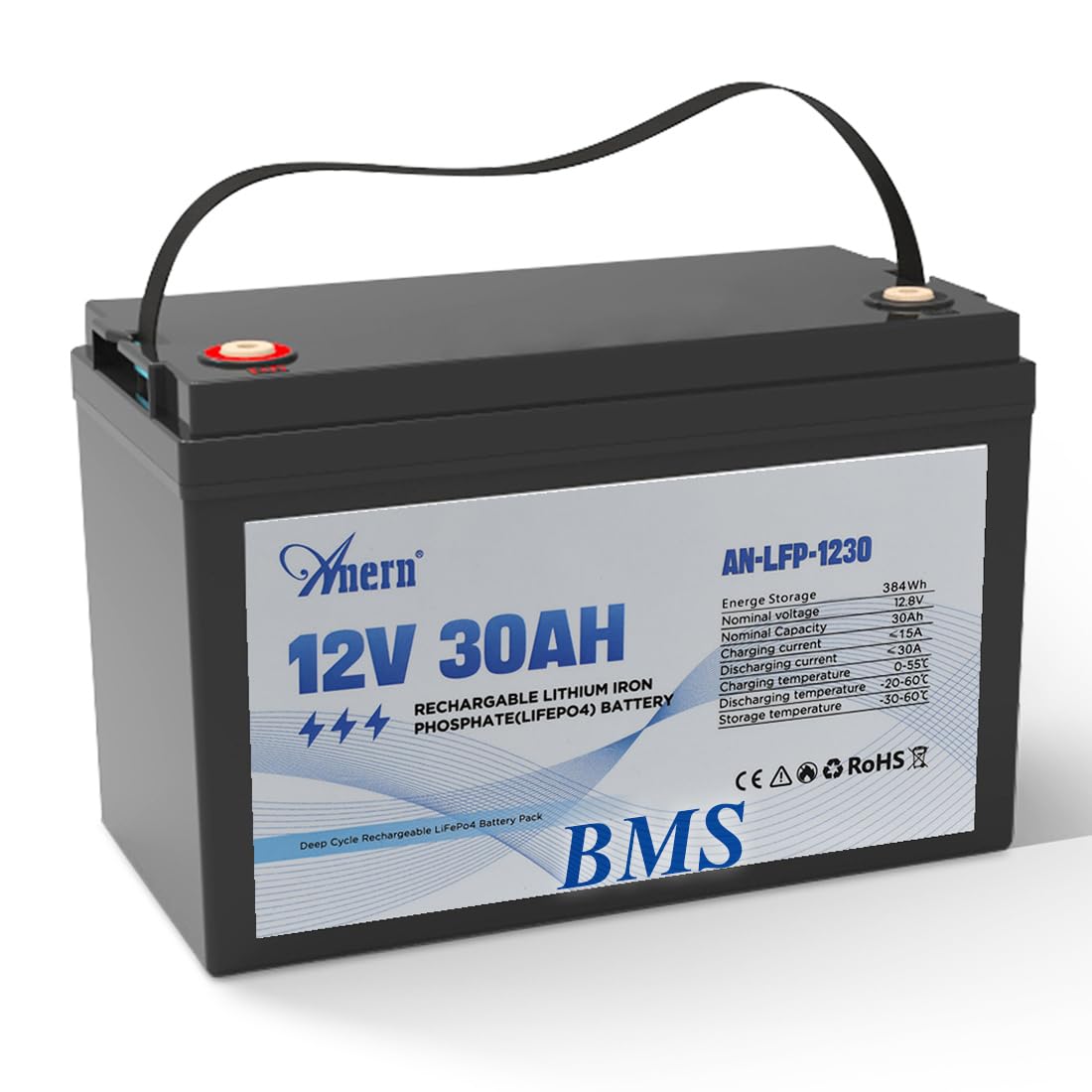

Image 1.1: Anern 12V 30Ah LiFePO4 Lithium Battery.
2. Safety Information
Adhering to safety guidelines is crucial when handling lithium batteries. Failure to follow these instructions may result in injury, property damage, or reduced battery life.
- Do Not Use for Engine Starting: This battery is not designed for engine starting applications.
- Use Compatible Charger: Only use a LiFePO4 specific charger. Standard lead-acid (SLA) chargers may not fully charge the battery and can potentially damage it.
- Temperature Limits: Observe the specified operating and charging temperature ranges to prevent damage and ensure safety.
- Avoid Short Circuits: Ensure proper polarity when connecting the battery. A built-in 30A Battery Management System (BMS) protects against overcharge, over-discharge, over-current, and short circuits.
- Ventilation: While LiFePO4 batteries are generally safe, ensure adequate ventilation during charging and discharging.
- Physical Damage: Do not puncture, drop, or expose the battery to extreme physical shock.
- Disposal: Dispose of the battery according to local regulations for lithium-ion batteries.
Image 2.1: Low-temperature cut-off protection for battery safety.
3. Product Features
The Anern 12V 30Ah LiFePO4 Lithium Battery offers advanced features for reliable power delivery:
- Grade-A LiFePO4 Cells: Utilizes premium cells for high energy density, extended cycle life, and enhanced safety.
- Integrated BMS: Features a 30A Battery Management System for protection against overcharge, over-discharge, over-current, and short circuits.
- Long Cycle Life: Provides over 5000 deep cycles, significantly outperforming traditional lead-acid batteries.
- Lightweight Design: Weighs approximately 4.85 pounds (2.2 kg), making it easy to transport and install.
- Wide Temperature Range: Operates efficiently across a broad temperature spectrum.
- Low Self-Discharge: Maintains charge for up to 1 year in storage without significant loss.
- Expandable System: Supports series and parallel connections for increased voltage or capacity (up to 4 identical batteries).
Image 3.1: Illustration of A-grade LiFePO4 cells for extended cycle life.
4. What's in the Box
Your package includes:
- 1 x Anern 12V 30Ah LiFePO4 Lithium Battery
5. Setup and Installation
Follow these general guidelines for setting up your battery. Specific installation details may vary based on your application.
- Inspection: Before installation, inspect the battery for any signs of damage.
- Mounting: Secure the battery in a stable, well-ventilated location, away from direct sunlight, heat sources, and moisture.
- Connections: Connect the positive (+) terminal of the battery to the positive terminal of your load/charger and the negative (-) terminal to the negative terminal. Ensure all connections are tight and secure to prevent arcing or overheating.
- Series/Parallel Configuration: The battery supports connecting up to 4 identical batteries in series or parallel to achieve higher voltage or capacity. Consult a qualified technician for complex configurations.
Image 5.1: Example of a home energy system integration with solar panels and battery.
6. Operating Instructions
The Anern LiFePO4 battery is designed for deep cycle applications, providing consistent power for various devices.
- Powering Devices: Connect your devices to the battery system, ensuring the total current draw does not exceed the battery's maximum continuous discharge current (30A).
- Monitoring: If your system includes a battery monitor, regularly check the battery's state of charge and voltage.
- Discharge Limits: The internal BMS will protect the battery from over-discharge. Avoid intentionally discharging the battery below its recommended voltage.
7. Charging
Proper charging is essential for the lifespan and performance of your LiFePO4 battery.
- Charger Type: Use only a dedicated LiFePO4 battery charger. Standard lead-acid chargers may not provide the correct charging profile.
- Charging Current: The battery supports quick charging up to 15A. Refer to the specifications for optimal charging parameters.
- Charging Temperature: Ensure the battery is charged within the recommended temperature range (typically 0-60°C / 32-140°F). The BMS will cut off charging if the temperature is too low (below 0°C / 32°F) and resume when it recovers (above 5°C / 41°F).
- Full Charge: A LiFePO4 charger will automatically stop charging when the battery reaches full capacity.
Image 7.1: Various methods for charging the battery, including mains electricity, solar panels, marine systems, and generators.
8. Applications
This versatile 12V 30Ah LiFePO4 battery is suitable for a wide range of applications:
- Wheelchairs
- UPS (Uninterruptible Power Supply) systems
- Emergency lighting
- RV and outdoor camping power
- Marine applications (e.g., fish finders, trolling motors)
- Scooters and ride-on toys
- Computer power backup
- Tool trailers
- Off-grid systems
- Solar and wind energy storage
Image 8.1: The battery powering marine equipment like fish finders and panel instruments.
Image 8.2: The battery providing power for common household items.
9. Maintenance
LiFePO4 batteries require minimal maintenance compared to other battery types.
- Regular Inspection: Periodically check battery terminals for corrosion and ensure connections are secure.
- Cleaning: Keep the battery clean and free of dirt and debris.
- Storage: For long-term storage, ensure the battery is charged to approximately 50% state of charge and stored in a cool, dry place. The low self-discharge rate allows for worry-free storage up to 1 year.
- Temperature: Avoid exposing the battery to extreme temperatures outside its specified operating range. The BMS provides low-temperature cut-off protection for discharging (below -20°C / -4°F).
Image 9.1: Battery safety in extreme cold weather conditions.
10. Troubleshooting
If you encounter issues with your Anern LiFePO4 battery, consider the following common troubleshooting steps:
- Battery Not Charging:
- Verify the charger is a LiFePO4 compatible charger.
- Check all connections for proper contact and polarity.
- Ensure the ambient temperature is within the recommended charging range (above 0°C / 32°F).
- Battery Not Discharging:
- Check if the load exceeds the maximum continuous discharge current (30A). The BMS may have activated protection.
- Verify all connections to the load are secure.
- Ensure the ambient temperature is within the recommended discharging range (above -20°C / -4°F).
- Low Voltage Output:
- The battery may be nearing its discharge limit. Recharge the battery.
- Check for loose or corroded connections.
If problems persist after following these steps, please contact Anern customer support.
11. Specifications
Detailed technical parameters for the Anern 12V 30Ah LiFePO4 Lithium Battery (Model: AN-LFP1230).
| No. | Item | General Parameters | Remark |
|---|---|---|---|
| 1 | Total Energy | 384 Wh | |
| 2 | Cycle Life | ≥4000 Times | Standard Conditions |
| 3 | Rated Capacity | 30Ah | 0.2C Capacity≥100%, 0.5C Capacity≥95%, 1C Capacity≥90% |
| 4 | Rate Voltage | 12.8V | Working Voltage |
| 5 | End-off Voltage | 10.8V | End-of-discharge |
| 6 | Charging Cut-off Voltage | 14.6V | Upper Battery Voltage |
| 7 | IR | ≤20mΩ | Test in AC 1KHZ |
| 8 | Standard Charge | 6-15A | |
| 9 | Max. Discharge Continuous Current | 30A | Max output power: 384W |
| 10 | Max. Instantaneous Discharge Current | 60A (3S) | Max output power: 768W (3S) |
| 11 | Operating Temperature | Charge: 0~60°C, Discharge: -20~60°C | |
| 12 | Size/mm | 177*167*123 ±3mm | |
| 13 | Weight | 3.0kg ±0.2 kg |
Image 11.1: Detailed technical specifications for the 12V 30Ah battery.
Image 11.2: Physical dimensions of the Anern 12V 30Ah LiFePO4 battery.
12. Manufacturing Overview
Anern is committed to quality manufacturing processes for its lithium batteries. The following video provides insight into the production facility and quality control measures.
Video 12.1: Anern Lithium Battery Production. This video showcases the manufacturing process and quality assurance steps for Anern lithium batteries.
13. Warranty and Support
Your Anern 12V 30Ah LiFePO4 Lithium Battery comes with a 2-Year Manufacturer Warranty.
For any inquiries, technical support, or warranty claims, please contact our dedicated support team. You can reach us by clicking "Ask a question" in our storefront or "Contact seller" in your order details.
