TMWINGS Oil Filled Radiator Heater Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using this appliance and retain for future reference. Failure to follow these instructions may result in fire, electric shock, injury, or property damage.

• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner. Discard heater or return to authorized service facility for examination and/or repair.
• Do not use outdoors.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This heater is equipped with a tip-over safety switch and triple overheat protection for safe operation.
• The heater uses V0-grade flame-retardant materials and 6.23 ft insulated wires, and is UL/FCC safety certified.

2. Product Overview

The TMWINGS Oil Filled Radiator Heater (Model LH27E-0615) provides efficient and quiet heating for indoor spaces. It combines radiant and convective heating methods to deliver consistent warmth.

Key Features:

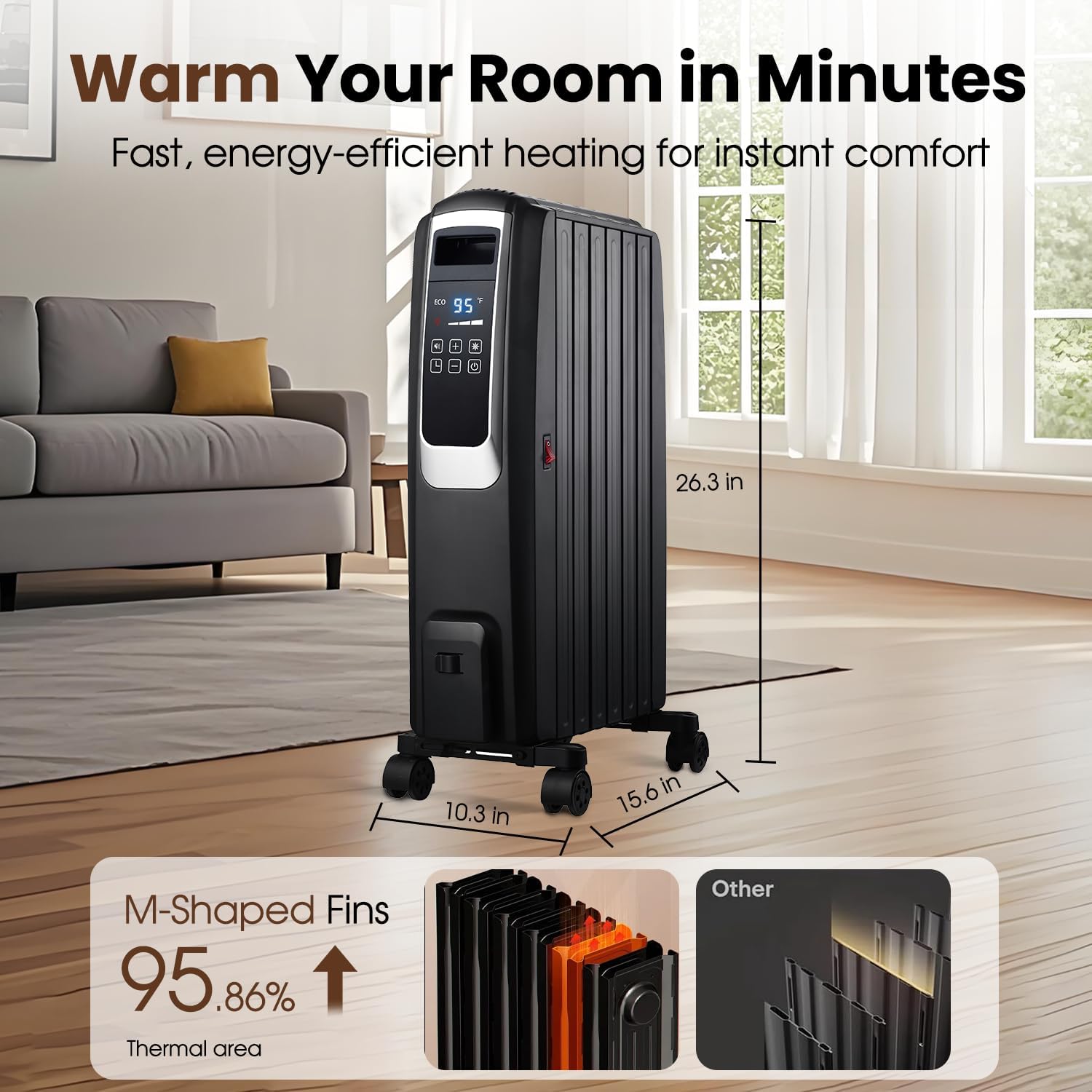

• Whole-House Efficient Heating: 1500-watt capacity with 6 enhanced fins for up to 99.5% thermal efficiency, providing 360° radiant heating.

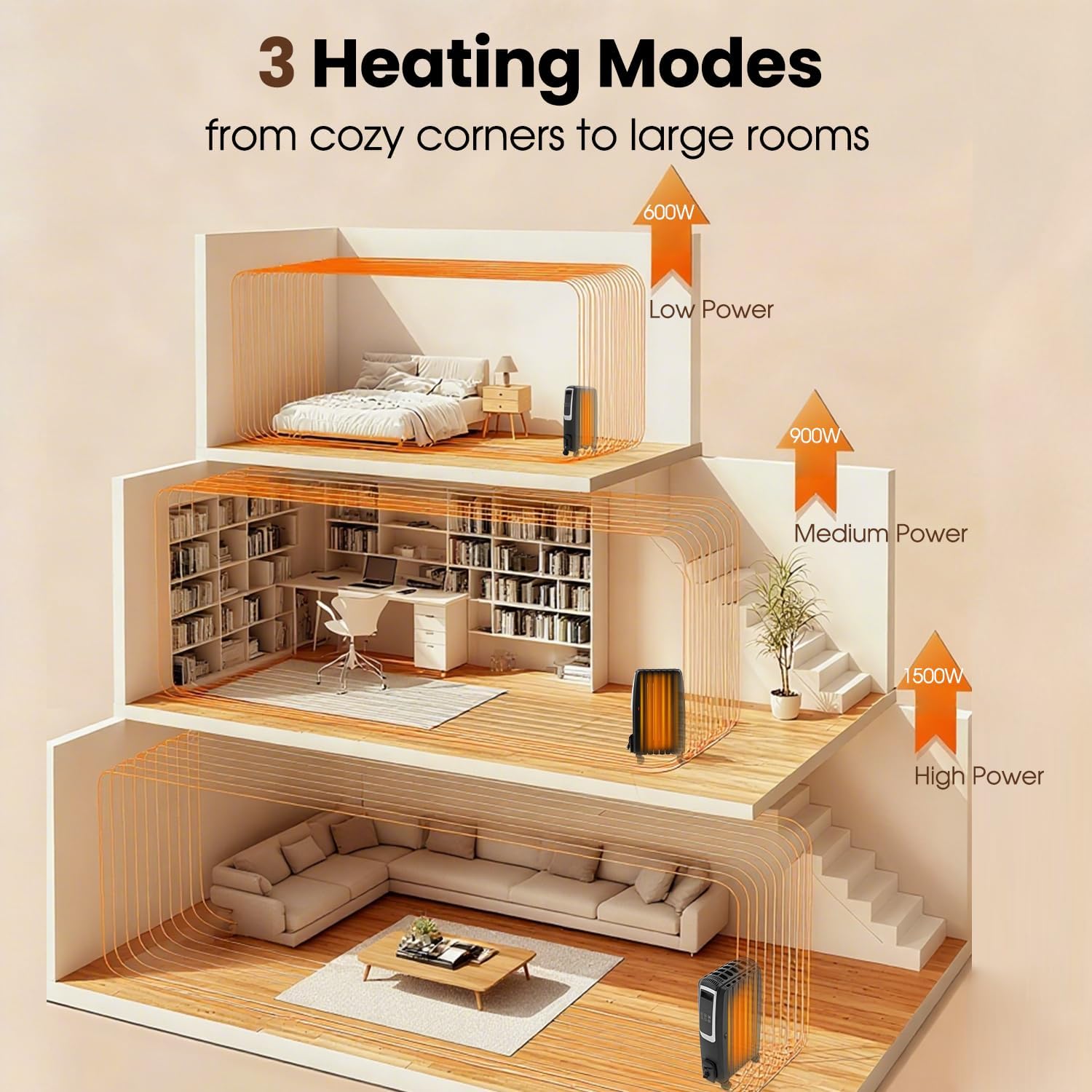

• Customizable Heat Settings & ECO Mode: 3 power options (600W, 900W, 1500W) and an ECO mode that automatically adjusts power. Adjustable thermostat from 41°F to 95°F.
• Smart Control: Features a 360° rotating wheel, insulated handle, remote control, touch-screen, LED display, 4 heating modes, constant temperature control, silent mode, memory function, and a 24-hour timer.
• Ultra-Quiet Operation: Fanless radiant heating operates at 0 dB for undisturbed sleep.
• Multiple Home Safety Protections: Built-in tip-over protection, triple overheat protection, temperature sensor system, V0-grade flame-retardant materials, and UL/FCC safety certification.

Product Images:

3. Setup

The TMWINGS Oil Filled Radiator Heater requires minimal assembly, primarily attaching the wheels for portability.

Attaching the Wheels:

1. Carefully unbox the heater and place it upside down on a soft, stable surface to avoid damage.
2. Locate the wheel assemblies and the provided screws.
3. Attach each wheel assembly to the designated slots on the bottom of the heater using the screws. Ensure they are securely fastened.
4. Once all wheels are attached, carefully turn the heater upright.

Initial Placement:

• Place the heater on a firm, level surface.
• Ensure there is at least 3 feet (0.9 m) of clear space around the heater from walls, furniture, and other combustible materials.
• Plug the heater directly into a grounded 120V AC electrical outlet. Do not use extension cords or power strips.

Setup Video:

4. Operating Instructions

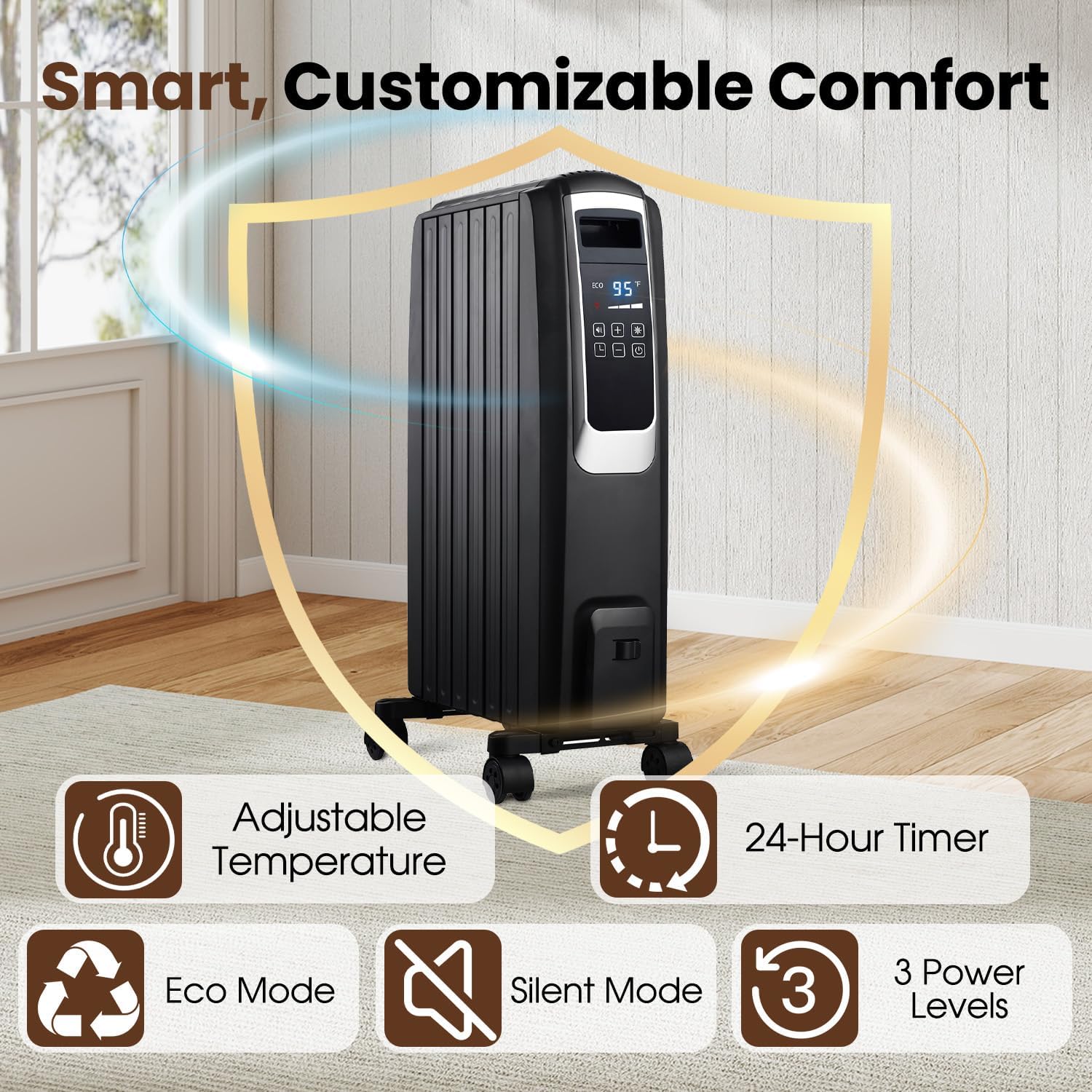

The TMWINGS Oil Filled Radiator Heater offers various settings for personalized comfort. You can control the unit via the integrated touch-screen panel or the included remote control.

Control Panel and Remote:

• Power On/Off: Press the power button on the control panel or remote to turn the heater on or off.
• Temperature Adjustment: Use the '+' and '-' buttons to set your desired temperature between 41°F and 95°F. The LED display will show the current and set temperature.
• Heat Settings: Cycle through the three heating power options (600W, 900W, 1500W) using the mode button.
• ECO Mode: Activate ECO mode to allow the heater to automatically adjust its power consumption based on the room's ambient temperature, optimizing energy use.
• 24-Hour Timer: Set the timer for automatic shut-off, allowing you to program the heater to operate for a specific duration up to 24 hours.
• Silent Mode: Engage silent mode for ultra-quiet operation, ideal for bedrooms or quiet environments.
• Auto Screen-Off: The display screen will automatically turn off after 15 seconds of inactivity to minimize light disturbance.

Operation Video:

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your TMWINGS Oil Filled Radiator Heater.

Cleaning:

• Always unplug the heater and allow it to cool completely before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure no water or liquid enters the interior of the heater.

Storage:

• When not in use, store the heater in a cool, dry place.
• Utilize the integrated cord storage feature to keep the power cord neatly wrapped and prevent damage.

6. Troubleshooting

If you encounter issues with your heater, please refer to the following common troubleshooting steps:

• Heater does not turn on: Check if the power cord is securely plugged into a working outlet. Ensure the main power switch (if present) is in the 'ON' position. Verify that the room temperature is below the set temperature.
• Heater stops operating: The tip-over or overheat protection may have activated. Unplug the heater, allow it to cool for 30 minutes, and check for any obstructions. Ensure the heater is on a stable, level surface.
• Insufficient heating: Confirm the heat setting is appropriate for the room size. Ensure doors and windows are closed to prevent heat loss. Check that no objects are blocking the heat output fins.
• Unusual noises: Minor clicking or crackling sounds are normal as the internal oil heats and expands. If loud or persistent noises occur, discontinue use and contact customer support.

7. Specifications

8. Warranty and Support

For warranty information, product support, or any questions not covered in this manual, please contact TMWINGS customer service. Keep your purchase receipt for warranty claims.

Contact information can typically be found on the product packaging or the official TMWINGS website.
