VOCIC AX35 Electric Transfer Lift Chair User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your VOCIC AX35 Electric Transfer Lift Chair. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.

The VOCIC AX35 is an electric transfer lift chair designed to assist individuals with mobility challenges, particularly in lifting from the floor and transferring to other surfaces like beds, sofas, or wheelchairs. It features a compact design, easy maneuverability, and a maximum weight capacity of 160 kg.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or damage to the product.

• Always ensure the brakes are locked during lifting, lowering, and stopping procedures to prevent unintended movement.
• If the user cannot stand independently, the device must be used with the assistance of a trained caregiver.
• Do not exceed the maximum weight capacity of 160 kg (352 lbs).
• Ensure the safety belt is securely fastened before any transfer or lifting operation.
• Keep hands and loose clothing clear of moving parts during operation.
• Operate the device on a flat, stable surface. Avoid uneven terrain or inclines.
• Regularly inspect the chair for any signs of wear, damage, or loose components. Do not use if damaged.
• Keep the remote control dry and away from water.

3. Product Overview and Features

The VOCIC AX35 is designed for ease of use and safety, offering several key features:

• Effortless Lifting and Mobile Transfer: Gently raises individuals from the floor and facilitates transfers to various surfaces.
• Lightweight and Maneuverable: Weighs only 16.3 kg with a compact design for easy navigation through narrow spaces.
• Stable Support: Supports up to 160 kg, providing secure assistance during all operations.
• Simple One-Button Operation: Features an intuitive remote control for ascending and descending, including an emergency stop.
• Secure Transfer: Foldable armrests and a wide safety belt ensure continuous lateral stability and prevent falls.
• Extra Low Seat Height: The curved front edge of the seat allows for natural and fluid movement when sitting, reducing strain.
• Braking System: Rear wheels are equipped with brakes for secure locking during transfers.

Image: The VOCIC AX35 lift chair demonstrating its assisted lifting and transfer capabilities, showing a person being gently raised from the floor to a seated position.

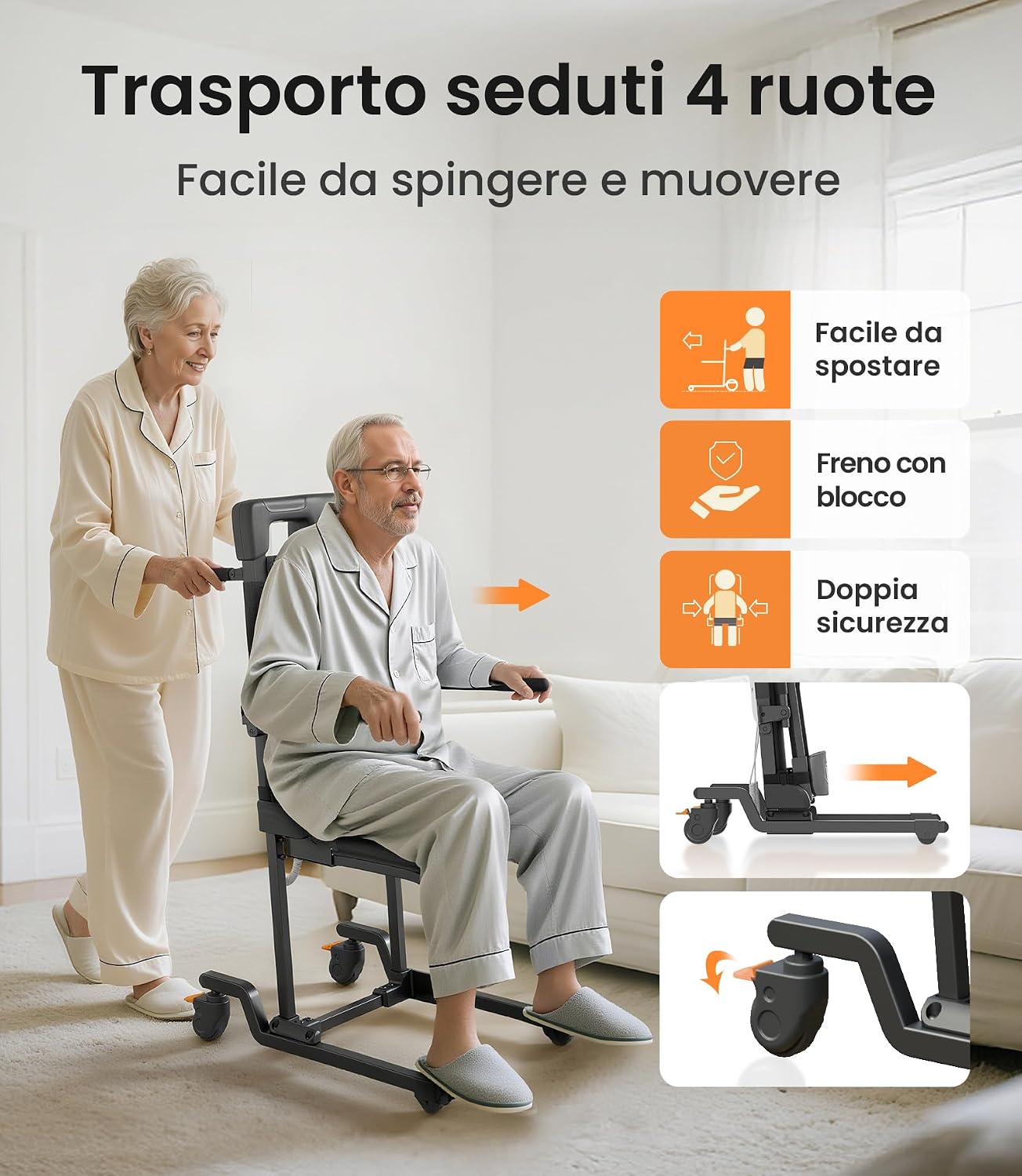

Image: A caregiver pushing the VOCIC AX35 lift chair with a person seated, illustrating the ease of seated transport with its four wheels and integrated safety features like lockable brakes and double security.

Image: The VOCIC AX35 lift chair highlighting its extra low seat height of 5.5cm, demonstrating how a person can easily transition from the floor to the seat without lifting their legs.

Image: A close-up of the VOCIC AX35 lift chair's wireless remote control, featuring UP, DOWN, and STOP buttons, with an illustration of the internal motor mechanism for electric operation.

Image: The VOCIC AX35 lift chair displayed in both its upright and folded configurations, illustrating its adjustable height range (7-51cm) and compact storage, along with its 160kg load capacity.

Image: A person seated in the VOCIC AX35 lift chair, demonstrating the secure lateral transfer feature with the wide safety belt and foldable armrests providing stability.

4. Setup and Assembly

The VOCIC AX35 lift chair is designed for quick and easy assembly. Follow these steps:

1. Unpack Components: Carefully remove all parts from the packaging. Ensure all components listed in the packing list are present.
2. Attach Legs: As per the detailed assembly instructions provided in the box, attach the legs to the main frame of the chair. This typically involves securing them with screws or quick-release mechanisms.
3. Verify Stability: Once assembled, ensure all connections are tight and the chair is stable on a flat surface.
4. Charge Remote Control: If the remote control is not pre-charged, connect it to a power source using the provided charging cable.

Refer to the detailed, step-by-step assembly instructions included in your product packaging for visual guidance.

Image: A visual guide to the VOCIC AX35 lift chair's assembly, showing the two main steps: mounting the legs and the completed chair ready for use.

5. Operating Instructions

Operating the VOCIC AX35 is straightforward with its one-button control system.

5.1. Before Operation

• Ensure the user is properly seated and the safety belt is securely fastened.
• Confirm that the rear wheel brakes are locked if the chair needs to remain stationary during lifting or lowering.
• Position the chair on a stable, level surface.
• Ensure the remote control is charged and within reach.

5.2. Lifting and Lowering

1. To raise the seat, press and hold the UP button on the remote control. Release the button when the desired height is reached.
2. To lower the seat, press and hold the DOWN button on the remote control. Release the button when the desired height is reached.
3. In case of an emergency or if you need to stop movement immediately, press the STOP button.

5.3. Transferring the User

1. Once the user is safely seated and lifted to an appropriate height, unlock the rear wheel brakes.
2. Gently push the chair to the desired transfer location (e.g., bed, sofa, wheelchair).
3. Once in position, lock the rear wheel brakes again to secure the chair.
4. If transferring laterally, the foldable armrests can be raised to facilitate easier side access. Ensure the safety belt remains fastened until the transfer is complete and the user is secure on the new surface.
5. Lower the seat to the appropriate height for the transfer.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your VOCIC AX35 lift chair.

• Cleaning: Wipe down the frame and seat with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents. Ensure the remote control and electrical components remain dry.
• Battery Care: Keep the remote control battery charged. Avoid fully discharging the battery frequently to prolong its lifespan.
• Inspection: Periodically check all screws, bolts, and connections to ensure they are tight. Inspect the wheels, brakes, and safety belt for any signs of wear or damage.
• Storage: When not in use, store the chair in a dry, clean environment. The foldable design allows for compact storage.

7. Troubleshooting

If you encounter issues with your VOCIC AX35, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact VOCIC customer support.

8. Specifications

9. Warranty and Support

VOCIC is committed to providing high-quality products and excellent customer service.

• Warranty: Please refer to the warranty card included with your product for specific warranty terms and conditions. Typically, VOCIC products come with a manufacturer's warranty covering defects in materials and workmanship.
• Customer Support: For any questions, technical assistance, or warranty claims, please contact VOCIC customer support. Contact information can usually be found on the VOCIC website or on the product packaging.
• Returns: For information regarding returns, please consult the retailer's return policy where the product was purchased.
