DUMOS AH-NFJ1F01-24BK 1500W Space Heater User Manual

Important Safety Precautions

• Keep combustible materials—such as furniture, pillows, bedding, paper, clothing, and curtains—at least 3 feet (0.9 m) away from the front, sides, top, and rear of the heater.
• Never place towels or other objects on the unit.
• This indoor portable heater includes tip-over protection and a child lock feature for enhanced safety.

Always ensure the heater is placed on a stable, level surface and is not obstructed.

Product Overview

The DUMOS 1500W Space Heater is designed for indoor use, providing efficient warmth with customizable features and safety mechanisms.

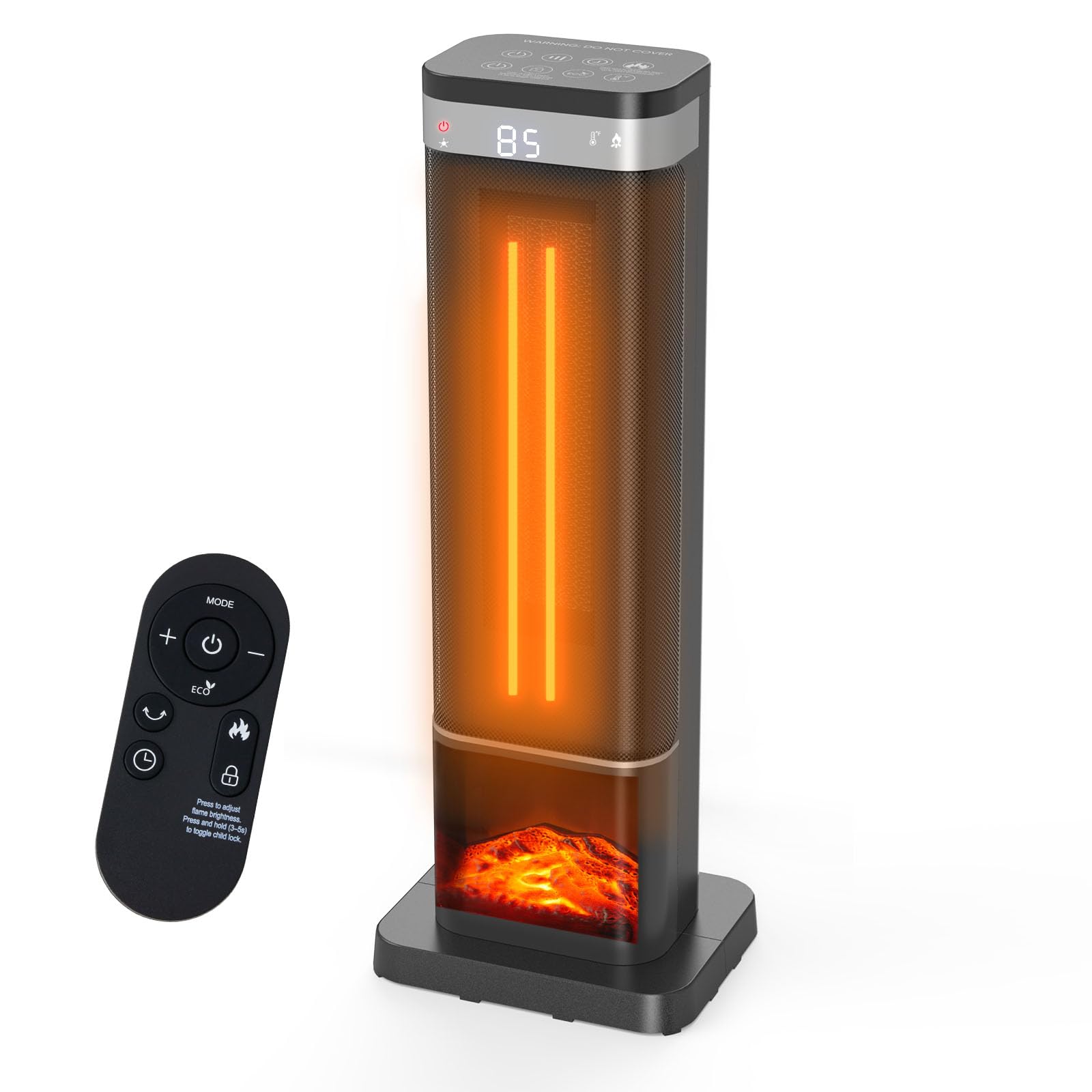

This image shows the front view of the DUMOS 1500W Space Heater, highlighting its sleek design and digital display.

Key Features

• 1500W Fast Heating: Experience rapid, whole-room warmth with powerful heating elements.
• 60° Oscillation: Wide oscillation evenly distributes heat, quickly warming your space.
• 3 Customizable Lighting Modes: Set the perfect mood with various lighting options for the simulated fireplace effect.
• Adjustable Thermostat: Allows you to set your ideal temperature from 60°F to 99°F.
• Tip-over Protection: Automatically shuts off if the unit is accidentally tipped over.
• Child Lock: Prevents unintended changes to settings, ensuring safe operation around children.
• Quiet Operation: Designed for peaceful use, ideal for offices, bedrooms, or living rooms.
• 12-Hour Timer: Provides energy-efficient warmth with an automatic shut-off function.

This image illustrates the heater's 60-degree oscillation for wide heat distribution and its adjustable thermostat range from 60°F to 99°F.

Setup

1. Unpacking: Carefully remove the heater from its packaging. Retain packaging for future storage or transport.
2. Placement: Place the heater on a firm, level surface. Ensure it is at least 3 feet (0.9 m) away from walls, furniture, and any combustible materials. Do not block air inlets or outlets.
3. Power Connection: Plug the power cord directly into a grounded 120V AC electrical outlet. Do not use extension cords, power strips, or surge protectors.

A side view of the DUMOS Space Heater, showing its compact tower design suitable for various room placements.

Operating Instructions

The heater can be operated using the control panel on top of the unit or the included remote control.

This image displays the easy-to-use control panel on top of the DUMOS Space Heater, showing buttons for power, mode, timer, flame colors, oscillation, child lock, ECO mode, and temperature adjustment.

Power On/Off

Press the ⏻ (Power) button to turn the heater on or off. When turning off, the unit will perform a 30-second cool-down cycle before completely shutting down.

Heating Modes

Press the ☰ (Mode) button to cycle through available heating modes (e.g., Low, High, ECO).

Temperature Adjustment

Use the + and - buttons to set your desired temperature between 60°F and 99°F. The heater will automatically adjust its operation to maintain the set temperature.

Oscillation

Press the ↻ (Oscillation) button to activate or deactivate the 60° oscillation feature, which helps distribute heat widely across the room.

Timer Function

Press the ⏱ (Timer) button to set the auto-off timer for up to 12 hours. Each press increases the timer by one hour.

This image highlights the 12-hour timer function, allowing users to set the heater to automatically turn off after a specified duration.

Flame Colors / Lighting Modes

Press the 🔥 (Flame) button once to change the flame brightness. Press and hold the button for 3-5 seconds to cycle through the available lighting modes automatically.

This image shows the DUMOS Space Heater with its three primary light modes (red, orange, green) for the simulated fireplace effect.

Child Lock

To activate or deactivate the child lock, press and hold the 🔒 (Child Lock) button for 3-5 seconds. This feature prevents accidental changes to settings.

ECO Mode

Press the 🌿 (ECO) button to activate the energy-saving ECO mode, which optimizes power consumption.

Maintenance

Regular maintenance ensures optimal performance and longevity of your DUMOS space heater.

Cleaning

• Always unplug the heater and allow it to cool completely before cleaning.
• Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
• Periodically clean the air intake filter on the back of the unit to prevent dust buildup. Unscrew the cover, remove the filter, clean it with a soft brush or vacuum, and reattach.

Storage

• If storing the heater for an extended period, unplug it and clean it thoroughly.
• Store the heater in a cool, dry place, preferably in its original packaging.

Troubleshooting

• Heater not turning on: Ensure the power cord is securely plugged into a grounded outlet. Check if the circuit breaker has tripped. Verify the power button is pressed.
• No heat output: Confirm the desired temperature setting is higher than the current room temperature. Check if the ECO mode is active, which might reduce heat output to save energy.
• Heater shuts off unexpectedly: This could be due to the tip-over protection or overheat protection activating. Ensure the heater is on a stable surface and not covered. Clear any obstructions from air inlets/outlets.
• Flame effect not working: Check if the flame button has been pressed. If the issue persists, contact customer support.

Specifications

This image provides a visual representation of the DUMOS Space Heater's dimensions, including height, width, and depth.

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact DUMOS customer service directly. Protection plans may be available for purchase separately through your retailer.
