Product Overview
The LEDIARY 23 Inch Caged Ceiling Fan with Light and Remote is designed for flush mount installation, offering both illumination and air circulation. This model features a bladeless, enclosed design for safety and a rustic farmhouse aesthetic.
- Brand: LEDIARY
- Model: B0G3PNH18S
- Dimensions: 23"L x 23"W x 10"H
- Weight: 8.8 Pounds
- Material: Metal
- Control Method: Remote Control
- Bulb Base: E26 x 4 (Bulbs not included)
- Max Bulb Wattage: 60W Incandescent, 10W LED
- Power Source: AC
- Mounting Type: Flush Mount

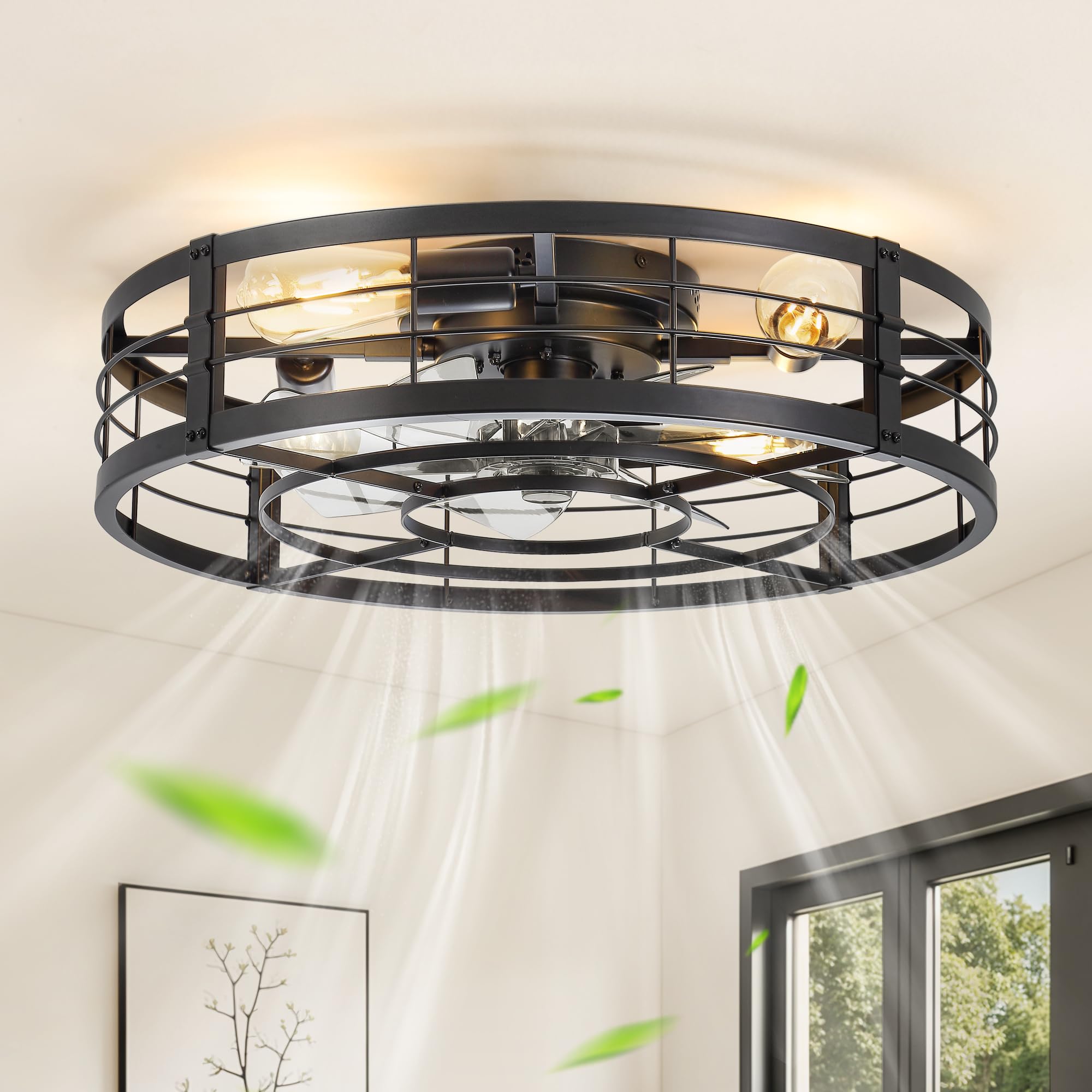

Image: The LEDIARY 23 Inch Caged Ceiling Fan with Light and Remote, showcasing its black finish and enclosed design.
Safety Information
Before installation or operation, please read and understand all safety instructions. Failure to do so may result in electric shock, fire, or personal injury.
- Always turn off power at the circuit breaker before beginning installation or performing any maintenance.
- Ensure all electrical connections comply with local codes and ordinances. If you are unsure, consult a qualified electrician.
- Do not install this fan in a location where the blades could come into contact with people or objects.
- Use only compatible bulbs as specified to prevent overheating.
- This product is not fully waterproof; avoid direct exposure to water.
Setup and Installation
This ceiling fan is designed for DIY installation. While tools are not included, all necessary screws are pre-sorted for clarity. It is recommended to have all parts checked before starting.
Required Tools (Not Included):
- Screwdriver
- Wire strippers
- Electrical tape
- Ladder
Installation Steps:
- Prepare for Installation: Turn off the electricity at the main circuit breaker.
- Assemble the Cage: The fan cage requires manual screw assembly. Align the screw holes on the brackets carefully. Assistance from another person may be helpful for easier alignment.
- Mount the Bracket: Remove any existing light fixture. Secure the new mounting bracket to the ceiling junction box.
- Hang the Fan: Utilize the included security strap (wire with a carabiner hook). Hook the carabiner over the ceiling bracket to suspend the fan, allowing for hands-free electrical connections.
- Make Electrical Connections: Connect the fan's wires to the household wiring (typically black to black, white to white, and ground to ground). Ensure all connections are secure.
- Secure the Fan: Once wiring is complete, carefully secure the fan to the mounting bracket.
- Install Bulbs: Insert compatible E26 base bulbs (T14, A19, ST19, B11, G14) with a maximum of 10W LED to avoid protrusion and overheating due to the low-profile design.
- Restore Power: Turn the electricity back on at the circuit breaker.
Image: Detailed view of the fan's dimensions (23" diameter, 6.5" height) and close-ups of the cage, E26 bulb base, and fan blades, illustrating key components for assembly.
Image: Information on the E26*4 bulb base, specifying maximum wattage for incandescent (60W) and LED (10W) bulbs, and highlighting the 730-day warranty.
Operating Instructions
The fan and light functions are controlled via the included remote control. Ensure the fan is connected to a standard single-pole wall switch.
Remote Control Functions:
- Power On/Off: Turns the fan and light on or off.
- Fan Speed: Adjusts fan speed (6 levels available).
- Light On/Off: Controls the light independently.
- Timer: Sets the fan to turn off automatically after 1, 4, or 8 hours.
- Summer/Winter Mode: Reverses the fan direction for optimal air circulation in different seasons. In summer, the fan rotates counter-clockwise to create a downdraft. In winter, it rotates clockwise to create an updraft, circulating warm air.
- Mute Beep: Silences the audible beep that may occur when operating the fan or light.
Image: Overview of the fan's multifunctional capabilities, including remote control (with mute function), 1/4/8 hour timing, 6 wind speeds, and a quality motor.
Image: Illustration of the fan's reversible motor function, showing forward wind for cooling in summer and reverse wind for heat circulation in winter.
Quiet Operation:
The fan is engineered for quiet operation, producing approximately 30dB of noise, comparable to a quiet library environment.
Image: Graphic illustrating the fan's quiet operation at approximately 30dB, allowing for undisturbed sleep.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Dust the fan and light fixture periodically with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Bulb Replacement: To replace bulbs, ensure power is off at the circuit breaker. Due to the enclosed design, accessing the bulb sockets may be tight. Use small-profile E26 bulbs (T14, A19, ST19, B11, G14) with a maximum of 10W LED.
- Tighten Fasteners: Periodically check and tighten all screws and fasteners to ensure the fan remains securely mounted.
Troubleshooting
If you encounter issues with your LEDIARY ceiling fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power; Loose wiring; Remote not paired or faulty | Check circuit breaker; Verify all wire connections; Re-pair remote control (refer to remote instructions) or replace remote batteries. |
| Light does not turn on | Bulb faulty or loose; No power; Loose wiring | Replace bulbs; Check circuit breaker; Verify light fixture wiring. |
| Fan makes excessive noise | Loose screws; Unbalanced fan blades | Ensure all mounting screws are tight; Check for any obstructions; Contact customer support if noise persists. |
| Remote control not working | Dead batteries; Not paired correctly; Obstruction | Replace remote batteries; Re-pair remote control; Ensure no objects are blocking the signal path. |
If troubleshooting steps do not resolve the issue, please contact LEDIARY customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | LEDIARY |
| Model Number | B0G3PNH18S |
| Color | Black |
| Material | Metal |
| Style | Farmhouse |
| Room Type | Bedroom, Kitchen, Dining Room, Covered Outdoor Areas |
| Indoor/Outdoor Usage | Indoor, Covered Outdoor |
| Power Source | AC |
| Control Method | Remote |
| Light Source | LED (Bulbs not included) |
| Bulb Base | E26 (4 sockets) |
| Max Wattage | 60W (Incandescent), 10W (LED) |
| Mounting Type | Flush Mount |
| Item Dimensions (L x W x H) | 23" x 23" x 10" |
| Item Weight | 8.8 Pounds |
| Included Components | Remote Control |
| Required Assembly | Yes |
| Noise Level | Approx. 30dB |
Warranty and Support
LEDIARY provides a 2-year manufacturer's warranty for this product, covering defects in materials and workmanship from the date of purchase.
For any questions regarding installation, operation, remote pairing, or other product-related inquiries, please contact LEDIARY customer service. Our US-based support team is available 24/7 and aims to respond within 24 hours.
Please retain your proof of purchase for warranty claims.
