1. Important Safety Information
Please read and understand this entire owner's manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
- Always ensure the fireplace is placed on a firm, level surface.
- Do not operate the fireplace if the power cord is damaged.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace.
- This electric fireplace stove features intelligent overheat protection and a cool-to-the-touch casing that automatically shuts off in hazardous conditions.
- The air outlet is strategically positioned at the top of the stove to prevent fuselage overheating and potential high-temperature hazards.
- Always unplug the fireplace when not in use.
Image: The fireplace highlighting its safety features such as cool-to-touch surfaces, tip-over protection, and overheat protection, along with ETL certification.
2. Package Contents
- Freestanding Electric Fireplace Stove
- Remote Control
- Four Legs (for assembly)
- User Manual
3. Setup Instructions
The Eueiriup Freestanding Electric Fireplace Stove requires minimal assembly. Follow these steps to set up your fireplace:
- Carefully remove all components from the packaging.
- Place the main body of the fireplace upside down on a soft, non-abrasive surface to prevent scratching.
- Attach the four provided legs to the designated mounting points on the bottom of the fireplace using the included screws. Ensure they are securely fastened.
- Carefully turn the fireplace upright and place it in your desired location. Ensure it is on a stable, level surface and away from any obstructions.
- Plug the power cord into a standard 120V AC outlet.

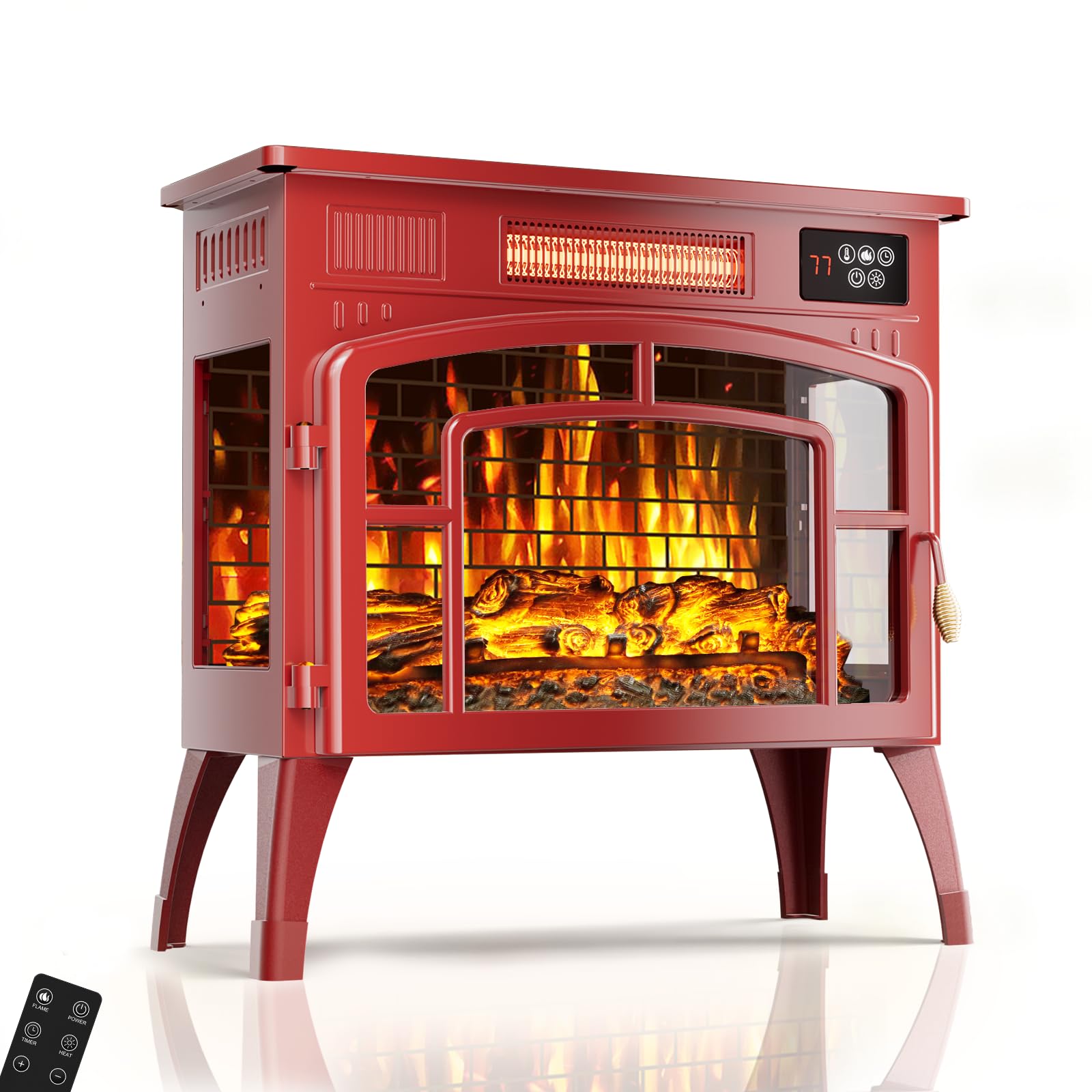

Image: Product dimensions for placement reference.
4. Operating Instructions
Your electric fireplace can be operated using the control panel on the unit or the included remote control.
4.1 Power On/Off
- Press the Power button on the control panel or remote control to turn the unit ON or OFF.
4.2 Heat Settings
The fireplace features dual power outputs (750W/1500W) and an adjustable thermostat.
- Press the Heat button on the remote or control panel to cycle between 750W and 1500W heating modes.
- Use the Temperature Up/Down buttons on the remote to set your desired room temperature between 59°F and 95°F. The unit will automatically maintain this temperature.
- The fireplace can heat areas up to 600 square feet.
Image: The fireplace providing warmth to a room, illustrating its heating capabilities.
4.3 Flame Effects
Enjoy realistic 3D flame effects with customizable colors and speed.
- Press the Flame Color button on the remote or control panel to cycle through five lifelike flame colors and multiple wood tones.
- Press the Flame Speed button to adjust the speed of the dancing flames.
- The flame effect can be operated independently of the heat function, allowing you to enjoy the ambiance year-round.
Image: Close-up of the realistic 3D flame effect with various color options.
4.4 Timer Function
- Press the Timer button on the remote control to set an automatic shut-off time for the fireplace. The timer can be set for up to 12 hours.
4.5 Remote Control & Touch Panel
Both the remote control and the touch panel on the unit provide full control over all functions.

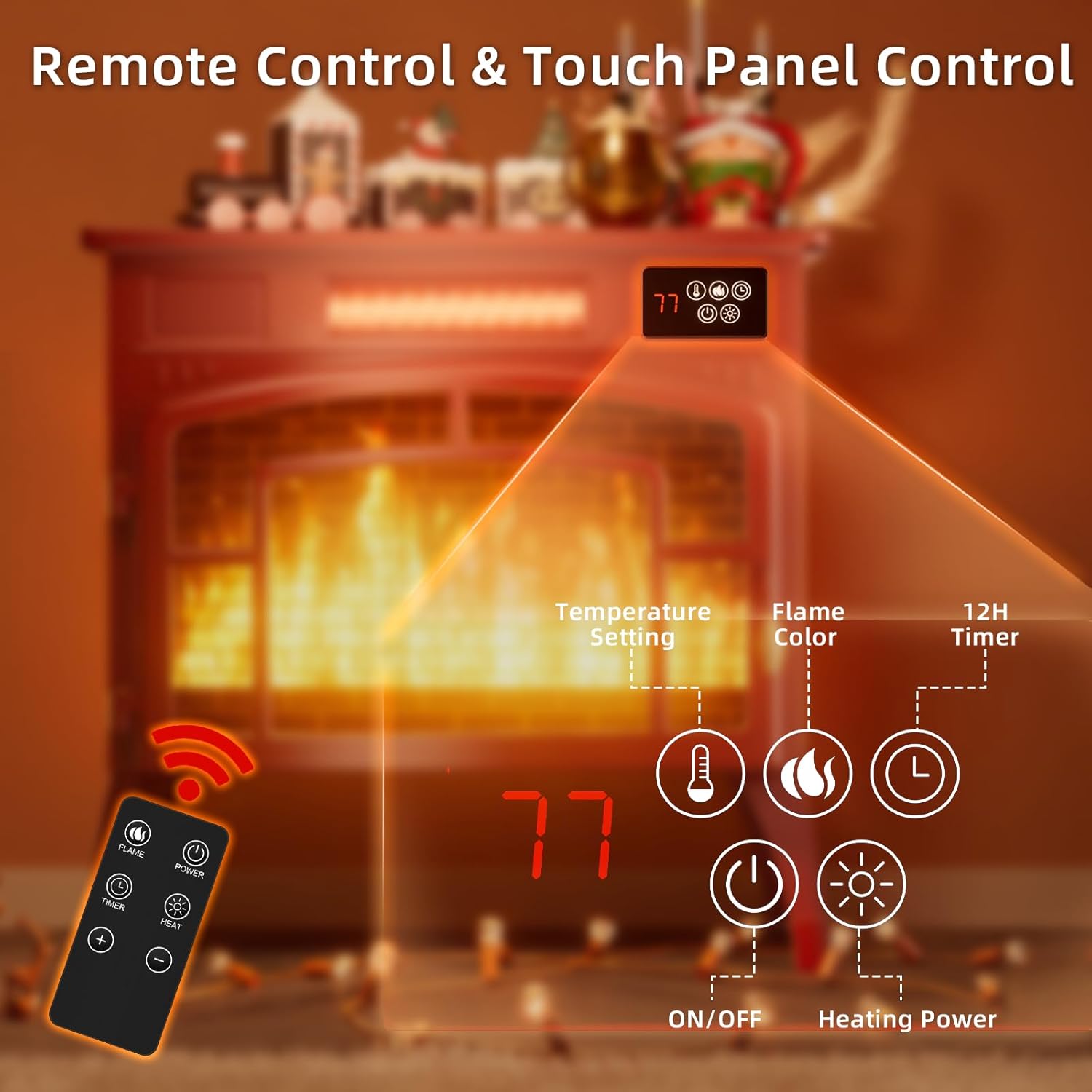

Image: Overview of the remote control and touch panel functions.
4.6 Quiet Operation
The fireplace operates at a low noise level, ensuring a peaceful environment.
Image: The fireplace operating quietly in a bedroom setting.
4.7 Product Video
Video: A demonstration of the Electric Fireplace Stove with Remote, showcasing its features and operation.
5. Maintenance
To ensure long-lasting performance and safety, regular maintenance is recommended.
- Cleaning: Always unplug the unit before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or sprays.
- Ventilation: Ensure the air intake and outlet vents are clear of dust and debris. Periodically vacuum the vents to maintain proper airflow.
- Storage: If storing the fireplace for an extended period, unplug it and store it in a cool, dry place.
6. Troubleshooting
If you experience issues with your fireplace, refer to the following common problems and solutions:
- No Power: Check if the power cord is securely plugged into a working outlet. Ensure the unit's power switch is in the 'ON' position.
- No Heat: Verify that the heat function is activated. Check the thermostat setting; if the room temperature is above the set temperature, the heater will not activate.
- Flames Not Working: Ensure the flame effect is turned on. If the unit has been recently moved or bumped, check for any loose connections.
- Unit Shuts Off Automatically: This is likely due to the overheat protection feature. Unplug the unit, allow it to cool down for 10-15 minutes, and ensure vents are not blocked before restarting.
If problems persist, contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Eueiriup |
| Model Name | YH-15-2 |
| Power Source | Corded Electric |
| Product Dimensions | 10.04"D x 22.83"W x 22.44"H |
| Material | Stainless Steel |
| Installation Type | Freestanding |
| Heat Output | 1500 Watts |
| Special Feature | Adjustable Thermostat |
| Style | Farmhouse |
| Color | Red |
| Heating Coverage | 600 sq ft |
| Included Components | Legs |
| Specific Uses For Product | Indoor |
| Manufacturer | Eueiriup |
8. Warranty and Support
8.1 Warranty Information
This Eueiriup Electric Fireplace Stove comes with a Limited Warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. Keep your proof of purchase for warranty claims.
8.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Eueiriup customer support. Contact details can typically be found on the product packaging or the official Eueiriup website.
