HIOS BL-7000 Electric Torque Screwdriver Instruction Manual

1. Introduction

The HIOS BL-7000 Electric Torque Screwdriver is an advanced inline tool designed for precision fastening in assembly environments. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your BL-7000 screwdriver. It features a brushless motor for extended service life, an auto shut-off clutch for consistent torque application, and an anti-static body suitable for sensitive electronic components.

2. Safety Information

Read and understand all safety instructions before operating the tool. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces (e.g., pipes, radiators, ranges, refrigerators). Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Personal Safety: Always wear appropriate personal protective equipment, including eye protection. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

3. Package Contents

Verify that all items are present upon unpacking:

• HIOS BL-7000 Electric Torque Screwdriver
• Power Supply Unit

4. Product Features

• Brushless Motor: Provides high performance, reduced maintenance, eliminates carbon dust, and extends tool service life.
• Auto Shut-off Clutch: Automatically stops the tool when the preset torque is reached, ensuring consistent fastening.
• Durable Construction: Features metal gears and magnetic switches for enhanced wear resistance and low maintenance.
• Anti-static Body Case: Suitable for precision electronics and static-sensitive environments.
• Flexible Activation: Equipped with both lever-start and push-to-start activation options.
• Wide Torque Range: Adjustable torque from 6.2 to 24.8 lbf.in (0.7 to 2.8 n.m).
• Dual Speed Settings: Operates at 960 RPM (High) and 630 RPM (Low).
• 1/4" Hex Drive: Compatible with standard 1/4-inch hex screwdriver bits.

5. Setup

5.1 Unpacking and Inspection

Carefully remove the screwdriver and power supply from the packaging. Inspect for any signs of damage during transit. If any damage is found, do not use the tool and contact customer support.

5.2 Connecting the Power Supply

Connect the power supply unit to a suitable electrical outlet. Then, connect the power supply cable to the HIOS BL-7000 screwdriver's power input port. Ensure a secure connection.

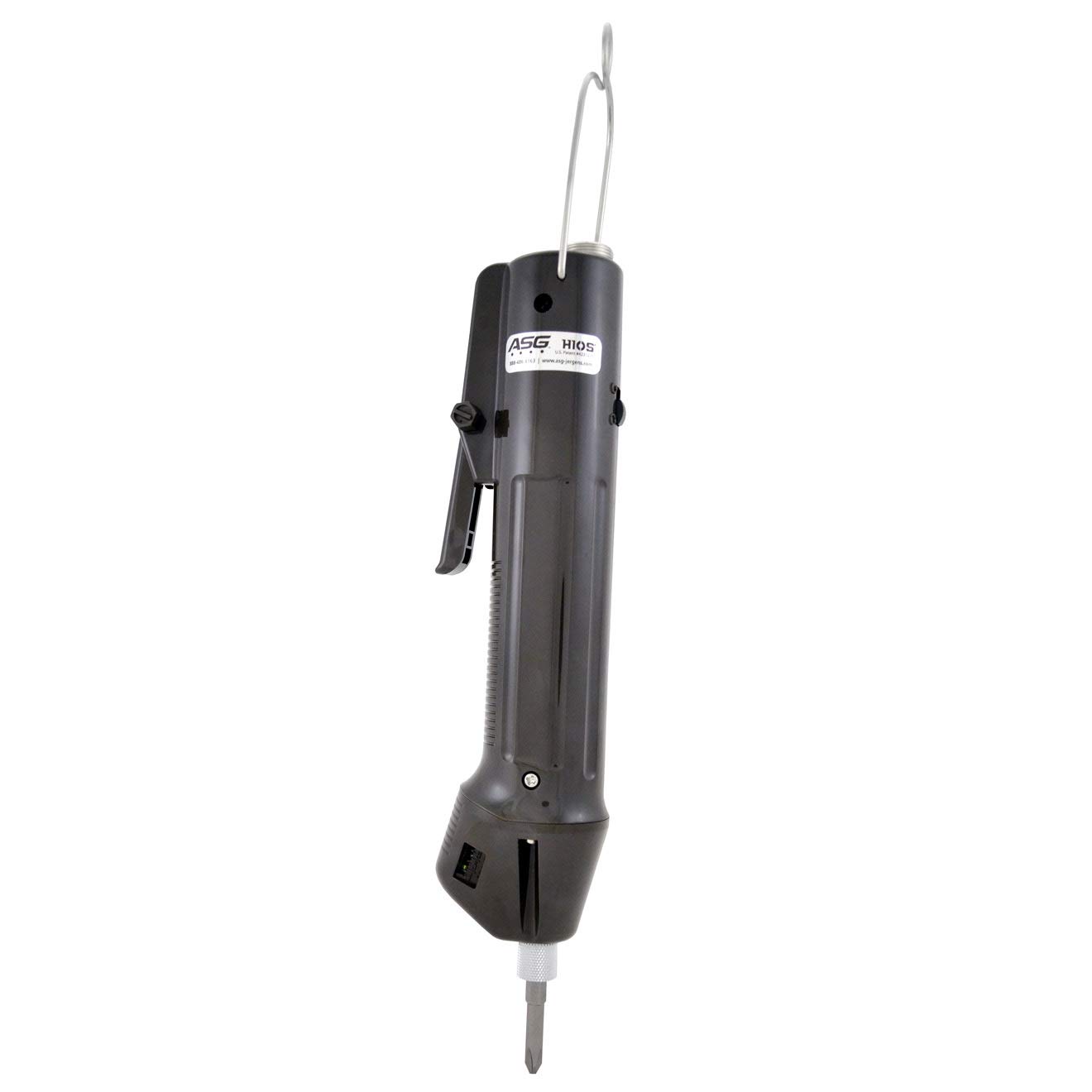

Image: The HIOS BL-7000 Electric Torque Screwdriver shown with its power cable connected, ready for operation.

5.3 Inserting Screwdriver Bits

The BL-7000 uses a 1/4-inch hex drive. To insert a bit, pull back the collar on the screwdriver head, insert the hex bit fully, and then release the collar to lock the bit in place. Ensure the bit is securely seated before operation.

Image: The HIOS BL-7000 Electric Torque Screwdriver with a standard 1/4-inch hex bit inserted into its chuck.

5.4 Torque Adjustment

The BL-7000 features a preset torque range. While the tool is designed for consistent torque, specific adjustment mechanisms are typically located on the tool body or require a separate torque setting device. Refer to the markings on your specific tool for fine-tuning the torque within the specified range of 6.2 to 24.8 lbf.in (0.7 to 2.8 n.m).

6. Operating Instructions

6.1 Powering On/Off

Once connected to the power supply, the tool is ready for operation. There is no separate on/off switch; the tool activates upon trigger pull or push-to-start engagement.

6.2 Selecting Activation Mode

The BL-7000 supports two activation methods:

• Lever-Start: Squeeze the lever to activate the screwdriver.
• Push-to-Start: Apply pressure to the fastener with the screwdriver bit to activate the motor.

Select the mode most suitable for your application and comfort.

Image: The HIOS BL-7000 Electric Torque Screwdriver, highlighting the lever mechanism for activation.

6.3 Applying Torque

Position the screwdriver bit onto the fastener. Activate the tool using either the lever or push-to-start method. The tool will drive the fastener until the preset torque is reached, at which point the auto shut-off clutch will disengage the drive, preventing overtightening.

6.4 Speed Selection

The tool offers two speed settings: High (960 RPM) and Low (630 RPM). A switch or selector on the tool body allows you to choose the appropriate speed for the task. Use the higher speed for faster assembly and the lower speed for more controlled, delicate applications.

7. Maintenance

7.1 Cleaning

Regularly clean the exterior of the screwdriver with a soft, dry cloth. Do not use harsh chemicals or solvents. Ensure no dust or debris accumulates in the ventilation openings.

7.2 Inspection

Periodically inspect the power cord for damage. Check the drive chuck for wear and ensure bits are securely held. Due to the brushless motor and magnetic switches, internal maintenance requirements are minimal.

7.3 Storage

Store the screwdriver in a clean, dry environment, away from direct sunlight and extreme temperatures. Disconnect the power supply when not in use.

8. Troubleshooting

• Tool Not Powering On:
  - Check if the power supply is securely connected to both the tool and the electrical outlet.
  - Verify that the electrical outlet is functional.
• Inconsistent Torque:
  - Ensure the screwdriver bit is correctly seated and not worn.
  - Confirm the torque setting is appropriate for the fastener.
  - If the issue persists, professional calibration may be required.
• Unusual Noise or Vibration:
  - Stop operation immediately. Inspect the tool for any visible damage or loose components. If the issue cannot be identified, contact support.

9. Specifications

10. Warranty

The HIOS BL-7000 Electric Torque Screwdriver comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

11. Support

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact your authorized HIOS distributor or customer support. Please have your model number (BL-7000) and purchase information ready when contacting support.
