1. Introduction
The Hafele Aqua Noir Dishwasher is designed for efficient and hygienic cleaning of various utensils, including those commonly used in Indian kitchens. Its compact design allows for space-saving installation while accommodating a generous 13 place settings. Constructed from high-quality stainless steel, it offers durability and a premium aesthetic. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your dishwasher.

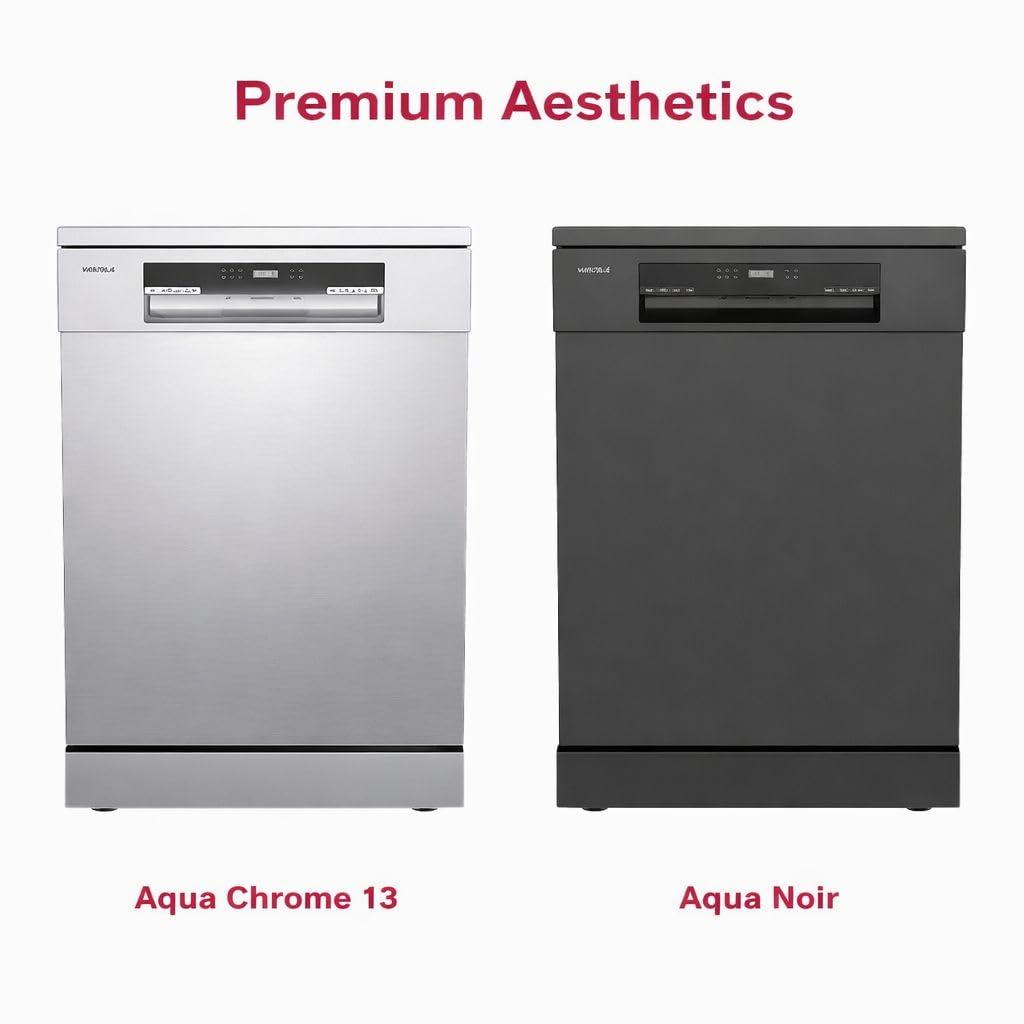

Image: Front view of the Hafele Aqua Noir Dishwasher, showcasing its sleek black finish and compact design.
2. Safety Information
Please read all safety instructions carefully before operating the appliance. Retain this manual for future reference.
- Ensure the dishwasher is properly grounded to prevent electrical shock.
- Do not operate the dishwasher if the power cord is damaged. Contact qualified service personnel.
- Keep children away from the dishwasher, especially when it is operating or when the door is open, as residual detergent may be present.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Do not touch the heating element during or immediately after operation.
- Sharp items should be loaded with their handles up to reduce the risk of injury.
- Do not store or use flammable materials near the dishwasher.
3. Setup and Installation
The Hafele Aqua Noir Dishwasher is designed for freestanding convenience, allowing flexible placement near a water inlet and drain. No built-in installation is required.
3.1 Unpacking
Carefully remove all packaging materials. Inspect the dishwasher for any damage incurred during transit. Report any damage to your retailer immediately.
3.2 Included Components
The following items are included with your dishwasher:
- Cutlery Basket
- Dispenser
- User Manual (this document)
3.3 Placement and Connections
Position the dishwasher on a level surface. Ensure adequate space for opening the door and for water and electrical connections. Connect the water inlet hose to a cold water supply and the drain hose to a suitable drain. Plug the power cord into a grounded electrical outlet.

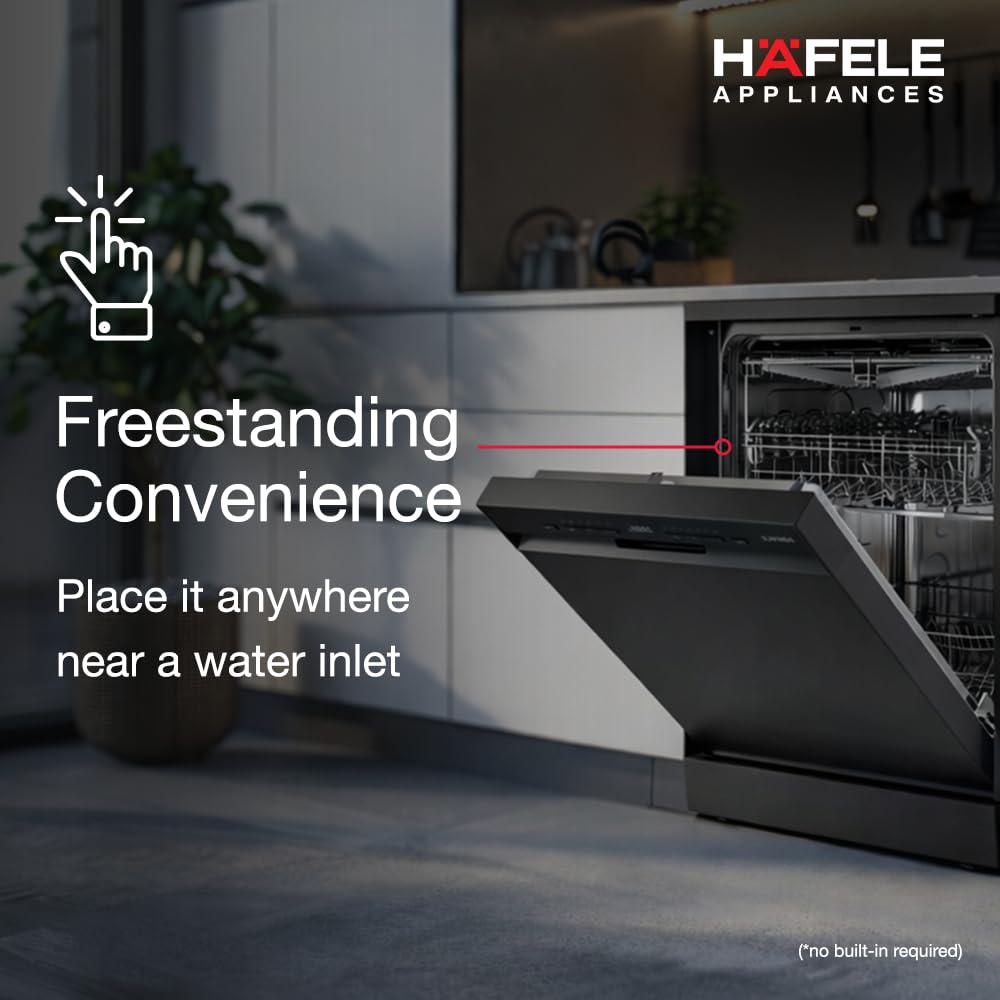

Image: The Hafele Aqua Noir Dishwasher positioned in a kitchen, illustrating its freestanding design and ease of placement.
4. Operating Instructions
Familiarize yourself with the control panel and various wash programs to optimize your dishwashing experience.
4.1 Loading the Dishwasher
The dishwasher features 13 place settings and Flexi-Racks that can be adjusted to accommodate various sizes of utensils, including Indian kadhais, pans, and glassware. Ensure dishes are loaded to allow water to reach all surfaces.
Image: Interior view of the dishwasher demonstrating its 13 place setting capacity, suitable for medium to large families.
Image: A user loading oily kadhais and heavy cookware into the dishwasher, highlighting its suitability for Indian cooking.
4.2 Adding Detergent and Rinse Aid
Fill the detergent dispenser with the appropriate amount of dishwasher detergent. Check the rinse aid indicator and refill as necessary to ensure streak-free drying.
4.3 Wash Programmes
The dishwasher offers 6 tailored wash programmes:
- ECO: Energy-efficient program for normally soiled dishes.
- Glass: Gentle wash for delicate glassware.
- 60 Min: Quick wash for lightly soiled items.
- Intensive: Powerful wash at 65°C for heavily soiled pots, pans, and kadhais with dried food residue.
- Universal: Standard program for everyday dishes.
- Whisper: Operates with reduced noise by adjusting water pressure, ideal for night-time use.
Image: Close-up of the dishwasher's control panel, displaying the 6 wash programmes and digital display.
4.4 Advanced Functions
- Pre-Wash: Runs at the start of every wash program, eliminating the need for manual rinsing.
- Extra Dry: Extends the drying cycle for thoroughly dried utensils.
- Express Wash: Reduces program time for lightly soiled utensils, saving energy and water.
- 24-hour Delay Timer: Allows you to set the wash cycle to start at a later time.
- Smart Wash System: Optimizes water and energy usage for smaller loads without compromising cleaning performance.
- Quick Wash Programme: Cleans normally soiled utensils in 1 hour, combining pre-wash, wash, rinse, and dry cycles.
4.5 Child Lock
Activate the child lock function to disable the control panel, preventing accidental changes to settings during operation.

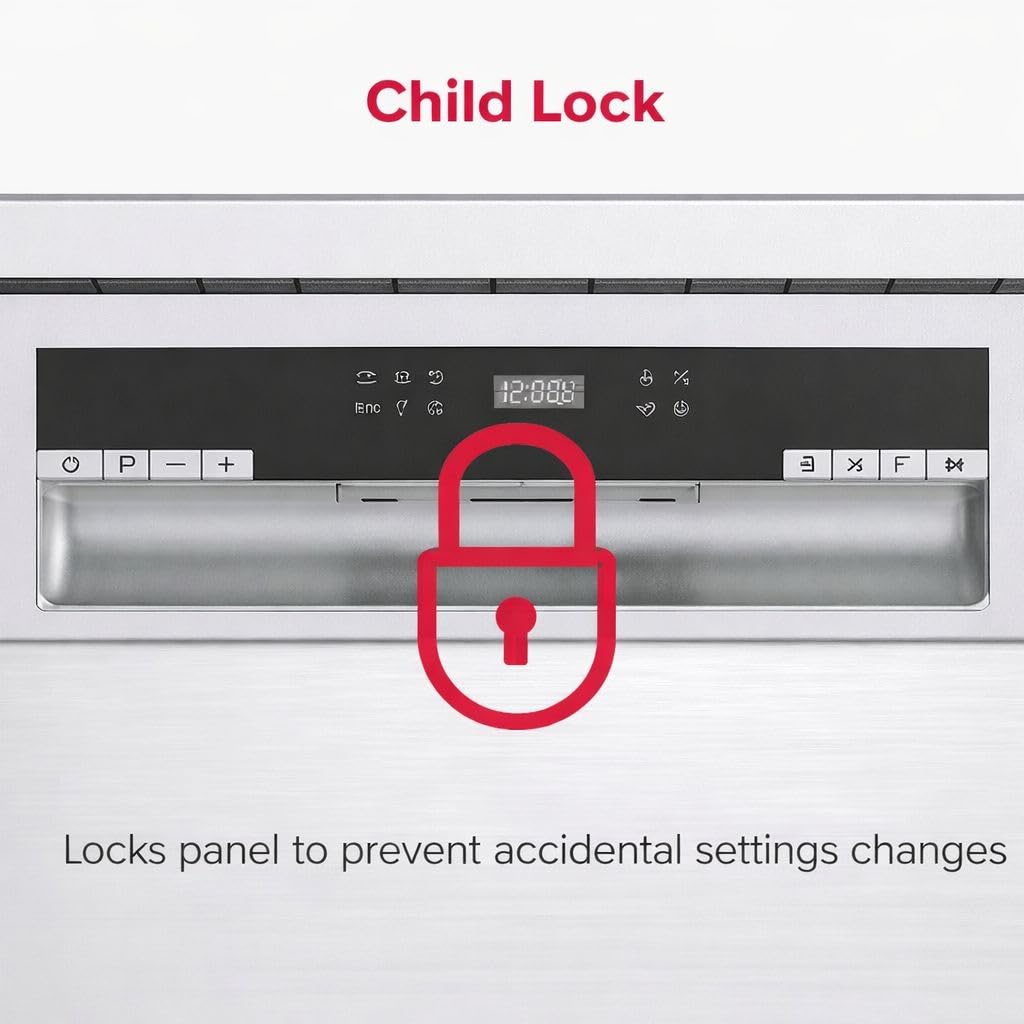

Image: The control panel displaying the child lock feature, indicating that the panel is locked to prevent unintended operation.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
5.1 Cleaning the Filters
The dishwasher is equipped with an advanced filtration system that traps food particles. Regularly clean the filters to prevent blockages and ensure effective washing. Refer to the detailed instructions in the included user manual for filter removal and cleaning procedures.
5.2 Cleaning the Interior and Exterior
Wipe the interior of the dishwasher with a damp cloth after each use to remove any food residue. Clean the exterior surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners that may damage the matte finish.
5.3 Spray Arms
Periodically check the spray arm nozzles for blockages. If necessary, remove the spray arms and clean the nozzles under running water.
6. Troubleshooting
Before contacting customer service, refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power cord not plugged in; Door not closed properly; Child lock activated | Ensure power cord is secure; Close door firmly; Deactivate child lock |
| Dishes not clean | Improper loading; Clogged spray arms; Insufficient detergent; Clogged filters | Reload dishes correctly; Clean spray arms; Add more detergent; Clean filters |
| Water not draining | Clogged drain hose; Clogged filter | Check and clear drain hose; Clean filters |
| Excessive noise | Dishes interfering with spray arms; Foreign object in pump | Rearrange dishes; Inspect and remove foreign objects |
| White film on dishes | Hard water; Insufficient rinse aid | Use a water softener; Refill rinse aid dispenser |
7. Technical Specifications
| Feature | Specification |
|---|---|
| Model | 539.20.670 |
| Colour | Black |
| Controls Type | Push Button |
| Material | Stainless Steel |
| Noise Level | 49 Decibels |
| Finish Type | Matte |
| Item Weight | 45 Kilograms |
| Voltage | 220 Volts (AC) |
| Style | Free-Standing Dishwashers |
| Energy Consumption | 1760 Watts |
| Annual Energy Consumption | 262 Kilowatts |
| Special Features | Childproof Lock, Extra-Drying Function, Quick Wash |
| Product Dimensions (LxWxH) | 117.5 x 59.8 x 84.5 Centimeters |
| Capacity | 13 Place Settings |
| Country of Origin | India |
8. Warranty and Support
For warranty information and customer support, please contact Hafele India Private Limited directly.
8.1 Manufacturer Contact Information
- Manufacturer: Hafele India Private Limited
- Toll Free Customer Care No.: 1800 266 6667
- Customer Care WhatsApp No.: +91 97691 11122
- Email (Information): info@hafeleindia.com
- Email (Customer Care): customercare@hafeleindia.com
Please have your model number (539.20.670) and purchase details ready when contacting support.
