ZAFRO 50L Compact Chest Freezer User Manual

1. Introduction

Thank you for purchasing the ZAFRO 50L Compact Chest Freezer. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions thoroughly before use and retain them for future reference.

2. Safety Information

To reduce the risk of fire, electric shock, or injury when using your freezer, follow these basic precautions:

• Ensure the freezer is connected to a properly grounded power outlet.
• Do not use extension cords or ungrounded adapters.
• Unplug the freezer before cleaning or performing any maintenance.
• Keep ventilation openings clear of obstructions.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not damage the refrigerant circuit.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

3. Product Overview

The ZAFRO 50L Compact Chest Freezer is designed for efficient and quiet freezing, suitable for various small spaces.

Key Features:

• Rapid Freezing Performance: Equipped with a powerful cooling system for quick and uniform freezing, preserving food freshness.
• 7-Stage Temperature Control: A rear-mounted dial allows precise temperature adjustment from '1' (warmest) to '7' (coldest), with a range of approximately -14°C to -22°C.
• Energy Saving & Low Noise Design: Features a high-efficiency R600a compressor, ensuring powerful cooling with low energy consumption and quiet operation (below 40dB).

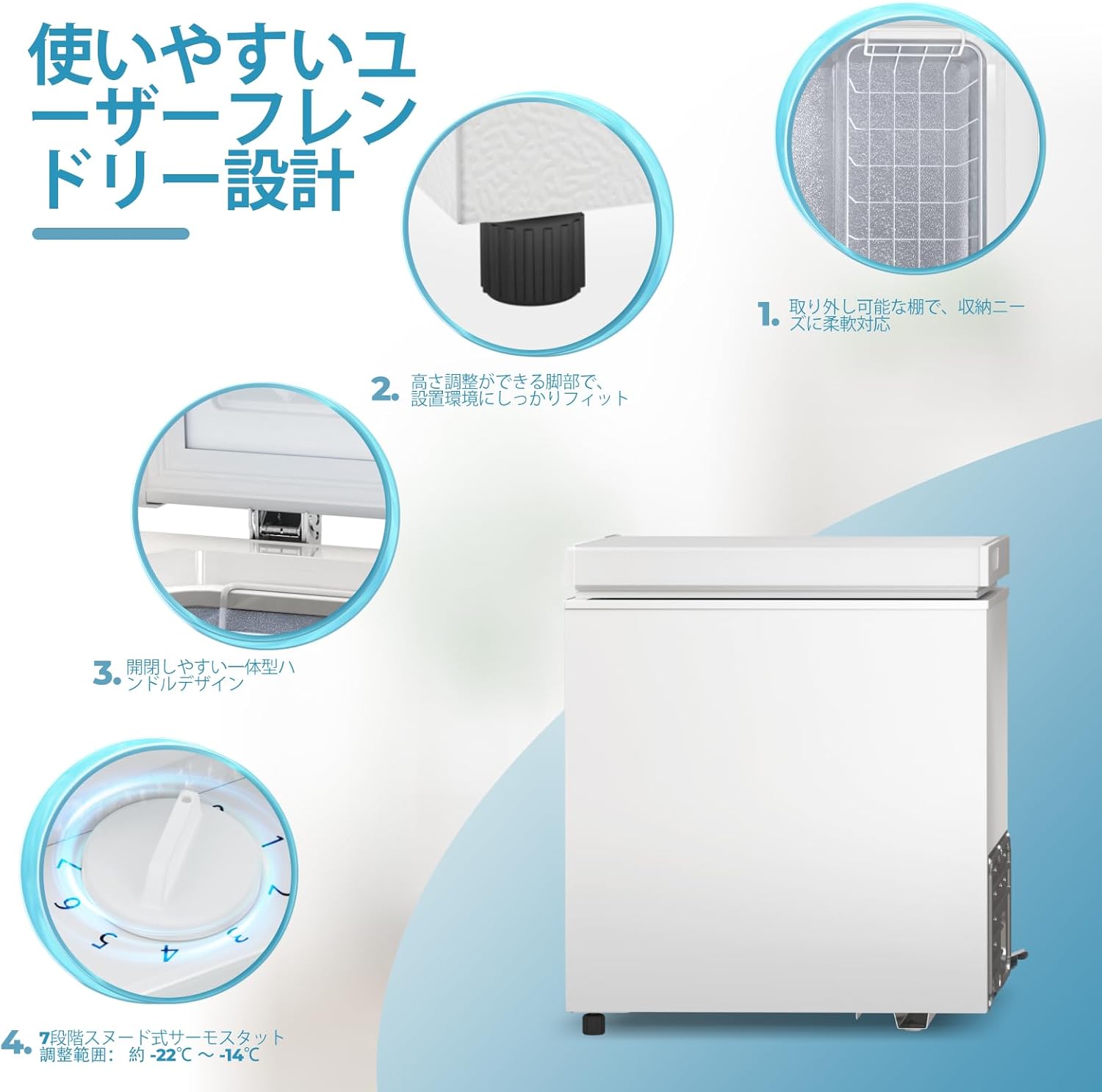

• User-Friendly Design: Includes removable shelves for flexible storage, manual defrosting for easy cleaning, a reversible door, and adjustable feet for stable placement.

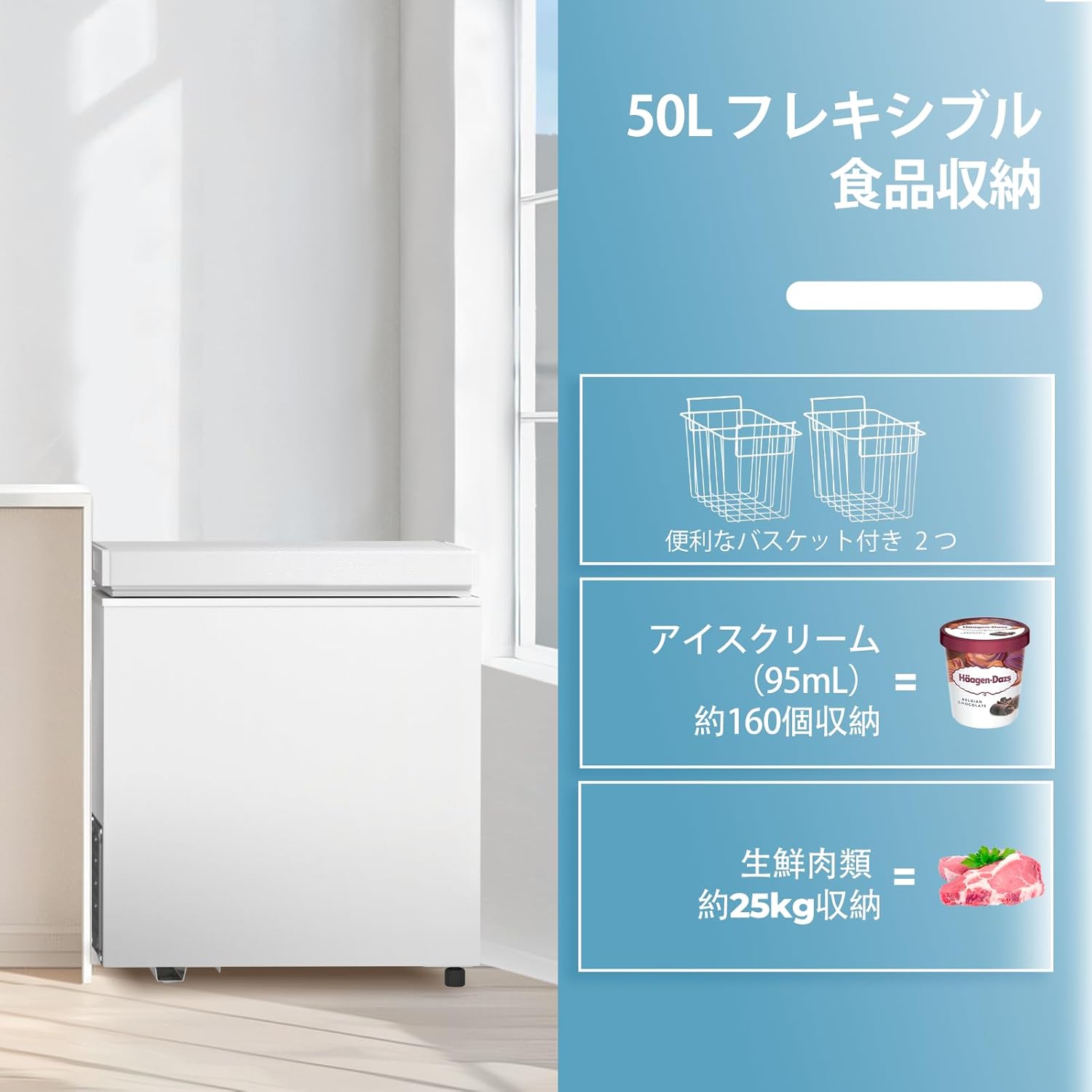

• Two Storage Baskets: Comes with two removable storage baskets for organized storage of smaller items, making access convenient.

Components:

• Freezer Unit
• Removable Storage Baskets (x2)
• Power Cord
• Instruction Manual

4. Setup

4.1 Unpacking

1. Remove all packaging materials, including foam and adhesive tape.
2. Inspect the freezer for any damage during transit. If damage is found, do not operate the appliance and contact customer support.

4.2 Placement

• Place the freezer on a firm, level surface to prevent vibrations and noise.
• Ensure adequate ventilation around the freezer. Leave at least 10 cm (4 inches) of space on the sides and back, and 20 cm (8 inches) on top for proper air circulation.
• Avoid placing the freezer in direct sunlight or near heat sources (e.g., stoves, heaters).
• The adjustable feet can be used to level the appliance if the floor is uneven.

4.3 Initial Cleaning

Before first use, clean the interior and exterior of the freezer with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.

4.4 Power Connection

• Allow the freezer to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
• Plug the freezer into a dedicated 100V, 50/60Hz grounded electrical outlet.

4.5 Initial Operation

After plugging in, set the temperature control to a medium setting (e.g., '4'). Allow the freezer to run empty for 2-3 hours to reach its operating temperature before loading food.

5. Operating Instructions

5.1 Temperature Control

The temperature inside the freezer is controlled by a dial located on the rear of the unit. The dial has settings from '1' to '7'.

• Setting '1': Warmest temperature.
• Setting '7': Coldest temperature (approximately -22°C).

Adjust the dial to your desired freezing temperature based on the ambient conditions and the amount of food stored. A setting of '4' or '5' is generally suitable for most uses.

5.2 Loading Food

• Do not overload the freezer. Allow space for air circulation around items.
• Use the provided storage baskets for smaller items to keep them organized and easily accessible.
• Ensure all food items are properly sealed to prevent freezer burn and odor transfer.

6. Maintenance

6.1 Defrosting

This freezer requires manual defrosting. Frost buildup can reduce cooling efficiency and storage capacity. Defrost when the frost layer is about 0.5 cm (0.2 inches) thick.

1. Unplug the freezer from the power outlet.
2. Remove all food items and store them in another freezer or cooler.
3. Open the freezer lid and place towels around the base to catch melting ice.
4. Locate the drainage port inside the freezer and remove the plug. Place a shallow pan or tray beneath the external drainage outlet to collect water.
5. Allow the ice to melt naturally. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the freezer.
6. Once defrosted, clean the interior, dry thoroughly, replace the drainage plug, and plug the freezer back in.

6.2 Cleaning

• Interior: Clean with a solution of mild detergent and warm water. Avoid abrasive cleaners or solvents.
• Exterior: Wipe with a soft cloth dampened with water and a mild detergent.
• Door Gasket: Clean the door gasket regularly to ensure a tight seal.

7. Troubleshooting

Before contacting customer support, please check the following common issues:

8. Specifications

9. Warranty and Support

9.1 Warranty Information

This ZAFRO freezer comes with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.

9.2 Customer Support

For technical assistance, warranty claims, or any questions regarding your ZAFRO 50L Compact Chest Freezer, please contact the seller, YITEN, or ZAFRO customer service. Please have your model number (JPD5850H) and purchase date available when contacting support.
