BLACK+DECKER 2-in-1 Iron and Steamer

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions before using this product.
• Use this appliance only for its intended use as described in this manual.
• To protect against a risk of electric shock, do not immerse the appliance in water or other liquids.
• Always turn the appliance OFF before plugging or unplugging from the electrical outlet.
• Never pull on the cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Do not allow the cord to touch hot surfaces. Let the appliance cool completely before putting away.
• Always disconnect the appliance from the electrical outlet when filling with water or emptying, and when not in use.
• Do not operate the appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use outdoors.
• Do not leave the appliance unattended while connected.
• Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam appliance upside down – there may be hot water in the reservoir.

Product Overview

The BLACK+DECKER HGS600-LA is a versatile 2-in-1 appliance designed for both steaming and ironing garments. It features a compact design with integrated storage for accessories.

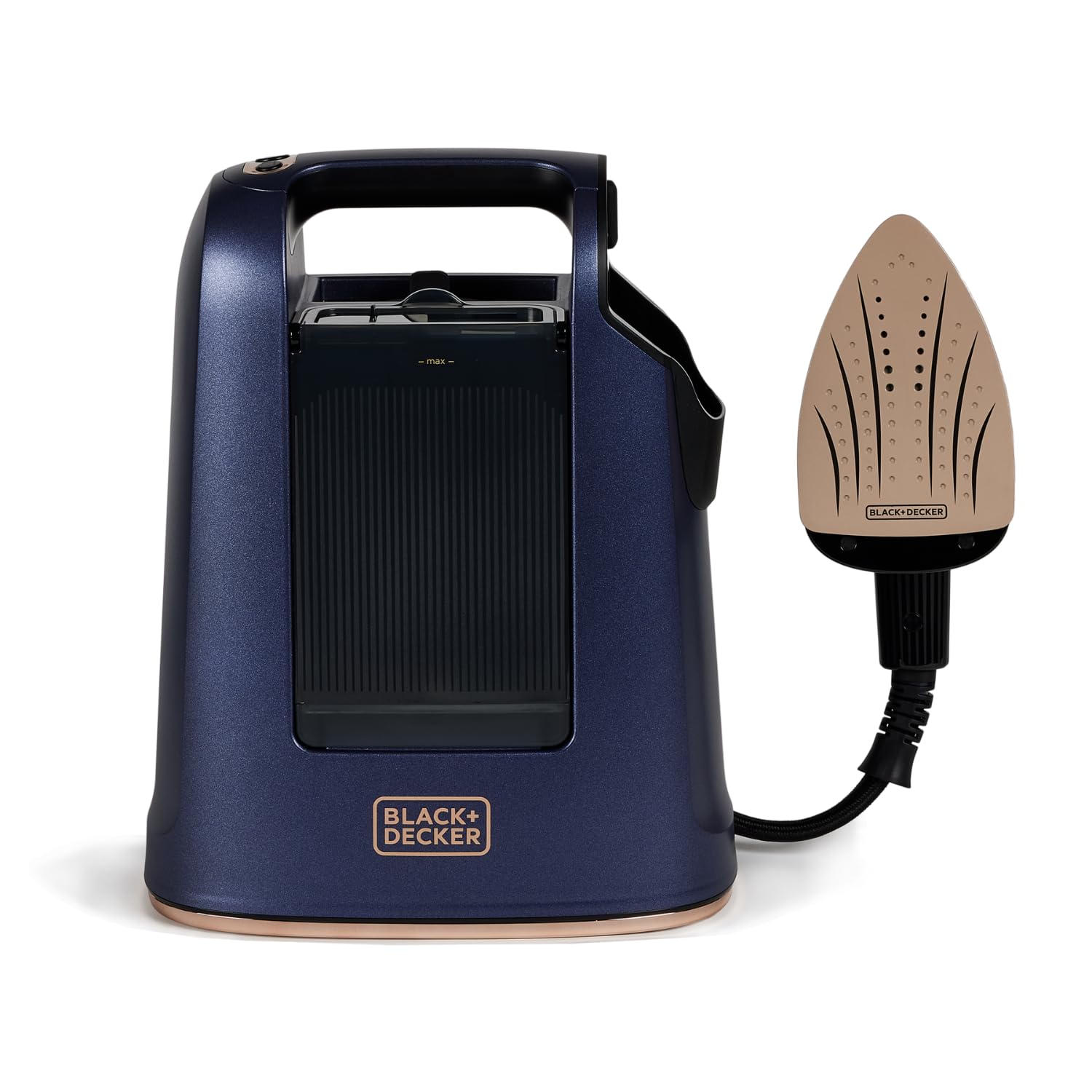

Image: Front view of the BLACK+DECKER HGS600-LA 2-in-1 Iron and Steamer unit.

Components:

• Main Unit: Houses the water tank and heating element.
• Steamer Head/Iron: Detachable unit for steaming and ironing.
• Water Tank: Removable 750 ml capacity tank.
• Power Cord: 1.8-meter cord for extended reach.
• Delicate Garment Accessories: Includes attachments for various fabric types.

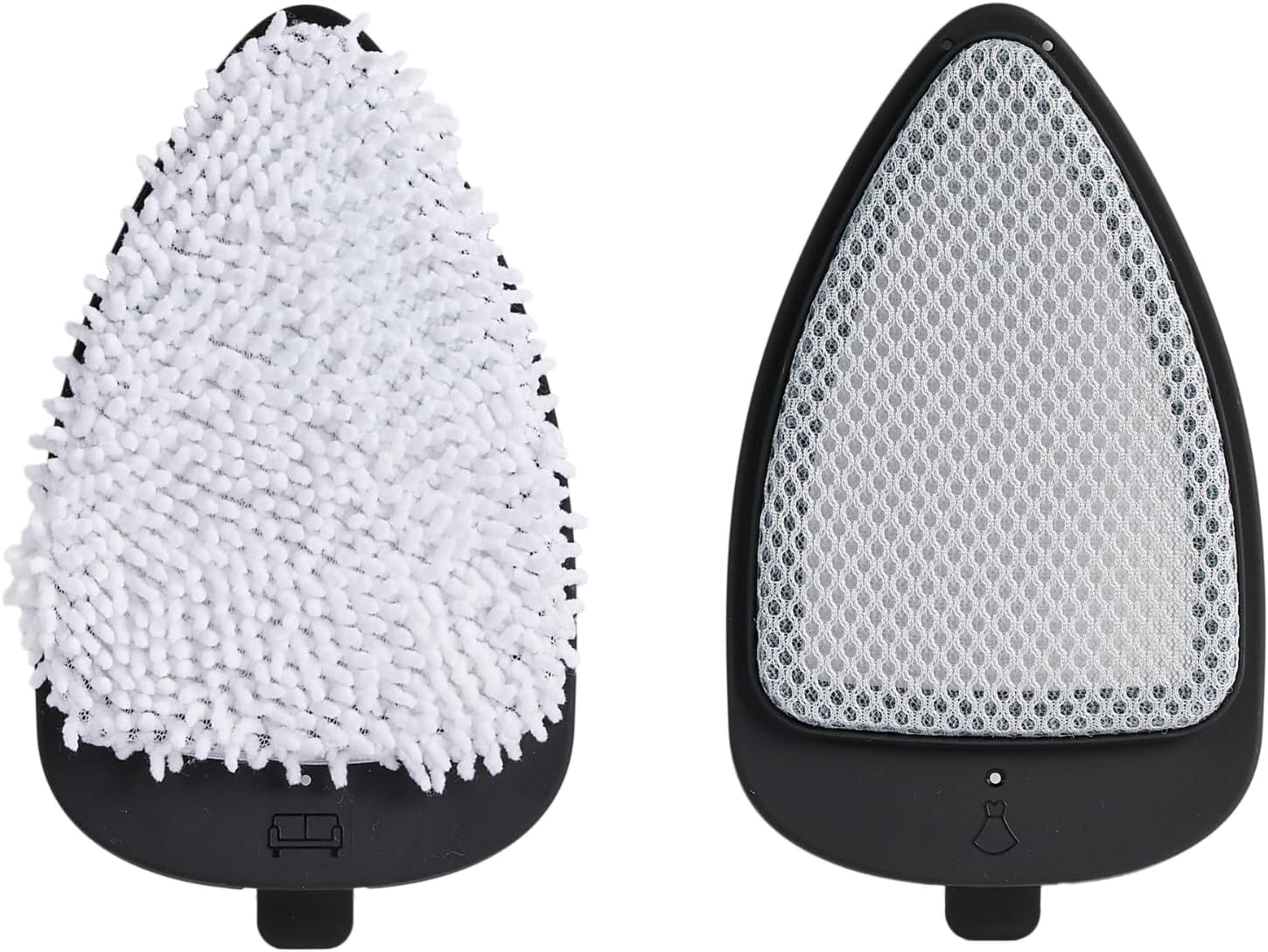

Image: Close-up of the delicate garment accessories included with the steamer.

Setup

1. Unpack: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
2. Placement: Place the main unit on a stable, heat-resistant surface. Ensure there is enough space around the unit for safe operation and steam release.
3. Fill Water Tank:
   • Remove the water tank from the main unit.
   • Open the water tank cap.
   • Fill the tank with distilled or demineralized water up to the 'MAX' fill line. Do not overfill.
   • Close the cap securely and reinsert the water tank into the main unit until it clicks into place.


   Image: A person pouring water into the removable water tank of the steamer.

4. Connect Power: Plug the power cord into a standard 120V electrical outlet.

Operating Instructions

General Operation:

1. Ensure the water tank is filled and the unit is plugged in.
2. Press the power button to turn on the appliance. The indicator light will illuminate.
3. Allow approximately 45 seconds for the unit to heat up. The indicator light may change or stop flashing when ready.

Steaming Garments:

1. Hang the garment on a hanger.
2. Hold the steamer head a few inches away from the fabric.
3. Press the steam trigger to release steam. Move the steamer head slowly over the fabric, from top to bottom.
4. For stubborn wrinkles, gently press the steamer head against the fabric while steaming.

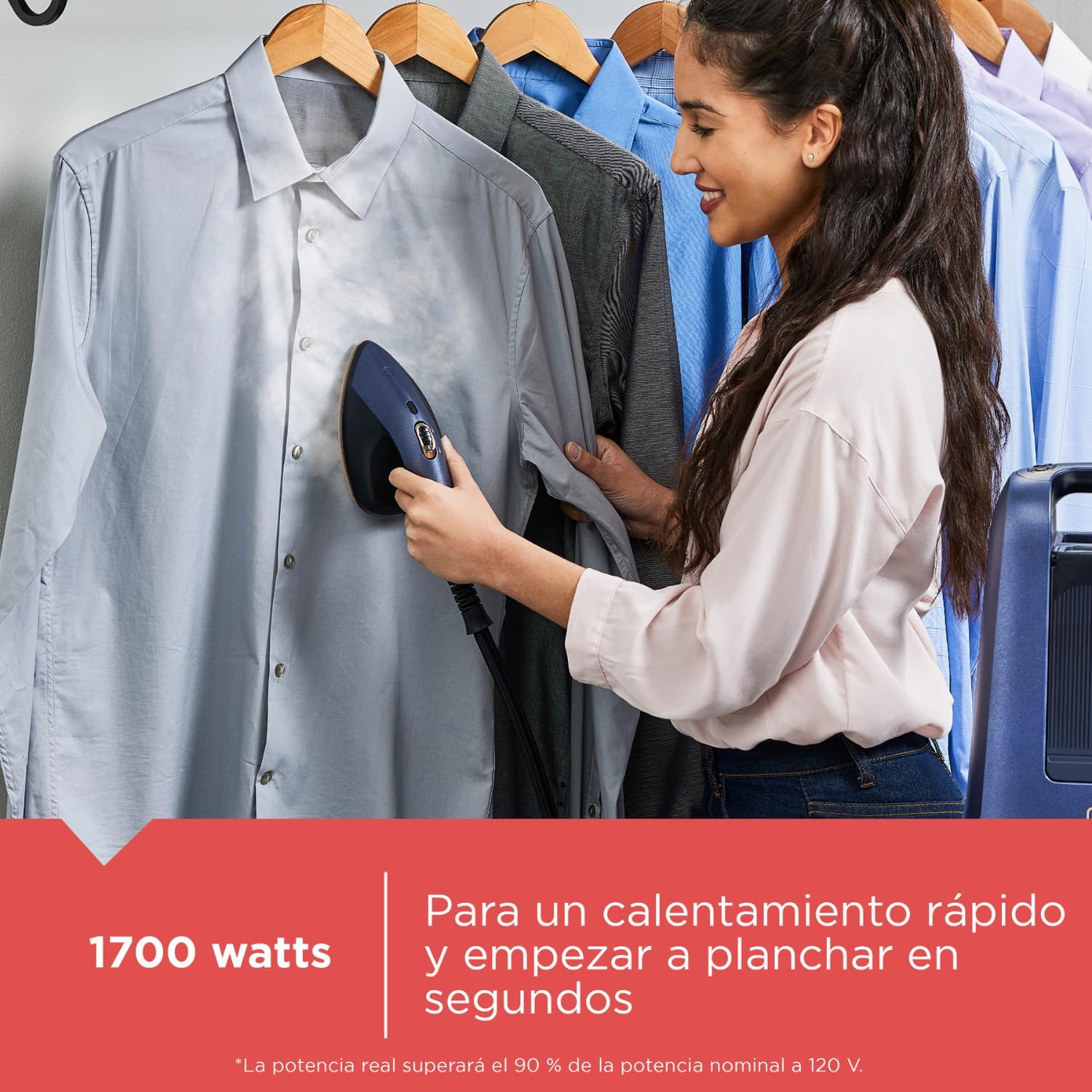

Image: A person using the handheld steamer to remove wrinkles from a hanging shirt.

Ironing Function:

1. Place the garment on an ironing board.
2. Ensure the steamer head is heated.
3. Gently press the soleplate of the steamer head onto the fabric and move it across the garment as you would with a traditional iron.
4. Use the steam trigger for bursts of steam as needed to smooth out wrinkles.

Image: A person using the steamer head as an iron on an ironing board.

Using Accessories:

The delicate garment accessories can be attached to the steamer head for use on specific fabric types or for upholstery and curtains.

• Fabric Brush: Use for heavier fabrics to help open weaves and allow steam to penetrate deeper.
• Delicate Fabric Attachment: Provides a protective layer for delicate materials, preventing direct contact with the hot soleplate.

Image: A person using the steamer to refresh upholstery on a chair.

Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the life of your appliance.

1. After Each Use:
   • Turn off and unplug the appliance.
   • Allow the unit to cool completely.
   • Remove the water tank and empty any remaining water.
   • Wipe the exterior of the unit and the steamer head with a soft, damp cloth.
2. Cleaning Accessories: The delicate garment accessories can be cleaned with mild soap and water. Ensure they are completely dry before storing.
3. Descaling (Monthly or as needed): If you notice reduced steam output or mineral buildup, descaling may be necessary.
   • Mix a solution of 50% white vinegar and 50% water.
   • Fill the water tank with this solution.
   • Run the steamer until half of the solution has been used.
   • Turn off and unplug the unit, allowing it to cool for 30 minutes.
   • Empty the remaining solution and rinse the tank thoroughly with fresh water.
   • Refill with fresh water and run the steamer until the tank is empty to flush out any remaining vinegar.

Storage

Proper storage helps protect your appliance.

1. Ensure the appliance is completely cool and dry.
2. Empty the water tank.
3. Wrap the power cord neatly around the designated cord storage area on the main unit.
4. Store accessories in their designated compartments within the main unit.
5. Store the appliance in a cool, dry place, away from direct sunlight and moisture.

Image: The main unit of the steamer showing integrated storage for the power cord and accessories.

Troubleshooting

Review the following common issues and solutions before contacting customer support.

Specifications

Warranty and Support

This BLACK+DECKER HGS600-LA 2-in-1 Iron and Steamer comes with a 1-year manufacturer's warranty from the date of purchase.

The warranty covers defects in material or workmanship under normal household use. It does not cover damage resulting from misuse, abuse, accident, alteration, lack of proper care, or normal wear and tear.

For warranty claims, technical assistance, or to order replacement parts, please refer to the contact information provided with your product packaging or visit the official BLACK+DECKER website for your region.
