Vacmaster CC0501 Ultra Silent Bagless Canister Vacuum Instruction Manual

1. Introduction

Thank you for choosing the Vacmaster CC0501 Ultra Silent Bagless Canister Vacuum. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and keep it for future reference.

2. Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

• Read all instructions before using this vacuum cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.

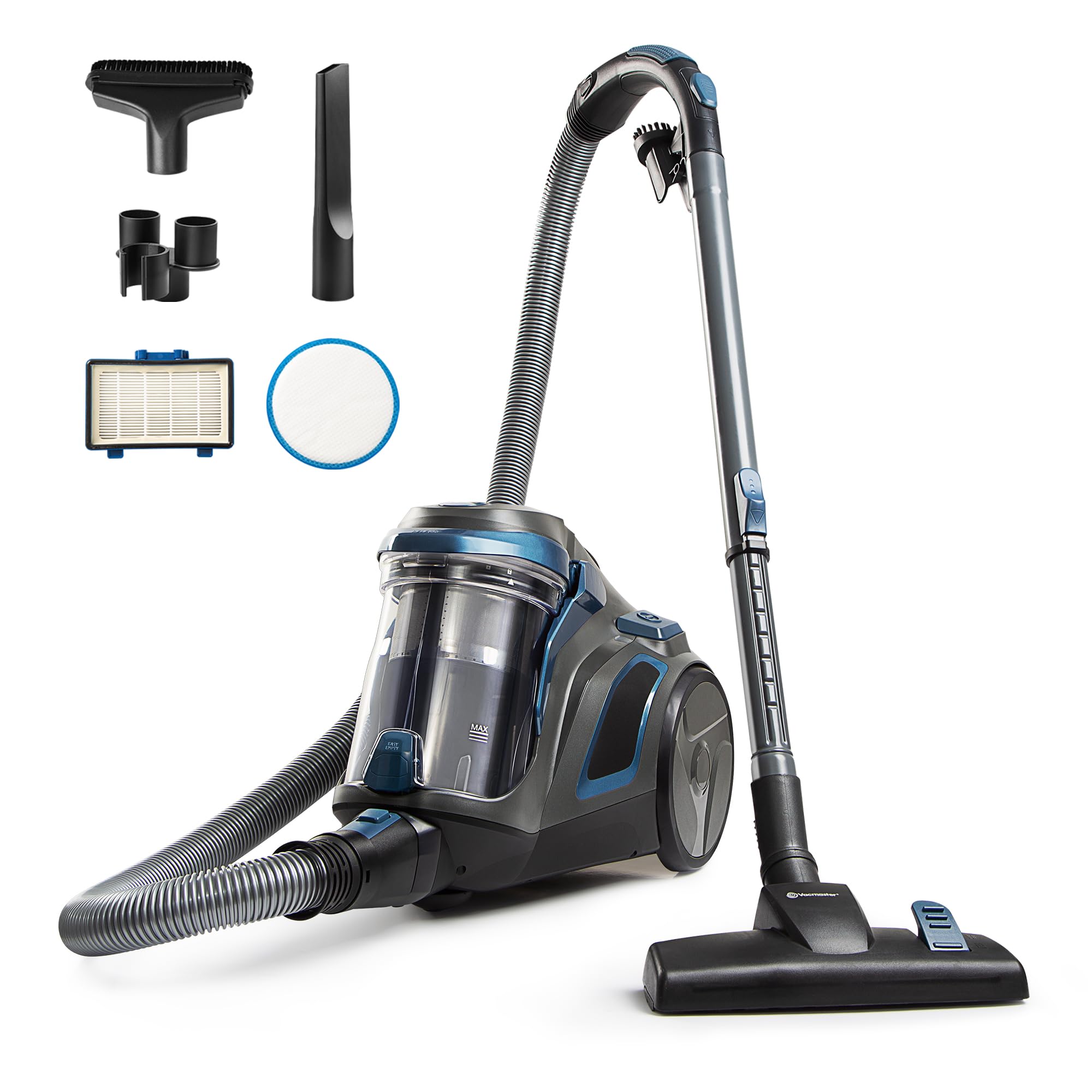

3. Product Overview and Components

The Vacmaster CC0501 is designed for efficient and quiet cleaning across various surfaces. Familiarize yourself with its key components:

Included Accessories:

• Floor Nozzle: For cleaning carpets and hard floors. Features a switch for different surface types.
• Telescopic Wand: Adjustable for user comfort and reaching high areas.
• Hose: Flexible hose connecting the wand to the main unit.
• Built-in Dust Tool: Integrated into the handle for quick access to clean delicate surfaces like blinds and screens.
• Crevice Tool: Ideal for tight spaces, corners, and between cushions.

4. Setup and Assembly

Follow these steps to assemble your Vacmaster CC0501 vacuum cleaner:

1. Attach the Hose: Insert the hose end into the suction inlet on the main canister unit until it clicks securely into place.
2. Connect the Telescopic Wand: Attach the telescopic wand to the handle end of the hose. Ensure it is firmly connected.
3. Attach the Floor Nozzle: Connect the floor nozzle to the end of the telescopic wand.
4. Adjust Wand Length: Press the height adjustment button on the telescopic wand to extend or retract it to a comfortable operating length.
5. Store Accessories: Place the crevice tool and dusting brush onto the accessory holder located on the telescopic wand for convenient access.

5. Operating Instructions

Powering On/Off:

• Plug the power cord into a suitable electrical outlet.
• Press the power button located on the main unit to turn the vacuum on or off.

Cleaning Different Surfaces:

• For Carpets and Rugs: Use the foot switch on the floor nozzle to engage the carpet setting. This typically lowers the brush for deeper cleaning.
• For Hard Floors: Use the foot switch on the floor nozzle to engage the hard floor setting. This usually retracts the brush to prevent scratching and optimize suction.
• Adjusting Suction: The handle features an airflow control slider. Adjust this to increase or decrease suction power as needed for different tasks or delicate surfaces.

Using Accessories:

• Crevice Tool: Detach the floor nozzle and attach the crevice tool to the end of the wand or directly to the hose handle for cleaning narrow gaps, corners, and upholstery seams.
• Dust Tool: Utilize the built-in dust tool on the handle for dusting furniture, blinds, and other delicate surfaces.

Retractable Power Cord:

To retract the 16-foot power cord, gently pull the cord slightly and then release it. The cord will automatically rewind into the unit.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.

Emptying the Dust Cup:

1. Ensure the vacuum is unplugged.
2. Press the dust cup release button and lift the dust cup from the main unit.
3. Position the dust cup over a trash receptacle.
4. Press the one-touch release button on the dust cup to open the bottom flap and empty the contents. The internal cleaning ring will help push out trapped debris.
5. Close the bottom flap securely and reattach the dust cup to the vacuum unit.

Filter Cleaning and Replacement:

The Vacmaster CC0501 features HEPA media filtration to capture 99.97% of dust as small as 0.3 microns. Regular cleaning of filters is crucial.

• Pre-Motor Filter: This filter is located inside the dust cup. Remove it and tap off loose dirt. It can be rinsed under cold water. Ensure it is completely dry before reinserting.
• HEPA Exhaust Filter: This filter is located at the rear of the main unit. Open the filter cover, remove the HEPA filter, and tap off loose dirt. This filter is also washable. Allow it to air dry completely before placing it back into the vacuum.
• Replace filters every 6-12 months, or more frequently with heavy use, to maintain optimal performance.

7. Specifications

8. Product Videos

9. Troubleshooting

If you encounter issues with your Vacmaster CC0501, refer to the following common problems and solutions:

• No Power: Check if the power cord is securely plugged into the outlet. Ensure the outlet is functional.
• Reduced Suction: Empty the dust cup if it's full. Check and clean all filters (pre-motor and HEPA exhaust). Inspect the hose, wand, and nozzles for any blockages.
• Unusual Noise: Turn off and unplug the vacuum. Check for any foreign objects caught in the brush roll or hose. Ensure all parts are correctly assembled.
• Dust Escaping: Ensure the dust cup is properly seated and locked. Check that all filters are correctly installed and not damaged.

For further assistance, please contact Vacmaster customer support.

10. Warranty and Customer Support

Your Vacmaster CC0501 Ultra Silent Bagless Canister Vacuum comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, replacement parts, or warranty claims, please visit the official Vacmaster website or contact their customer service department.
