Kitchen Elite 4-Slice Toaster Oven

1. Introduction

Thank you for choosing the Kitchen Elite 4-Slice Toaster Oven. This compact countertop appliance is designed for versatile cooking, including toasting, baking, broiling, and reheating. To ensure safe and optimal performance, please read this instruction manual thoroughly before first use and retain it for future reference.

The Kitchen Elite 4-Slice Toaster Oven offers a 4-slice capacity, heats up to 450°F, and features a compact design suitable for various kitchen spaces.

2. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the toaster oven.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plug, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "OFF", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the toaster oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and similar products.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
• Extreme caution must be exercised when removing tray or disposing of hot grease.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.

3. Parts and Features

Familiarize yourself with the components of your Kitchen Elite 4-Slice Toaster Oven:

• Oven Housing: The main body of the toaster oven, made of sleek stainless steel.
• Glass Door: Clear glass door for easy viewing of cooking progress.
• Cool-Touch Handle: Designed for safe opening and closing of the oven door.
• Temperature Control Knob: Adjusts temperature from 200°F to 450°F.
• Timer Knob: Sets cooking time with an automatic shut-off feature.
• Power Indicator Light: Illuminates when the oven is operating.
• Wire Rack: Used for toasting bread, bagels, and other items.
• Bake Tray: Ideal for baking smaller items, reheating, or catching drips.
• Slide-Out Crumb Tray: Located at the bottom for easy cleaning of crumbs.

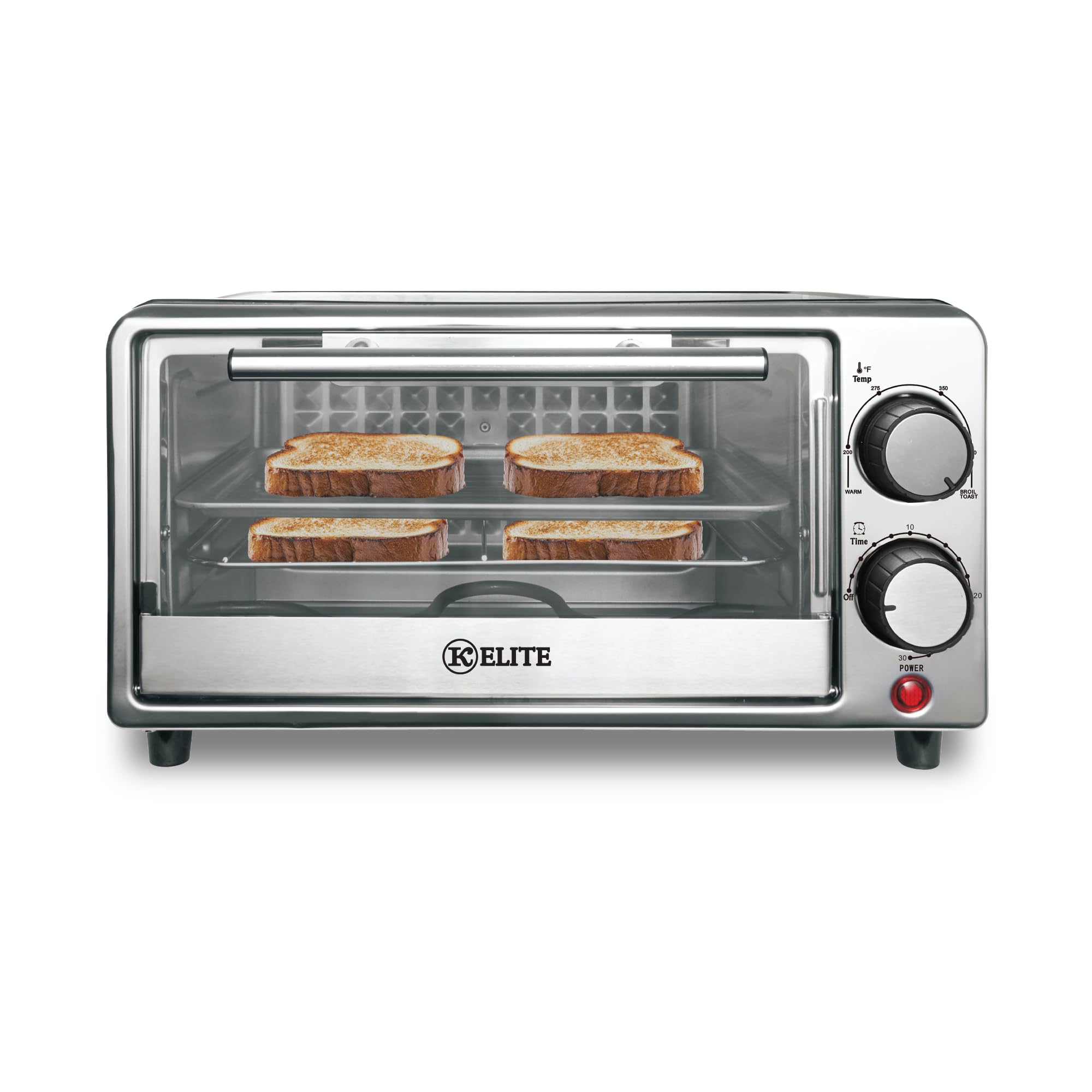

The toaster oven includes a removable wire rack and a bake tray for versatile cooking options.

4. Setup and First Use

Unpacking and Placement:

1. Remove all packaging materials, stickers, and any promotional labels from the toaster oven.
2. Place the toaster oven on a stable, level, heat-resistant surface. Ensure there is at least 4 inches (10 cm) of clearance on all sides and above the appliance for proper ventilation.
3. Do not place the appliance directly under cabinets or near flammable materials.

Ensure adequate clearance around the toaster oven when placing it on a countertop.

Before First Use:

1. Wash the wire rack, bake tray, and crumb tray in warm, soapy water. Rinse thoroughly and dry completely.
2. Wipe the interior and exterior of the oven with a damp cloth.
3. Insert the crumb tray into its designated slot at the bottom of the oven.
4. Plug the power cord into a standard 120V AC electrical outlet.
5. To eliminate any manufacturing oils, operate the oven empty for approximately 15 minutes at 450°F (230°C). A slight odor or smoke may be present during this initial use; this is normal and will dissipate. Ensure the area is well-ventilated.
6. Allow the oven to cool completely before its first cooking use.

5. Operating Instructions

The Kitchen Elite 4-Slice Toaster Oven features simple knob controls for temperature and timer settings.

Operating the toaster oven is straightforward with its adjustable temperature and timer controls.

General Operation:

1. Place food on the wire rack or bake tray. Ensure food does not touch the heating elements.
2. Insert the rack/tray into the desired position within the oven.
3. Close the glass door securely.
4. Turn the Temperature Control Knob to the desired temperature setting (200°F to 450°F).
5. Turn the Timer Knob clockwise to the desired cooking time (up to 30 minutes). The power indicator light will illuminate.
6. When the set time expires, the oven will automatically turn off, and a bell will sound.
7. Carefully remove cooked food using oven mitts.

Toasting:

For toasting bread, bagels, or frozen waffles:

• Place items directly on the wire rack. For 4 slices, use both the wire rack and the bake tray if needed, positioning them on different levels.
• Set the Temperature Control Knob to the "Toast" or desired temperature (e.g., 350°F-400°F).
• Turn the Timer Knob to the desired toast shade (light to dark).
• The oven will turn off automatically when the cycle is complete.

Baking and Broiling:

The oven can be used for baking small items like cookies, pastries, or reheating leftovers, and for broiling.

This toaster oven supports baking croissants, broiling meats, and toasting bread for versatile meal preparation.

• Place food on the bake tray. For broiling, position food closer to the top heating elements.
• Set the Temperature Control Knob to the desired temperature (e.g., 375°F for baking, 450°F for broiling).
• Set the Timer Knob to the required cooking time.
• Monitor food closely, especially during broiling, to prevent burning.

The toaster oven can accommodate different food items simultaneously, such as mini pizzas and toast.

The compact design and multi-functionality make this toaster oven a convenient appliance for various cooking needs.

The toaster oven is suitable for use in various settings, including small kitchens or recreational vehicles.

6. Cleaning and Maintenance

Regular cleaning will help maintain the performance and appearance of your toaster oven.

Before Cleaning:

• Always unplug the toaster oven from the electrical outlet and allow it to cool completely before cleaning.

Cleaning Procedure:

1. Crumb Tray: Slide out the crumb tray from the bottom of the oven. Discard crumbs. Wipe the tray with a damp cloth or wash in warm, soapy water. Rinse and dry thoroughly before replacing.
2. Wire Rack and Bake Tray: Wash these accessories in warm, soapy water. For stubborn food residue, soak them before scrubbing. Rinse well and dry completely.
3. Interior: Wipe the interior walls with a damp cloth and mild liquid soap. Avoid using abrasive cleaners or scouring pads, as they can damage the non-stick coating (if applicable) or surfaces.
4. Exterior: Wipe the exterior surface with a damp cloth and dry thoroughly. Do not use abrasive cleaners or metal polishers.
5. Glass Door: Clean the glass door with a damp cloth and a non-abrasive cleaner.

Storage:

• Ensure the toaster oven is clean and dry before storing.
• Store the appliance in a cool, dry place.

7. Troubleshooting

If you encounter issues with your toaster oven, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Kitchen Elite customer support.

8. Specifications

Key technical details for your Kitchen Elite 4-Slice Toaster Oven:

• Model Name: KE-OV-B101-BK
• Brand: Kitchen Elite
• Color: Black
• Product Dimensions (D x W x H): 10.2" x 13.2" x 7.5"
• Capacity: 9 Liters
• Wattage: 800 watts
• Control Type: Knob Control
• Power Source: Electric
• Material: Stainless Steel
• Door Style: Dropdown Door
• Special Feature: Programmable (Timer)
• Included Components: Toaster Oven, Wire Rack, Bake Tray, Crumb Tray

Detailed dimensions of the Kitchen Elite 4-Slice Toaster Oven for proper placement.

9. Warranty and Support

Kitchen Elite products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official Kitchen Elite website. Please have your model number (KE-OV-B101-BK) and purchase date available when contacting support.
