1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your EZVIZ HB90x Smart Outdoor Security Camera. Please read this manual carefully before using the product to ensure proper functionality and safety. Keep this manual for future reference.
2. Safety Information
- Ensure the camera is installed in a stable location to prevent falling.
- Use only the specified power adapter and solar panel provided by EZVIZ.
- Do not expose the camera to extreme temperatures, humidity, or corrosive environments.
- Avoid placing the camera near strong electromagnetic fields.
- Do not attempt to disassemble or modify the camera. Contact qualified personnel for service.
- Keep the camera and its accessories out of reach of children.
3. Package Contents
Verify that all items are present in your package:
- EZVIZ HB90x Surveillance Camera
- Lithium Battery (pre-installed or separate)
- Solar Power Panel
- Mounting Hardware (screws, wall plugs)
- Quick Start Guide

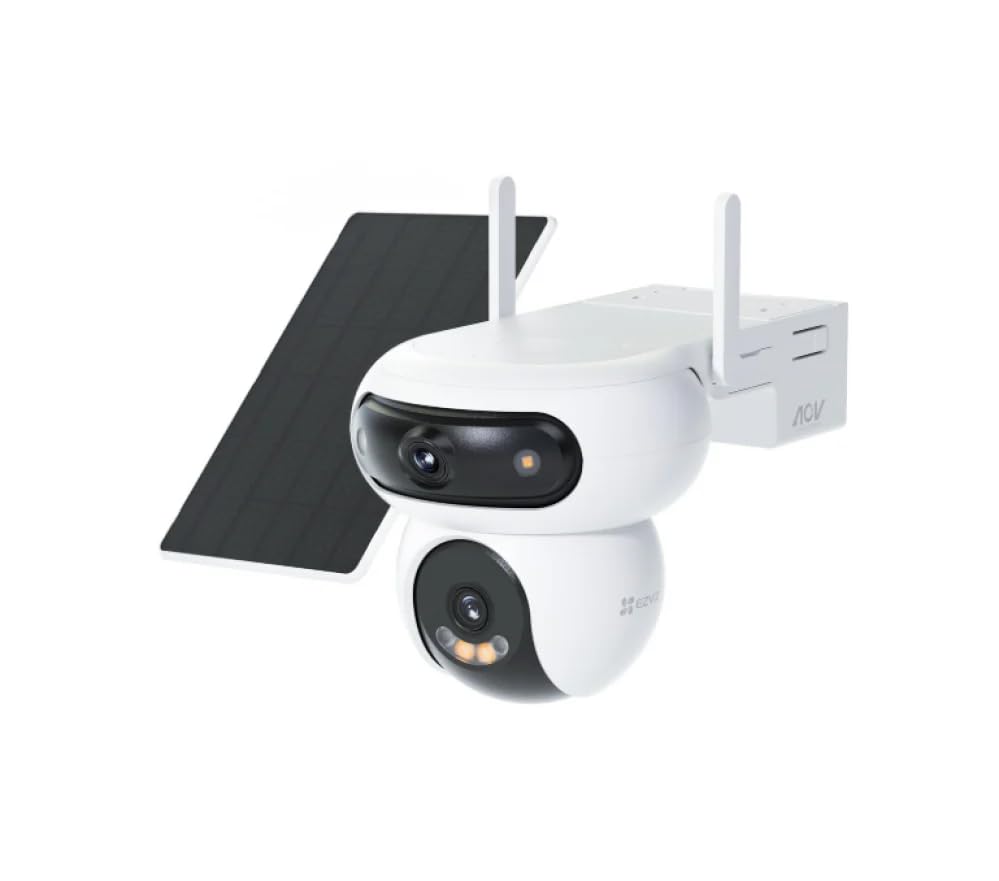

Figure 1: EZVIZ HB90x Smart Outdoor Security Camera with its solar panel. This image illustrates the main camera unit and the accompanying solar panel, which provides continuous power.
4. Product Overview
The EZVIZ HB90x is an advanced outdoor security camera designed for comprehensive surveillance. Key features include:
- Dual 2K Lenses: Provides high-resolution video capture for detailed monitoring.
- 360° Coverage: Offers a wide field of view, eliminating blind spots.
- 10400 mAh Battery & Solar Panel: Ensures continuous operation with sustainable power.
- 4G Connectivity: Operates independently without Wi-Fi, ideal for remote locations.
- Color Night Vision: Delivers clear, full-color images even in low-light conditions.
- Smart Motion Detection: Intelligent system with instant alerts for detected activity.
- Weather-Resistant Design: Durable construction suitable for outdoor use in various weather conditions.
- Local Storage: Supports MicroSD card up to 512GB for local video storage.
5. Setup
5.1 Initial Charging
Before first use, ensure the camera's internal battery is fully charged. Connect the solar panel to the camera and place the solar panel in direct sunlight for several hours. Alternatively, you can use a compatible 5V USB power adapter (not included) to charge the camera directly.
5.2 SIM Card Installation
The HB90x camera utilizes 4G connectivity. Locate the SIM card slot, usually protected by a rubber cover on the camera body. Insert a activated Nano-SIM card into the slot with the gold contacts facing down, ensuring it clicks into place. Close the rubber cover securely to maintain weather resistance.
Note: A Nano-SIM card with an active data plan is required for 4G connectivity.
5.3 MicroSD Card Installation (Optional)
For local video storage, insert a MicroSD card (up to 512GB, Class 10 or higher recommended) into the designated slot. Ensure the camera is powered off before inserting or removing the MicroSD card. Close the protective cover after installation.
5.4 App Installation and Account Creation
- Download the EZVIZ app from the App Store (iOS) or Google Play Store (Android).
- Open the app and follow the on-screen instructions to create an EZVIZ account.
- Log in to your EZVIZ account.
5.5 Adding the Camera to the App
- In the EZVIZ app, tap the "+" icon on the home screen to add a device.
- Scan the QR code located on the camera body or on the quick start guide.
- Follow the in-app prompts to complete the camera setup. This typically involves confirming the camera's power status and network connection (4G).
5.6 Mounting the Camera
The HB90x is designed for wall mounting. Choose a location that provides the desired viewing angle and ensures the solar panel receives adequate direct sunlight throughout the day. Avoid obstructions that might block the camera's view or the solar panel's exposure.
- Use the provided mounting template (if available) to mark the drill holes on the wall.
- Drill holes and insert the wall plugs.
- Secure the mounting bracket to the wall using the screws.
- Attach the camera to the mounting bracket and adjust its angle.
- Mount the solar panel in a location where it receives maximum sunlight and connect its cable to the camera.
6. Operating the Camera
6.1 Live View
Open the EZVIZ app and select your HB90x camera from the device list. The live view interface will display the real-time video feed. You can switch between the dual lenses if supported by the app interface.
6.2 Pan and Tilt Control
On the live view screen, use the on-screen joystick or swipe gestures to remotely pan (horizontal movement) and tilt (vertical movement) the camera to adjust its viewing angle and utilize the 360° coverage.
6.3 Video Recording and Playback
- Manual Recording: Tap the record button in the live view interface to start or stop manual recording. Videos are saved to your phone or the installed MicroSD card.
- Event Recording: The camera automatically records when motion is detected. These recordings are stored on the MicroSD card or EZVIZ CloudPlay (subscription required).
- Playback: Access recorded videos through the "Playback" or "History" section in the EZVIZ app. Select the date and time to review events.
6.4 Motion Detection and Alerts
Configure motion detection settings in the EZVIZ app. You can adjust sensitivity, define detection zones, and set schedules for alerts. When motion is detected, the camera will send instant notifications to your smartphone.
6.5 Night Vision
The HB90x features advanced color night vision. In low-light conditions, the camera automatically switches to night vision mode, utilizing its dual LED lamps to provide clear, full-color images up to 30 meters.
7. Maintenance
- Cleaning: Regularly wipe the camera lenses and solar panel with a soft, damp cloth to remove dust and dirt. Do not use harsh chemicals.
- Firmware Updates: Check for and install firmware updates via the EZVIZ app to ensure optimal performance and security.
- Battery Health: Monitor the battery level in the app. Ensure the solar panel is clean and positioned to receive maximum sunlight for efficient charging.
- MicroSD Card: Periodically check the MicroSD card for errors or fill status. Format the card via the app if necessary (this will erase all data).
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera not powering on. | Low battery or solar panel not charging. | Ensure solar panel is in direct sunlight. Charge the camera using a 5V USB adapter. |
| No 4G connection. | SIM card not inserted correctly, no data plan, or poor signal. | Check SIM card insertion. Verify data plan with your carrier. Relocate camera to an area with better 4G signal. |
| Cannot view live feed in app. | No 4G connection, app issue, or camera offline. | Check 4G status. Restart the EZVIZ app. Restart the camera. |
| Motion detection alerts not received. | Detection settings incorrect, app notifications disabled. | Review motion detection settings in the app. Enable notifications for the EZVIZ app in your phone's settings. |
| Poor night vision quality. | Dirty lens or external light interference. | Clean the camera lenses. Ensure no strong light sources are directly facing the camera at night. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Name | HB90x |
| Brand | EZVIZ |
| Mounting Type | Wall Mount |
| Video Recording Resolution | 2560 x 1440 (2K) |
| Color | Aura White |
| Number of Items | 2 (Camera and Solar Panel) |
| Included Components | Lithium Battery, Surveillance Camera, Mounting Hardware, Solar Power Panel |
| Number of Channels | 2 (Dual Lens) |
| Wireless Communication Technology | 4G |
| Form Factor | Dual Lens Outdoor Camera |
| Effective Video Resolution | 2560.0 pixels |
| Viewing Angle | 360 Degrees |
| Night Vision Range | 30 Meters |
| Frame Rate | 30 Frames Per Second |
| Material | Water-resistant Metal Plastic |
| Voltage | 5 Volts |
| Power | 8 Watts |
| Item Dimensions (L x W x H) | 15 x 15.2 x 25 centimeters |
| Water Resistance Level | Waterproof |
| Weight | 750 Grams |
| Special Features | 10400 mAh Rechargeable Battery, 360 Degree Coverage, Solar Power Panel, Night Vision, Waterproof |
| Recommended Uses | Outdoor Control, Security Surveillance, Home Surveillance |
| Connectivity Protocol | 4G |
| Controller Type | Mobile Application |
10. Warranty Information
EZVIZ products come with a limited warranty. For detailed warranty terms and conditions, including coverage period and service procedures, please refer to the warranty card included in your product package. You can also visit the official EZVIZ website for the most up-to-date warranty information.
11. Customer Support
For technical assistance, troubleshooting, or service inquiries, please contact EZVIZ customer support. You can find contact information and frequently asked questions on the official EZVIZ website:
Please have your product model number (HB90x) and purchase information ready when contacting support.
