1. Introduction
Welcome to the Philips 4000 Series NA462/79 Stacked Dual Basket Airfryer user manual. This appliance is designed to provide a versatile and convenient cooking experience, allowing you to prepare a variety of meals with less oil. Please read this manual thoroughly before first use to ensure safe and optimal operation.

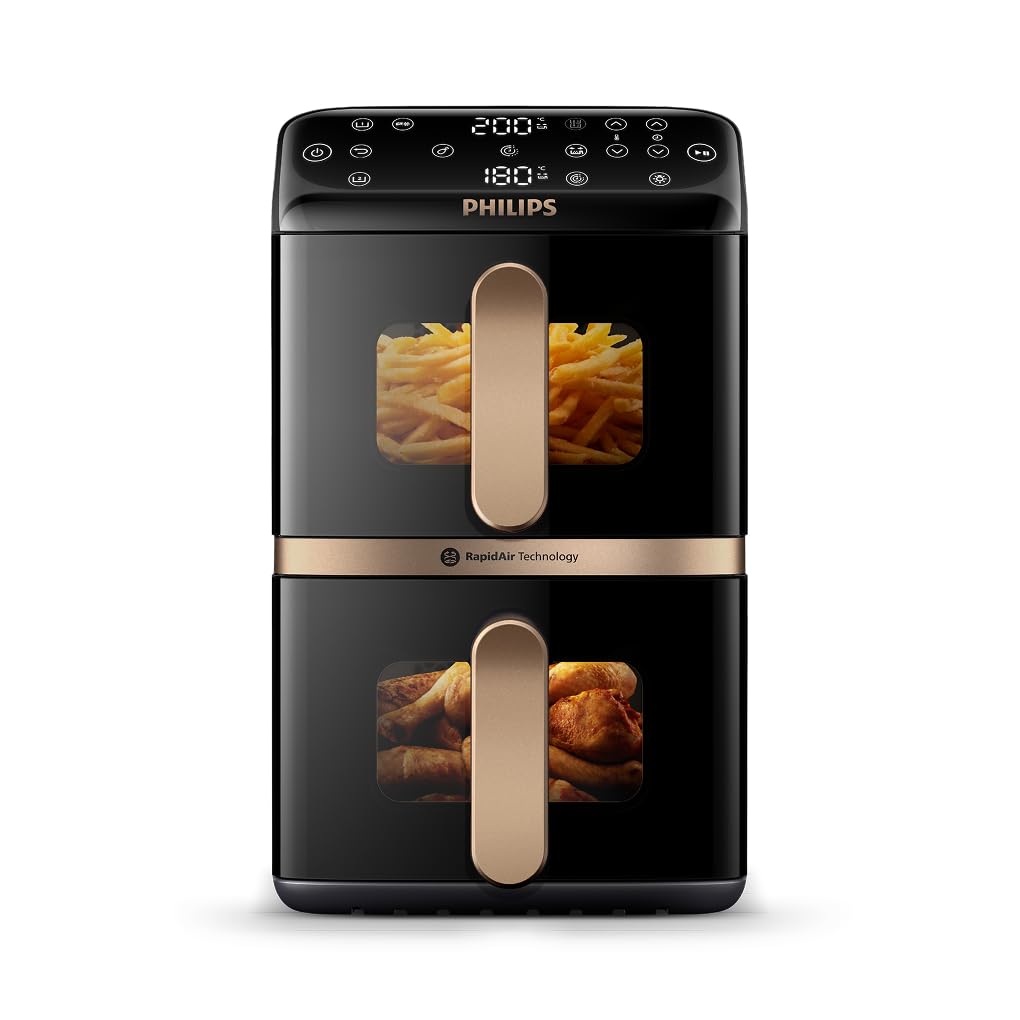

Figure 1: Philips 4000 Series NA462/79 Stacked Dual Basket Airfryer
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Components
The Philips 4000 Series NA462/79 Airfryer includes the following main components:
- Main Unit with Control Panel
- Upper Cooking Basket (5L capacity)
- Lower Cooking Basket (5L capacity)
- Removable Crisper Plates for each basket
- Power Cord
Figure 2: The airfryer features two 5L stacked baskets for a total 10L capacity.
4. Setup and First Use
- Unpacking: Carefully remove all packaging materials and stickers.
- Cleaning: Wash the cooking baskets and crisper plates with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a damp cloth.
- Placement: Place the airfryer on a stable, horizontal, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of free space on the back and sides, and 10 cm (4 inches) above the appliance.
- Power Connection: Plug the power cord into a grounded wall outlet.
5. Operating Instructions
5.1 Control Panel Overview
The airfryer features an intuitive touch control panel for easy operation. It includes preset functions, temperature controls, and a timer.
Figure 3: Easy-to-use touch control panel with 13 presets and sync timings.
5.2 Basic Operation
- Place the crisper plate into the cooking basket.
- Place ingredients into the basket. Do not exceed the MAX indication.
- Slide the basket back into the airfryer.
- Press the power button to turn on the appliance.
- Select a preset cooking function or manually set the temperature (80-180°C) and time.
- Press the Start button to begin cooking.
5.3 Dual Basket Cooking with Sync Finish
The stacked dual basket design allows you to cook two different foods simultaneously. The Sync Finish feature ensures both baskets complete cooking at the same time, even if they require different settings.
- Load both baskets with your desired ingredients.
- Select the cooking settings for each basket individually.
- Activate the 'Sync Finish' function on the control panel. The airfryer will automatically adjust the cooking times to ensure both meals are ready together.
Figure 4: The Sync Finish feature coordinates cooking times for simultaneous meal completion.
5.4 Easy View Windows
Monitor your cooking progress without opening the baskets thanks to the integrated Easy View windows. This helps maintain consistent cooking temperatures and results.
Figure 5: Easy View windows allow you to watch food cook in real-time.
5.5 One Tap Copy
The 'One Tap Copy' function allows you to quickly duplicate the cooking time and temperature settings from one basket to the other, ideal for cooking larger quantities of the same food.
Figure 6: Use One Tap Copy to easily match settings between baskets.
6. Cooking Tips and Features
6.1 RapidAir Technology
The Philips Airfryer utilizes Vertical RapidAir Technology to circulate hot air, ensuring food is cooked evenly and crisply with up to 90% less fat compared to traditional deep frying.
Figure 7: RapidAir Technology ensures evenly cooked and crispy results.
6.2 Shake Reminder
For optimal results with certain foods, the airfryer may provide a 'Time to Shake' alert. This reminds you to shake the basket to ensure all sides of the food are exposed to the hot air for even cooking.
Figure 8: The shake reminder helps achieve perfect, even cooking.
6.3 Healthier and Efficient Cooking
The airfryer promotes healthier cooking by reducing fat content and can cook up to 40% faster while using up to 65% less energy compared to a traditional oven.
Figure 9: Enjoy healthier meals with significantly less fat.
Figure 10: The airfryer offers energy-efficient cooking.
6.4 HomeID App Integration
Discover a wide range of recipes and step-by-step guidance through the free HomeID app, tailored for your Philips Airfryer.
Figure 11: Find tailored recipes and inspiration with the HomeID App.
7. Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the lifespan of your airfryer.
- Before Cleaning: Always unplug the appliance and allow it to cool down completely.
- Baskets and Crisper Plates: The dual baskets and crisper plates feature a PFAS-free ceramic non-stick coating and are dishwasher safe. Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge.
- Main Unit: Wipe the exterior of the appliance with a damp cloth. Never immerse the main unit in water or any other liquid.
- Interior: Clean the interior with a damp cloth and a mild detergent. Avoid abrasive cleaners or scouring pads.
Figure 12: Dishwasher-safe parts make cleaning effortless.
Figure 13: The PFAS-free ceramic coating is durable and easy to clean.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Airfryer does not turn on. | Appliance is not plugged in or power outlet is not working. | Ensure the power cord is securely plugged into a working outlet. |
| Food is not cooked evenly. | Too much food in the basket or food not shaken. | Do not overfill the basket. Shake the basket halfway through cooking for even results. |
| White smoke comes from the appliance. | Fat residue from previous use or fatty ingredients being cooked. | Clean the basket and crisper plate thoroughly after each use. For fatty foods, add a little water to the bottom of the outer pan to prevent smoke. |
| Food is not crispy. | Not enough oil used or temperature/time settings are incorrect. | Lightly coat food with oil. Adjust temperature and time as needed for desired crispiness. |
9. Specifications
- Model Number: NA462/79
- Brand: Philips
- Capacity: 10 Liters (2 x 5L baskets)
- Product Dimensions: 46.9D x 23.3W x 39.9H centimetres
- Item Weight: 8.98 Kilograms
- Wattage: 2750 watts
- Voltage: 240 Volts
- Temperature Range: 80 - 180 Degrees Celsius
- Control Method: Touch
- Special Features: Sync Finish, Easy View Windows, Rapid Air Circulation
- Inner Material: Ceramic (PFAS-free non-stick coating)
- Dishwasher Safe: Yes (baskets and crisper plates)
10. Warranty and Support
This Philips Airfryer comes with a 2-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
For further assistance, troubleshooting, or to register your product, please visit the official Philips support website or contact customer service.
You can also explore additional accessories to enhance your cooking experience:
Video 1: Introducing Philips Airfryer Accessories. This video showcases various accessories compatible with Philips Airfryers, expanding cooking possibilities.
