Marsail Queen Adjustable Bed Frame with Massage Instruction Manual

1. Important Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Weight Capacity: Do not exceed a total weight of 750 lbs (340 kg) on the bed frame. Exceeding this limit may cause injury or damage to the product.
• Leg Security: Ensure all legs are securely locked in place before and after adjusting the bed height or moving the frame.
• Clearance: Keep the area around and under the bed frame clear of obstructions during operation to prevent pinching or damage.
• Children and Pets: Keep children and pets away from the adjustable bed frame during operation.
• Power Cord: Do not place the bed frame on its power cord. Ensure the cord is not pinched or damaged.

2. Package Contents

Verify that all components are present before beginning assembly:

• Adjustable Bed Base Frame
• Legs (2-inch, 3-inch, and 8-inch options)
• Wireless Remote Control
• Power Adapter and Cord
• Retainer Bar
• User Manual (this document)

3. Setup Instructions

Follow these steps to assemble your Marsail Adjustable Bed Frame:

1. Unpack Components: Carefully remove all parts from the packaging. Place the bed base upside down on a clean, flat surface to access the leg attachment points.
2. Attach Legs: Choose your desired leg height. The frame includes 2-inch, 3-inch, and 8-inch leg sections. These can be combined to achieve total bed heights of 8 inches, 10 inches, 11 inches, or 13 inches. Screw the chosen leg sections firmly into the designated attachment points on the bed frame. Ensure all legs are tightened securely.
3. Install Retainer Bar: Locate the retainer bar and insert it into the slots at the foot of the bed frame. This bar helps keep your mattress in place.
4. Position Bed Frame: Carefully flip the bed frame over and place it in your desired location. Ensure there is adequate space around the bed for movement and operation.
5. Connect Power: Plug the power cord into the power adapter, then connect the adapter to the bed frame's power input. Finally, plug the power cord into a grounded electrical outlet.
6. Place Mattress: Carefully place your Queen-sized mattress onto the adjustable bed frame. This frame is compatible with memory foam, latex, and hybrid mattresses.

Image: Product dimensions and mattress size guide. The image displays key measurements for the adjustable bed frame, including length, width, and height, along with a guide for compatible mattress sizes (Twin, Twin XL, Full, Queen, King).

4. Operating Instructions

Your Marsail Adjustable Bed Frame offers various features for customized comfort:

4.1. Remote Control Functions

The wireless remote control allows you to operate all features of your adjustable bed. Familiarize yourself with the buttons for head incline, foot incline, massage, Zero Gravity preset, and flat position.

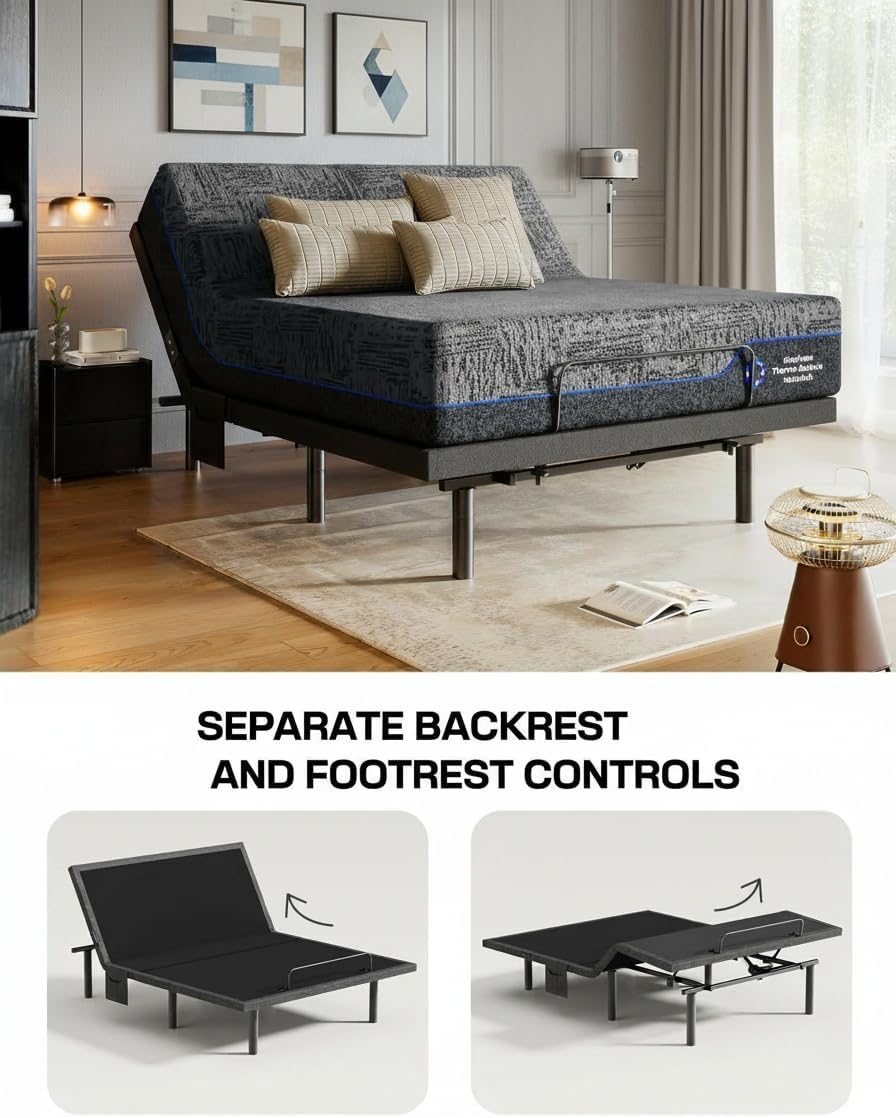

Image: Illustration of separate backrest and footrest controls. This image shows how the head and foot sections of the bed frame can be independently adjusted.

4.2. Head and Foot Incline

Use the designated buttons on your remote to independently adjust the head and foot sections of the bed. The head incline can reach up to 65°, and the foot incline up to 45°. Adjust to your preferred position for reading, watching TV, or reducing snoring.

4.3. Zero Gravity Position

Press the 'Zero Gravity' button on your remote to automatically move the bed into a position that elevates your head and feet, mimicking the posture of astronauts in space. This position is designed to relieve pressure on your back, improve circulation, and promote relaxation.

Image: A man sleeping on an adjustable bed, illustrating the comfort and recovery benefits of adjustable positions.

4.4. Massage Function

Activate the built-in massage feature using your remote. You can select from 3 intensity levels and 4 distinct modes for both the head and foot sections. The massage function is designed to help relieve muscle tension and enhance relaxation.

4.5. USB Charging Ports

The bed frame is equipped with integrated USB-A and USB-C charging ports on both sides. Use these ports to conveniently charge your electronic devices while in bed.

4.6. LED Nightlight

A subtle LED nightlight is located beneath the frame. Activate it via the remote control to provide gentle illumination for navigating your room at night without disturbing your sleep.

Image: A person relaxing on the adjustable bed frame with the under-bed LED nightlight illuminated, showing its gentle glow.

Image: The adjustable bed frame demonstrating various flexible positions for activities like reading, relaxing, playing games, watching TV, and sleeping.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your adjustable bed frame:

• Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Weight Limit: Adhere strictly to the maximum weight capacity of 750 lbs (340 kg) to prevent structural damage.
• Regular Checks: Periodically inspect all connections, bolts, and the power cord for any signs of wear or loosening. Tighten any loose fasteners as needed.
• Motor Care: The quiet motor is designed for durability. Avoid obstructing its movement or placing excessive strain on the adjustable mechanisms.

6. Troubleshooting

If you encounter issues with your Marsail Adjustable Bed Frame, refer to the following common solutions:

• Bed Not Responding to Remote:
  • Check if the power cord is securely plugged into both the bed frame and a working electrical outlet.
  • Ensure the remote control batteries are not depleted. Replace if necessary.
  • Verify that there are no obstructions preventing the bed's movement.
• Motor Noise:
  • A slight humming sound during operation is normal.
  • If the noise is excessive or unusual, check for any loose components or obstructions.
• Massage Function Not Working:
  • Ensure the bed frame has power.
  • Confirm that the massage function is activated via the remote control.
• LED Light Not Working:
  • Check power connection.
  • Ensure the LED light is activated using the remote control.

If the issue persists after attempting these troubleshooting steps, please contact Marsail customer support.

7. Specifications

Image: The adjustable bed frame shown with different mattress types (Memory Foam, Latex, Hybrid, Gel), indicating compatibility.

8. Warranty Information

For detailed warranty information regarding your Marsail Queen Adjustable Bed Frame, please refer to the warranty card included with your product packaging. You may also contact Marsail customer support for further assistance.

9. Customer Support

Should you require technical assistance, replacement parts, or have any questions regarding the operation or maintenance of your Marsail Adjustable Bed Frame, please contact Marsail customer support through the official Marsail website or your point of purchase.
