1. Introduction
Thank you for choosing the KATOOL ME-T530-Z Tire Changer Machine. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new equipment. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or death.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and steel-toed boots.
- Ensure the machine is properly grounded and connected to the specified power supply (120V 1PH).
- Keep the work area clean, well-lit, and free from obstructions.
- Do not operate the machine if you are fatigued or under the influence of drugs or alcohol.
- Keep hands, feet, and clothing clear of moving parts during operation.
- Never exceed the maximum wheel diameter or width specified for this machine.
- Ensure tires are properly deflated before attempting to demount them.
- Use caution when using the bead blaster; high-pressure air can cause injury.
- Only trained personnel should operate and maintain this equipment.
- Disconnect power before performing any maintenance or adjustments.
3. Product Overview
The KATOOL ME-T530-Z is a robust tire changer machine designed for efficient tire mounting and demounting. It features a powerful 2.0HP motor, a bead blast seater, and a double assist arm for enhanced convenience and speed.
Key Components and Features:
- Clamping Jaws: Alloy steel jaws with carburization treatment for durability and grip. Designed to protect rims with included covers.
- Mounting Head: Stainless steel, solution-treated, and polished for smooth operation, with plastic covers to prevent rim damage.
- Bead Blaster Seater: Integrated with a post tank for quick and effective bead seating.
- Double Assist Arm: Provides additional leverage and support for easier tire handling, especially for low-profile or stiff sidewall tires.
- Inflation Gauge: Features pedal control and a high-quality spade cover to prevent rim damage during inflation.
- Pedal Control System: Pull-type design for convenient operation and maintenance.
- Motor: Top-level 2.0HP (1.5KW) pure copper winding motor for strong power and high efficiency, designed for North American 120V/1PH power supply.
- Air Filter: High-quality filter ensures reliable oil drop and effective pressure air filtration, extending pneumatic system life.
- Bead Breaker Cylinder: φ186mm stainless steel cylinder for effective bead breaking.
Figure 3.1: Overall view of the KATOOL ME-T530-Z Tire Changer Machine.
Figure 3.2: KATOOL ME-T530-Z Tire Changer Machine showing main components and pedal controls.

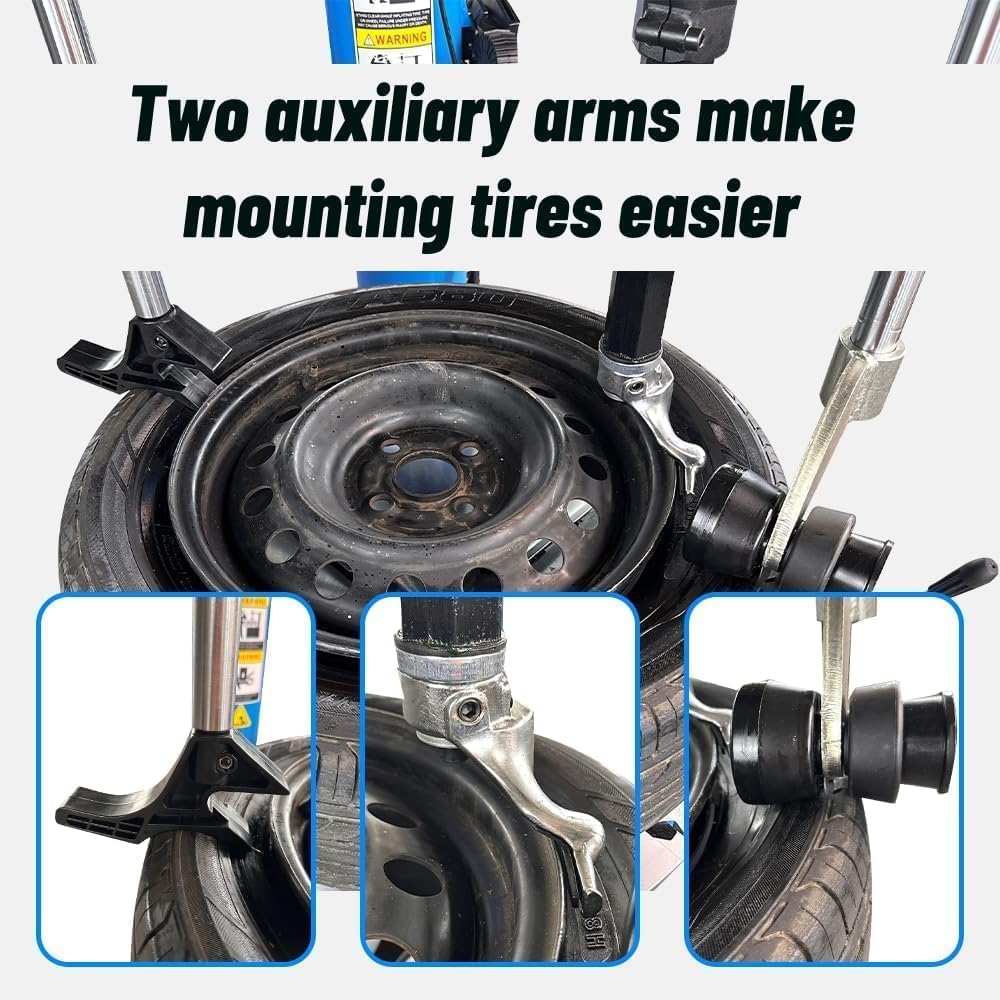

Figure 3.3: The dual auxiliary arms facilitate easier tire mounting and demounting.
Figure 3.4: The auxiliary arm offers a wide range of rotation for versatile tire handling.

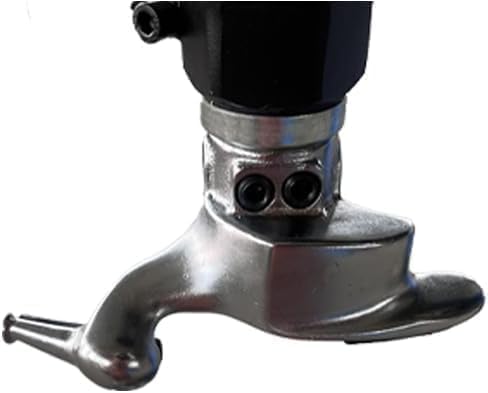

Figure 3.5: Detail of the alloy steel mounting head, designed for durability and rim protection.
Figure 3.6: Illustration highlighting the robust round column design of the KATOOL ME-T530-Z.
4. Setup
Proper setup is crucial for safe and effective operation. Follow these steps carefully:
- Unpacking and Inspection: Carefully unpack all components. Inspect for any shipping damage. Report any damage to your supplier immediately.
- Placement: Position the tire changer on a level, solid surface capable of supporting its weight and the weight of tires being serviced. Ensure adequate clearance around the machine for safe operation.
- Anchoring (Recommended): For maximum stability, anchor the machine to the floor using appropriate fasteners.
- Electrical Connection: Connect the machine to a dedicated 120V, 1-phase, 2.0HP (1.5KW) power supply with proper grounding. Ensure the circuit can handle the motor's power requirements.
- Air Supply Connection: Connect a clean, dry compressed air supply to the machine's air inlet. The machine includes a high-quality filter for reliable oil drop and effective pressure air filtration. Ensure the air pressure meets the machine's requirements (typically 8-10 bar or 115-145 psi).
- Lubrication: Check and fill the lubricator (if applicable) with appropriate pneumatic tool oil.
- Initial Checks: Before first use, perform a visual inspection of all hoses, connections, and moving parts. Test all pedal functions without a tire to ensure smooth operation.
5. Operating Instructions
This section outlines the general procedures for using the KATOOL ME-T530-Z Tire Changer Machine. Always refer to specific tire manufacturer guidelines for tire handling.
5.1. Demounting a Tire
- Deflate Tire: Completely deflate the tire by removing the valve core.
- Bead Breaking: Position the wheel on the bead breaker arm. Use the bead breaker pedal to apply pressure and break the bead from the rim. Repeat for both sides of the tire.
- Clamping the Wheel: Place the wheel onto the turntable. Use the clamping pedals to secure the wheel firmly with the alloy steel jaws. Ensure the rim protectors are in place to prevent damage.
- Positioning the Mounting Head: Adjust the mounting head to clear the rim edge by approximately 2-3mm. Lock the mounting head in position.
- Demounting the Top Bead: Use a tire lever to pry the top bead over the mounting head. Rotate the turntable using the pedal to fully demount the top bead. Utilize the double assist arm for leverage on stubborn tires.
- Demounting the Bottom Bead: Carefully slide the tire lever under the bottom bead. Rotate the turntable to demount the bottom bead.
- Remove Tire and Wheel: Release the clamping jaws and remove the tire and wheel from the turntable.
5.2. Mounting a Tire
- Lubricate Tire Beads: Apply appropriate tire lubricant to both beads of the new tire.
- Clamping the Wheel: Place the wheel onto the turntable and secure it with the clamping jaws, ensuring rim protectors are used.
- Mounting the Bottom Bead: Position the bottom bead of the tire against the mounting head. Use the turntable pedal to rotate the wheel, guiding the bottom bead onto the rim. The assist arm can help hold the bead down.
- Mounting the Top Bead: Position the top bead against the mounting head. Use the turntable pedal to rotate the wheel, guiding the top bead onto the rim. The double assist arm is particularly useful here for pushing down the bead.
- Bead Seating (Using Bead Blaster): Once both beads are on the rim, connect an air hose to the tire valve. Use the bead blast seater (controlled by a pedal) to rapidly inflate the tire and seat the beads. WARNING: Stand clear of the tire during bead seating.
- Inflation: Inflate the tire to the manufacturer's recommended pressure using the inflation gauge with pedal control. Do not overinflate.
- Remove Tire and Wheel: Release the clamping jaws and remove the tire and wheel.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your KATOOL ME-T530-Z Tire Changer Machine. Always disconnect power and air supply before performing maintenance.
- Daily:
- Clean the turntable, clamping jaws, and mounting head.
- Check air lines and connections for leaks.
- Inspect rim protectors for wear and replace if necessary.
- Weekly:
- Check the oil level in the lubricator and refill with pneumatic tool oil.
- Inspect all bolts and fasteners for tightness.
- Lubricate moving parts, such as the assist arm pivots and bead breaker slide, with appropriate grease.
- Monthly:
- Inspect the drive belt (if applicable) for wear and tension.
- Check the condition of the motor and ensure it is free from debris.
- Clean or replace the air filter element as needed to ensure effective filtration.
- Annually:
- Have a qualified technician inspect the machine for wear and tear on critical components.
- Check electrical connections for corrosion or damage.
7. Troubleshooting
This section provides solutions to common issues you may encounter. For problems not listed here, contact KATOOL customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | No power supply; tripped circuit breaker; faulty switch. | Check power connection and circuit breaker. Inspect power cord and switch. |
| Turntable does not rotate. | Motor issue; pedal malfunction; mechanical obstruction. | Check motor connection. Inspect pedal linkage. Clear any obstructions. |
| Clamping jaws not holding wheel securely. | Insufficient air pressure; worn jaws; debris in clamping mechanism. | Verify air pressure. Inspect and replace worn jaws. Clean clamping mechanism. |
| Bead blaster not working effectively. | Low air pressure; clogged nozzle; leak in air lines. | Check air supply pressure. Clean bead blaster nozzle. Inspect air lines for leaks. |
| Air leaks from pneumatic system. | Loose fittings; damaged hoses; faulty seals. | Tighten all fittings. Replace damaged hoses or seals. |
8. Specifications
Technical specifications for the KATOOL ME-T530-Z Tire Changer Machine:
- Model: ME-T530Z (also referred to as ME-T500+ME-B620)
- Outside Clamp: 12" - 22"
- Inside Clamp: 14" - 24"
- Max Wheel Diameter: 41" / 1040mm
- Max Wheel Width: 15" / 380mm
- Power Supply: 120V, 1 Phase
- Motor Power: 2.0HP / 1.5KW
- Bead Breaker Cylinder: φ186mm stainless steel
- Jaw Material: Alloy steel with carburization treatment
- Mounting Head Material: Stainless steel
- Features: Bead blast seater with post tank, Double assist arm, Pull type pedal control system, High quality air filter.
9. Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact KATOOL customer service. Keep your purchase receipt and model number (ME-T530Z) readily available when contacting support.
Contact information for KATOOL can typically be found on their official website or your purchase documentation.
