Varstrom 500W Electric Bike Conversion Kit (Model Vd04, 26-inch Wheel) - User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Varstrom 500W Electric Bike Conversion Kit, specifically for the Vd04 model with a 26-inch wheel. This kit is designed to transform a standard bicycle into an electric bicycle, offering enhanced performance and versatility for city commuting, mountain biking, delivery, and cargo transport. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Safety Information

Always prioritize safety when installing and operating your e-bike conversion kit.

• Wear a helmet and appropriate safety gear when riding.
• Ensure all connections are secure and waterproof before riding, especially in wet conditions.
• Regularly inspect your bicycle and the conversion kit components for wear, damage, or loose parts.
• Familiarize yourself with local e-bike regulations and laws.
• Do not attempt to modify the motor or controller, as this may void the warranty and create safety hazards.
• Keep hands and clothing clear of moving parts, especially the motor and wheel spokes.
• Always turn off the power before performing any maintenance or adjustments.

3. Package Contents

The Varstrom 500W Electric Bike Conversion Kit includes the following components:

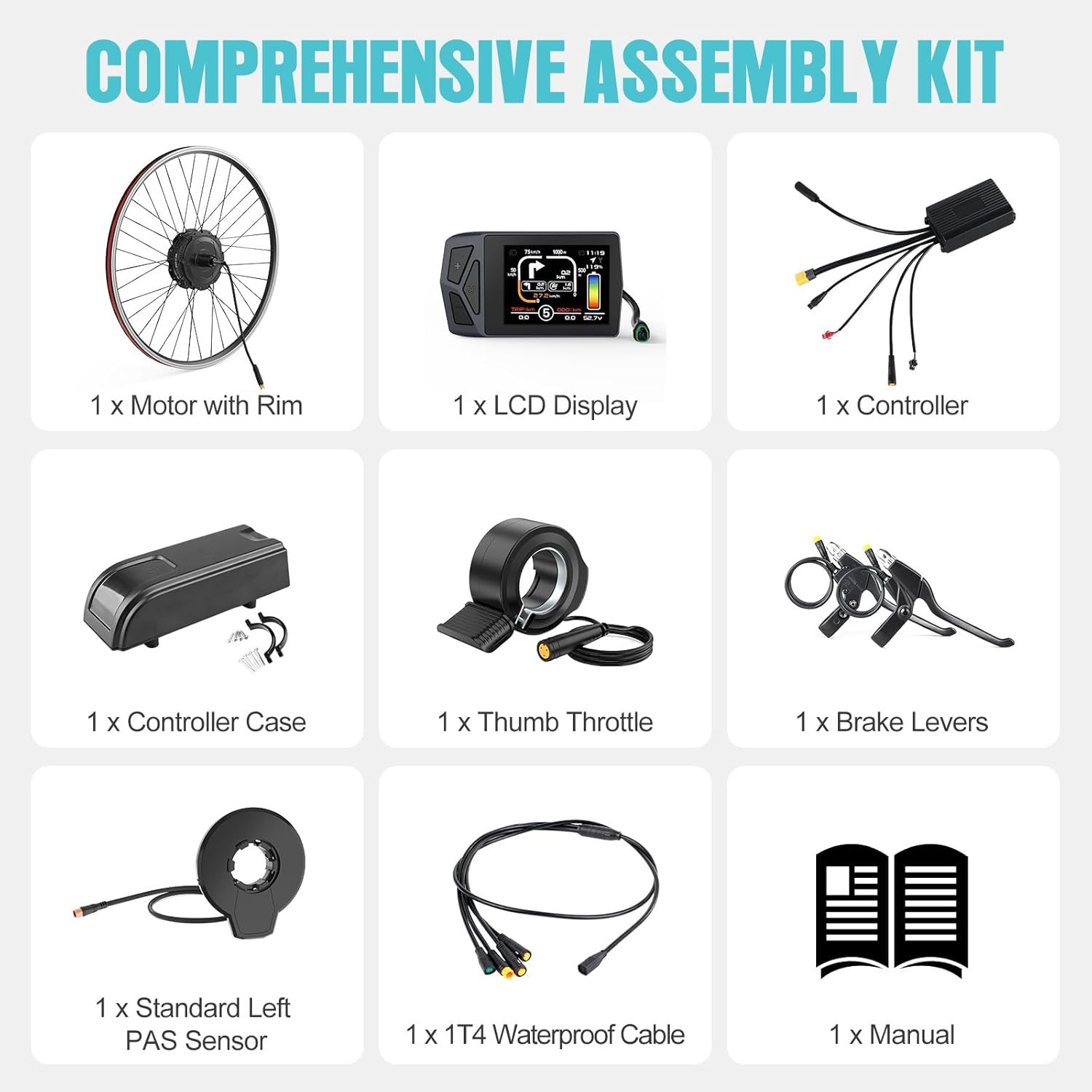

Figure 3.1: Overview of the comprehensive assembly kit components.

This image displays the complete set of components included in the Varstrom 500W Electric Bike Conversion Kit. It shows a motor with rim, an LCD display, a controller, a controller case, a thumb throttle, brake levers, a standard left PAS sensor, a 1T4 waterproof cable, and a user manual.

• 1 x Rear Hub Motor with Rim (26-inch wheel)
• 1 x LCD Display (VD04 model)
• 1 x Controller
• 1 x Controller Box
• 1 x Thumb Throttle
• 1 x Pair of Brake Levers
• 1 x Left PAS Sensor
• 1 x 1T4 Waterproof Cable
• All necessary cables and mounting hardware
• 1 x User Manual

4. Specifications

Key technical specifications for the Varstrom 500W Electric Bike Conversion Kit:

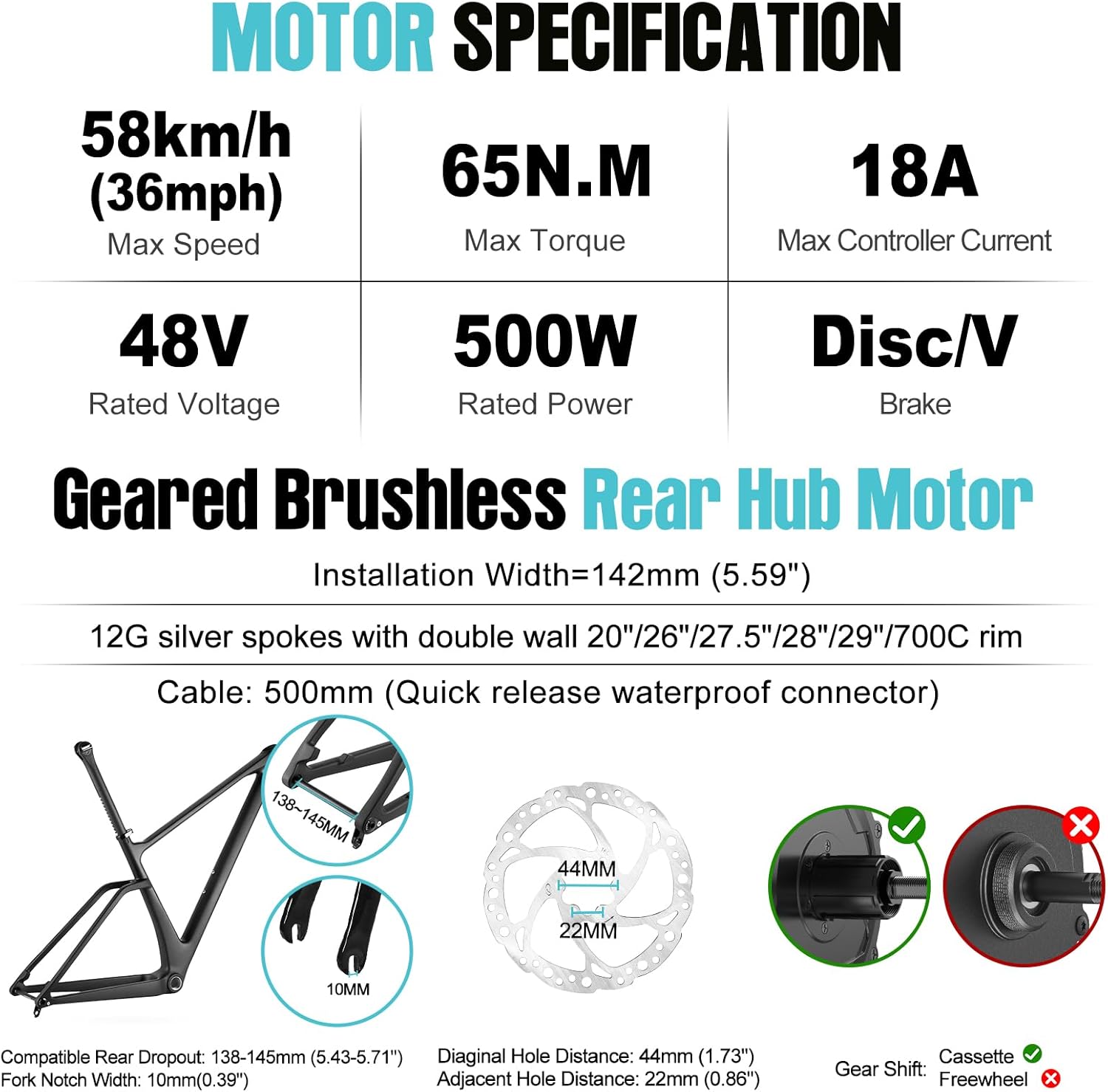

Figure 4.1: Detailed motor specifications.

This image provides a comprehensive overview of the motor's technical specifications. It highlights a maximum speed of 58 km/h (36 mph), maximum torque of 65 N.m, maximum controller current of 18A, rated voltage of 48V, rated power of 500W, and compatibility with Disc/V brakes. It also specifies the geared brushless rear hub motor's installation width of 142mm (5.59"), 12G silver spokes with double wall rim for 20"/26"/27.5"/28"/29"/700C, and a 500mm cable with quick release waterproof connector. Compatible rear dropout is 138-145mm (5.43-5.71") and fork notch width is 10mm (0.39"). The disc brake diagonal hole distance is 44mm (1.73") and adjacent hole distance is 22mm (0.86"). It explicitly states compatibility with cassette freewheel and incompatibility with standard freewheel.

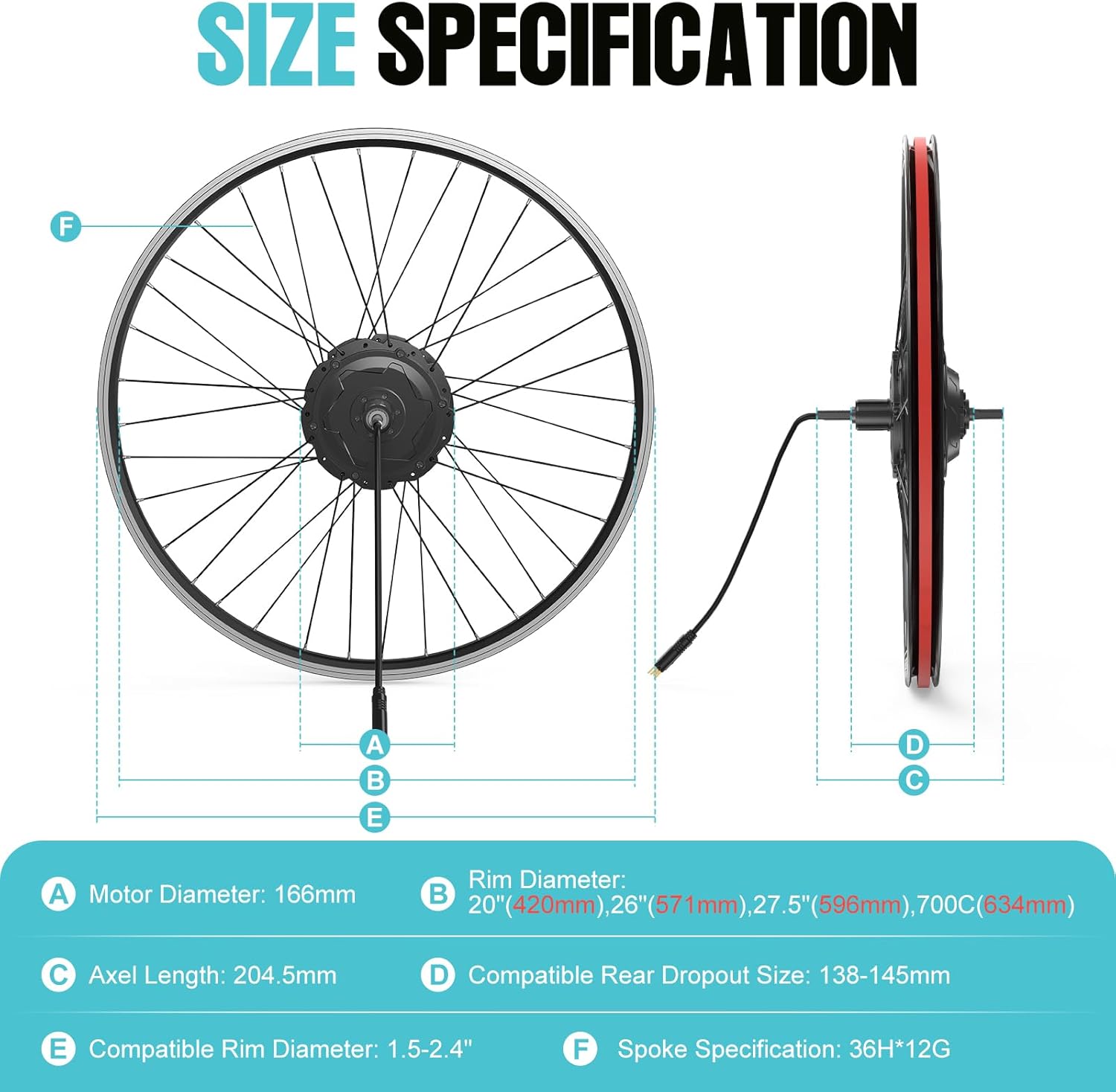

Figure 4.2: Wheel and motor size specifications.

This image details the size specifications of the motor and wheel. It shows a motor diameter of 166mm, an axle length of 204.5mm, and a compatible rear dropout size of 138-145mm. The rim diameter is specified for 20" (420mm), 26" (571mm), 27.5" (596mm), and 700C (634mm). Compatible rim diameter is 1.5-2.4" and spoke specification is 36H*12G.

5. Setup and Installation

Installation of the Varstrom e-bike conversion kit requires basic mechanical skills and tools. It is recommended to consult a professional bicycle mechanic if you are unsure about any steps.

5.1 Pre-Installation Checks

• Ensure your bicycle's rear dropout spacing is between 138-145mm.
• Verify your bicycle's wheel size matches the kit (26 inches for this model).
• Confirm your cassette is compatible (≤10-speed).
• Gather all necessary tools (e.g., wrenches, screwdrivers, cable ties).

5.2 Installation Steps (General Overview)

1. Remove Rear Wheel: Carefully remove your bicycle's existing rear wheel.
2. Install Motor Wheel: Mount the new motor wheel into the rear dropouts, ensuring it is centered and secured with axle nuts.
3. Mount Controller: Secure the controller and controller box to the bicycle frame, typically near the seat tube or down tube.
4. Install PAS Sensor: Attach the left Pedal Assist System (PAS) sensor to the crank arm, ensuring proper alignment with the magnet disc (if separate).
5. Install Display and Throttle: Mount the VD04 LCD display and thumb throttle on the handlebars in a comfortable and accessible position.
6. Install Brake Levers: Replace your existing brake levers with the provided e-bike specific brake levers, which include motor cut-off switches.
7. Connect Wiring: Connect all components using the provided waterproof cables. Ensure each connector is fully seated and secured. The 1T4 waterproof cable simplifies connections.
8. Cable Management: Route and secure all cables neatly along the frame using cable ties to prevent snagging or damage.
9. Final Checks: Before riding, perform a thorough check of all connections, brake function, and wheel alignment.

Figure 5.1: Visual guide for connecting the upgraded controller to various components.

This image illustrates the upgraded sine wave controller and its various connections to the e-bike components. It shows the controller connected to the motor wheel, battery, display, throttle, PAS sensor, and brake levers. The image also highlights the importance of using the correct PAS sensor for hollow crank sets.

6. Operating Instructions

Once installed, operating your Varstrom e-bike kit is straightforward.

6.1 Powering On/Off

• To power on the system, press and hold the power button on the VD04 LCD display.
• To power off, press and hold the power button again.

6.2 VD04 LCD Display Functions

Figure 6.1: VD04 LCD Display interface and specifications.

This image showcases the VD04 LCD display, highlighting its 3.5-inch IPS screen, dimensions (89.3mm x 60.8mm x 6.4mm), and various functionalities. It displays speed (KM/H or MPH), trip distance, odometer, average speed, power output, and battery level. The display also features navigation, multi-language support, and a quick switch to 25km/h. Speed limit settings range from 1 to 99 km/h, handlebar mounting diameters are 22.2mm/25.4mm/31.8mm, assist levels are 3, 5, or 9, and it includes a Type-C 5V 1A USB port for charging.

The VD04 display provides essential riding information and control:

• Speed: Current speed displayed in KM/H or MPH.
• Battery Level: Indicates remaining battery charge.
• Assist Level: Adjust pedal assist levels (3, 5, or 9 levels available) using the '+' and '-' buttons.
• Trip/ODO: View current trip distance or total odometer reading.
• Navigation: The VD04 display supports navigation features.
• Multi-language: Supports multiple languages for user convenience.
• Speed Limit: Quick switch to 25 km/h speed limit.
• USB Charging: Features a Type-C 5V 1A USB port for charging external devices.

6.3 Riding Modes

Figure 6.2: Illustration of the four available riding modes.

This image depicts a cyclist riding an e-bike and highlights the four distinct riding modes available with the Varstrom kit: Throttle, PAS (Pedal Assist System), Manual, and Boost.

• Throttle Mode: Engages the motor directly via the thumb throttle, providing power without pedaling.
• PAS (Pedal Assist System) Mode: The motor provides assistance as you pedal. The level of assistance can be adjusted via the display.
• Manual Mode: Ride the bicycle like a traditional bike without any motor assistance.
• Boost Mode: Provides maximum motor power for quick acceleration or climbing steep inclines.

Figure 6.3: Varstrom 125XVH motor performance.

This image shows a person riding an e-bike, emphasizing the powerful performance of the 125XVH motor. Key performance metrics are displayed: 58 km/h (36 mph) max speed, 415 RPM high speed, and ≥65 N.m high torque.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your Varstrom e-bike conversion kit.

• Cleaning: Clean the motor, controller, and display with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Connections: Periodically check all electrical connections for tightness and corrosion. Ensure waterproof connectors are properly sealed.
• Brakes: Inspect brake pads and rotors for wear. Adjust or replace as necessary. Ensure the motor cut-off function of the brake levers is working correctly.
• Tires: Maintain proper tire pressure and inspect for wear or damage.
• Chain and Drivetrain: Keep the chain clean and lubricated. Check for wear on the cassette and chainring.
• Battery Care: Follow the battery manufacturer's instructions for charging, storage, and maintenance. Avoid fully discharging the battery.
• Motor: The 125XVH hub motor is designed to be maintenance-free for up to 100,000 kilometers.

8. Troubleshooting

If you encounter issues with your e-bike kit, refer to the following common troubleshooting steps:

For further assistance, please contact Varstrom customer support.

9. Warranty and Support

Your Varstrom Electric Bike Conversion Kit comes with the following warranty and support:

• Returns: 30-day free returns.
• Repair: 1-year free repair service.
• Consultation: Lifetime after-sales consultation.

For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Varstrom website.
