1. Introduction
This manual provides essential instructions for the assembly, operation, maintenance, and care of your HIPIHOM Extendable Dining Table, Model JA25006. Please read this guide thoroughly before assembly and retain it for future reference to ensure safe and efficient use of your dining table.

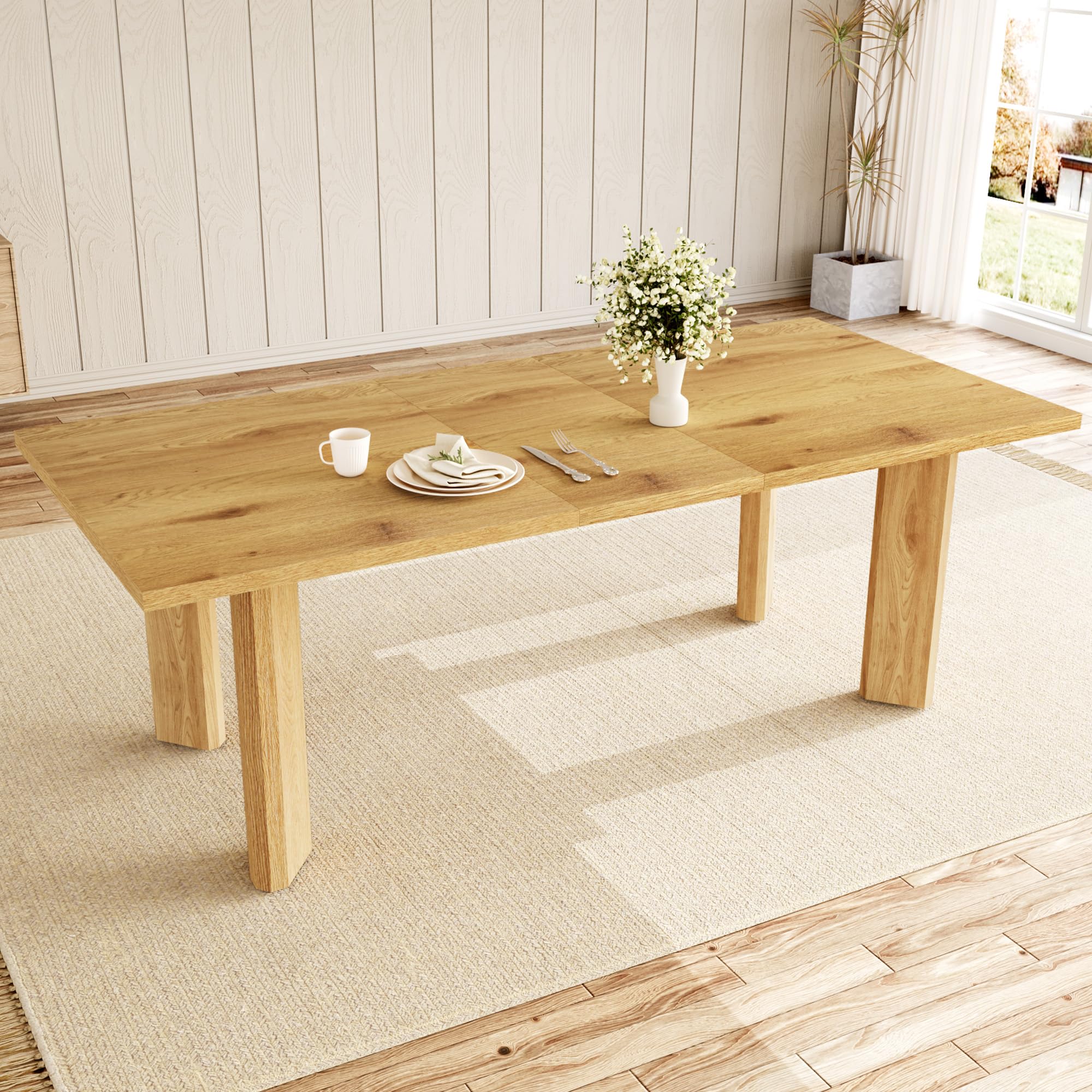

Image 1.1: HIPIHOM Extendable Dining Table (Extended)
2. Safety Information
Adherence to these safety guidelines is crucial for preventing injury and damage to the product.
- Always follow the assembly instructions carefully.
- Do not exceed the maximum weight recommendation of 260 pounds (118 kg) to ensure stability and prevent accidents.
- Ensure all screws and fasteners are securely tightened before use and periodically check for looseness.
- Keep small parts and assembly tools away from children during assembly.
- Place the table on a level surface to prevent wobbling and instability.
3. Package Contents
Before beginning assembly, verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.
- Tabletop sections (main and extension panel)
- Table legs
- Hardware pack (screws, bolts, washers, Allen wrench)
- Installation Guide (this document)
4. Setup and Assembly
The HIPIHOM Extendable Dining Table is designed for straightforward assembly. It is recommended to have two people for assembly to ensure stability and ease of handling. All necessary tools are included.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Attach the table legs to the main tabletop sections using the provided hardware. Ensure all connections are firm.
- Carefully turn the table upright.
- Adjust the feet on the table legs to ensure the table is level on uneven surfaces and to protect your floors from scratches.
5. Operating the Extendable Feature
Your HIPIHOM dining table features an extendable design, allowing it to comfortably seat 4-6 people when compact and up to 8 people when fully extended. Follow these steps to extend or retract the table:
- Pull Apart the Tabletop: Gently pull the two main tabletop sections apart from the center. The sliding mechanism will allow them to separate smoothly.
- Place Extension Panel: Retrieve the extension panel. Carefully place it into the gap created between the two main tabletop sections. Ensure it is properly aligned with the connecting hardware.
- Close and Lock the Tabletop: Push the two main tabletop sections back together until they meet the extension panel and lock into place. Ensure all sections are flush and secure before use.
Image 5.1: Table Extension Steps
6. Maintenance and Care
Proper care will ensure the longevity and appearance of your HIPIHOM dining table.
- Cleaning: Wipe the table surface with a damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the MDF material.
- Spills: Clean spills immediately to prevent staining, especially for liquids, as the table is water-resistant but not entirely waterproof against prolonged exposure.
- Heat Protection: Although the table is heat-resistant, it is recommended to use placemats or coasters for hot dishes to prevent potential damage.
- Scratch Prevention: Use felt pads under decorative items or serving dishes to prevent scratches on the tabletop.
- Stability Check: Periodically check and tighten all screws and bolts to maintain the table's stability.
Image 6.1: Table Quality and Care Details
7. Troubleshooting
If you encounter any issues with your dining table, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Table is wobbly | Uneven floor; loose connections | Adjust the leveling feet on the legs. Tighten all assembly screws. |
| Extension panel does not fit | Tabletop sections not fully separated or misaligned | Ensure the main tabletop sections are fully pulled apart and aligned correctly before inserting the panel. |
| Difficulty sliding tabletop | Debris in mechanism; dry slides | Clean the sliding tracks. Apply a small amount of silicone lubricant if necessary (avoid oil-based lubricants). |
8. Specifications
Key technical specifications for the HIPIHOM Extendable Dining Table, Model JA25006:
| Feature | Detail |
|---|---|
| Model Number | JA25006 |
| Brand | HIPIHOM |
| Material | Engineered Wood (MDF) |
| Style | Farmhouse Style |
| Shape | Rectangular |
| Extendable | Yes |
| Dimensions (Shrunk) | 63 inches (Length) x 31.52 inches (Width) x 29.92 inches (Height) |
| Dimensions (Extended) | 78.72 inches (Length) x 31.52 inches (Width) x 29.92 inches (Height) |
| Seating Capacity | 4-6 people (shrunk), up to 8 people (extended) |
| Weight Capacity | 260 lbs (118 kg) |
| Water Resistance | Yes |
| Included Components | Installation Guide, Screw Accessories |
Image 8.1: Table Dimensions and Load Capacity
9. Warranty and Support
For warranty information, product support, or to report missing/damaged parts, please contact HIPIHOM customer service through your original point of purchase or visit the official HIPIHOM website. Please have your model number (JA25006) and purchase date ready when contacting support.
