SOZT VT-BS30JW Countertop Nugget Ice Maker with Water Dispenser User Manual

1. Product Overview

The SOZT VT-BS30JW is a versatile 2-in-1 countertop appliance designed to produce soft, chewable nugget ice and dispense cold water. This unit is suitable for various settings including homes, kitchens, offices, and bars, providing a continuous supply of ice and water.

Key features include:

• High Ice Production: Capable of producing up to 50 lbs of nugget ice per day, with a batch ready in 8-15 minutes.
• Integrated Storage: Features a 5 lbs built-in ice storage bin.
• Smart Control Panel: Intuitive interface for selecting ice, water, or ice water, along with self-cleaning, timer settings, and indicator lights.
• Durable Construction: Made from rust-resistant stainless steel with foam insulation and a food-grade PP interior for hygiene.
• Dual Water Input: Supports direct tap water connection or bottled water with an internal pump.

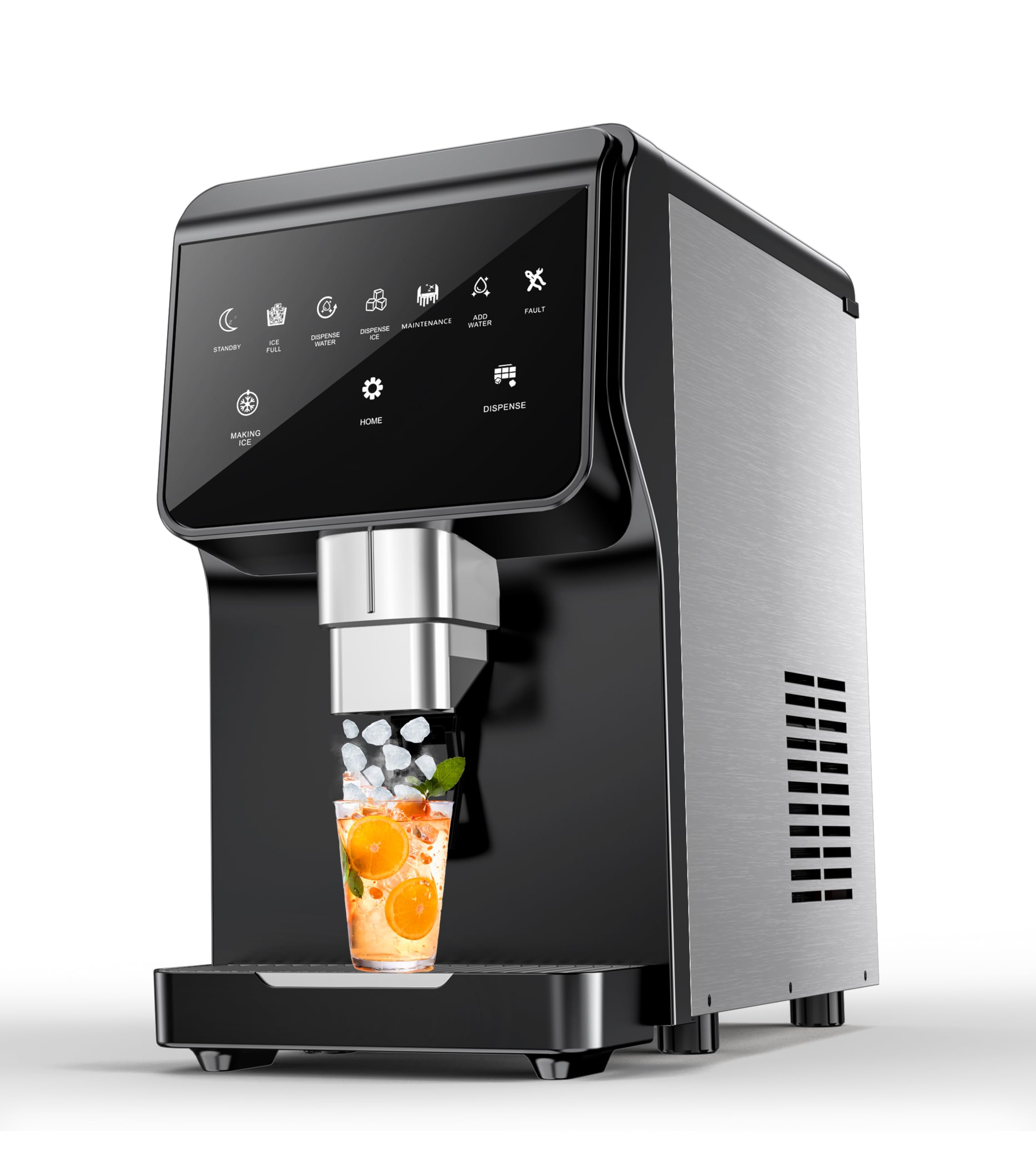

Image 1.1: The SOZT VT-BS30JW Countertop Nugget Ice Maker and Water Dispenser.

2. Safety Instructions

Please read all instructions carefully before operating the appliance to ensure safe and efficient use. Retain this manual for future reference.

• Electrical Safety: Ensure the appliance is connected to a properly grounded power outlet. Do not operate with a damaged power cord or plug.
• Water Supply: Use only potable water. Ensure water connections are secure to prevent leaks.
• Placement: Place the ice maker on a stable, level surface away from direct sunlight, heat sources, and corrosive gases. Allow adequate ventilation around the unit.
• Cleaning: Always unplug the appliance before cleaning. Use mild detergents and avoid abrasive cleaners.
• Children and Pets: Keep the appliance out of reach of children and pets. Supervise children to ensure they do not play with the appliance.
• Maintenance: Do not attempt to repair or disassemble the unit yourself. Refer to qualified service personnel for any repairs.
• Refrigerant: This appliance uses R290a refrigerant. Handle with care and ensure proper disposal according to local regulations.

3. Product Components

Familiarize yourself with the main parts of your SOZT ice maker and water dispenser.

• Control Panel: Touch-sensitive interface for operation.
• Ice/Water Dispenser: Outlet for ice and water.
• Drip Tray: Collects spills from dispensing.
• Ice Storage Bin: Holds up to 5 lbs of nugget ice.
• Water Inlet: Connection point for external water supply (tap or bottled).
• Drain Port: For water drainage during cleaning or maintenance.

Image 3.1: The intuitive touch control panel with various indicators.

Image 3.2: Rear view showing dual water input options for tap or bottled water.

4. Setup

Follow these steps for initial setup of your ice maker.

1. Unpacking: Carefully remove the appliance from its packaging. Inspect for any damage.
2. Placement: Position the unit on a flat, stable surface. Ensure there is at least 5 inches of space around the unit for proper ventilation.
3. Water Connection:
   • Tap Water: Connect the provided water inlet hose to a potable water tap and to the designated inlet port on the back of the ice maker. Ensure all connections are tight to prevent leaks.
   • Bottled Water: If using bottled water, place the water bottle on a stable surface near the ice maker. Insert the internal water pump hose into the bottled water and connect the other end to the designated inlet port.
4. Power Connection: Plug the power cord into a grounded electrical outlet (115 Volts).
5. Initial Cleaning: Before first use, perform a self-cleaning cycle as described in the Maintenance section.

Image 4.1: Visual guide for quick and easy setup and ice production.

5. Operating Instructions

Operating your SOZT ice maker is straightforward with its intuitive control panel.

1. Power On: Press the power button on the control panel to turn on the machine.
2. Select Mode:
   • Making Ice: Press the "Making Ice" button. The machine will begin producing nugget ice. Ice will be ready in approximately 8-15 minutes.
   • Dispense Water: Press the "Dispense Water" button. Place a glass under the dispenser and press the dispense lever.
   • Dispense Ice: Press the "Dispense Ice" button. Place a glass under the dispenser and press the dispense lever.
3. Indicator Lights: Monitor the control panel for indicators such as "Ice Full," "Water Shortage," and "Maintenance."
4. Timer Function: Use the timer settings to schedule ice production.

Image 5.1: The three versatile modes: Water, Ice Water, and Ice.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your ice maker.

1. Self-Cleaning Cycle:
   • Ensure the ice bin is empty.
   • Press the "Self-Cleaning" button on the control panel. The machine will automatically run a cleaning cycle.
   • Once complete, drain any remaining water from the unit via the drain port.
2. Exterior Cleaning: Wipe the exterior stainless steel surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners.
3. Interior Cleaning: Periodically clean the ice storage bin and water reservoir with a solution of water and vinegar or a food-grade ice maker cleaner. Rinse thoroughly.
4. Air Filter: Check and clean the air filter (if applicable) regularly to ensure proper airflow and cooling efficiency.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

Detailed technical specifications for the SOZT VT-BS30JW ice maker.

9. Warranty and Customer Support

Your SOZT ice maker comes with comprehensive support.

• Warranty: Includes a 12-month product warranty from the date of purchase.
• Technical Support: Lifetime technical support is provided.
• Contact: For any questions, issues, or warranty claims, please contact SOZT-US customer service through your Amazon order details. They are committed to providing fast, professional assistance.
