VEVOR SL-517 6.7-inch 150W Electric Deli Meat Slicer Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before operating the VEVOR SL-517 Electric Deli Meat Slicer. Retain this manual for future reference.

• Blade Safety: The slicer features a sharp, serrated stainless steel blade. Always exercise extreme caution when handling or cleaning the blade. The blade is recessed 1mm within the housing to minimize direct contact.
• Power Connection: Ensure the slicer is unplugged from the power outlet before assembly, disassembly, cleaning, or when not in use.
• Stable Placement: Always operate the slicer on a clean, dry, and stable surface. The unit is equipped with strong rubber suction feet to prevent movement during operation.
• Security Lock: Utilize the integrated security lock and knob plate to ensure safe operation and prevent accidental activation.
• Food Pusher: Always use the food pusher to guide food towards the blade. Never use your bare hands to push food.
• Cleaning: Disassemble parts for thorough cleaning. Hand wash only for optimal maintenance.
• Children and Pets: Keep the appliance out of reach of children and pets.

2. Product Overview

The VEVOR SL-517 Electric Deli Meat Slicer is designed for efficient and precise slicing of various foods. It features a powerful 150W motor and two durable SUS420 stainless steel blades for versatile use.

Figure 1: VEVOR SL-517 Electric Deli Meat Slicer with an extra blade.

Key Features:

• Efficient Slicing: 150W motor with 65-90 RPM for smooth, jam-free cutting.
• Adjustable Thickness: Precise knob allows thickness adjustment from 0 to 15mm (0-0.6 inches).
• Dual Blades: Includes two 170mm (6.7-inch) SUS420 serrated stainless steel blades for various food types.
• Easy Cleaning: Carriage tray, blade, food pusher, and slider extension are easily detachable.
• Safety Features: Recessed blade design, security lock, and strong rubber suction feet for stability.
• Compact Design: Lightweight and foldable for convenient storage in small kitchens.

3. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or transport.
2. Placement: Place the slicer on a flat, stable, and dry countertop. Ensure the suction feet are firmly attached to the surface to prevent movement.
3. Initial Cleaning: Before first use, clean all detachable parts (blade, carriage tray, food pusher, slider extension) with warm, soapy water. Rinse thoroughly and dry completely.
4. Blade Installation: Ensure the correct blade is securely installed. The slicer comes with two serrated blades. To install, align the blade with the motor shaft and twist the central knob clockwise until it locks into place.
5. Power Connection: Plug the power cord into a grounded electrical outlet.

4. Operating Instructions

4.1 Preparing Food for Slicing:

• For best results with meat, partially freeze it for 1 hour (approximately 3-4°C) before slicing. This helps maintain shape and ensures uniform thickness.
• For frozen meat, thaw for 20-30 minutes until the surface ice melts and it is pressable with fingers. Avoid slicing when too hard for uniform thickness.
• Ensure food items fit securely on the carriage tray and under the food pusher.

Figure 2: Guidelines for preparing frozen and fresh meat for optimal slicing.

4.2 Slicing Procedure:

1. Place Food: Position the food item securely on the carriage tray, ensuring it is stable against the food pusher.
2. Adjust Thickness: Rotate the thickness adjustment knob to select your desired slice thickness (0-15mm). Turning right for thicker slices and left for thinner slices.

Figure 3: Thickness adjustment knob and examples of various slice thicknesses.
3. Activate Slicer: Unlock the security lock and press the power switch simultaneously to start the motor.
4. Slice Food: Gently press the food item against the blade using the food pusher and slide the carriage tray back and forth. Maintain steady pressure for uniform slices.


Figure 4: Visual guide for operating the slicer.

5. Finish Slicing: Once slicing is complete, turn off the power switch and engage the security lock. Unplug the unit.

5. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your slicer. Always unplug the slicer before cleaning.

5.1 Disassembly for Cleaning:

1. Remove Food Pusher and Slider Extension: Gently pull these components off the carriage tray.
2. Remove Carriage Tray: Slide the carriage tray off the unit.
3. Remove Blade: Carefully twist the central knob on the blade counter-clockwise to unlock it, then remove the blade. Exercise extreme caution as the blade is very sharp.

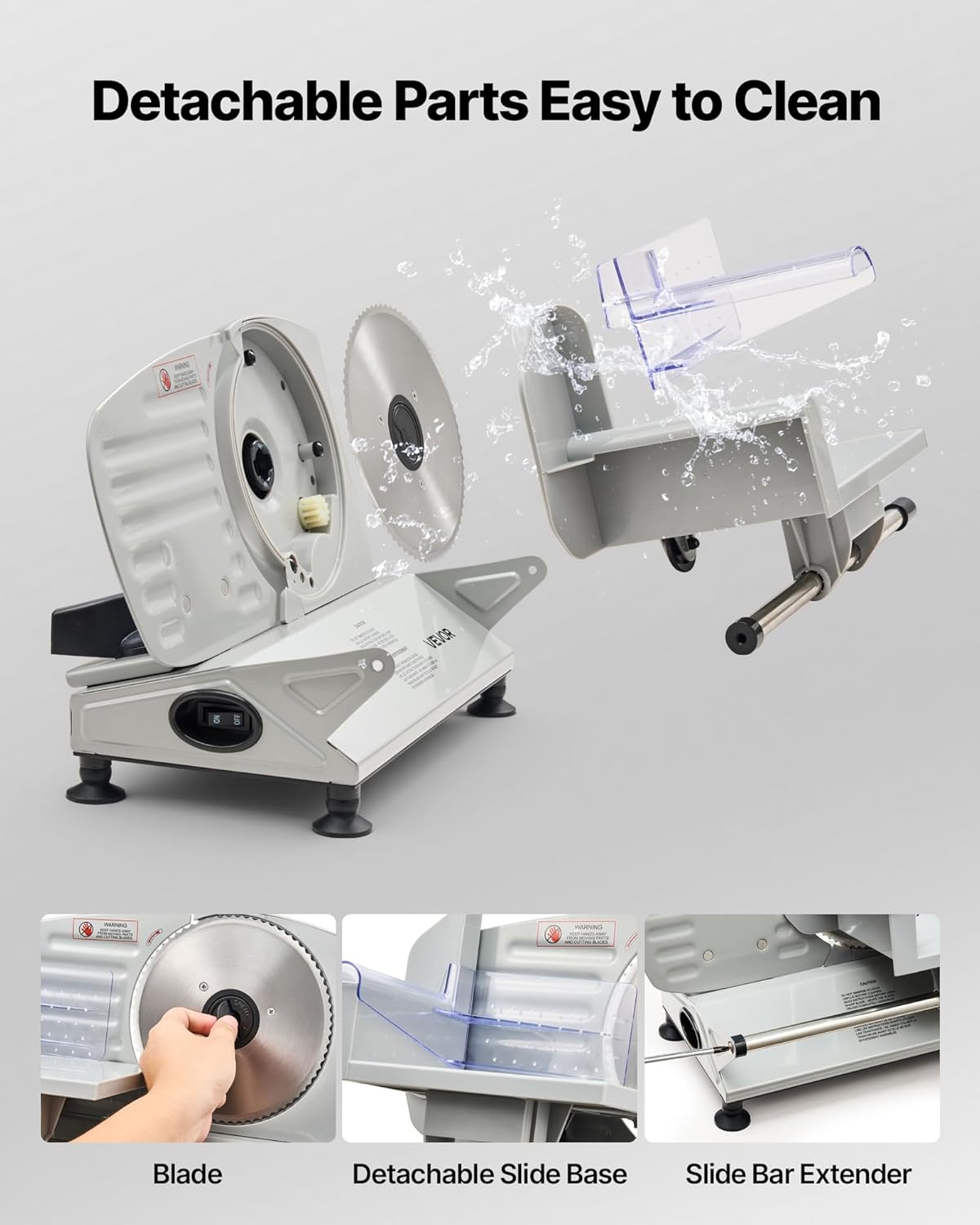

Figure 5: Detachable components for easy cleaning.

5.2 Cleaning Steps:

• Hand Wash: Wash all detachable parts (blade, carriage tray, food pusher, slider extension) with warm, soapy water. Rinse thoroughly.
• Wipe Down: Use a damp cloth to wipe down the main body of the slicer. Do not immerse the main unit in water.
• Dry Completely: Ensure all parts are completely dry before reassembling or storing the slicer.

Figure 6: Cleaning the blade by rinsing and dishwasher compatibility.

5.3 Storage:

The slicer's compact design allows for easy storage. Ensure the unit is clean and dry before folding and storing in a drawer or cabinet.

Figure 7: Compact design for convenient storage.

6. Troubleshooting

• Slicer Does Not Turn On:
  • Check if the power cord is securely plugged into a working outlet.
  • Ensure the security lock is disengaged and the power switch is pressed simultaneously.
• Uneven Slices:
  • Verify that the food item is placed firmly against the food pusher and the thickness guide.
  • Ensure the food item is properly prepared (e.g., partially frozen for meat) to maintain its shape during slicing.
  • Check if the blade is clean and free from debris that might obstruct smooth cutting.
• Slicer Jams:
  • Reduce the pressure applied to the food pusher.
  • Ensure the food item is not too large or hard for the slicer.
  • Clean the blade and surrounding area to remove any accumulated food particles.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or any inquiries regarding your VEVOR SL-517 Electric Deli Meat Slicer, please refer to the official VEVOR website or contact VEVOR customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
