1. Introduction and Overview

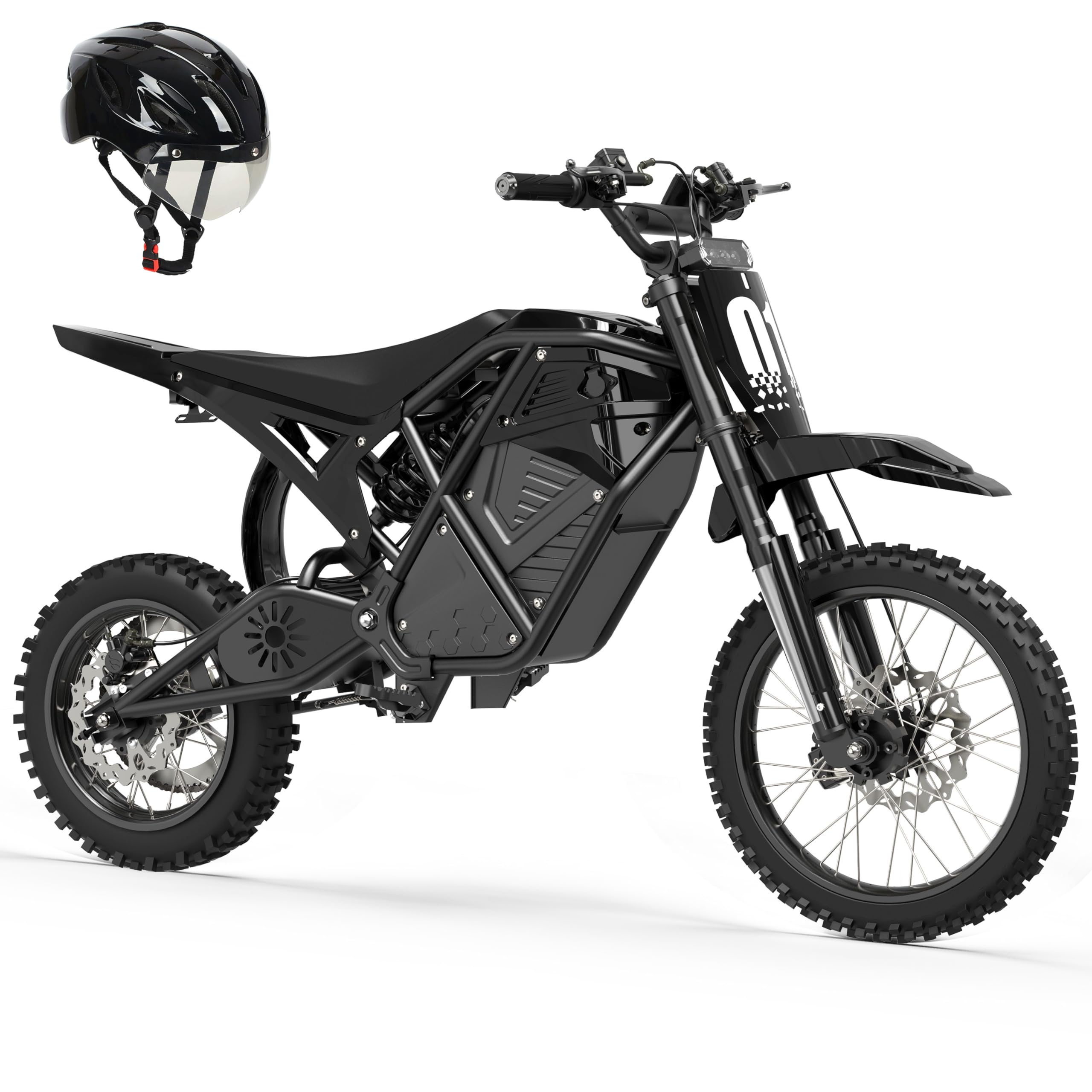

The ESKUTE Electric Dirt Bike EDB001 is designed for teens and adults, offering powerful performance and robust features for off-road and trail riding. This manual provides essential information for safe assembly, operation, and maintenance of your electric dirt bike.
Key Features:
- 3500W Peak Power & 220Nm Torque: Rapid acceleration and ability to conquer 35° off-road climbs. Reaches 38mph top speed.
- 53-Mile Range & 48V 23Ah Battery: High-capacity lithium battery for extended riding. Fast 6-hour full charge. Battery management system for safety.
- Nitrogen-Filled Technology: Prevents hydraulic oil cavitation, ensuring consistent shock absorption performance during high-intensity off-road driving. Maintains 90% performance during continuous use.
- Dual Hydraulic Disc Brakes & Steel Frame: Large front and rear brake discs for consistent stopping power. Reinforced steel frame supports up to 265 lbs.
- TUV Certified & 1-Year Warranty: Meets strict safety standards. Easy assembly with included tools. US-based customer support and replacement parts available.
2. What's in the Box
Upon receiving your ESKUTE Electric Dirt Bike EDB001, please verify that all components listed below are included in the package:
- Battery
- Charger
- Charging Cable
- Product Manual
- Headlight
- Mudguard
- Tool Kit
3. Setup and Assembly
Follow these instructions and refer to the provided videos for a smooth assembly process. It is recommended to have two people for certain steps.
Assembly Steps:
- Unboxing: Carefully remove all components from the packaging.
- Handlebar Installation: Attach the handlebars to the stem clamp, ensuring all bolts are securely tightened.
- Headlight and License Plate Bracket: Install the headlight and license plate mounting brackets to the front fork.
- Front Wheel Installation: Secure the front wheel to the fork, ensuring the brake disc is correctly aligned with the caliper.
- Front Fender Installation: Attach the front fender to the designated mounting points.
- Rear Shock Absorber: Install the rear shock absorber, ensuring proper alignment and tightening of mounting screws.
- Footrest Installation: Attach the footrests to the frame, ensuring they are securely fastened.
- Cable Management: Organize and secure all cables to prevent interference with moving parts.
Assembly Videos:
4. Operating Instructions
Familiarize yourself with the controls and display before operating the ESKUTE EDB001.
Controls and Display:
- Power On/Off: Insert the key and rotate clockwise to power on.
- Gear Settings: Use the '+' and '-' buttons on the display to toggle between three power modes. Higher gears deliver higher power output.
- Display Modes: Press the 'M' button to switch between different display modes (e.g., odometer, trip distance, voltage).
- Headlight: Activate the LED headlight for visibility.
- Brakes: Dual hydraulic disc brakes provide reliable stopping power.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ESKUTE Electric Dirt Bike EDB001.
- Battery Care: If the device remains unused for an extended period, perform a full charge-discharge cycle monthly (fully charge → fully drain → fully charge) to help extend battery life and maintain stable device performance.
- Tire Pressure: Regularly check and maintain recommended tire pressure for safety and efficiency.
- Brake System: Inspect brake pads and discs periodically for wear. Ensure brake levers operate smoothly and effectively.
- General Cleaning: Keep the bike clean, especially after off-road use, to prevent dirt and debris from affecting components.
6. Troubleshooting
This section addresses common issues you might encounter with your ESKUTE Electric Dirt Bike EDB001.
- Power Issues: Ensure the battery is fully charged and properly connected. Check the key switch for proper engagement.
- Motor Not Engaging: Verify that the bike is not in 'P' (parking) mode. Check all electrical connections.
- Brake Malfunction: Inspect brake lines for damage and ensure calipers are free from obstruction. If issues persist, consult a professional.
- Display Errors: Refer to the display settings in the operating instructions. If an error code appears, contact customer support.
7. Specifications
Detailed technical specifications for the ESKUTE Electric Dirt Bike EDB001:
| Feature | Specification |
|---|---|
| Bike Type | Dirt Bike, Electric Bike, Mountain Bike |
| Age Range | Adult |
| Brand | ESKUTE |
| Number of Speeds | 3 |
| Color | Black |
| Wheel Size | 14 Inches |
| Suspension Type | Dual |
| Special Feature | 3500W Peak Power Mid-Drive Motor, Dual Hydraulic Disc Brakes, Multi-Speed, Nitrogen-Filled Technology |
| Included Components | Battery, Charger, Charging Cable, Product Manual, Headlight, Mudguard, Tool Kit |
| Brake Style | Disc |
| Power Source | Electric motor |
| Lithium Battery Energy Content | 1088 Watt Hours |
| Bicycle Gear Shifter Type | Twist Grip |
| Bicycle Drivetrain Type | Mid drive |
| Electric Assist Type | Mid-drive motor |
| Wheel Material | Aluminum |
| Model Number | EDB001 |
| Model Name | EDB001 |
| Model Year | 2025 |
| Maximum Weight Recommendation | 265 Pounds |
| Assembly Required | Yes |
8. Warranty and Support
Your ESKUTE Electric Dirt Bike EDB001 comes with a 1-year warranty, ensuring peace of mind for your purchase. The product meets strict safety standards for electric bicycles (TUV Certified).
Customer Support:
For any inquiries, technical assistance, or replacement parts, please contact ESKUTE customer support. US-based customer support and replacement parts are available nationwide.
- Pre-sales: 1-888-886-2818
- After-sales: 1-240-332-0549
- Operating Hours: Mon-Fri 9:00am-6:00pm EST
- Email: support.us@eskute.com
