Varpoolfaye 140000 BTU Inverter Pool Heat Pump

1. Important Safety Information

Please read this manual thoroughly before installation, operation, or maintenance. Failure to follow these instructions may result in property damage, serious injury, or death. Keep this manual for future reference.

• Electrical Safety: This unit requires a 220V-240V / 60Hz electrical supply. All electrical connections must be performed by a qualified electrician in accordance with local and national electrical codes. Ensure proper grounding.
• Water Safety: Always ensure the pool pump is running and water is flowing through the heat pump before operating the unit. Operating without water flow can damage the heater.
• Refrigerant: This unit contains A2L R32 refrigerant. Servicing should only be performed by certified personnel. Do not attempt to open the refrigerant system.
• Placement: Ensure adequate clearance around the unit for proper airflow and maintenance. Do not block air inlets or outlets.
• Children: Keep children away from the unit during operation and maintenance.

2. Product Overview

The Varpoolfaye 140000 BTU Inverter Pool Heat Pump is designed to efficiently heat or cool your pool water, providing a comfortable swimming experience. It utilizes inverter technology for energy savings and features Wi-Fi control for convenient remote operation.

Key Features:

• High Efficiency: Delivers 140000 BTU with a COP of up to 12.8, reducing electricity costs.
• Quiet Operation: Operates at a low noise level of 47dB, ensuring a peaceful environment.
• Versatile Use: Suitable for both freshwater and saltwater pools, including above-ground and in-ground pools up to 42000 gallons.
• Inverter Technology: Provides longer lifespan and lower energy consumption.
• Smart Control: Features an intelligent control panel and Wi-Fi remote control via a dedicated app.

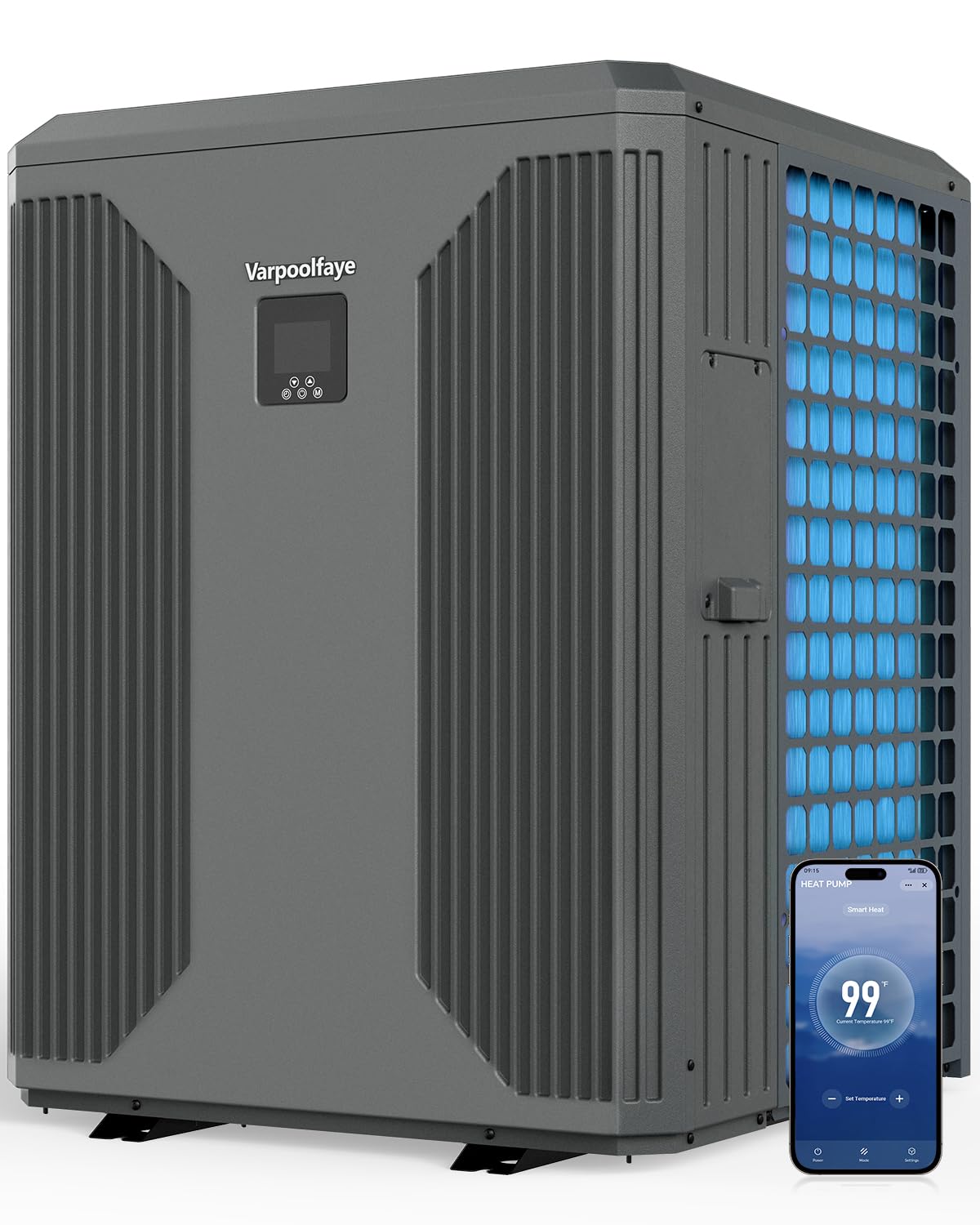

Figure 2.1: Varpoolfaye 140000 BTU Inverter Pool Heat Pump.

Figure 2.2: Overview of the Varpoolfaye 140000 BTU Inverter Pool Heat Pump highlighting its capacity, voltage, and air outlet design.

Figure 2.3: Remote control interface for the Varpoolfaye pool heat pump, showing temperature settings and scheduling options.

Figure 2.4: Illustration of the 3-Surface Heat Exchange and Top Air Outlet Design, contributing to energy efficiency.

Figure 2.5: Visual representation of the Inverter Compressor technology, showing energy savings for heating and cooling.

Figure 2.6: The Varpoolfaye pool heat pump operating quietly, demonstrating its low noise level of less than 47dB.

3. Setup and Installation

Proper installation is crucial for the performance and longevity of your heat pump. Refer to the detailed installation guide provided with your unit for complete instructions. Below are general steps and important considerations.

3.1 Placement

• Choose a well-ventilated outdoor location, away from obstructions that could block airflow.
• Ensure the unit is placed on a stable, level surface.

3.2 Water Connections

The heat pump should be installed in the pool's filtration system after the filter and before any chemical feeders. The unit includes 1.5-inch connectors.

• Connect the pool water outlet to the heat pump's water inlet.
• Connect the heat pump's water outlet back to the pool return line.
• Ensure all connections are watertight to prevent leaks.

Figure 3.1: Connection options for the pool heat pump, including PVC pipe and hose connections. The accessory package includes the PVC pipe adapter (Option 1).

3.3 Electrical Connections

The unit requires a dedicated 220V-240V / 60Hz circuit. A 118-inch power cord is included. Consult a qualified electrician for all electrical wiring to ensure compliance with local codes and safety standards.

3.4 Video Guides for Installation

4. Operating Instructions

The Varpoolfaye heat pump features an intelligent control panel and Wi-Fi connectivity for easy operation.

4.1 Initial Start-up

1. Ensure the pool pump is running and water is circulating through the heat pump.
2. Open the protective cover of the control panel.
3. Press the power button on the control panel to turn on the device. Confirm the action when prompted.
4. The display will show current water inlet/outlet temperatures, ambient temperature, and the set temperature.

4.2 Mode Selection

Access the settings menu on the control panel to select your desired operating mode:

• ECO Heating: Energy-efficient heating mode.
• Boost Heating: Rapid heating for quicker temperature increase.
• Intelligent Heating: Automatically adjusts operation for optimal heating.
• ECO Cooling: Energy-efficient cooling mode.
• Boost Cooling: Rapid cooling for quicker temperature decrease.
• Intelligent Cooling: Automatically adjusts operation for optimal cooling.
• Automatic Mode: The unit intelligently switches between heating and cooling to maintain the set temperature.

4.3 Wi-Fi Remote Control

Download the Varpoolfaye app (compatible with Smart Life, available on App Store and Google Play) to control your heat pump remotely. The app allows you to:

• Adjust temperature settings.
• Schedule run times.
• Switch between operating modes.
• Monitor current pool and ambient temperatures.

Figure 4.1: The remote control application interface, showing temperature adjustment and scheduling features.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Varpoolfaye pool heat pump.

• Clean the Coils: Periodically inspect and clean the evaporator coils to remove leaves, dirt, and debris. Blocked coils reduce efficiency.
• Check Water Flow: Ensure consistent and adequate water flow through the unit. Clean pool filters regularly to prevent reduced flow.
• Inspect Wiring: Annually, have a qualified technician inspect electrical connections for wear or corrosion.
• Winterization: In colder climates, proper winterization is essential to prevent freezing damage. Consult your local dealer or the full product manual for specific winterization procedures. This typically involves draining water from the unit and covering it.
• General Cleaning: Keep the exterior of the unit clean. Do not use harsh chemicals that could damage the casing.

6. Troubleshooting

If you encounter issues with your heat pump, refer to the following basic troubleshooting steps. For complex problems, contact customer support.

• Unit Not Turning On: Check the power supply, circuit breaker, and ensure the unit is properly plugged in. Verify the control panel is not locked.
• No Heat/Cooling: Ensure the pool pump is running and there is sufficient water flow. Check the selected operating mode and set temperature. Clean coils if dirty.
• Error Codes: If an error code appears on the display, consult the full product manual for specific code meanings and recommended actions.
• Unusual Noise: Inspect for any loose parts or obstructions in the fan area. If the noise persists, contact support.

7. Specifications

Detailed technical specifications for the Varpoolfaye 140000 BTU Inverter Pool Heat Pump, Model KSPF-035L3VUD2.

Figure 7.1: Heat Pump Selection Guide indicating maximum heatable temperatures based on pool depth, gallons, and ambient temperature.

8. Warranty and Support

Your Varpoolfaye 140000 BTU Inverter Pool Heat Pump is covered by a 3-year warranty. This warranty covers defects in materials and workmanship under normal use and service.

8.1 Customer Support

For technical assistance, warranty claims, or any questions regarding your product, please contact Varpoolfaye-US customer support. Refer to your purchase documentation for specific contact details or visit the Varpoolfaye official website.

Seller: Varpoolfaye-US

Returns: 30-day easy returns policy applies.
