1. Safety Information
Please read all instructions carefully before using your EUHOMY wine cooler. Retain this manual for future reference.
- Ensure the appliance is placed on a stable, level surface.
- Allow the unit to stand upright for at least 24 hours before plugging it in to allow refrigerants to settle.
- Do not block ventilation openings in the appliance enclosure or in the built-in structure.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Keep children away from the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the appliance before cleaning or performing maintenance.
2. Product Overview
The EUHOMY 25-Bottle Wine Cooler Refrigerator is designed to store your wine and beverages at optimal temperatures. It features a compressor cooling system, adjustable temperature control, and a double-layer glass door for UV protection.
Image: The EUHOMY 25-Bottle Wine Cooler Refrigerator, showcasing its sleek black design and glass door filled with wine bottles.
3. Setup and Installation
3.1 Unpacking and Placement
- Remove all packaging materials, including foam and adhesive tape.
- Place the cooler on a flat, solid surface that can support its weight when fully loaded.
- Ensure adequate ventilation around the unit. Maintain at least 5 inches (12.7 cm) of space at the back and sides, and 10 inches (25.4 cm) at the top.
- Avoid placing the unit in direct sunlight or near heat sources.
3.2 Leveling the Appliance
The cooler is equipped with adjustable leveling legs. Adjust them to ensure the unit is perfectly level, which is crucial for proper operation and door sealing.
Image: Product details highlighting the adjustable feet for stability, reversible door, built-in handle, and LED light control panel.
3.3 Door Reversal
The door of the wine cooler is reversible, allowing it to open from either the left or right side to suit your space. Refer to the detailed instructions in the included user manual for the door reversal procedure.
3.4 Initial Power-On
After placement, allow the wine cooler to stand upright for at least 24 hours before plugging it into a power outlet. This allows the compressor oils and refrigerants to settle, preventing potential damage.
Image: The wine cooler positioned in a kitchen, demonstrating its large storage capacity for up to 25 bottles.
4. Operating Instructions
4.1 Control Panel
The wine cooler features an intuitive digital touchscreen control panel located at the top of the unit. This panel allows you to adjust the temperature and control the internal LED lighting.
Image: A hand interacting with the intelligent temperature control panel, showing the digital display and buttons for power, LED light, and temperature adjustment.
4.2 Temperature Adjustment
The adjustable temperature range is from 41°F to 64°F (5°C to 18°C). Use the up (▲) and down (▼) arrows on the control panel to set your desired temperature. The digital display will show the current internal temperature.
Image: A visual guide illustrating the wide temperature cooling range from 41°F to 64°F, with recommended temperatures for sparkling wines, beers, white wines, and red wines.
4.3 LED Lighting
Press the light bulb icon (💡) on the control panel to turn the soft blue LED interior light on or off. This light helps showcase your collection without emitting harmful heat.
4.4 Loading Bottles
The cooler features 4 chrome full-width wave wine racks, 1 full-width flat shelf, and a bottom compartment. The wave shelves are designed to securely hold standard 750ml wine bottles, preventing them from rolling. The bottom compartment is suitable for larger or irregularly shaped bottles.

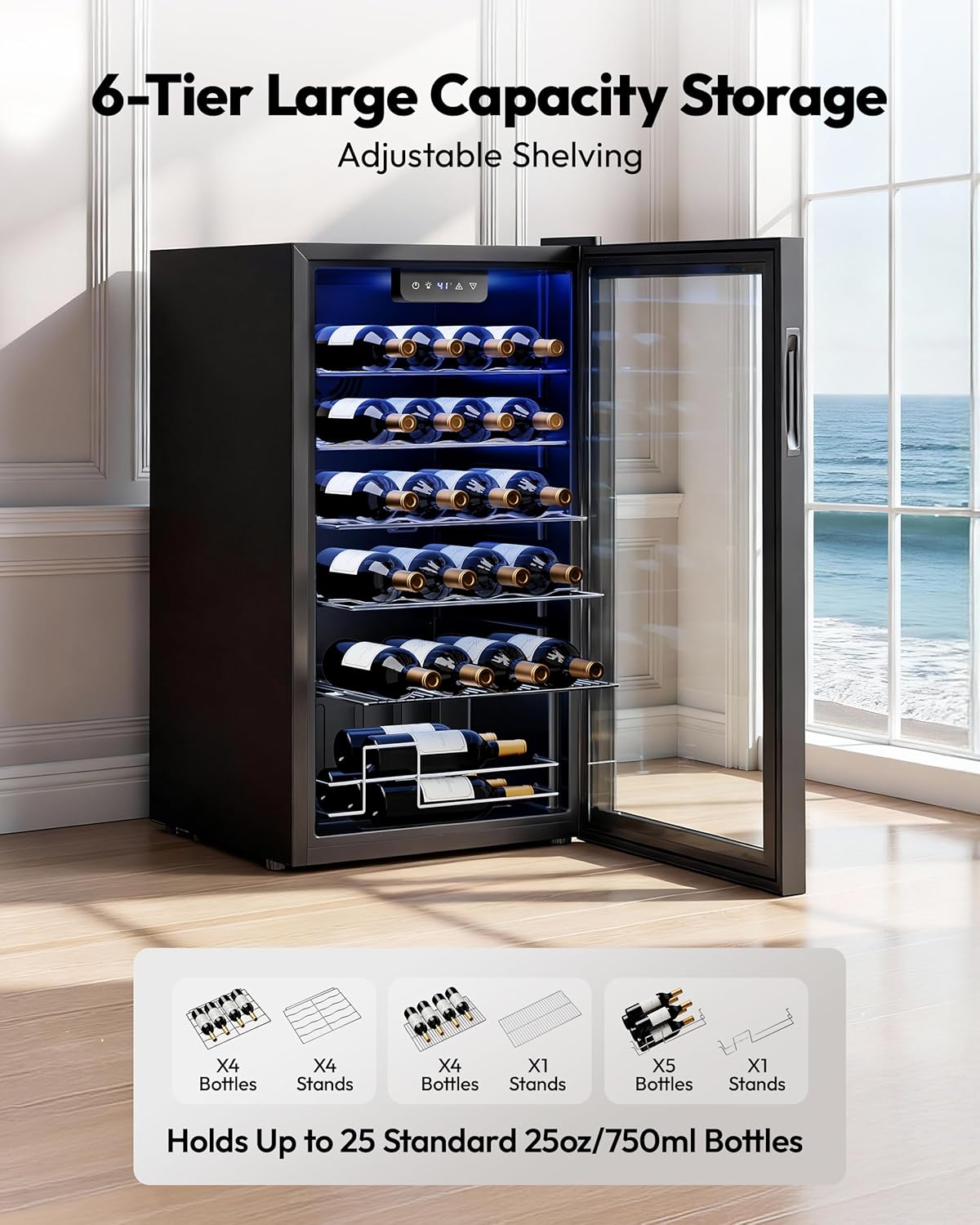

Image: The wine cooler with its door open, displaying its 6-tier large capacity storage and adjustable shelving, capable of holding up to 25 standard 750ml bottles.
4.5 Child Lock Feature
The control panel includes a child lock feature to prevent unintended temperature changes or access. Consult the full user manual for specific instructions on how to activate and deactivate this feature.
4.6 Official Product Video
Video: An official product video from ProvonicaTech showcasing the EUHOMY Wine Cooler, demonstrating its features and capacity.
5. Key Features
- Compressor Cooling System: Ensures a vibration-free and consistently quiet environment, maintaining stable temperatures.
- Double-Layer Glass Door: Insulates against external temperature fluctuations and blocks harmful UV rays to prevent flavor degradation.
- Soft Blue LED Lighting: Illuminates the interior, protecting wine flavor and labels.
- Adjustable Shelving: 4 chrome wave racks and 1 flat shelf allow for flexible storage of various bottle sizes.
- Low Noise & Energy-Saving: Operates quietly (approx. 36dB) and is designed for energy efficiency.

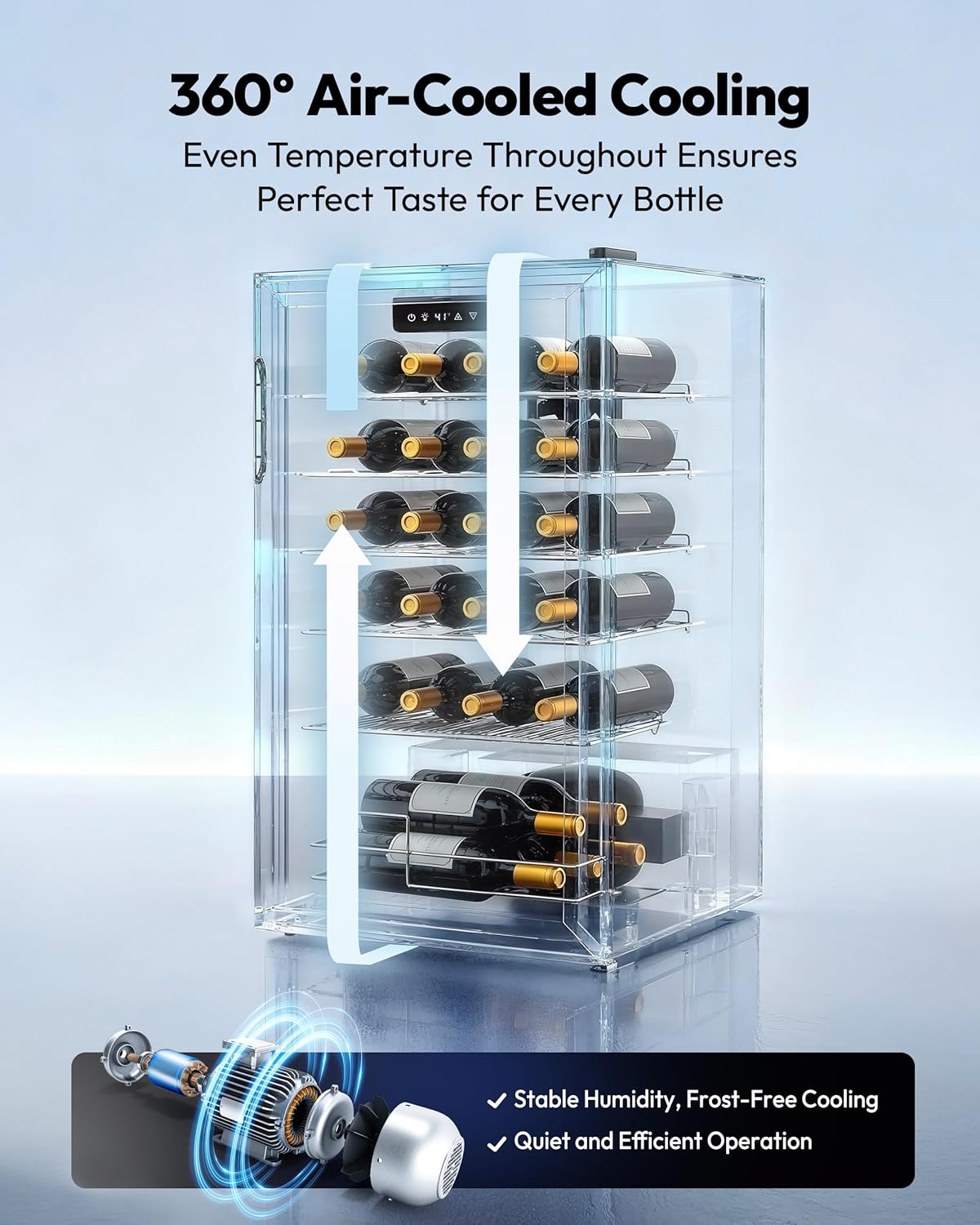

Image: A diagram explaining the 360° air-cooled cooling system, emphasizing stable humidity, frost-free operation, and quiet efficiency.
Image: A detailed view of the double-layer tempered glass door, illustrating its ability to block heat and UV rays to preserve wine quality.
Image: The wine cooler operating quietly in a bedroom, highlighting its low noise level of 36dB and energy-saving features.
6. Maintenance
6.1 Cleaning
- Interior: Clean the interior with a soft cloth and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly.
- Exterior: Wipe the exterior with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Door Seal: Regularly clean the door gasket to ensure a tight seal, which is essential for maintaining temperature.
6.2 Defrosting
This appliance features a manual defrost system. When frost builds up on the interior cooling surfaces, unplug the unit and allow the frost to melt naturally. Collect the melted water and dry the interior before restarting the cooler.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | Not plugged in; circuit breaker tripped; power outage. | Check power connection; reset circuit breaker; verify power supply. |
| Temperature is not cold enough | Door not closed properly; excessive door openings; warm items added; poor ventilation; unit in direct sunlight. | Ensure door is sealed; reduce door openings; allow new items to cool; ensure proper clearance; relocate unit. |
| Excessive noise | Unit not level; loose parts; normal compressor operation. | Adjust leveling legs; check for loose components; some noise is normal. |
| Light not working | LED light switch off; LED bulb failure. | Press the light button on the control panel; contact customer service if bulb is faulty. |
8. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (D x W x H) | 18.9" x 17.5" x 31.29" |
| Brand | EUHOMY |
| Capacity | 3.2 Cubic Feet (approx. 25 standard 750ml bottles) |
| Configuration | Compact Freezerless |
| Color | Black |
| Special Features | Adjustable Shelves, Reversible Door, Digital Control |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Defrost System | Manual |
| Voltage | 115 Volts |
| Cooling Method | Compressor |
| Number Of Shelves | 6 (4 wave, 1 flat, 1 bottom compartment) |
| Adjustable Temperature Control | Yes (41-64°F) |
| Item Weight | 54 Pounds |
| Annual Energy Consumption | 288 Kilowatt Hours Per Year |
| Model Number | BR001-110 |
| UPC | 850080520727 |
| Included Components | User Manual, Wine Cooler |
| Manufacturer | EUHOMY |
9. Warranty & Support
This EUHOMY wine cooler comes with a 1-year warranty from the date of purchase.
If you encounter any problems with the product or require assistance, please contact our customer service team. We are committed to resolving any issues as soon as possible.
For further support, please visit the official EUHOMY store: EUHOMY Store on Amazon
