1. Introduction and Overview
The CTEK NXT 5 is a fully automatic 4.3 amp battery charger and maintainer designed for 12V lead-acid (WET, MF, Ca/Ca, AGM, EFB, GEL) and lithium-ion (LiFePO₄) batteries, ranging from approximately 1.2 Ah up to 160 Ah. This advanced charger incorporates patented technology for optimal battery care.
Key features include:
- All-in-one 12V Charger: Supports a wide range of lead-acid and lithium-ion battery types and capacities.
- "Connect & Forget" Convenience: Fully automatic operation simplifies the charging process; simply connect, select the mode, and let the charger manage the rest.
- Safe, User-Friendly Design: Features spark-free operation, reverse polarity protection, and a compact, robust housing with an IP65 rating for durability. Includes a Connect U-terminal for permanent battery mounting.
- Revives & Reconditions Exhausted Batteries: Built-in desulphation and "Recond" modes are designed to recover deeply discharged or sulfated lead-acid batteries, extending battery life and performance.
- Automatic Temperature Compensation: Smart temperature sensors adjust the charging voltage for extreme hot or cold conditions (-4 °F/-20 °C to +122 °F/+50 °C) to ensure optimal charging results.

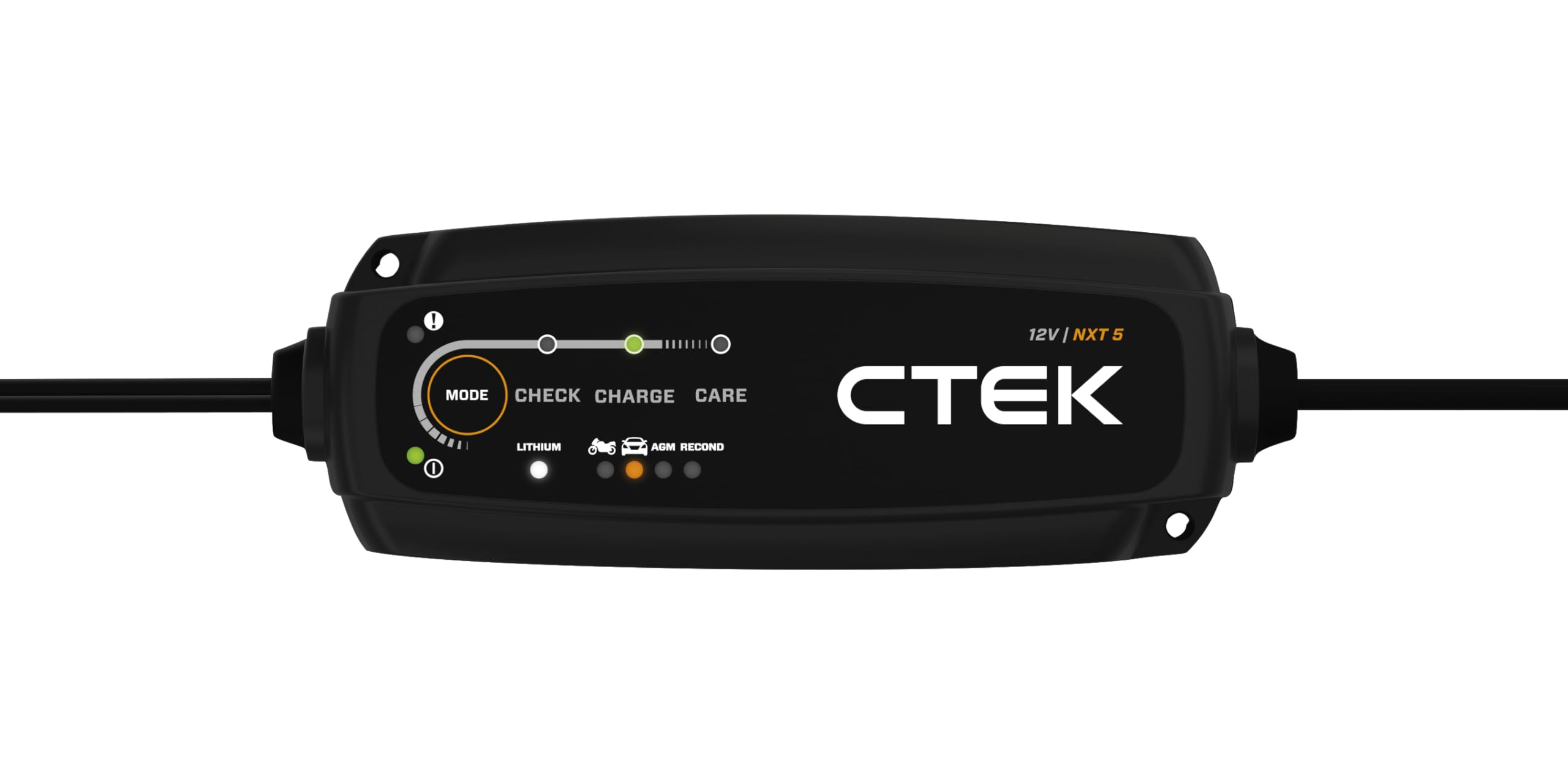

Image 1: The CTEK NXT 5 charger unit with included battery clamps and ring terminals.
2. Setup
Follow these steps to set up your CTEK NXT 5 battery charger:
- Connect to Battery: Attach the red clamp to the positive (+) battery terminal and the black clamp to the negative (-) battery terminal. Alternatively, use the included Connect U-terminal for a permanent connection. Ensure connections are secure.
- Connect to Power: Plug the charger's power cord into a suitable wall socket. The charger will initiate its self-check.
- Select Mode: Press the 'MODE' button on the charger to cycle through the available charging programs (Motorcycle, Car, AGM, Recond, Lithium). Select the program appropriate for your battery type and condition. The charger's intelligent system will then begin the charging process.
Image 2: The CTEK NXT 5 charger and its various connection accessories, including battery clamps and ring terminals.
Video 1: An overview of the CTEK NXT 5 charger, demonstrating its features and ease of use for various battery types.
3. Operating Instructions
The CTEK NXT 5 operates through a series of intelligent charging steps, indicated by LEDs on the unit. The charger automatically adjusts to the battery's needs once a mode is selected.
- Mode Selection: Use the 'MODE' button to choose between programs for motorcycles, cars, AGM batteries, or the special Recond mode for deeply discharged lead-acid batteries, and a dedicated Lithium mode for LiFePO₄ batteries.
- Charging Stages: The charger progresses through several stages, from desulphation and soft start to bulk charge, absorption, analysis, recondition (if selected), float, and pulse maintenance. The LEDs will illuminate to show the current stage.
- Automatic Temperature Compensation: The integrated temperature sensor ensures that the charging voltage is optimized for ambient conditions, preventing over or undercharging in hot or cold environments.
Image 3: The CTEK NXT 5 charger in operation, showing its fully automatic charging process and robust, splash-proof design.
Video 2: A user demonstrating the CTEK NXT 5 charger, highlighting its ability to recondition batteries and its various modes for different vehicle types.
4. Maintenance
Proper maintenance ensures the longevity and optimal performance of your battery and charger.
- Battery Reconditioning: Recondition your battery once per year and after deep discharge to maximize its lifetime and capacity. Use the 'Recond' mode for lead-acid batteries as needed.
- Long-Term Connection: The CTEK NXT 5 can be left connected to the battery for extended periods, acting as a maintainer to keep the battery fully charged without overcharging.
- Charger Care: Keep the charger clean and dry. Its IP65 rating means it is splash and dust-proof, but avoid submerging it in water.
Image 4: The CTEK NXT 5 charger connected to a battery, visually representing its reconditioning capabilities.
5. Troubleshooting
If you encounter issues with your CTEK NXT 5 charger, consider the following:
- No Power/No Lights: Ensure the charger is properly plugged into a live wall socket. Check the power outlet with another device.
- Error Lights: The charger has indicator lights for various issues, such as reverse polarity or a severely discharged battery. Consult the full user manual for specific error code interpretations.
- Battery Not Charging: Verify that the battery clamps or terminals are securely connected to the correct battery poles. Ensure the correct charging mode is selected for your battery type.
- Battery Too Low: For very deeply discharged batteries, the charger may take longer to initiate or may require the 'Recond' mode for lead-acid batteries.
6. Specifications
| Specification | Value |
|---|---|
| Product Dimensions | 5.91 x 11.02 x 2.36 inches |
| Item Weight | 1.63 pounds |
| Item Model Number | 40-658 |
| Output Voltage | 12 Volts (DC) |
| Specification Met | CE, FCC, UL |
| Color | Black |
| Manufacturer | CTEK |
7. Warranty and Support
The CTEK 40-658 NXT 5 Battery Charger and Maintainer comes with a 5-year warranty, ensuring reliability and peace of mind. For technical support, warranty claims, or further assistance, please refer to the contact information provided in your product packaging or visit the official CTEK website.
