1. Introduction

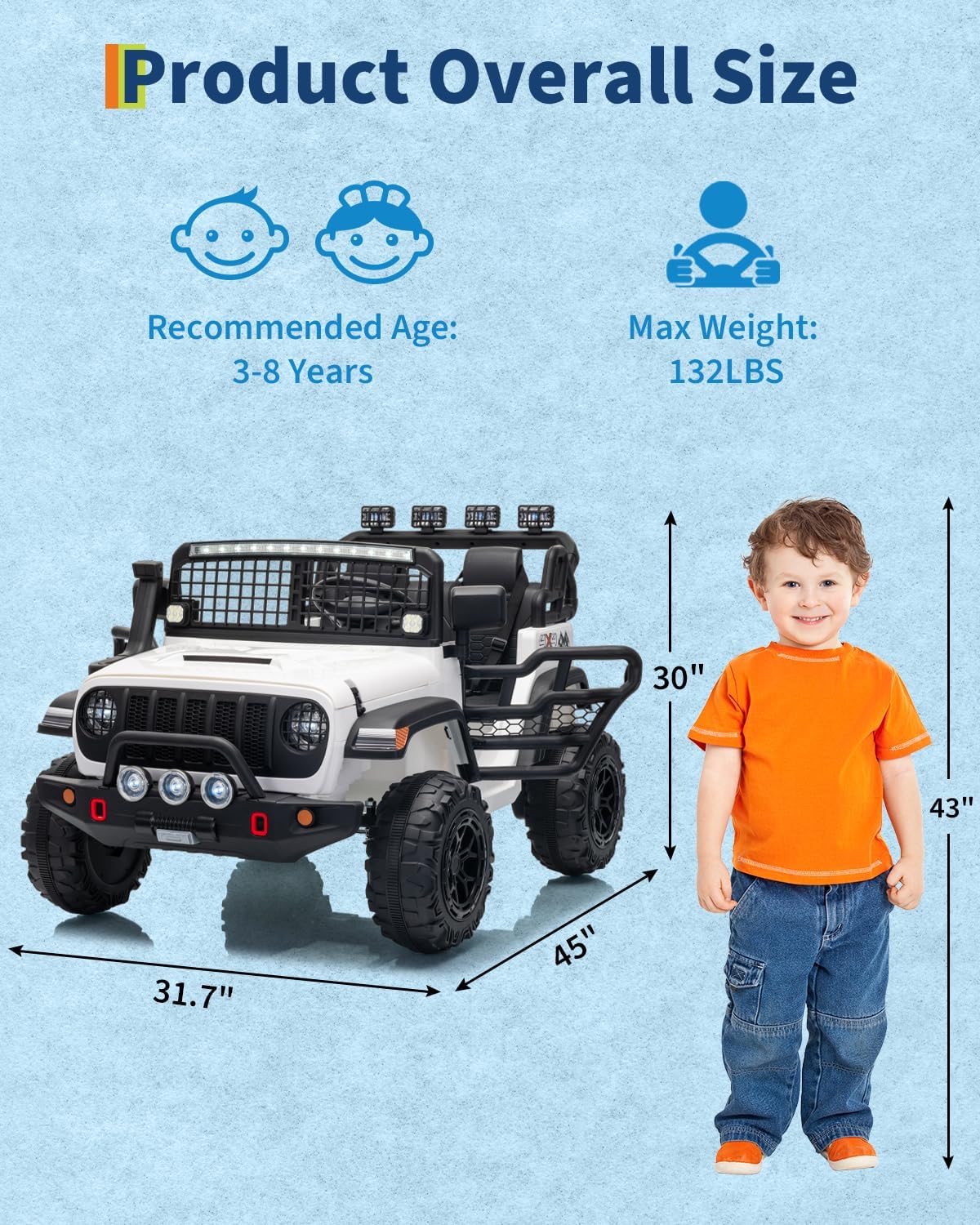

This manual provides essential information for the safe assembly, operation, and maintenance of your Garvee 24V 2-Seater Ride-On Toy. Please read all instructions carefully before initial use and retain this manual for future reference. This electric ride-on vehicle is designed for children aged 3-8 years, supporting a maximum weight of 132 lbs.
Image 1.1: The Garvee 24V 2-Seater Ride-On Toy, highlighting its dual-seater design and suitability for children.
2. Safety Information
Your child's safety is paramount. Always ensure adult supervision during operation. This vehicle is equipped with several safety features:
- Spacious Dual-Seater Design: Features a 20-inch dual seat with individual 3-point seat belts for secure riding.
- Locking Doors: Provides added security to keep children safely inside the vehicle.
- Four-Wheel Shock Absorbers: Ensures a smooth and stable ride, reducing impact on uneven surfaces.
- Soft Start Function: Prevents sudden jerks during acceleration, offering a gentle start.
- Parental Remote Control with Emergency Brake: Allows parents to override manual driving and stop the vehicle immediately for maximum safety.
Important Safety Guidelines:
- Always use the safety belts provided.
- Do not operate near streets, cars, steep inclines, swimming pools, or other bodies of water.
- Ensure the vehicle is used on flat, dry surfaces. Avoid sand, loose dirt, or gravel.
- Only one driver and one passenger at a time. Do not exceed the maximum weight capacity of 132 lbs.
- Keep hands, hair, and clothing away from moving parts.
Image 2.1: Detailed view of the safety features, including the two seats with safety belts, locking doors, and four-wheel shock absorbers.
3. Package Contents
Please ensure all components are present before beginning assembly:
- Garvee 24V 2-Seater Ride-On Car
- Remote Control
- Charger
- Assembly Hardware (screws, nuts, washers)
- Instruction Manual
4. Setup and Assembly
Assembly of the Garvee 24V Ride-On Toy is required. Follow the detailed instructions provided in the separate assembly guide included in your package. Ensure all connections are secure and components are correctly installed before first use.
Initial Battery Charging
Before the first use, fully charge the 24V battery for 8-12 hours. Do not overcharge. The battery level display on the dashboard will indicate charging status.
Image 4.1: Various components of the ride-on toy, including the steering wheel, dashboard, seats, and the 24V 7AH rechargeable battery.
5. Operating Instructions
Driving Modes
The Garvee Ride-On Toy offers two driving modes:
- Kids Manual Driving Mode: Children can operate the vehicle using the steering wheel and foot pedal.
- Parent Remote Control Mode: Parents can control the vehicle's movement (forward, back, turn left, turn right) and speed settings (3 speeds: 1.8 mph, 2.5 mph, 4 mph). The remote also features an emergency stop button, which overrides manual controls.
Multimedia Functions
The dashboard includes:
- Built-in music player.
- Bluetooth connectivity for external audio devices.
- FM radio.
- USB port for playing media from a USB drive.
- Volume control buttons.
Lights and Sounds
The vehicle features functional headlights, a horn, and realistic engine sounds for an engaging experience. A dedicated switch controls the searchlights.
Image 5.1: The vehicle's dashboard showing multimedia controls and battery level, alongside the parental remote control.
Image 5.2: Illustration of the three-speed settings (1.8 mph, 2.5 mph, 4 mph) and the soft-start acceleration curve.
Image 5.3: Diagram illustrating the functions of the parental remote control, including directional movement, speed selection, and emergency stop.
6. Battery and Charging
The vehicle is powered by a 24V 7AH rechargeable battery. Proper battery care ensures longevity and optimal performance.
- Charging Time: Approximately 8-12 hours for a full charge.
- Playing Time: Up to 60 minutes (1-2 hours) on a full charge, depending on usage and terrain.
- Always use the original charger provided with the product.
- Do not charge the battery for more than 12 hours to prevent damage.
- Charge the battery after each use, even if only for a short period, to maintain battery health.
- If storing the vehicle for an extended period, charge the battery fully once a month.
7. Maintenance
Regular maintenance helps ensure the safe and reliable operation of your ride-on toy.
- Cleaning: Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
- Battery Care: Refer to Section 6 for detailed battery charging and storage instructions.
- Tire Inspection: Periodically check tires for wear and tear. Ensure they are free from debris that could affect performance.
- General Inspection: Regularly check all screws, nuts, and bolts to ensure they are tight. Inspect electrical connections for any signs of damage.
- Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.
8. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery; Loose connection; Overload protection activated | Charge battery fully; Check all wire connections; Reduce weight, allow motor to cool |
| Remote control not working | Remote batteries low/dead; Remote not paired | Replace remote batteries; Refer to remote pairing instructions in the assembly guide |
| Short run time | Battery not fully charged; Old battery; Heavy load/rough terrain | Ensure full charge (8-12 hours); Consider battery replacement; Operate on flat, smooth surfaces |
| Unusual noise from motor | Debris in motor/gearbox; Worn gears | Inspect and remove debris; Contact customer support if noise persists |
If the problem persists after attempting these solutions, please contact Garvee customer support.
