Schulte DWM-Tec Midra Shower Tray 90x90cm Instruction Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Schulte DWM-Tec Midra Shower Tray. Designed for modern bathrooms, this shower tray features an elegant stone structure, a matte white finish, and an extra-flat design for barrier-free entry. Please read these instructions carefully before proceeding with installation or use to ensure proper function and longevity of the product.

Setup and Installation

The Schulte DWM-Tec Midra Shower Tray is designed for straightforward installation. While the tray itself requires no assembly, professional installation is highly recommended to ensure correct water drainage and a secure fit. The tray can be installed directly on the floor or on a recommended mounting frame.

Key Installation Considerations:

Level Surface: Ensure the installation surface is perfectly level and clean to prevent water pooling and ensure stability.
Drainage: The shower tray features a centrally placed drain. A suitable drain fitting (not included) must be purchased separately and installed according to its manufacturer's instructions to ensure optimal water drainage.
Sealing: Proper sealing around the edges of the shower tray is crucial to prevent water leaks. Use appropriate waterproof sealants as per local building codes.
Access: Plan for future access to the drain for maintenance purposes if installing on a mounting frame.

Schulte DWM-Tec Midra Shower Tray installed in a modern bathroom

Image: The Schulte DWM-Tec Midra Shower Tray seamlessly integrated into a modern bathroom setting, showcasing its low-profile design.

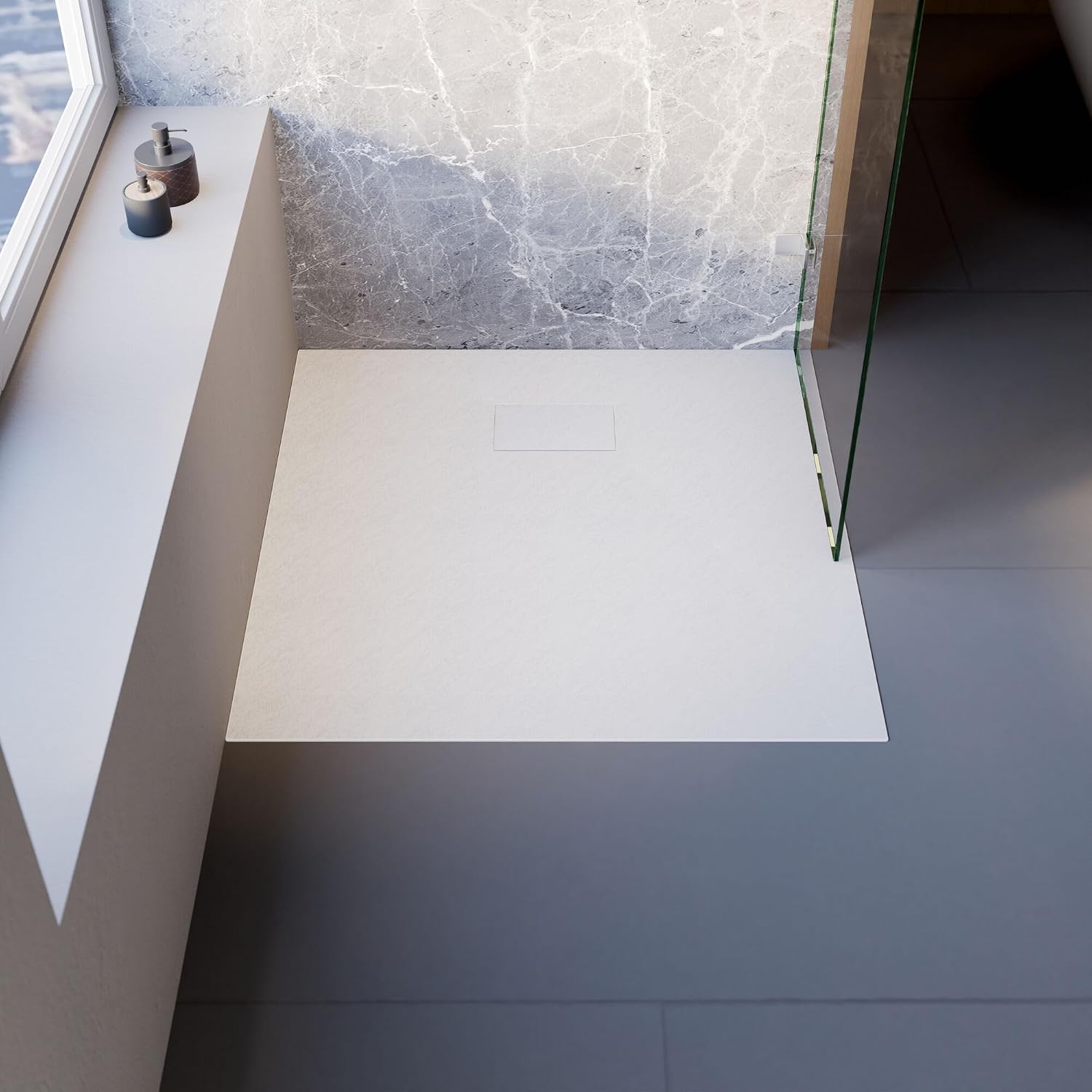

Top-down view of the Schulte DWM-Tec Midra Shower Tray in a bathroom

Image: An overhead view of the installed shower tray, highlighting its square shape and central drain area.

Operating Instructions and Safety

The Schulte DWM-Tec Midra Shower Tray is designed for safe and comfortable use. Its non-slip surface (Class B according to DIN 51097) provides enhanced safety, especially for families, seniors, or in spa areas. The extra-flat design ensures barrier-free entry.

Usage Guidelines:

Water Flow: Ensure the showerhead directs water towards the drain to facilitate efficient drainage.
Weight Distribution: While robust, avoid concentrating excessive weight on small areas of the tray.
Non-Slip Surface: The integrated stone structure provides a non-slip surface. However, exercise caution when using soaps or bath oils, as they can reduce friction.

Maintenance and Care

To maintain the aesthetic appeal and functionality of your Schulte DWM-Tec Midra Shower Tray, regular cleaning and proper care are essential. The robust material and stone look surface are designed for easy maintenance.

Cleaning Instructions:

Daily Cleaning: After each use, rinse the tray with warm water to remove soap residue and prevent limescale buildup.
Regular Cleaning: Use a soft cloth or sponge with a mild, non-abrasive bathroom cleaner. Avoid harsh chemicals, abrasive pads, or scouring agents, as these can damage the surface finish.
Limescale Removal: For stubborn limescale, use a diluted solution of vinegar or a specialized limescale remover designed for bathroom fixtures. Always test on an inconspicuous area first and rinse thoroughly.
Drain Cover: Periodically remove and clean the drain cover and the drain area to prevent blockages and maintain optimal drainage.

Close-up of the stone structure surface and integrated drain cover of the shower tray

Image: A detailed view of the shower tray's stone structure surface and the flush-mounted drain cover, designed for easy cleaning.

Image: A close-up of the removable drain cover, which matches the stone texture of the tray for a seamless look and facilitates access for cleaning.

Troubleshooting

This section addresses common issues you might encounter with your shower tray.

Problem	Possible Cause	Solution
Slow Drainage / Water Pooling	Drain blockage (hair, soap scum). Improper installation (tray not level).	Remove drain cover and clear any obstructions. Use a drain cleaner if necessary. If installation is suspected, consult a professional plumber to check the tray's level and drain connection.
Surface Stains / Discoloration	Limescale buildup. Residue from harsh cleaning agents. Colored liquids left on surface.	Clean with a mild limescale remover or diluted vinegar solution. Use only recommended mild, non-abrasive cleaners. Clean spills immediately.
Leaks around the tray	Improper sealing during installation. Damaged sealant.	Inspect sealant around the tray. Reapply or repair sealant as needed. If leaks persist, consult a professional plumber.

Specifications

Detailed technical specifications for the Schulte DWM-Tec Midra Shower Tray.

Brand	Schulte
Model Number	EP203090
Product Dimensions (D x W x H)	35.43" x 35.43" x 1.26" (approx. 90cm x 90cm x 3.2cm)
Shape	Square
Color	Matt White
Finish Type	Matte
Material	Blend of mineral fillers, glass fibres and polyester resins
Non-slip Rating	Class B (according to DIN 51097)
Included Components	Shower tray (drain fitting not included)
Required Assembly	No (for the tray itself)

Technical drawing of Schulte DWM-Tec Midra Shower Tray with dimensions

Image: Technical drawing showing the dimensions of the 900mm x 900mm shower tray, including drain position and internal depth.

Warranty Information

For detailed warranty information regarding your Schulte DWM-Tec Midra Shower Tray, please refer to the documentation provided with your purchase or visit the official Schulte website. Warranty terms and conditions may vary by region and retailer.

Customer Support

Should you have any questions, require technical assistance, or need to report an issue with your Schulte DWM-Tec Midra Shower Tray, please contact Schulte customer support. Contact details can typically be found on the manufacturer's website or on your purchase receipt.

For more information, visit the official Schulte website.

Schulte EP203090
