Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your VECELO Full Size Upholstered Bed Frame with 4 Storage Drawers. This bed frame is designed for comfort and functionality, featuring an adjustable velvet rivet decor headboard, sturdy wooden slat platform support, and integrated storage solutions. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

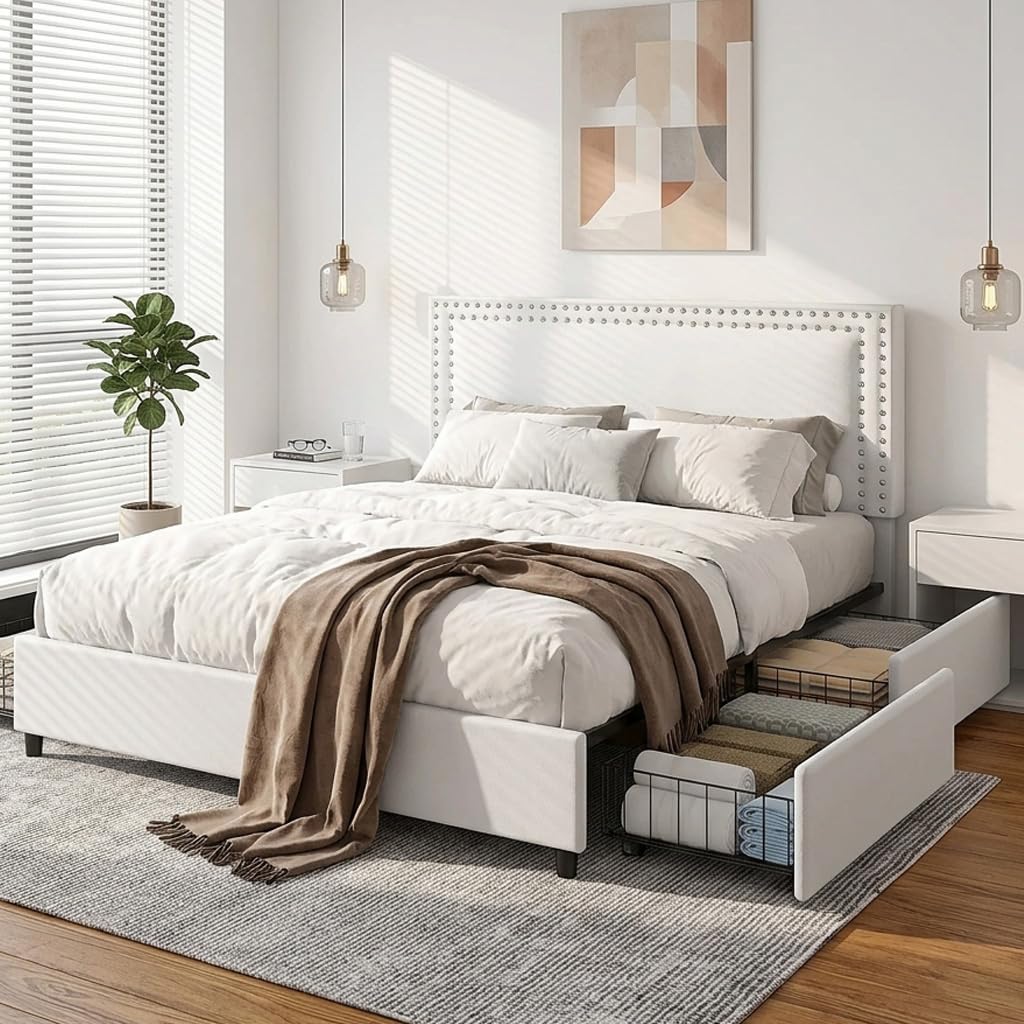

Image: The VECELO Full Size Upholstered Bed Frame in white, showcasing the headboard and integrated storage drawers.
Safety Information
- Maximum Weight Capacity: Do not load more than 800 pounds onto the bed frame. Exceeding this limit may compromise the structural integrity and lead to damage or injury.
- Ensure all bolts and screws are securely tightened during assembly and periodically check for tightness during use.
- Keep small parts away from children during assembly to prevent choking hazards.
- Assemble the bed frame on a soft, clean surface to prevent scratching the product or your floor.
Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Headboard components
- Bed frame side rails and footboard
- Wooden slats and support beams
- 4 Storage Drawers (with wheels)
- Hardware pack (screws, bolts, washers, Allen wrench)
- Installation Manual
Specifications
| Size | Full |
| Material | Metal, Velvet, Wood |
| Product Dimensions (L x W x H) | 78.5" x 59.8" x 44.1" |
| Weight Capacity | 800 Pounds |
| Number of Drawers | 4 |
| Headboard Material | Velvet |
| Box Spring Required | No |
Image: Detailed dimensions of the VECELO Full Size Bed Frame, including headboard height and drawer measurements.
Assembly Instructions
Assembly of your VECELO bed frame is designed to be straightforward. Please follow the step-by-step instructions provided in the included installation manual. It is recommended to have two people for assembly to ensure ease and safety.
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface. Compare them against the parts list in your manual to ensure everything is present.
- Assemble the Headboard: Attach the headboard legs to the upholstered headboard panel using the provided hardware. Ensure all connections are secure.
- Construct the Frame: Connect the side rails to the headboard and footboard. Hand-tighten all bolts initially.
- Install Support Beams and Slats: Place the central support pillars and attach the wooden slats to the bed frame. The slats are designed for easy installation and provide robust mattress support. Ensure the foam padding on the mid-frame is correctly positioned to prevent noise.
- Assemble Drawers: Follow the specific instructions in your manual to assemble the four storage drawers, including attaching the wheels.
- Final Tightening: Once the entire frame is assembled, go back and securely tighten all bolts and screws using the provided Allen wrench. Do not overtighten.
Image: Components of the bed frame laid out, illustrating the 'Easy Assembly' feature.
Image: Close-up view of the sturdy metal frame and wooden slats, highlighting the stable support structure.
Operating Instructions
Using the Storage Drawers
Your VECELO bed frame includes four integrated storage drawers designed for convenient access and organization. Each drawer is equipped with wheels for smooth operation.
- To open a drawer, gently pull the front panel outwards. The wheels will allow it to slide smoothly from under the bed.
- To close a drawer, push the front panel inwards until it is flush with the bed frame.
- Avoid overloading the drawers to ensure smooth movement and prevent damage to the drawer structure or wheels.
Image: The bed frame with its four storage drawers extended, demonstrating their capacity for items like clothes, pants, bed sheets, and toys.
Adjusting the Headboard Height
The upholstered headboard features adjustable height settings to accommodate various mattress thicknesses.
- The headboard can be adjusted to heights of 40.1", 42.1", or 44.1" from the floor.
- To adjust, loosen the bolts connecting the headboard to the frame. Carefully raise or lower the headboard to your desired position.
- Once the desired height is achieved, securely tighten all bolts to ensure stability.
Image: Close-up of the upholstered headboard, highlighting its adjustable height feature and stylish nailhead trim.
Maintenance
- Cleaning: For general cleaning, wipe the bed frame surfaces with a damp cloth. For the velvet upholstery, use a soft brush or vacuum with an upholstery attachment to remove dust and debris. Avoid harsh chemicals or abrasive cleaners.
- Regular Checks: Periodically inspect all connections (bolts, screws) to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
- Drawer Care: Keep the drawer tracks clean and free of obstructions to ensure smooth operation.
Troubleshooting
Bed Frame Squeaking
If your bed frame develops a squeak, follow these steps:
- Check All Connections: The most common cause of squeaking is loose hardware. Re-tighten all bolts and screws on the frame, headboard, and footboard.
- Inspect Slats: Ensure all wooden slats are properly seated in their supports and are not damaged. The mid-frame features foam padding to minimize noise; verify it is in place.
- Mattress Placement: Ensure your mattress is correctly positioned on the slats and not causing friction against the frame.
Image: Close-up of the bed slats with foam padding, designed to ensure a quiet sleep experience by preventing squeaks.
Drawers Not Sliding Smoothly
- Check for Obstructions: Ensure there are no items blocking the drawer wheels or tracks.
- Inspect Wheels: Verify that all wheels are securely attached to the drawers and are not damaged.
Warranty and Support
This product is eligible for a 30-day easy return policy. For any questions, concerns, or assistance with assembly or parts, please contact VECELO customer support. Our expert team is available to assist you.
- Returns: Refer to your purchase platform's return policy for detailed instructions on initiating a return within 30 days of purchase.
- Customer Support: For technical support or missing parts, please refer to the contact information provided in your product packaging or on the VECELO official website.
