Uwant Y100S Steam Multi-Point Fabric Cleaner User Manual

1. Introduction

Thank you for choosing the Uwant Y100S Steam Multi-Point Fabric Cleaner. This versatile 3-in-1 device is designed for deep cleaning and disinfection of various surfaces using cold water, hot water (up to 65°C), and steam (up to 100°C). With powerful 18KPa suction and a range of specialized brushes, it effectively tackles stubborn stains, pet hair, and eliminates bacteria and mites, ensuring a clean and hygienic environment. Please read this manual carefully before use to ensure safe and optimal operation.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. Keep the appliance out of reach of children. Do not immerse the unit in water. Use only as described in this manual. Do not use with damaged cords or plugs. Exercise caution when using the steam function, as high-temperature steam can cause burns. Always operate with care and ensure proper ventilation.

3. Product Components

The Uwant Y100S Steam Multi-Point Fabric Cleaner comes with several components designed for various cleaning tasks. Familiarize yourself with each part before assembly and operation.

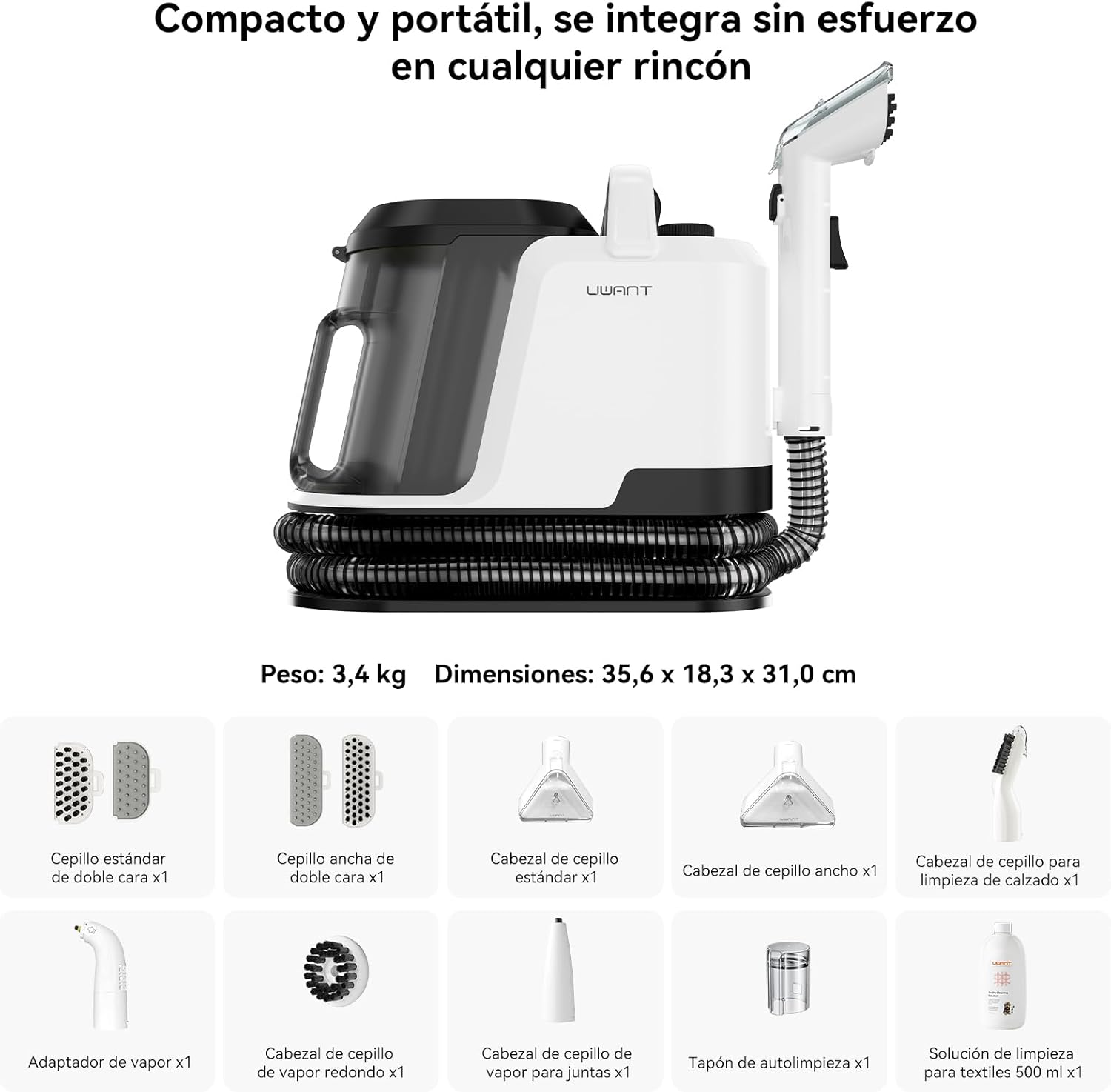

Figure 3.1: Overview of the Uwant Y100S Steam Multi-Point Fabric Cleaner and its accessories. This includes the main unit, various brush heads, and cleaning solution.

Included Accessories:

• Main Unit
• Standard 2-in-1 Brush Head (bristle/silicone)
• Wide 2-in-1 Brush Head (bristle/silicone)
• Round Steam Brush
• Crevice Steam Brush
• Shoe Cleaning Brush
• Self-cleaning Cap
• 500ml Textile Cleaning Solution

4. Setup and Assembly

Follow these steps to assemble your Uwant Y100S cleaner and prepare it for use.

4.1 Attaching the Handle and Brush Head

1. Connect the handle to the main unit until you hear a "click," indicating a secure installation.
2. Attach the desired brush head to the handle. Ensure it clicks into place.

4.2 Filling the Water Tanks

The unit features integrated clean and dirty water tanks, each with a 1.2L capacity.

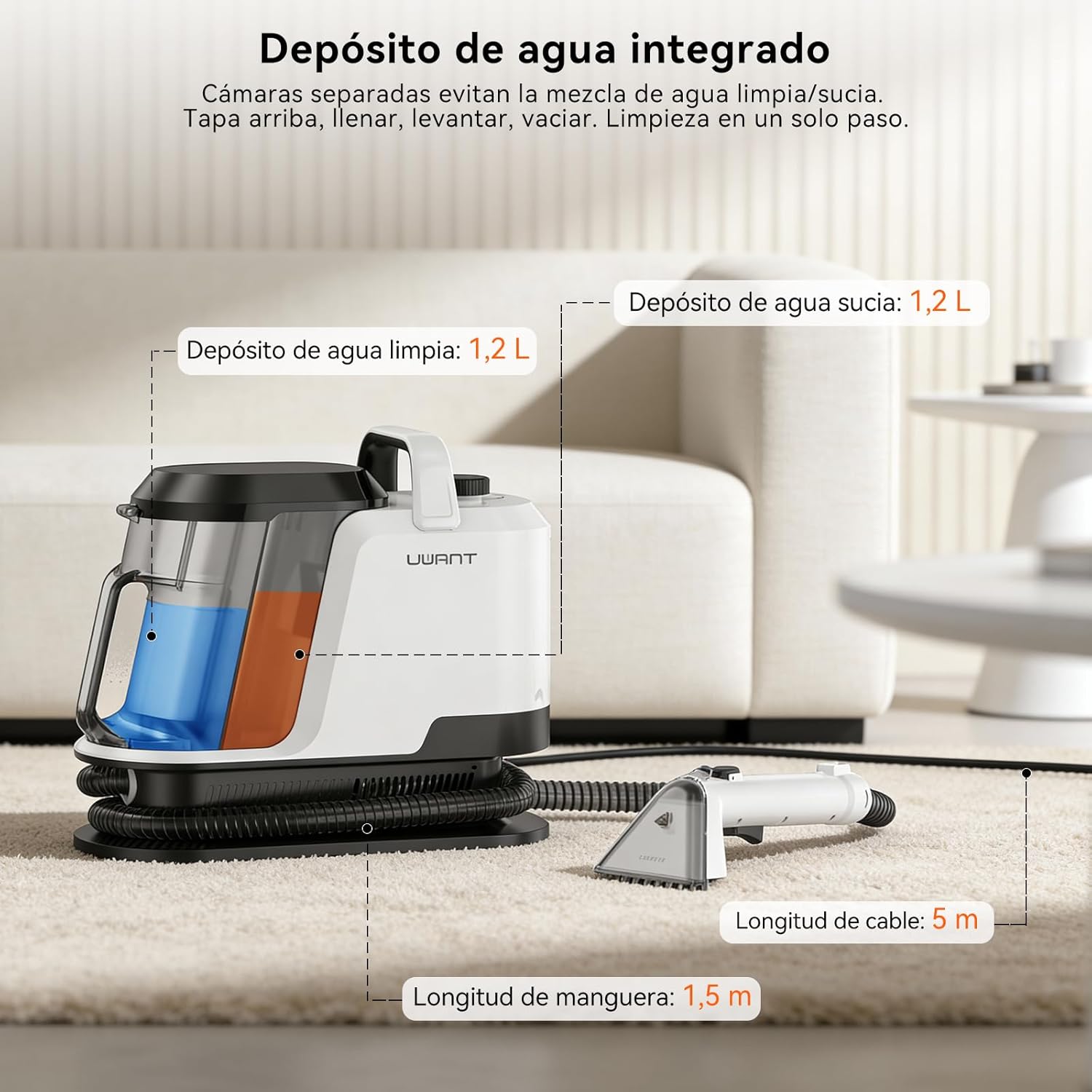

Figure 4.2: The integrated clean water (blue) and dirty water (orange) tanks, each with a 1.2L capacity.

1. Lift the water tank assembly vertically from the main unit.
2. Open the lid of the water tank.
3. Locate the water inlet opening. Fill the clean water compartment with room temperature water. Do not exceed the MAX fill line.
4. If using cleaning solution, add it to the clean water tank according to the dilution ratio (e.g., 1ml solution per 30ml water). Excessive solution can cause excessive foam.
5. Ensure the sealing gasket is correctly placed to prevent aspiration issues.
6. Close the tank lid securely and reinsert the tank vertically into the main unit, aligning it with the unit's slot.

5. Operating Modes

The Uwant Y100S offers three cleaning modes: Cold Water, Hot Water, and Steam. Select the appropriate mode based on the material and stain type.

5.1 Cold Water Mode

Ideal for daily cleaning, removing dust, pet hair, and non-greasy fresh stains. Safe for all textiles, preventing shrinkage and fading.

Figure 5.1: Demonstrates cold water cleaning for daily dust, pet hair, and non-greasy stains on carpets and upholstery.

5.2 Hot Water Mode (65°C)

Activates in 10 seconds. Hot water accelerates the decomposition of tough stains like grease, coffee, and pet urine. Effective for deep cleaning in pet and child areas.

Figure 5.2: Shows the Uwant Y100S using 65°C hot water to clean tough stains on carpets and kitchen surfaces.

5.3 Steam Mode (100°C)

Activates in 30 seconds. High-temperature steam provides 99.9% disinfection, eliminating bacteria and mites. Ideal for sterilizing mattresses, sofas, pet cushions, kitchen countertops, tile grout, and glass.

Figure 5.3: Illustrates the 100°C steam function for deep cleaning and disinfection across multiple household items and surfaces.

Caution: High-temperature steam can cause burns. Operate with extreme care and avoid direct contact with skin.

6. Using the Attachments

The Uwant Y100S comes with a variety of interchangeable brush heads to suit different cleaning needs and surfaces.

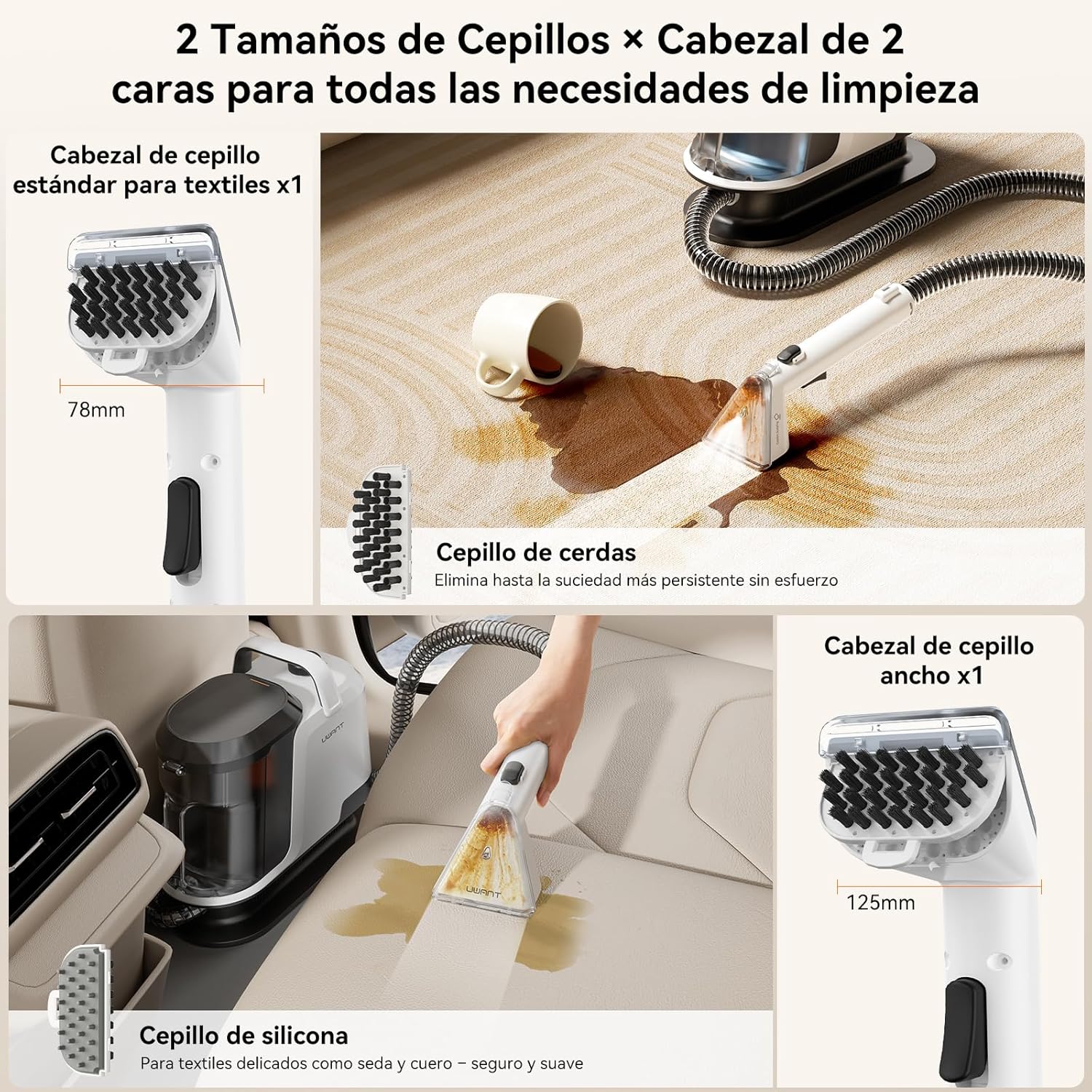

Figure 6.1: Shows the standard and wide 2-in-1 brush heads, featuring both bristle and silicone sides for versatile cleaning.

6.1 2-in-1 Brush Heads (Standard & Wide)

• Bristle Side: For deep cleaning and scrubbing stubborn dirt on durable fabrics like carpets and upholstery.
• Silicone Side: Gentle cleaning for delicate textiles such as silk and leather, preventing fiber entanglement.
• To switch between sides, press the tabs at the base of the brush plate and flip it over.

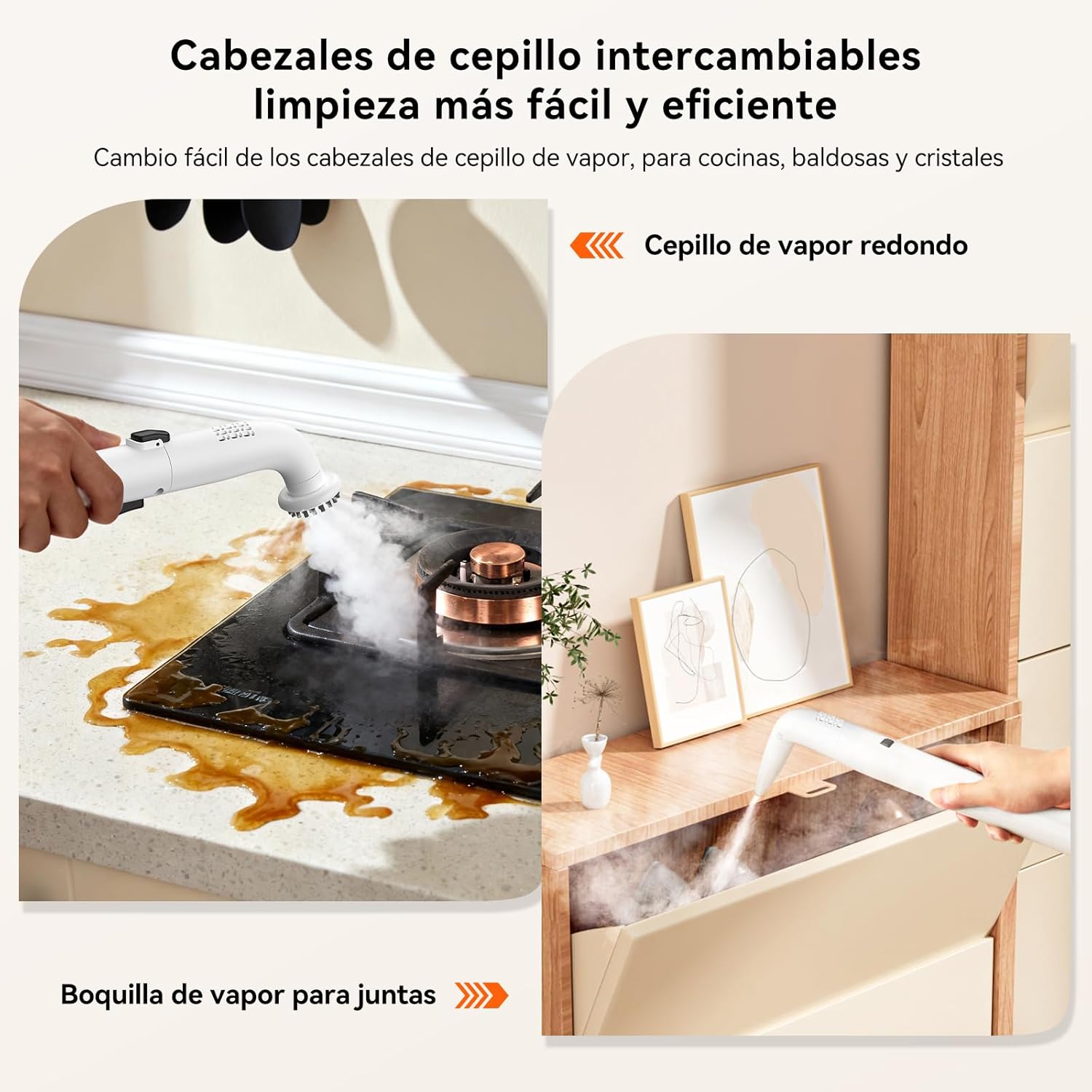

Figure 6.2: Displays the round steam brush and crevice steam nozzle for specialized steam cleaning tasks.

6.2 Steam-Specific Brushes

• Round Steam Brush: Ideal for general steam cleaning and disinfection of larger surfaces.
• Crevice Steam Brush: Designed to reach tight spaces and corners, effectively cleaning areas where bacteria can easily proliferate.

6.3 Shoe Cleaning Brush

Use the dedicated shoe cleaning brush for deep cleaning footwear, ensuring quick drying and lasting freshness.

Figure 6.3: The Uwant Y100S effectively cleans dirty shoes, restoring their appearance.

7. Maintenance and Cleaning

Proper maintenance ensures the longevity and optimal performance of your Uwant Y100S cleaner.

7.1 Self-Cleaning Function

The unit features a one-touch self-cleaning function for the hose and internal components, preventing blockages and odors.

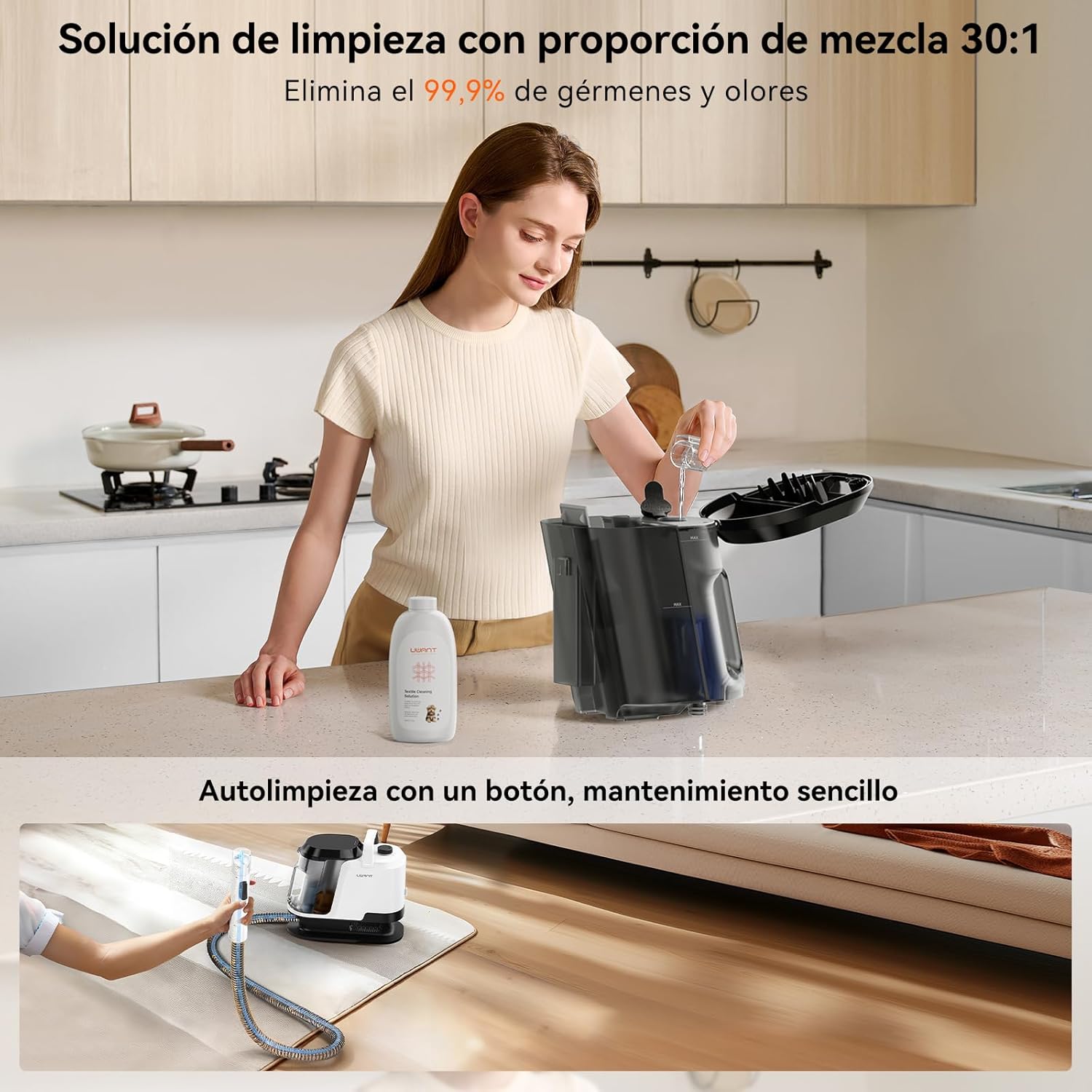

Figure 7.1: Demonstrates adding cleaning solution and the self-cleaning process using the self-cleaning cap.

1. After use, attach the self-cleaning cap to the handle.
2. Press the spray button to flush clean water through the hose, cleaning internal tubes.
3. Once self-cleaning is complete, turn the mode dial to standby.

7.2 Emptying and Cleaning the Dirty Water Tank

1. Remove the water tank assembly from the main unit.
2. Open the lid and carefully pour out the dirty water. Ensure the residual water level does not exceed the MAX fill line on the dirty water side.
3. Rinse the dirty water tank and its lid thoroughly with clean water. Wipe dry before reassembling.

8. Storage

The compact design of the Uwant Y100S allows for easy storage in cabinets or small spaces.

Figure 8.1: The compact size of the Uwant Y100S allows for convenient storage in kitchen cabinets or other storage furniture.

1. After cleaning and ensuring all components are dry, reattach the water tank vertically and press firmly to secure it.
2. Wrap the power cord around the main unit and secure it with the Velcro strap on the transport handle.
3. Store the unit in a dry, cool place, away from direct sunlight.

9. Specifications

10. Troubleshooting

If you encounter any issues with your Uwant Y100S, please refer to the following common problems and solutions:

• No Suction: Ensure the water tank gasket is correctly seated and the dirty water tank is not overfilled. Check for any blockages in the hose or brush head.
• No Water Spray: Verify that the clean water tank is filled and the spray button is pressed firmly. Check for any blockages in the spray nozzle.
• No Steam: Ensure the unit is in Steam Mode and has completed the 30-second preheating period. Check that the steam accessory is correctly installed.
• Unit Not Turning On: Confirm the power cord is securely plugged into a working outlet. Check the mode dial is set to an active cleaning mode.

For persistent issues, please contact customer support.

11. Warranty and Support

The Uwant Y100S Steam Multi-Point Fabric Cleaner comes with a 2-year manufacturer's warranty, ensuring quality and peace of mind. For any questions, technical assistance, or warranty claims, please contact Uwant customer service through the official website or your retailer.

Customer Service: Refer to your product packaging or the official Uwant website for contact details.
