1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Elica T 60 SMART BLDC FL HAC LTW MS NERO kitchen chimney. Please read these instructions carefully before using the appliance and retain them for future reference.
The Elica T 60 SMART BLDC FL HAC LTW MS NERO is a 60cm T-Shape, wall-mounted kitchen chimney designed for effective ventilation in kitchens with 2-4 burner stoves. It features a BLDC motor, filterless technology, heat auto-clean function, and motion sensor controls.
Image: Front view of the Elica T 60 SMART BLDC FL HAC LTW MS NERO kitchen chimney.
2. Safety Information
General Safety Precautions:
- Ensure the appliance is installed by a qualified technician according to local regulations.
- Do not operate the chimney without the oil collector properly installed.
- Regularly clean the oil collector to prevent grease buildup, which can be a fire hazard.
- Do not flambé under the range hood.
- Keep children away from the appliance during operation and cleaning.
- Ensure adequate ventilation in the room when the chimney is used simultaneously with gas or other fuel-burning appliances.
Electrical Safety:
- The chimney requires a 220 Volts (AC) power supply.
- Ensure the power outlet is properly grounded.
- Do not pull the power cord to unplug the appliance.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
3. Package Contents
Verify that all items are present in the package:
- 1 x Elica T 60 SMART BLDC FL HAC LTW MS NERO Kitchen Chimney
- 1 x User Manual
- 1 x Warranty Card
4. Installation and Setup
Important: Ducting is mandatory for this chimney model. Ensure proper ducting is installed to vent extracted air outside.
The chimney is designed for wall-mounted installation. It is recommended to have the installation performed by a qualified service technician to ensure correct setup and adherence to safety standards.
Installation Steps (Overview):
- Determine the optimal mounting height above the cooking surface.
- Mark drilling points on the wall for the mounting brackets.
- Securely attach the mounting brackets to the wall.
- Mount the chimney body onto the brackets.
- Connect the ducting to the chimney outlet and vent it to the exterior.
- Install the oil collector tray.
- Connect the chimney to a grounded 220V AC power supply.
Refer to the detailed installation diagrams and instructions provided by the service technician or in the physical user manual for precise measurements and procedures.
Image: Product dimensions showing 60cm width, 45.6cm depth, and 46.4cm height.
5. Operating Instructions
Your Elica chimney features an Orange Touch Control Panel and Motion Sensor for convenient operation.
5.1 Control Panel
The chimney is equipped with a 9-speed orange touch control panel. Each touch button corresponds to a specific function.
Image: Close-up of the orange-lit touch control panel with various function icons.
- Power Button: To turn the chimney ON/OFF.
- Speed Control: Adjust the suction power through 9 different speed settings.
- Light Button: To turn the LED lamps ON/OFF.
- Auto Clean Button: Initiates the heat auto-clean cycle.
- Refer to the icons on the control panel for specific functions.
5.2 Motion Sensor Control
The motion sensor allows for hands-free operation of certain functions.
Image: A person demonstrating motion sensor control by waving a hand left or right near the chimney.
- Wave Left: Typically used to increase fan speed or turn on.
- Wave Right: Typically used to decrease fan speed or turn off.
- Consult the full user manual for detailed motion sensor gestures and their corresponding actions.
5.3 LED Lamps
The chimney is equipped with 2 LED lamps to illuminate your cooking area.
- Press the light button on the control panel to switch the lamps ON or OFF.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your chimney.
6.1 Filterless Technology
This chimney utilizes filterless technology, which means it does not have traditional mesh filters that require frequent cleaning or replacement. Instead, it relies on a powerful BLDC motor and a heat auto-clean system to collect oil and grease.
Image: Visual representation of the filterless design, showing air flow and grease separation.
6.2 Heat Auto Clean Function
The heat auto-clean function uses heat to melt and collect grease into the oil collector tray.

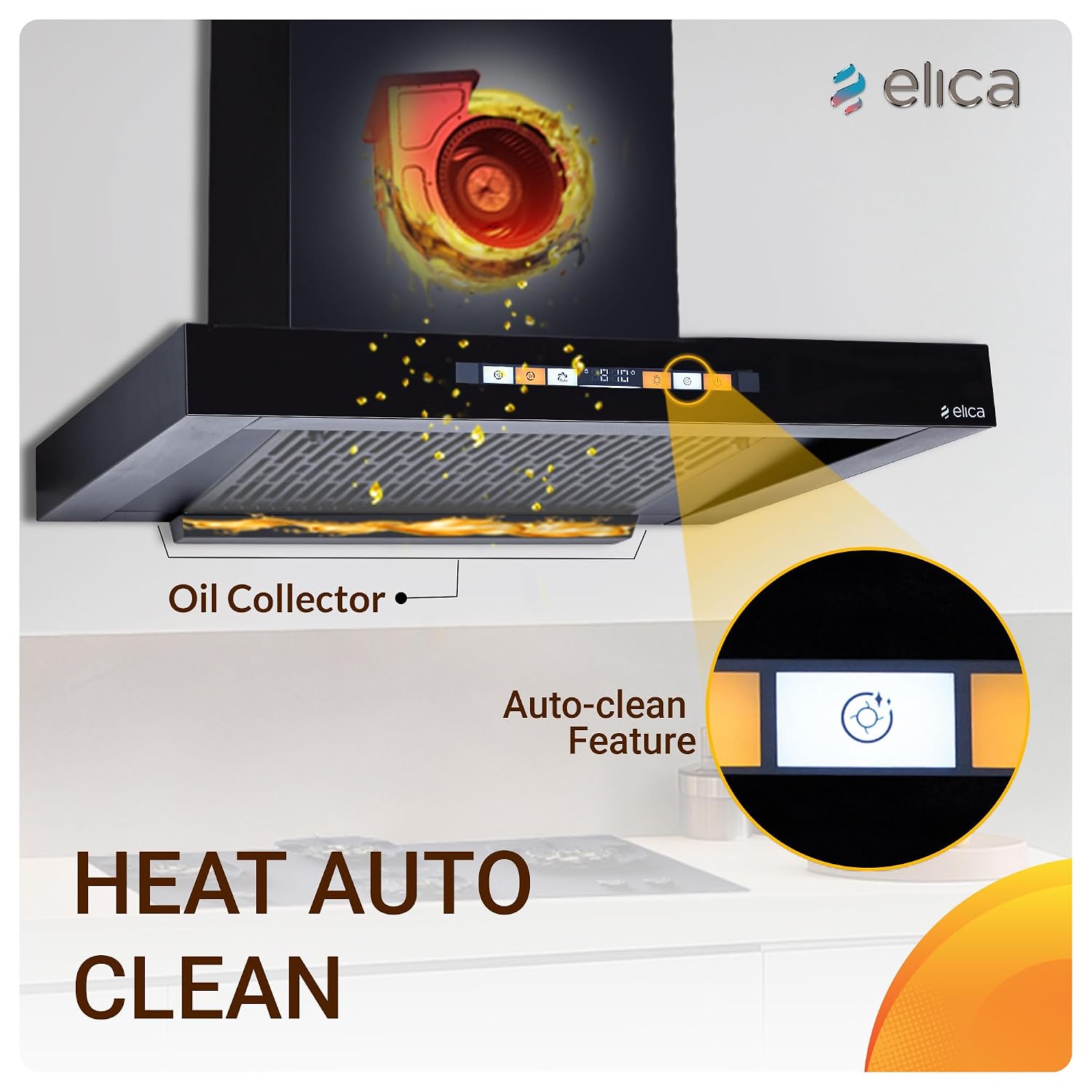

Image: The chimney highlighting the auto-clean feature and the removable oil collector tray.
- To activate, press the "Auto Clean" button on the control panel.
- The cycle will run for a set duration, heating the internal components to liquefy accumulated oil.
- The liquefied oil will drain into the removable oil collection tray.
- It is recommended to run the auto-clean cycle regularly, depending on cooking frequency.
6.3 Cleaning the Oil Collector Tray
The oil collector tray must be emptied and cleaned regularly to prevent overflow and maintain hygiene.
- Ensure the chimney is turned OFF and cooled down before cleaning.
- Carefully remove the oil collector tray from its housing.
- Empty the collected oil and wash the tray with warm, soapy water.
- Rinse thoroughly and dry completely before reinserting.
6.4 Exterior Cleaning
- Wipe the exterior surfaces of the chimney with a soft cloth dampened with mild detergent.
- Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the finish.
- Ensure no water enters the electrical components.
7. Troubleshooting
If you encounter any issues with your chimney, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chimney does not turn ON. | No power supply. Power cord not properly connected. | Check if the power plug is securely inserted and the power outlet is functional. Check the main circuit breaker. |
| Low suction power. | Ducting obstruction. Oil collector full. Incorrect speed setting. | Check for blockages in the ducting system. Empty and clean the oil collector tray. Increase the fan speed setting. |
| Unusual noise during operation. | Loose components. Obstruction in the fan. | Ensure all parts are securely fastened. Turn off the chimney and inspect for any foreign objects. If the issue persists, contact service. |
| Auto-clean not effective. | Oil collector not emptied. Infrequent cleaning. | Ensure the oil collector is empty before running the cycle. Run the auto-clean cycle more frequently. |
If the problem persists after attempting these solutions, please contact Elica customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Elica |
| Model Number | T 60 SMART BLDC FL HAC LTW MS NERO |
| Chimney Type | T-Shape, Wall Mounted Canopy Hood |
| Size | 60 cm |
| Product Dimensions (D x W x H) | 45.6D x 60W x 46.4H Centimeters |
| Air Flow Capacity (Suction Power) | 1600 m³/hr |
| Motor Type | BLDC Motor |
| Noise Level | 58 Decibels |
| Filter Type | Filterless |
| Control Type | 9 Speed Orange Touch Control + Motion Sensor Control |
| Number of Speeds | 9 |
| Special Features | Auto Clean, Built-In Oil Collector, LED Lighting |
| Light Source | LED |
| Ventilation Type | Ducted (Mandatory) |
| Power Requirement | 220 Volts (AC) |
| Annual Energy Consumption | 130 Watts |
| Material Type | Stainless Steel |
| Item Weight | 12.3 Kilograms |
Image: The chimney in operation, illustrating its 1600 m³/hr suction capacity.
Image: Infographic highlighting the benefits of the BLDC motor, including energy savings and quiet performance.
9. Warranty and Support
Warranty Information:
- Lifetime (15 Years) warranty on the Motor.
- 5 Years Comprehensive warranty on Rotor, PCB, and Glass from the date of purchase.
- Please retain your purchase receipt and warranty card for warranty claims.
Customer Support:
For service, technical assistance, or warranty claims, please contact Elica customer support.
Manufacturer Contact Information:
ELICA PB WHIRLPOOL KITCHEN APPLIANCES PRIVATE LIMITED (Formerly known as Elica PB India Private Limited)
32/5 A1 Kondhwa-Pisoli Road, Pisoli, Pune 411060 Maharashtra India
You can also visit the official Elica website for more information and support resources.
