1. Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Jasion X-Hunter Foldable Electric Bike. Please read this manual thoroughly before your first ride and keep it for future reference.
Figure 1: Jasion X-Hunter Foldable Electric Bike
2. Safety Guidelines
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local regulations regarding electric bikes.
- Perform a pre-ride inspection before each use.
- Ensure all bolts and quick releases are securely fastened.
- Check tire pressure and brake functionality.
- Do not operate the bike under the influence of alcohol or drugs.
- Be aware of your surroundings and traffic conditions.
3. Package Contents
Upon unboxing, verify that all components are present and undamaged:
- Jasion X-Hunter Electric Bike (partially assembled)
- Battery Charger
- Keys for battery lock
- Front Fender
- Headlight
- Pedals
- Tool Kit (for assembly)
- User Manual
4. Setup and Assembly
Your Jasion X-Hunter bike comes mostly pre-assembled. Follow these steps to complete the setup:
- Carefully remove the bike and all components from the packaging.
- Install the front wheel, ensuring the brake rotor aligns correctly with the caliper.
- Attach the front fender and headlight.
- Install the pedals (note L/R markings).
- Adjust the handlebar and seat post to your preferred riding height.
- Ensure the battery is securely locked into the frame.
For a visual guide, please refer to the official unboxing and assembly video:
Video 1: Jasion X-Hunter Electric Bike Unboxing and Assembly Guide. This video demonstrates the step-by-step process of unboxing and assembling your new electric bike, including attaching the front wheel, handlebars, pedals, and adjusting the seat.
Figure 2: Folding mechanism for compact storage.
5. Components Overview
Understand the key features of your Jasion X-Hunter:
- Motor: 750W brushless motor (1400W peak) for powerful assistance.
- Battery: Removable 48V 13Ah lithium-ion battery, offering a range of 55-70 miles per charge.
- Suspension: Dual suspension system, including an air suspension fork with 80mm travel and a rear shock absorber, for a comfortable ride over varied terrain.
- Tires: 20" x 4" fat tires for enhanced grip and stability.
- Brakes: Front and rear mechanical disc brakes for reliable stopping power.
- Gears: 7-speed Shimano gear system for versatile riding.
- Lighting: Bright headlight and adjustable rear light for visibility.
Figure 3: Powerful 1400W Peak Motor
Figure 4: Removable Large Battery
Figure 5: Full Suspension System
6. Operating Instructions
6.1. Power On/Off
Press and hold the power button on the LCD display to turn the bike on or off.
6.2. Riding Modes
The Jasion X-Hunter offers three riding modes:
- Bike Mode: Pedal without motor assistance, like a traditional bicycle.
- Pedal-Assist Mode: The motor provides assistance as you pedal. Adjust the assist level (1-7) using the controls on the handlebar.
- Throttle Mode: Engage the throttle for motor power without pedaling.
6.3. LCD Display
The intuitive LCD display shows vital riding data:
- Current Speed (MPH)
- Battery Charge Level
- Pedal Assist Level
- Travel Distance (Trip/Odometer)

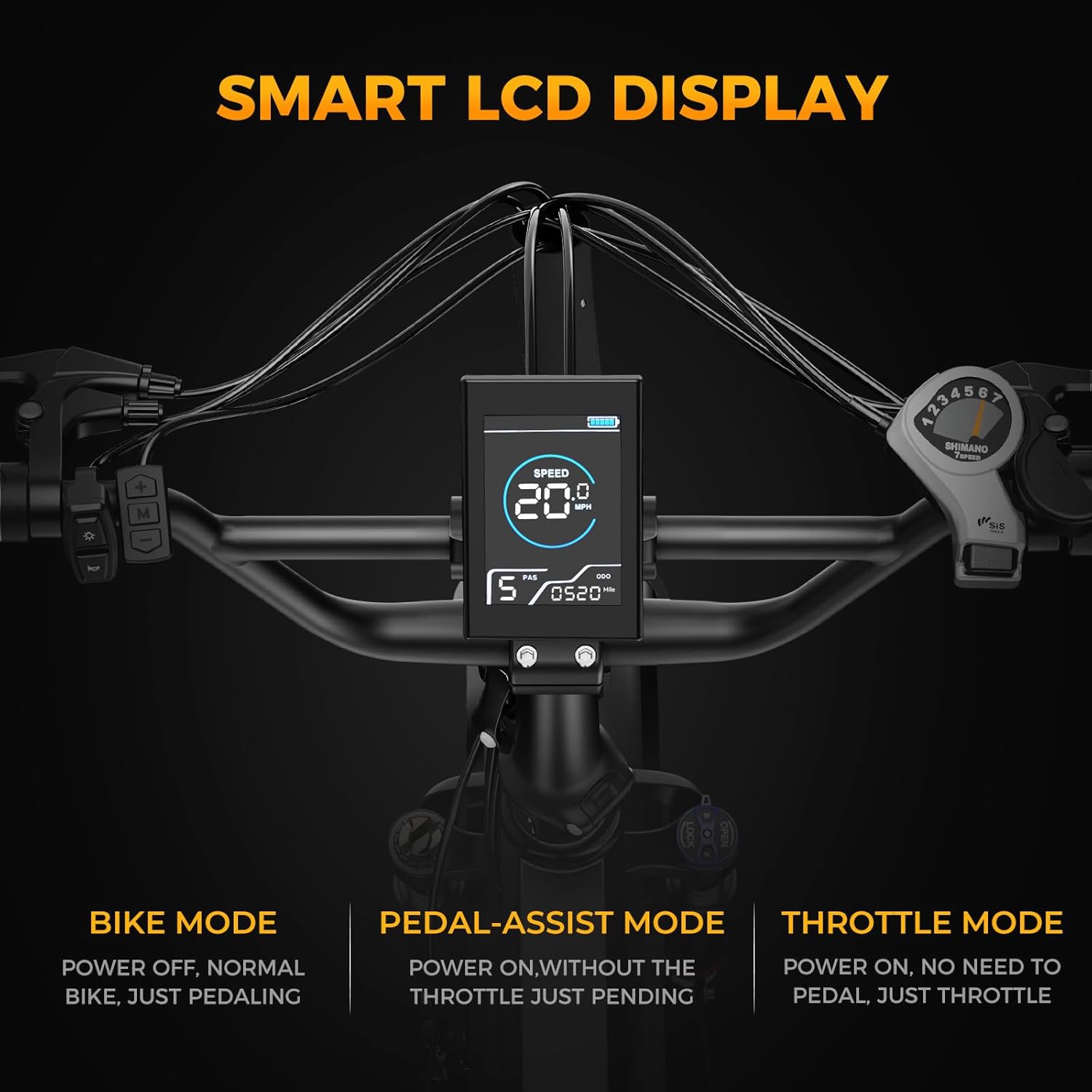

Figure 6: Smart LCD Display and Controls
Video 2: Jasion X-Hunter Electric Bike Features. This video highlights various features of the Jasion X-Hunter, including its suspension, motor, and integrated lights, providing a dynamic overview of the bike's capabilities.
7. Battery Management
7.1. Charging
To charge the battery, locate the charging port on the frame. Connect the provided charger to the port and then to a standard electrical outlet. The indicator light on the charger will show the charging status. A full charge typically takes several hours.
7.2. Removal and Installation
The battery is removable for convenient charging or storage. Use the provided key to unlock the battery from the frame. To reinstall, slide the battery back into place and lock it securely.
8. Folding and Storage
The Jasion X-Hunter features a foldable design for easy transport and storage. Locate the quick-release levers on the frame and handlebar stem. Follow the instructions to safely fold the bike into a compact size.
Figure 7: Folded dimensions for easy portability.
9. Maintenance
Regular maintenance ensures the longevity and performance of your e-bike:
- Keep tires properly inflated to the recommended pressure.
- Clean the bike regularly, avoiding direct high-pressure water on electrical components.
- Lubricate the chain and moving parts as needed.
- Inspect brake pads and rotors for wear and replace if necessary.
- Check all fasteners for tightness periodically.
- Store the battery in a cool, dry place and charge it regularly, even when not in use, to maintain battery health.
10. Troubleshooting
Refer to this table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on | Battery not charged or not properly installed. | Charge battery; ensure battery is fully inserted and locked. |
| Motor not assisting | Pedal assist level is 0; throttle not engaged; brake levers engaged. | Increase pedal assist level; use throttle; release brake levers. |
| Brakes feel weak | Worn brake pads; loose brake cable; air in hydraulic system (if applicable). | Inspect/replace brake pads; adjust cable tension; consult a professional. |
| Unusual noises | Loose components; dry chain; misaligned gears. | Check all bolts; lubricate chain; adjust derailleur. |
11. Specifications
| Feature | Detail |
|---|---|
| Bike Type | Commuting Bike |
| Age Range | Adult |
| Brand | Jasion |
| Number of Speeds | 7 |
| Color | Black |
| Wheel Size | 20 Inches |
| Frame Material | Aluminum |
| Suspension Type | Dual |
| Motor Wattage | 750W (1400W Peak) |
| Battery | 48V 13Ah (624 WH) Lithium Battery |
| Max Speed | 30 MPH |
| Range per Charge | 55-70 Miles |
| Item Weight | 71 Pounds |
| Max Load Capacity | 330 Pounds |
| Folded Size | 33 x 16 x 30 inches (approx.) |
| Certification | UL2849 Certified |
12. Warranty and Support
The Jasion X-Hunter Foldable Electric Bike comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase.
Additionally, a 2-Year Protection Plan may be available for purchase separately. For customer support or service inquiries, please visit the official Jasion website or contact your retailer.
