1. Introduction
This manual provides essential instructions for the safe and efficient operation of your SEGUMA Level 1/2 EV Charger (Model EV-ACS2402U). This portable electric vehicle charging station (EVSE) offers versatile charging options for your electric vehicle, supporting both Level 1 (110-120V) and Level 2 (220-240V) charging. Please read this manual thoroughly before initial use and retain it for future reference.
2. Product Features
- Level 1 & Level 2 Dual-Volt Charging: Equipped with a NEMA 14-30 plug for 240V dryer outlets, providing faster home EV charging. Includes a NEMA 14-30 to NEMA 5-15 adapter for Level 1 charging via standard 110-120V household outlets.
- Adjustable Current for Safety Charging: Offers 5 selectable current levels (10A, 12A, 16A, 20A, and 24A) to optimize charging speed and protect your electrical system. Allows downgrading for older sockets or aluminum wire circuits.
- Extra-Long 25ft UL Certified Extension Cable: Features a premium 25ft UL certified cable made of high-grade, flexible material for convenient and reliable connection.
- Scheduled Charging & Real-time Monitor TFT Screen: The 1.77" TFT screen displays real-time charging data (current, voltage, charging time, status). The schedule charging function allows setting specific charging times to take advantage of off-peak electricity rates.
- Universal J1772 Compatibility: Equipped with a standard SAE J1772 coupler, compatible with most Battery Electric Vehicles (BEVs) and Plug-in Hybrids (PHEVs) in North America. Tesla vehicles require a J1772 adapter (not included).
- Rugged, Fire-Retardant & Weatherproof: The control box is IP66 waterproof and rated UL 94V-0 for flame resistance, designed to withstand extreme weather and heavy daily use for indoor and outdoor charging.
3. Package Contents
Verify that all items are present and in good condition upon unpacking.
Figure 3.1: Package Contents
- SEGUMA 24A Level 2 EV Charger (NEMA 14-30)
- Control Box Holder
- Connector Bracket
- NEMA 5-15 to 14-30 Adapter
- User Manual
- Portable Storage Bag
4. Setup and Installation
The SEGUMA EV Charger is designed for straightforward setup. Follow these steps for safe installation and use.
4.1 Choosing a Power Outlet
- Level 2 Charging (240V): Use a NEMA 14-30 dryer outlet. Ensure the circuit breaker is rated appropriately (e.g., 30A for 24A charging).
- Level 1 Charging (110-120V): Attach the NEMA 5-15 adapter to the NEMA 14-30 plug and connect to a standard household outlet. Adjust the current setting to 10A or 12A for safety.
Figure 4.1: Dual-Voltage Charging Options
4.2 Mounting the Charger
The control box and connector can be wall-mounted for convenience.
- Securely attach the control box holder and connector bracket to a sturdy wall using appropriate fasteners.
- Place the charger control box into its holder and hang the J1772 connector in its bracket when not in use.
Figure 4.2: Wall-Mounted Charger with Status Lights
4.3 Connecting to Your Vehicle
The charging process is simple:
Figure 4.3: Three Steps to Charge
- Plug the charger into the appropriate NEMA 14-30 or NEMA 5-15 outlet.
- Set your desired amperage (10A, 12A, 16A, 20A, or 24A) and optionally preset a charging start/end time using the buttons on the charger.
- Connect the J1772 connector to your vehicle's charging port. The indicator will flash green to show charging has started.
5. Operating Instructions
Your SEGUMA EV Charger provides flexible control over your charging experience.
5.1 Adjustable Current Settings
The charger allows you to select from 5 current levels (10A, 12A, 16A, 20A, 24A) to match your vehicle's needs and your electrical system's capacity. This feature helps prevent overheating and optimizes charging speed.
Figure 5.1: Customizable Charging Settings
Figure 5.2: Optimize Your Charging Demands
5.2 Scheduled Charging
Utilize the scheduled charging function to set specific times for your vehicle to charge. This is beneficial for taking advantage of lower electricity rates during off-peak hours.
Figure 5.3: Appointed Charging Time
5.3 Real-time Monitoring
The 1.77" TFT screen on the charger displays live charging data, including current, voltage, charging time, and status, allowing you to monitor the process at a glance.
Figure 5.4: Faster Charging Capability
6. Safety Information
Your safety is paramount. The SEGUMA EV Charger is built with multiple protection features.
6.1 Built-in Safety Protections

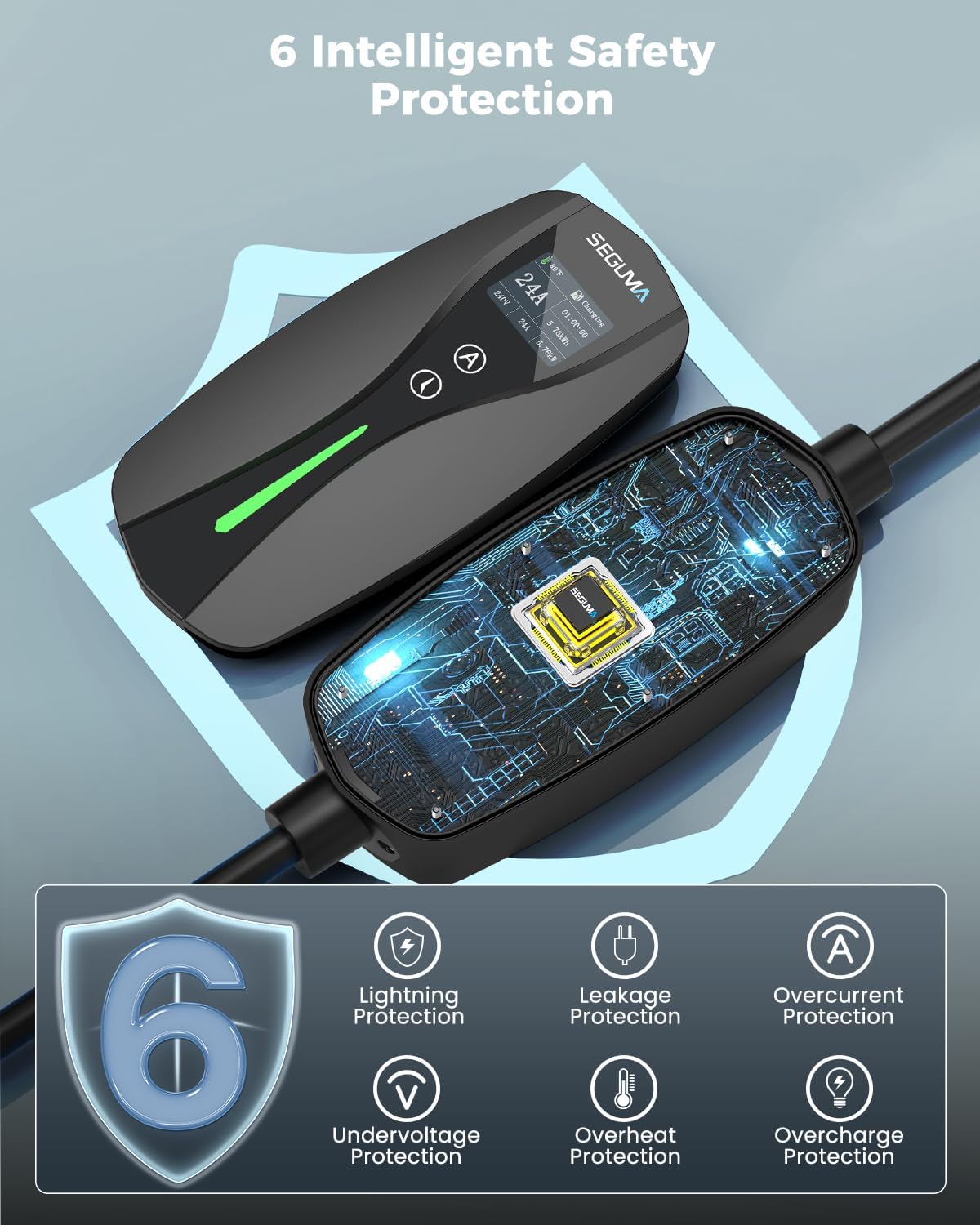

Figure 6.1: 6 Intelligent Safety Protections
- Lightning Protection: Safeguards against lightning strikes.
- Leakage Protection: Prevents electrical leakage.
- Overcurrent Protection: Protects against excessive current flow.
- Undervoltage Protection: Ensures stable voltage supply.
- Overheat Protection: Automatically stops charging if temperature exceeds 85°C (185°F). Unplug and replug to resume after cooling.
- Overcharge Protection: Prevents battery overcharging.
6.2 Environmental Durability
Figure 6.2: All-Weather Durability
The charger is IP66 rated for dust and water resistance, and can operate in temperatures ranging from -22°F (-30°C) to 122°F (50°C).
Figure 6.3: Robust Construction Details
7. Maintenance
To ensure the longevity and optimal performance of your SEGUMA EV Charger, follow these maintenance guidelines:
- Keep the charger clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Regularly inspect the cable and connectors for any signs of damage, wear, or corrosion. Do not use the charger if any damage is found.
- Ensure the charging port on your vehicle is clean and dry before connecting the charger.
- Store the charger in its portable storage bag when not in use, especially during travel, to protect it from physical damage.
8. Troubleshooting
If you encounter issues with your SEGUMA EV Charger, refer to the following common troubleshooting steps:
- Charger not powering on: Ensure the power plug is fully inserted into the wall outlet and the circuit breaker is not tripped.
- Charging not starting: Verify that the J1772 connector is securely plugged into your vehicle's charging port. Check the charger's display for any error messages.
- Overheat protection activated: If the charger stops due to overheating (temperature above 85°C), unplug it from the power source and allow it to cool down before reconnecting.
- Slow charging speed: Check the selected amperage setting on the charger. Ensure your electrical circuit can support the desired amperage.
- Vehicle not recognized: For Tesla vehicles, ensure you are using a compatible J1772 to Tesla adapter.
If problems persist, contact SEGUMA customer support for assistance.
9. Specifications
| Brand | SEGUMA |
| Model Number | EV-ACS2402U |
| Input Voltage | 110-240V AC |
| Adjustable Current | 10A, 12A, 16A, 20A, 24A |
| Cable Length | 25 feet |
| Connector Type | SAE J1772 |
| Power Plugs | NEMA 14-30, NEMA 5-15 (with adapter) |
| Waterproof Rating | IP66 |
| Flame Resistance | UL 94V-0 |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
10. Warranty and Support
All SEGUMA EV Chargers are covered by a 1-year manufacturer warranty service. For warranty claims, technical support, or any questions regarding your product, please contact SEGUMA customer support directly.
Please refer to the contact information provided on the product packaging or the official SEGUMA website for the most up-to-date support details.
11. Official Product Videos
Watch the official product video for a visual guide on the SEGUMA 40A Level 2 EV Charger.
Video 11.1: SEGUMA 40A Level 2 EV Charger Overview. This video demonstrates the features and usage of the SEGUMA Level 2 EV Charger, including its NEMA 14-50 plug, J1772 connector, adjustable current, adjustable time, real-time display, durability, and wall mounting options.
