1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your VBGK 24-inch 220V 3-Burner Electric Cooktop, Model DT3-1. Please read these instructions thoroughly before using the appliance and retain them for future reference.

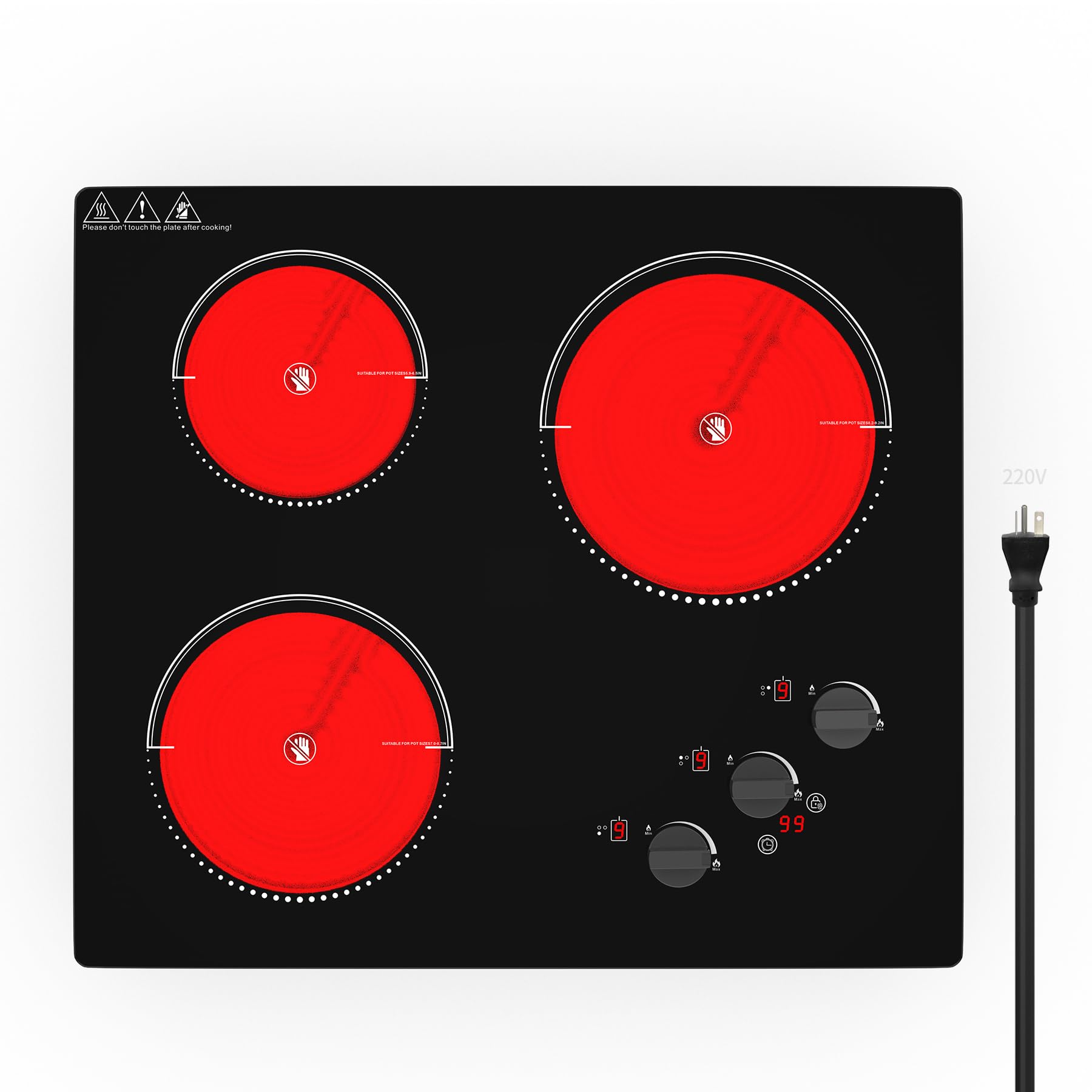

Image 1.1: The VBGK 24-inch 3-burner electric cooktop, featuring three heating zones and knob controls, shown installed in a kitchen countertop with various cookware.
2. Safety Instructions
To prevent injury or damage, always observe the following safety precautions:
- Electrical Connection: This appliance requires a 220V electrical supply. Ensure proper wiring and grounding by a qualified electrician.
- Overheat Protection: The cooktop is equipped with an overheat protection device that automatically shuts off the heating elements if temperatures become excessively high.
- Child Safety Lock: Activate the child safety lock to prevent accidental operation by children.
- Hot Surface Warning: The cooktop surface remains hot after use. Avoid touching the surface until it has cooled completely.
- Cookware Placement: Always place cookware centrally on the heating zone. Do not use oversized cookware that extends significantly beyond the heating zone.
- Ventilation: Ensure adequate ventilation around the cooktop during operation.
- Cleaning: Disconnect power and allow the cooktop to cool before cleaning.
Image 2.1: Detail of the control panel highlighting the child safety lock and timer features.
3. Installation
The VBGK electric cooktop is designed for both countertop placement and built-in installation. Refer to the following dimensions for proper fitting:
- Product Dimensions: 22.83 inches (Depth) x 20.07 inches (Width) x 3.14 inches (Height)
- Cut-out Dimensions (for built-in installation): 22.04 inches (Depth) x 19.29 inches (Width) x 5.90 inches (Height)
Ensure the installation area has access to a 220V electrical socket. For built-in installations, consult a professional to ensure proper fit and electrical connection.
Image 3.1: Illustration demonstrating both countertop and built-in installation options for the electric cooktop.
4. Operating Instructions
The cooktop features independent heating zones with knob and touch controls for precise temperature management.
4.1 Powering On/Off
- Ensure the cooktop is properly connected to a 220V power source.
- Press the main power button (if available) or turn the desired burner knob to activate the heating zone.
- To turn off, rotate the knob to the '0' position or press the power button again.
4.2 Adjusting Power Levels
Each heating zone offers 9 power levels (P1 to P9) for varied cooking needs. Rotate the corresponding knob to select the desired power level. The LED display will show the selected level.
Image 4.1: Visual representation of the 9 power levels (P1-P9) and their suitability for various cooking tasks.
4.3 Timer Function
The cooktop includes a timer function, adjustable from 1 to 99 minutes. To set the timer:
- Select the desired heating zone.
- Press the timer button.
- Use the corresponding knob or touch controls to adjust the time.
- The cooktop will automatically shut off the selected zone once the timer expires.
4.4 Child Safety Lock
To activate the child safety lock, press and hold the lock button for a few seconds until the indicator light appears. This will disable all controls. To deactivate, press and hold the lock button again until the indicator light turns off.
Video 4.2: Demonstration of the VBGK 3-burner electric cooktop's operation, including power adjustment and timer settings.
5. Cookware Compatibility
The VBGK electric cooktop is compatible with various types of flat-bottomed cookware, including:
- Aluminum pans
- Copper pans
- Cast iron skillets
- Non-magnetic stainless steel cookware
Ensure all cookware has a flat bottom to ensure optimal heat transfer and cooking performance.
Image 5.1: Examples of compatible cookware types for the electric cooktop.
6. Cleaning and Maintenance
Regular cleaning ensures the longevity and performance of your cooktop. The tempered smooth surface glass is easy to clean.
- Always ensure the cooktop is completely cool before cleaning.
- Wipe the surface with a clean, damp cloth. For stubborn stains, use a mild non-abrasive cleaner specifically designed for glass cooktops.
- Avoid using abrasive pads, harsh chemicals, or sharp objects that could scratch the surface.
- Ensure no liquid enters the control panel or internal components.
Image 6.1: A person demonstrating the cleaning process for the tempered smooth surface glass cooktop.
7. Troubleshooting
If you encounter issues with your cooktop, refer to the following table for common fault codes and their solutions:
| Fault Code | Description | Possible Solution |
|---|---|---|
| E1 | Low voltage protection (below 180V) | Check power supply voltage. Ensure the cooktop is connected to a stable 220V source. |
| E2 | High voltage (above 265V) | Check power supply voltage. Disconnect and reconnect the cooktop after voltage stabilizes. |
| E3 | Core temperature sensing thermocouple short circuit damage (code reported after 2 minutes) | Contact customer support for service. |
| E4 | Temperature sensing thermocouple open circuit damage or plug loose (H displayed after power on, followed by the code) | Check all connections. If the issue persists, contact customer support for service. |
| E5 | Internal temperature sensing thermistor short circuit overheating (fan not turning or) | Ensure proper ventilation. Allow the cooktop to cool down. If the fan is not operating, contact customer support. |
| E6 | Internal temperature sensing thermistor open circuit | Contact customer support for service. |
For issues not listed or if troubleshooting steps do not resolve the problem, please contact VBGK customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | VBGK |
| Model Number | DT3-1 |
| Material | Ceramic, Glass, Metal |
| Heating Elements | 3 |
| Burner Type | Radiant |
| Wattage | 5000 watts |
| Voltage | 220 volts |
| Controls Type | Knob, Touch |
| Power Levels | 9 |
| Product Dimensions (D x W x H) | 22.83" x 20.07" x 3.14" |
| Cut-out Dimensions (D x W x H) | 22.04" x 19.29" x 5.90" |
| Item Weight | 18 pounds |
| Special Features | Automatic Shut-Off, LCD Display, Temperature Control, Timer, Child Safety Lock, Overheat Protection |
| Included Components | Electric Cooktop, Knobs, User Manual |
9. Warranty and Support
For warranty information, please refer to the documentation included with your product or contact VBGK customer support directly. Keep your purchase receipt for warranty claims.
For technical assistance or service inquiries, please visit the official VBGK website or contact their customer service department.
