Important Safety Instructions
Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Always wear eye protection, hearing protection, and a dust mask when operating the saw.
- Keep hands away from the cutting area and the blade.
- Ensure the workpiece is securely clamped or held before cutting.
- Do not operate the saw in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Keep children and bystanders away while operating a power tool.
- Use only blades recommended by the manufacturer for the specific material being cut.
- Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
- Maintain the tool and accessories. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation.
Product Overview
The XPENG 20V Cordless Circular Saw (Model CS50125CL) is designed for cutting wood, plastic, and soft metals. It features a brushless motor, adjustable cutting depth, and angle settings for versatile use.

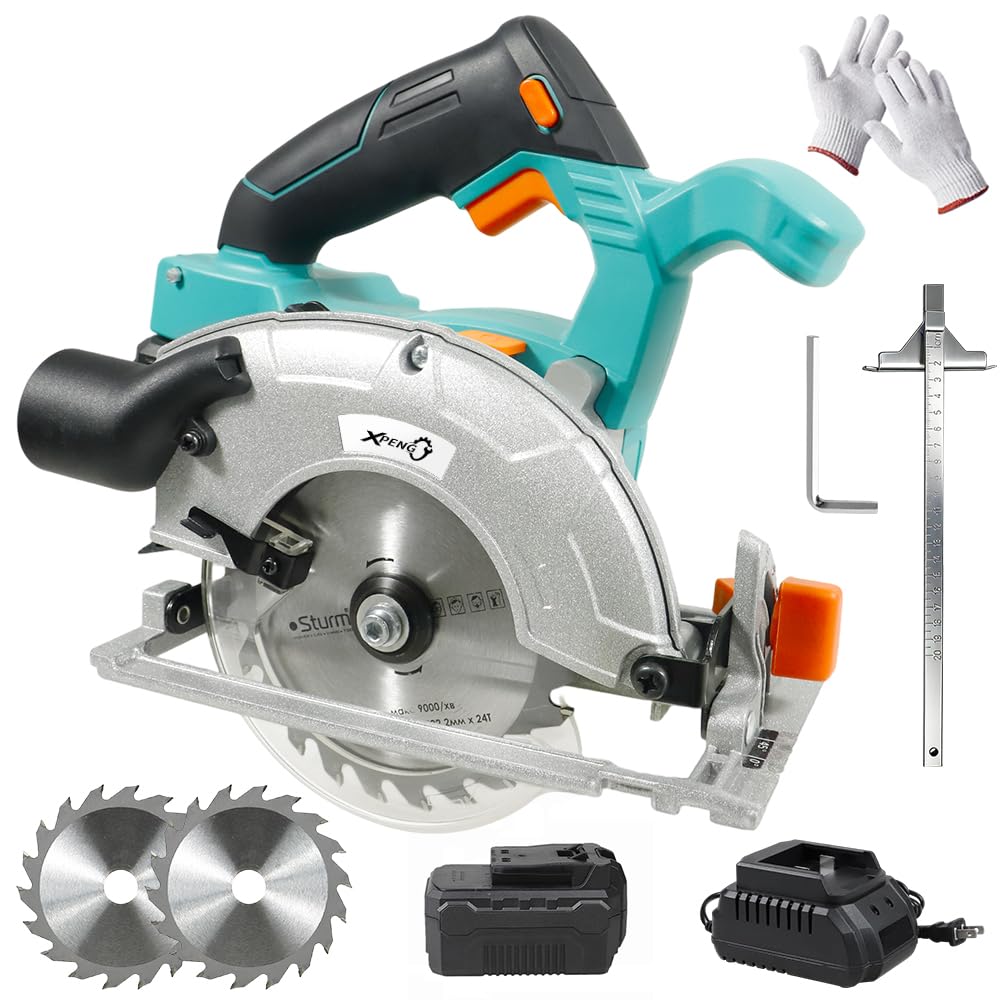

Image: Front view of the XPENG 20V Cordless Circular Saw, showing the blade guard, handle, and battery slot.
Components Diagram
Image: Diagram illustrating the main components of the circular saw, including the lock-off button, ON/OFF switch trigger, auxiliary handle, dust port, lower blade guard, guide ruler, lock knob for angle adjustment (0-45°), aluminum base, comfortable grip, lock knob for edge guide (0-45°), 20V 2000mAh battery, and power display.
Key Features
- Cordless Design: Provides portability and freedom of movement.
- Brushless Motor: Delivers 5000 RPM for efficient cutting and extended tool life.
- Adjustable Cutting Depth: Max 47mm (1-7/8 inches) at 90° and 33mm (1-5/16 inches) at 45°.
- Angle Adjustment: Tool-free adjustment from 0° to 45°.
- Integrated LED Light: Illuminates the cutting area for improved visibility.
- Dust Port: Connects to a vacuum for a cleaner workspace.
- Ergonomic Handle: Designed for comfortable and secure grip.
Setup
1. Battery Installation and Charging
The saw operates on a 20V battery. Ensure the battery is fully charged before use.
- To install the battery, align the battery pack with the receptacle on the saw handle and slide it in until it clicks into place.
- To remove the battery, press the release button on the battery pack and slide it out.
- Connect the charger to a power outlet and insert the battery pack into the charger. Refer to the charger's manual for specific charging indicators and times.
2. Blade Installation and Removal
Always disconnect the battery before installing or removing the blade.
- Press and hold the spindle lock button.
- Use the provided wrench to loosen the blade bolt by turning it counter-clockwise.
- Lift the lower blade guard and remove the outer flange and the old blade.
- Place the new 5-inch blade onto the spindle, ensuring the teeth are pointing in the direction of rotation (usually indicated by an arrow on the saw and blade).
- Replace the outer flange and tighten the blade bolt clockwise with the wrench while holding the spindle lock button.
- Ensure the blade is securely fastened and rotates freely without wobbling.
3. Adjusting Cutting Depth
The cutting depth can be adjusted to match the thickness of your material.
Image: Illustration showing the cutting depth adjustment mechanism on the circular saw, indicating a range of 0-47mm.
- Loosen the depth adjustment lever/knob.
- Move the base plate up or down until the desired cutting depth is achieved. The scale indicates the depth.
- Tighten the depth adjustment lever/knob securely.
- For 90° cuts, the maximum depth is 47mm.
4. Adjusting Bevel Angle
The saw allows for bevel cuts from 0° to 45°.
Image: Close-up of the circular saw's base plate showing the angle adjustment mechanism, set between 0 and 45 degrees, with a maximum cutting depth of 33mm at 45 degrees.
Image: Close-up of the circular saw's base plate showing the angle adjustment mechanism, set at 90 degrees, with a maximum cutting depth of 47mm.
- Loosen the angle adjustment knob (often located at the front of the base plate).
- Tilt the base plate to the desired angle, using the angle scale as a guide.
- Tighten the angle adjustment knob securely.
- For 45° cuts, the maximum depth is 33mm.
5. Using the Parallel Guide
The parallel guide helps achieve straight cuts.
- Insert the parallel guide into the slot on the front of the saw's base plate.
- Adjust the guide to the desired width from the blade.
- Tighten the locking screw to secure the guide in place.
- Rest the guide against the edge of your workpiece during the cut.
Operating Instructions
1. Starting and Stopping the Saw
- To start the saw, press the lock-off button (safety switch) and then squeeze the ON/OFF switch trigger.
- To stop the saw, release the ON/OFF switch trigger. The blade will coast to a stop.
2. Making a Cut
Always ensure the blade is sharp and appropriate for the material.
Image: Visual representation of the circular saw cutting different materials including wood, PVC, plastic, and bamboo, demonstrating its versatility.
- Mark your cutting line clearly on the workpiece.
- Place the front of the saw's base plate flat on the workpiece, ensuring the blade is aligned with your cutting line but not touching the material.
- Start the saw and allow the blade to reach full speed before beginning the cut.
- Slowly push the saw forward along the cutting line, maintaining firm pressure. Do not force the saw.
- Keep the base plate flat against the workpiece throughout the cut.
- Once the cut is complete, release the trigger and allow the blade to stop before lifting the saw from the workpiece.
3. Dust Collection
The saw is equipped with a dust port for connecting to a vacuum system.
Image: The circular saw in use, showing a 1-1/2" vacuum dust adapter connected to the dust port for a cleaner working environment. Also highlights the high-intensity LED light.
- Attach a 1-1/2" vacuum dust adapter to the dust port on the saw.
- Connect the adapter to a suitable shop vacuum or dust extractor.
- This will help keep your workspace cleaner and improve visibility during cutting.
4. LED Work Light
The integrated LED light automatically illuminates the cutting area when the trigger is pressed, improving visibility in low-light conditions.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your tool. Always disconnect the battery pack before performing any maintenance.
- Cleaning: After each use, clean the saw with a soft cloth. Remove any sawdust or debris from the motor vents, blade guard, and base plate. Do not use solvents or abrasive cleaners.
- Blade Inspection: Regularly inspect the blade for sharpness, cracks, or missing teeth. Replace dull or damaged blades immediately.
- Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Charge batteries before long-term storage.
- General Inspection: Check all screws and fasteners for tightness. Ensure all moving parts operate smoothly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Saw does not start. | Battery not installed correctly or discharged. Lock-off button not pressed. | Ensure battery is fully charged and properly seated. Press the lock-off button before squeezing the trigger. |
| Saw loses power during operation. | Battery low. Overloading the motor. | Recharge or replace battery. Reduce feed pressure; allow the saw to work at its own pace. |
| Blade binds or smokes. | Dull blade. Incorrect blade for material. Improper cutting technique. | Replace with a sharp, appropriate blade. Ensure workpiece is supported and saw is guided straight. |
| Inaccurate cuts. | Blade not square to base. Parallel guide loose. | Check and adjust blade squareness. Ensure parallel guide is securely tightened. |
Specifications
Image: Diagram showing the dimensions of the XPENG 20V Cordless Circular Saw (30cm/11.8inch length and height, 25cm/9.84inch width) and key specifications like 5000RPM no-load speed, 20V voltage, 5"/125mm blade diameter, 47mm (90°) max cutting depth, 33mm (45°) max cutting depth, 2000mAh battery, and 2.5A charger.
| Feature | Detail |
|---|---|
| Model Number | CS50125CL |
| Brand | XPeng |
| Power Source | Battery Powered (20V) |
| No-Load Speed | 5000 RPM |
| Blade Diameter | 5 inches (125mm) |
| Max. Cutting Depth (90°) | 47mm (1-7/8 inches) |
| Max. Cutting Depth (45°) | 33mm (1-5/16 inches) |
| Cutting Angle | 0-45 Degrees |
| Battery Capacity | 4.0Ah (20V) |
| Motor Type | Brushless |
| Item Weight | 7 Pounds |
| Dimensions (L x W x H) | 10"L x 7"W x 10"H |
| Included Components | Circular Saw, 2x 5" Blades, 4.0Ah Battery, Fast Charger, Parallel Guide |
Warranty Information
This XPENG product comes with an Extended Warranty. For specific terms, conditions, and duration of your warranty, please refer to the warranty card included with your purchase or contact XPENG customer support. Keep your proof of purchase for warranty claims.
Customer Support
If you have any questions, require assistance, or need to report an issue with your XPENG 20V Cordless Circular Saw, please contact our customer support team.
- Manufacturer: XPENG
- Seller: XIAOPENG TOOLS
- For support, please visit the official XPENG website or contact the seller directly through your purchase platform.
