1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your iSpring RCC7AKF3 Alkaline 6-Stage Under Sink Reverse Osmosis Water Filter System. This system is designed to provide clean, great-tasting water by effectively reducing over 1,000 contaminants and restoring healthy minerals for a balanced pH.
The iSpring RCC7AKF3 system is certified to NSF/ANSI 58, ensuring high standards of performance and safety.
Image: The iSpring RCC7AKF3 Alkaline 6-Stage Under Sink Reverse Osmosis Water Filter System, showcasing its compact design and components.
2. Safety Information
Please read all safety instructions before installing or operating the system. Failure to follow these instructions could result in property damage or injury.
- Always turn off the water supply before performing any maintenance or installation.
- Ensure all connections are secure to prevent leaks.
- Do not install the system in direct sunlight or in areas exposed to freezing temperatures.
- Maintain appropriate water pressure as specified in the system's technical data.
- If you are unsure about any installation steps, consult a qualified plumber.
3. Package Contents
Verify that all components are present before beginning installation:
- iSpring RCC7AKF3 RO System Unit
- Pre-filters (Sediment, GAC, Carbon Block) - 3 additional sets included
- RO Membrane
- Alkaline Remineralization Filter
- Storage Tank
- Patented Easy-Mount Faucet
- Tubing and Fittings
- Drain Saddle Valve
- Feed Water Adapter
- User Manual

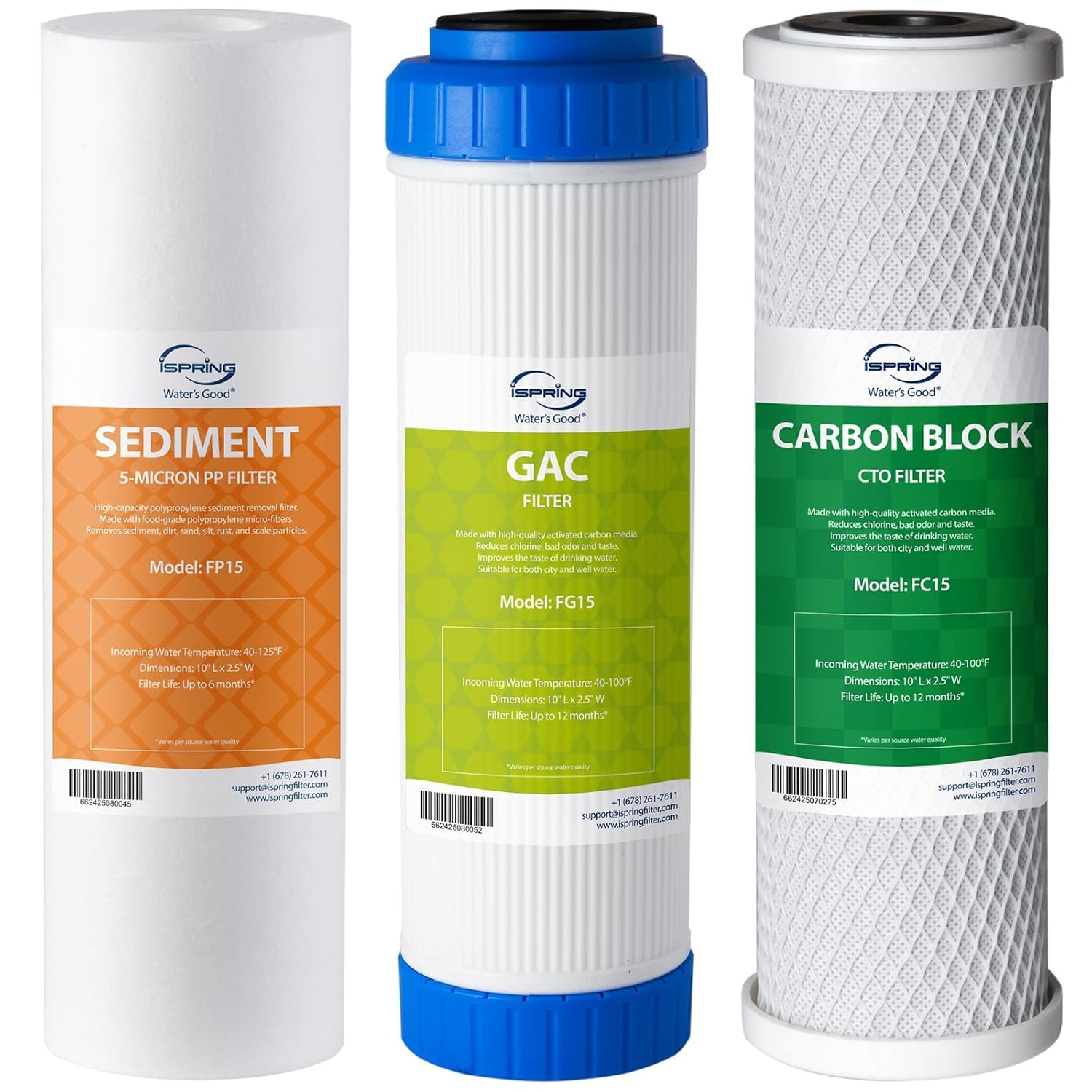

Image: The three primary pre-filters included with the system: Sediment (FP15), Granular Activated Carbon (FG15), and Carbon Block (FC15).
4. Setup and Installation
The iSpring RCC7AKF3 features a patented top-mounted faucet design for simplified installation.
4.1 Faucet Installation
- Drill a hole in your countertop with a diameter between 3/4" and 1 1/4".
- Insert the faucet stem through the hole from the top.
- Secure the faucet from above by twisting the patented nut until tight. No need to work from underneath the sink.
4.2 System and Tank Connection
- Connect the feed water adapter to your cold water line.
- Install the drain saddle valve onto the drain pipe.
- Connect the tubing from the feed water adapter, drain saddle, and storage tank to the appropriate ports on the RO system unit.
- Connect the purified water line from the RO system to the newly installed faucet.
- Ensure all connections are hand-tightened and then secured with a wrench where appropriate.
4.3 Leak Check
After installation, slowly turn on the water supply and check all connections for leaks. Address any leaks immediately by tightening connections or re-sealing as necessary.
Image: Diagram illustrating the patented top-mounted faucet design for easy installation, requiring only two steps and approximately 20 seconds.
5. Operating Instructions
5.1 Initial System Flush
Before first use, the system requires an initial flush to remove any carbon fines and air from the filters. This process typically takes several hours as the tank fills and drains multiple times.
- Open the RO faucet and allow water to flow until it stops.
- Close the faucet and wait for the storage tank to refill (this may take 2-3 hours).
- Repeat steps 1 and 2 at least 3-5 times. This ensures proper flushing and activation of the filters.
5.2 Daily Use
Once flushed, the system is ready for daily use. Simply open the RO faucet to dispense purified, alkaline water. The system will automatically refill the storage tank as water is drawn.
Image: Benefits of RO + Alkaline Water, including antioxidant properties, quick replenishment, spring-like taste, and balanced alkalinity.
6. Maintenance
Regular filter replacement is crucial for maintaining optimal system performance and water quality.
6.1 Filter Replacement Schedule
The iSpring RCC7AKF3 includes 3 extra sets of pre-filters for extended convenience. Refer to the following general guidelines for filter replacement:
- Pre-filters (Sediment, GAC, Carbon Block): Replace every 6-12 months (F4AK, F9K).
- RO Membrane: Replace every 2-3 years (F19K75).
- Alkaline Remineralization Filter: Replace every 12-24 months (F28K75).
Actual replacement frequency may vary based on incoming water quality and usage.
6.2 Monitoring Filter Status
The transparent first-stage filter housing allows for visual inspection of the sediment filter, making it easy to monitor contaminant buildup and determine when a replacement is needed.
Image: Illustration of the transparent first-stage filter housing, showing visible dirt and sediment accumulation, indicating when filter replacement is necessary.
7. Troubleshooting
Refer to the table below for common issues and their solutions. If the problem persists, contact iSpring technical support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow from faucet | Clogged filters, low water pressure, air in system, tank pressure issue | Replace filters, check household water pressure, flush system, check tank air pressure. |
| Unusual taste or odor | Expired carbon filters, new system flush incomplete | Replace carbon filters, perform thorough initial system flush. |
| Water leaks | Loose connections, damaged O-rings or fittings | Inspect all connections and tighten, replace damaged components. |
| System constantly running | Leaking connection, faulty auto shut-off valve, low tank pressure | Check for leaks, replace auto shut-off valve, check tank air pressure. |
8. Specifications
Detailed specifications for the iSpring RCC7AKF3 system:
- Brand: iSpring
- Model Name: RCC7AKF3
- Model Number: RCC7AKF3
- Product Dimensions (L x W x H): 15.5" x 5" x 18.5"
- Item Weight: 27 pounds
- Material: Plastic
- Capacity: 75 gallons per day (GPD)
- Installation Type: Under Sink
- Purification Method: 6-Stage Reverse Osmosis with Alkaline Remineralization
- Supported Water TDS Level Maximum: 98 PPM
- Power Source: Gravity/Flow Activated
- UPC: 810004176607
8.1 Contaminant Reduction
The RCC7AKF3 system effectively reduces a wide range of contaminants:
- TDS: 93-98%
- PFAS: 96-99%
- Chlorine: 95-99%
- Asbestos: >99.7%
- Barium: >98.4%
- Cadmium: >98.8%
- Chromium: >99.2%
- Copper: >97.8%
- Fluoride: >97.4%
- Lead: >98.9%
- Selenium: >99.0%
- Microplastics, Nanoplastics, and over 1,000 other contaminants.
Image: Visual representation of the 6-stage filtration process with alkaline boost, detailing the percentage reduction of various contaminants like TDS, PFAS, Chlorine, Lead, and more.
Image: Certification details highlighting the iSpring system's NSF/ANSI 58 whole system certification, including chemical extraction, cyclic, hydrostatic, and TDS reduction tests.
9. Warranty and Support
iSpring is committed to providing reliable products and excellent customer service.
- Technical Support: Enjoy lifetime technical support from iSpring's team based in Atlanta, GA.
- Contact: For assistance, troubleshooting, or replacement parts, please refer to the contact information provided on the iSpring website or your purchase documentation.
Image: A timeline of iSpring's history and commitment to quality, highlighting professional product support and NSF-certified whole systems.
