1. Introduction
Thank you for choosing the AeternaSol 200W N-Type Solar Panel. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your solar panel. Please read this manual thoroughly before use and retain it for future reference.

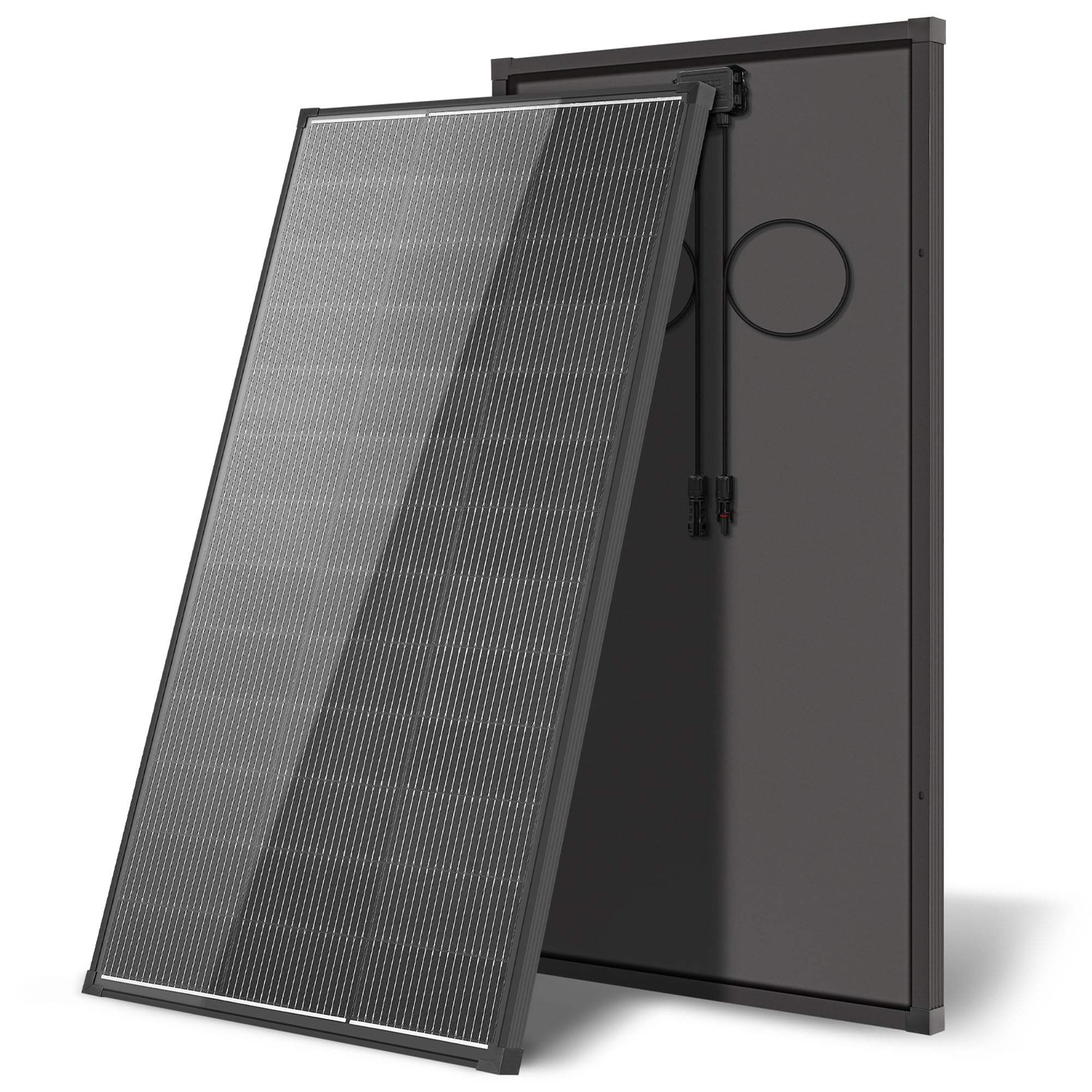

Image 1.1: AeternaSol 200W Black Solar Panel.
Product Features:
- 25% High-Efficiency: AeternaSol 200W N-Type A+ Grade Cell with 18 BB Full-Welding Busbars ensures stable output and high efficiency.
- Exclusive IP68 Junction Box: Equipped with potting technology to prevent water ingress, minimize short circuits, and inhibit rust and corrosion.
- 11 AWG 100% Oxygen-Free Copper Wire: Provides superior electrical conductivity and can withstand up to 25A current, with a UV-resistant jacket for extended lifespan.
- Durable MC4 Connector: Features galvanized copper pins and a robust PPO shell for higher current rating and compatibility.
- More Durable Aluminum Alloy Frame: Sturdy, rust-resistant frame with pre-drilled holes for easy installation and additional sealant to protect cells.
2. Safety Information
Please observe the following safety precautions to prevent personal injury or damage to the solar panel:
- Only qualified installers and technicians should perform work on these modules.
- Solar panels produce electricity when exposed to light. Handle with care.
- Do not disconnect under load.
- Do not damage or scratch the rear surface of the module.
- Avoid touching the electrical terminals with bare hands.
- Ensure all connections are secure and properly insulated to prevent electrical shock.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
3. Package Contents
Verify that all components are present and undamaged upon unpacking:
- 1 x AeternaSol 200W N-Type Solar Panel
4. Setup and Installation
The AeternaSol 200W N-Type Solar Panel is designed for various applications, including off-grid RVs, boats, and rooftops. The panel features pre-drilled holes for effortless installation and durable MC4 connectors for reliable connections.
Image 4.1: Solar panel dimensions (144cm x 67cm x 3cm) and warning regarding professional installation.
Installation Steps:
- Site Selection: Choose a location that receives maximum direct sunlight throughout the day, free from shading by trees or buildings.
- Mounting: Securely mount the solar panel using appropriate mounting hardware (not included) through the pre-drilled holes in the aluminum alloy frame. Ensure the mounting structure is robust enough to withstand local wind and snow loads.
- Wiring: Connect the MC4 connectors from the solar panel to your charge controller. Ensure correct polarity (positive to positive, negative to negative). The panel uses 11 AWG oxygen-free copper wire for optimal conductivity.
- System Integration: Connect the charge controller to your battery bank and then to your inverter, if applicable. Refer to the diagrams in the Operating Instructions section for series and parallel connection examples.
Image 4.2: Details of the 3.2mm low-iron tempered photovoltaic glass and 1.2mm anti-corrosion aluminum alloy frame, highlighting pre-drilled holes for easy installation.
Image 4.3: Comparison of AeternaSol's durable IP68 potting-tech junction box against standard junction boxes, emphasizing no water short circuit risk and longer lifespan.
Video 4.1: An overview of the AeternaSol 200W Solar Panel, showcasing its features and design. (Source: AeternaSol Direct)
5. Operating Instructions
Once installed, your AeternaSol solar panel will convert sunlight into electrical energy. This energy is then managed by a charge controller to safely charge your battery bank.
Connection Methods:
Solar panels can be connected in parallel or series depending on your system's voltage and current requirements. Always consult with a qualified professional for complex system designs.
Image 5.1: Diagram illustrating how to connect multiple solar panels in parallel to increase current output while maintaining system voltage.
Image 5.2: Diagram illustrating how to connect multiple solar panels in series to increase voltage output while maintaining system current.
Key Operational Features:
- Reverse Current Blocking Diode: The integrated junction box includes a blocking diode to prevent energy drain from the battery back to the panel during periods of low light or darkness.
- High Performance in Diverse Conditions: The N-Type A+ cells and robust construction ensure reliable power generation across a wide range of environmental conditions, from -40°F to 185°F.
Image 5.3: Illustration of the reverse current blocking diode inside the junction box, preventing energy loss at night.
Video 5.1: A brief demonstration of the AeternaSol 200W Solar Panel's features. (Source: AeternaSol Direct)
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your solar panel.
- Cleaning: Periodically clean the surface of the solar panel with a soft cloth and water to remove dust, dirt, and debris that can reduce efficiency. Avoid abrasive materials or harsh chemicals.
- Inspection: Regularly inspect the panel for any physical damage, such as cracks in the glass, loose connections, or corrosion on the frame or wiring.
- Wiring Check: Ensure all electrical connections, especially the MC4 connectors and junction box, are secure and free from damage or signs of overheating.
- Shading: Monitor the installation area for new sources of shading (e.g., growing trees) that might impact panel performance.
7. Troubleshooting
If you experience issues with your solar panel, consider the following common troubleshooting steps:
- No Power Output:
- Check for sufficient sunlight exposure.
- Verify all electrical connections are secure and correct.
- Inspect the MC4 connectors and wiring for damage.
- Ensure the charge controller is functioning correctly and connected properly to the battery.
- Low Power Output:
- Clean the panel surface to remove dirt or debris.
- Check for partial shading from nearby objects.
- Verify the panel's angle and orientation are optimized for sun exposure.
- Ensure the battery is not fully charged, as the charge controller may reduce output.
- Physical Damage: If the panel glass is cracked or the frame is bent, contact AeternaSol support for assistance. Do not attempt to repair damaged components yourself.
8. Specifications
Image 8.1: Illustration of AeternaSol's upgraded N-Type A+ Cell technology, highlighting 25% cell efficiency and low degradation rate.
| Specification | Value |
|---|---|
| Brand | AeternaSol |
| Model Number | AS200SP18V18BB |
| Maximum Power (Pmax) | 200 Watts |
| Cell Efficiency | 25% |
| Output Voltage | 18 Volts |
| Maximum Voltage (Vmp) | 24.96 Volts |
| Amperage Capacity (Imp) | 8.14 Amps |
| Product Dimensions (L x W x H) | 26.37" x 1.18" x 56.69" (67cm x 3cm x 144cm) |
| Item Weight | 22 Pounds |
| Material | Monocrystalline, Aluminum, Tempered Glass, Tributyl Tin |
| Junction Box Rating | IP68 |
| Included Components | 1x200w N-Type solar panel |
9. Warranty and Support
AeternaSol is committed to providing high-quality products and excellent customer service.
- Material and Workmanship Warranty: The solar panel comes with a 5-year warranty covering defects in materials and workmanship.
- Performance Guarantee: A 25-year performance guarantee ensures the panel will maintain at least 84.5% of its power output over this period.
- Seller Support: We provide 10-year seller support. If you encounter any issues or have questions regarding your solar panel or its services, please feel free to contact AeternaSol Direct anytime.
For support, please visit the AeternaSol store on Amazon or contact our customer service team directly.
