NARVI 8L XXL 1700W Digital Air Fryer Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the appliance and keep them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting. Do not immerse the cord, plug, or appliance in water or other liquids.
• Placement: Always place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow adequate air circulation. Do not place near flammable materials.
• Operation: Do not fill the basket with oil. Hot air frying does not require oil. The appliance is equipped with an automatic overheat protection system. If the appliance overheats, it will shut down automatically.
• Handling: Always use the insulated handle when removing the basket or pan after cooking. Hot surfaces can cause burns.
• Children: This appliance is not intended for use by children. Keep the appliance and its cord out of reach of children.
• Materials: The cooking basket and pan are made from food-grade materials, free from BPA and PFOA.

Image: Air fryer highlighting uniform 360° cooking, certified safety features, and a 60-minute timer for perfect results.

2. Product Overview

The NARVI 8L XXL 1700W Digital Air Fryer is designed for healthy cooking with minimal oil. It features a large capacity, powerful heating, and a user-friendly digital touch panel.

Components:

• Main Unit: Houses the heating element and fan.
• Digital Touch Panel: For setting time, temperature, and selecting cooking presets.
• Cooking Basket: Removable, non-stick basket for holding food.
• Basket Handle: Insulated handle for safe removal of the cooking basket.

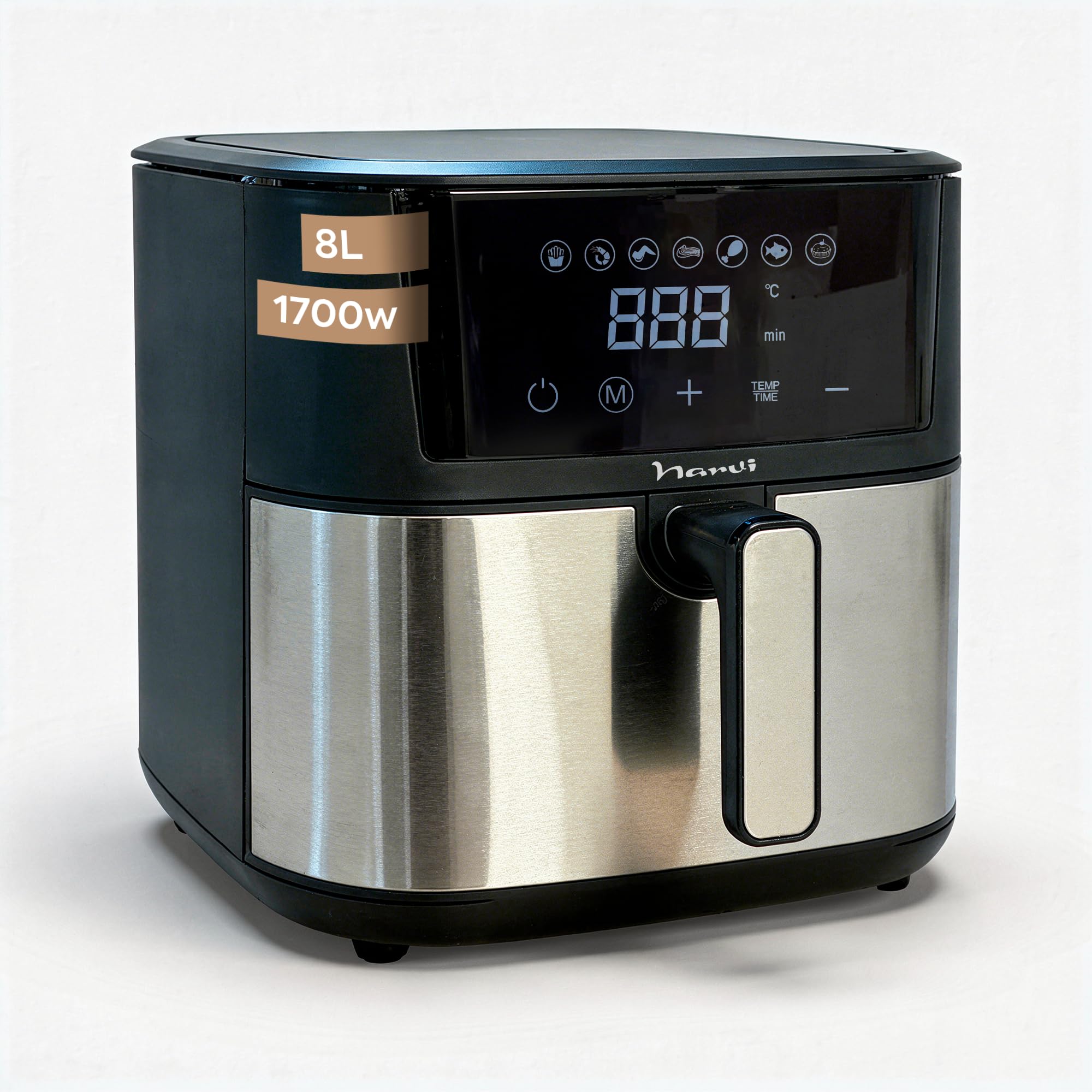

Image: Front view of the NARVI 8L XXL 1700W Digital Air Fryer, showing the digital control panel and basket handle.

3. Setup and First Use

3.1 Unpacking

1. Carefully remove all packaging materials from the air fryer.
2. Remove any stickers or labels from the appliance.
3. Check that all components are present and undamaged.

3.2 Cleaning Before First Use

1. Wipe the exterior of the appliance with a damp cloth.
2. Remove the cooking basket and pan. Wash them thoroughly with hot water, dish soap, and a non-abrasive sponge. The removable parts are dishwasher safe.
3. Rinse and dry all parts completely before reassembling.

3.3 Placement

1. Place the air fryer on a stable, level, and heat-resistant surface.
2. Ensure there is at least 10 cm (4 inches) of free space on the back and sides of the appliance, and 10 cm (4 inches) above it, to allow for proper air circulation.
3. Do not place the appliance on or near a gas or electric hob, or in a heated oven.

Image: The NARVI Air Fryer with its cooking basket pulled out, revealing cooked food inside, demonstrating its capacity.

4. Operating Instructions

4.1 Preheating

1. Plug the appliance into a grounded wall socket.
2. Press the power button to turn on the display.
3. Set the desired temperature (80-200°C) and time (usually 3-5 minutes for preheating) using the temperature and time controls.
4. Press the start button to begin preheating.

4.2 Cooking with Manual Settings

1. Carefully pull the basket out of the air fryer.
2. Place your ingredients into the cooking basket. Do not exceed the MAX fill line.
3. Slide the cooking basket back into the air fryer.
4. Set the desired temperature (80-200°C) and cooking time (up to 60 minutes) using the digital touch panel.
5. Press the start button to begin cooking.
6. Some ingredients may require shaking or turning halfway through the cooking time. Pull out the basket, shake/turn the food, and then slide the basket back in. The air fryer will resume cooking automatically.
7. When the cooking time is complete, the air fryer will beep. Carefully pull out the basket and empty the food onto a plate.

4.3 Using Automatic Menus

The NARVI Air Fryer comes with 7 pre-set automatic menus for common dishes:

1. Prepare your ingredients and place them in the cooking basket.
2. Press the 'Menu' button repeatedly to cycle through the 7 pre-set options. The corresponding icon will light up.
3. Once you have selected your desired menu, press the start button. The air fryer will automatically set the optimal temperature and time for that dish.
4. You can manually adjust the time and temperature even when using a pre-set menu if needed.

Image: Digital touch panel of the NARVI Air Fryer displaying the 7 intuitive automatic cooking menus for various food types.

5. Maintenance and Cleaning

Clean the appliance after every use.

5.1 Cleaning the Cooking Basket and Pan

1. Unplug the air fryer and allow it to cool down completely before cleaning.
2. Remove the cooking basket and pan.
3. Wash the basket and pan with hot water, dish soap, and a non-abrasive sponge. The non-stick coating makes cleaning easy.
4. Alternatively, the basket and pan are dishwasher safe.
5. For stubborn food residues, soak the basket and pan in hot water with some dish soap for about 10 minutes.

5.2 Cleaning the Exterior

1. Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
2. Never immerse the main unit in water or any other liquid.

5.3 Storage

Ensure the appliance is clean and dry before storing. Store the air fryer in a cool, dry place.

Image: A couple smiling next to the NARVI Air Fryer, illustrating the non-stick basket and insulated handle for easy and safe cleaning.

6. Troubleshooting

7. Specifications

Image: NARVI Air Fryer displaying its dimensions, suitable for family use.

8. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official NARVI website. You can also contact the seller directly for assistance.

For more products and information, visit the NARVI Brand Store.
