Enga Dual Rain Shower Jets System with Tub User Manual

1. Product Overview

The Enga Dual Rain Shower Jets System with Tub is designed to provide a comprehensive and customizable showering experience. This system features a 14x20 inch LED rainfall showerhead, a 6-inch secondary showerhead, a waterfall tub spout, and four adjustable body jets. It incorporates a digital thermostatic split valve for precise temperature control and flexible installation. The LED lighting in the main showerhead enhances the ambiance and is powered by an external AC source, while the digital temperature display is water flow-powered.

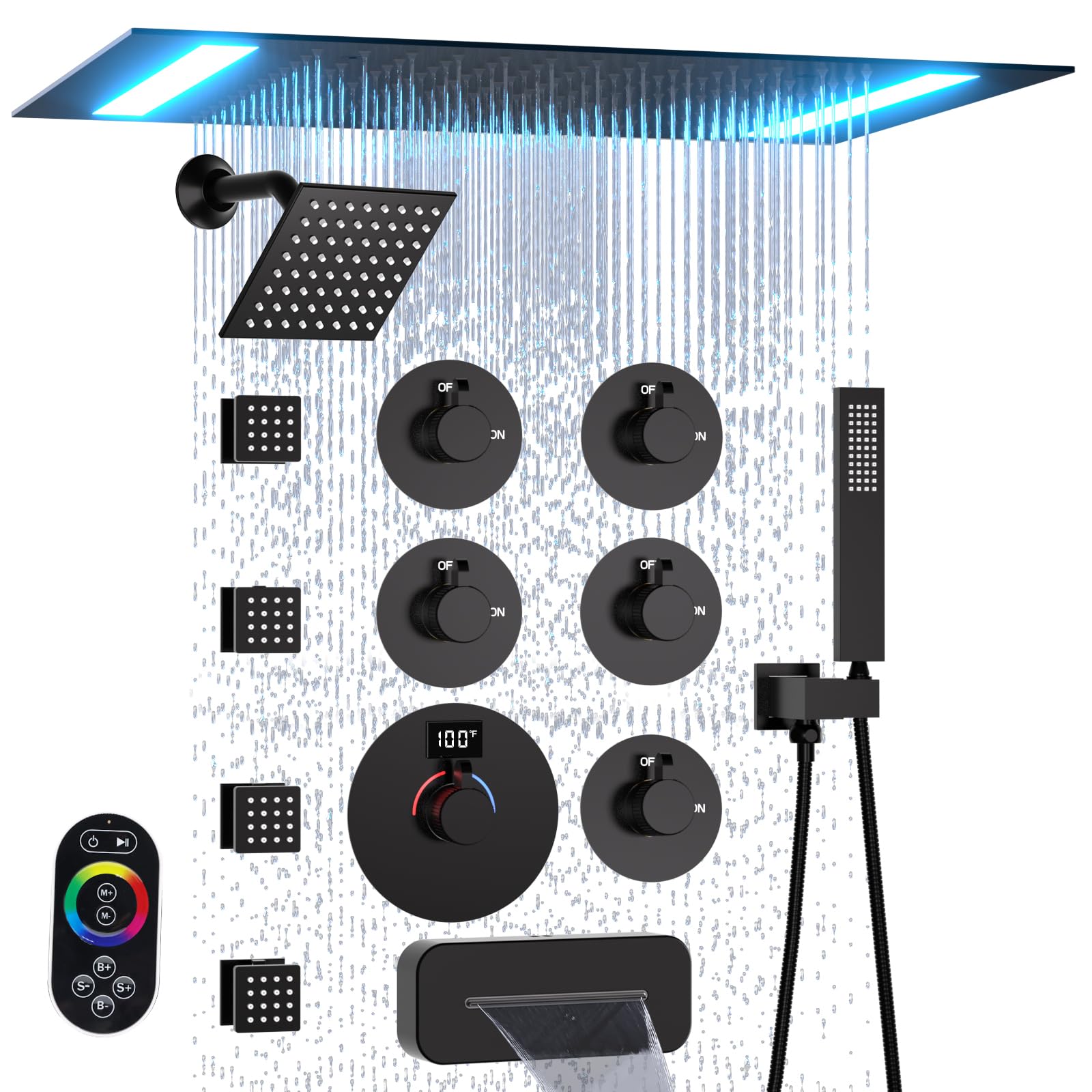

Image 1.1: Complete Enga Dual Rain Shower Jets System with Tub in Matte Black finish.

2. Packing List

Verify that all components listed below are present and undamaged before beginning installation.

• 14x20 inch LED Rainfall Showerhead (304 stainless steel)
• 5-function Thermostatic Digital Diverter Split Valve (brass)
• 6 inch Four-Hole Nozzle Showerhead with Curved Shower Arm (304 stainless steel)
• Handheld Spray (brass)
• 59 inch Shower Hose (304 stainless steel)
• Adjustable Hand Shower Bracket (brass)
• 4 pcs Body Jets with Flow Control (brass)
• Waterfall Tub Spout (brass)
• LED Lighting Controller (requires 3x 1.5V AAA Lithium Batteries, not included)

3. Installation and Setup

Professional installation is recommended for this shower system. Ensure all local plumbing and electrical codes are followed.

3.1. Flexible Valve Installation

The split design of the thermostatic digital diverter valve allows for flexible placement of controls, optimizing space and accommodating various bathroom layouts. The independent switch valve layout can be configured to follow pipe routes, making it suitable for complex plumbing systems.

Image 3.1: Illustration of the separate control shower valve components, allowing for flexible installation.

3.2. Main Rainfall Showerhead Installation

• Mount the 14x20 inch LED rainfall showerhead securely to the ceiling or wall, ensuring proper support for its weight.
• Connect the water supply lines according to plumbing standards.
• Connect the LED power supply (100-240V AC) to the showerhead. Ensure all electrical connections are waterproof and meet safety standards.
• Install 3x AAA Lithium Batteries into the LED lighting controller.

Image 3.2: The 14x20 inch LED rainfall showerhead, showing various LED color options and the remote control for lighting adjustments.

3.3. Secondary Showerhead and Arm

• Install the curved shower arm to the wall at the desired height.
• Attach the 6-inch secondary rainfall showerhead to the arm. The spray angle can be adjusted.

Image 3.3: Details of the 6-inch secondary tilted rainfall shower head with its four-hole nozzle design and the 7.8-inch brass shower arm.

3.4. Body Jets Installation

• Install the four body jets at desired heights and positions on the wall.
• Connect them to the water supply lines from the diverter valve.

3.5. Handheld Shower and Hose

• Mount the adjustable hand shower bracket to the wall.
• Connect the 59-inch shower hose to the handheld spray and the diverter valve outlet.

Image 3.4: The handheld shower head featuring soft silicone nozzles and the durable 59-inch long shower hose.

3.6. Waterfall Tub Spout

• Install the waterfall tub spout to the wall, ensuring a secure NPT 1/2" threaded connection to prevent leaks.
• The spout features an up/down design to direct the water flow.

Image 3.5: The wide waterfall tub spout creating a gentle sheet of water for filling the tub.

4. Operating Instructions

4.1. Digital Thermostatic Valve

• Temperature Control: Use the main thermostatic control to set the desired water temperature. The built-in high-sensitivity sensor digitally displays the real-time water temperature, preventing scalding.
• Function Selection: The 5-function diverter allows you to select between the main rainfall showerhead, secondary showerhead, handheld spray, body jets, and tub spout.
• Power for Display: The digital temperature display is self-powered by water flow and does not require batteries.

4.2. LED Rainfall Showerhead Lighting

• Use the provided remote control to turn the LED lights ON/OFF, change colors, adjust brightness, and dynamic speed.
• Ensure the remote control has fresh AAA batteries installed.

4.3. Body Jets Operation

• Each body jet features individual flow control. Turn the handle on each jet to activate or deactivate it, and to adjust the water flow/pressure.

Image 4.1: Demonstrating the individual flow and pressure control for each body jet, allowing them to be turned ON/OFF or adjusted.

4.4. Secondary Tilted Rainfall Showerhead

• The 6-inch showerhead features a 360-degree rotation capability, allowing users to adjust the spray angle for personalized comfort.

5. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Enga shower system.

• Cleaning: Clean all surfaces with a soft cloth and mild soap or non-abrasive cleaner. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Nozzle Cleaning: The silicone nozzles on the showerheads and handheld spray are designed for easy cleaning. Gently rub the nozzles with your finger to dislodge any mineral buildup.
• LED Showerhead: Ensure the LED power supply connection remains dry and secure.
• Battery Replacement: Replace the AAA batteries in the LED lighting remote control as needed.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or contact Enga customer service directly. Keep your purchase receipt for warranty claims.

Contact Information: Please visit the official Enga website or refer to your product packaging for the most current customer support contact details.
