Kitchen Elite 5.5 Qt. Digital Air Fryer User Manual

1. Introduction

Thank you for choosing the Kitchen Elite 5.5 Qt. Digital Air Fryer. This appliance is designed to provide a versatile and efficient cooking experience, allowing you to air fry, roast, dehydrate, defrost, and reheat a variety of foods with ease. Its modern design and intuitive controls make it a valuable addition to any kitchen.

2. Important Safety Instructions

Please read all instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always place the air fryer on a stable, heat-resistant surface.
• Do not immerse the cord, plug, or appliance in water or other liquid.
• Supervise children closely when the appliance is in use.
• Do not operate any appliance with a damaged cord or plug.
• Unplug from outlet when not in use and before cleaning.
• Do not block any ventilation openings.
• Do not use accessories not recommended by the manufacturer.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use the appliance for other than intended use.

3. Product Overview

The Kitchen Elite 5.5 Qt. Digital Air Fryer features a smart LED touchscreen for precise control and a spacious basket suitable for meals for 2-4 people.

Components

• Main Unit with LED Touchscreen
• Removable 5.5-Quart Nonstick Basket
• Crisper Plate (Trivet)

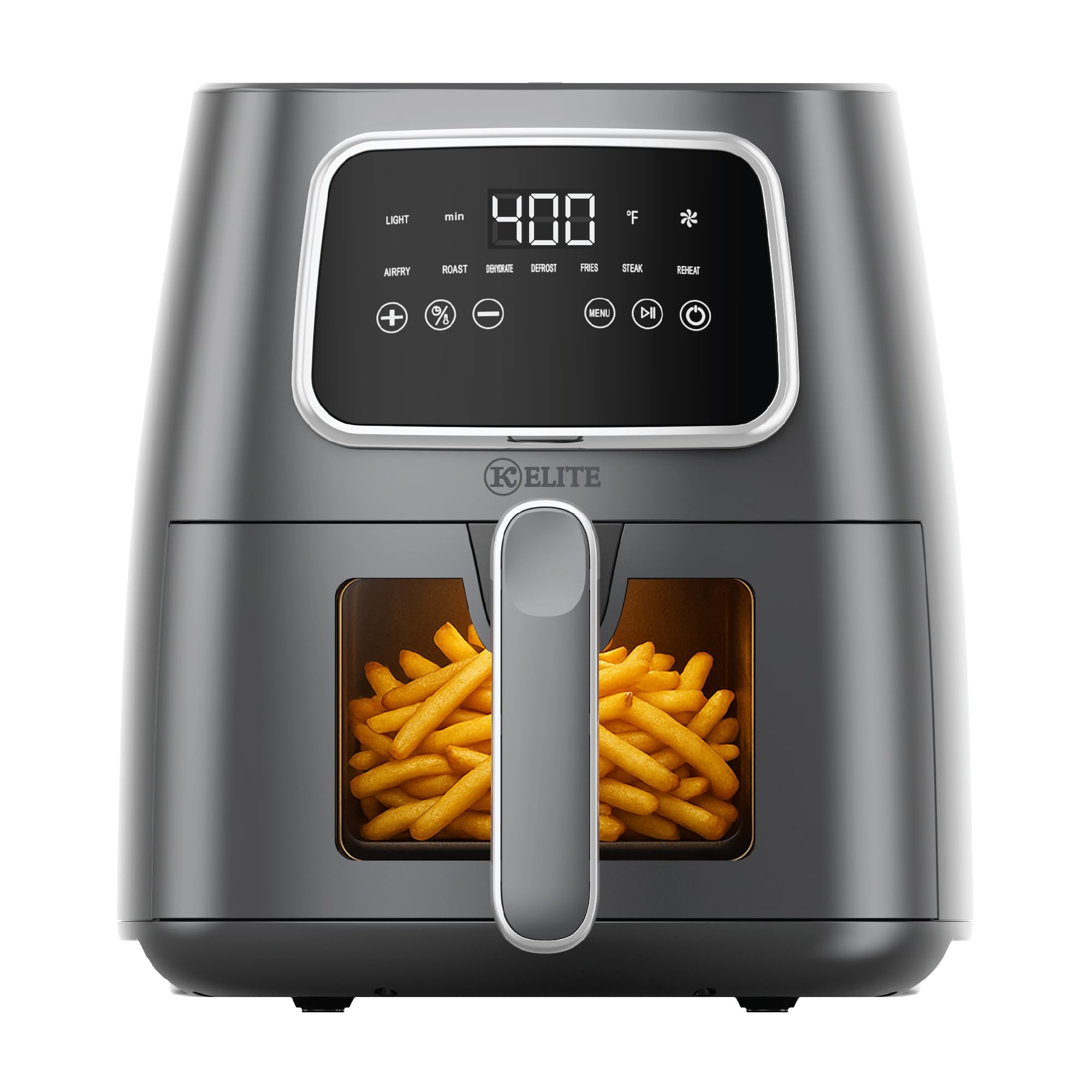

Image: Kitchen Elite 5.5 Qt. Digital Air Fryer with its basket filled with golden fries, showcasing the sleek design and digital display.

Image: The Kitchen Elite 5.5 Qt. Digital Air Fryer positioned on a kitchen countertop, highlighting its compact size and modern aesthetic.

4. Setup

1. Unpack: Carefully remove all packaging materials and promotional labels from the air fryer.
2. Clean: Wash the removable basket and crisper plate with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the air fryer with a damp cloth.
3. Placement: Place the air fryer on a dry, level, heat-resistant surface, ensuring adequate space (at least 6 inches) from walls or other appliances for proper ventilation.
4. Power: Plug the power cord into a grounded electrical outlet. The display will illuminate briefly.

5. Operating Instructions

The air fryer features a smart LED touchscreen with precise temperature control (170°F–400°F), a 1–60 minute timer, and preset cooking modes.

Basic Operation

1. Power On: Press the power button (U) to turn on the appliance.
2. Select Mode: Use the menu selection buttons to choose a preset cooking mode (Air Fry, Roast, Dehydrate, Defrost, Reheat, Fries, Steak).
3. Adjust Settings: Use the temperature (TEMP) and time (TIME) arrow buttons to adjust the cooking temperature and duration as needed.
4. Start Cooking: Press the Start/Pause button (▶/‖) to begin the cooking cycle.
5. Pause/Resume: Press the Start/Pause button (▶/‖) to pause or resume cooking.
6. Shake Reminder: For even cooking, some modes may prompt a 'SHAKE' reminder. Carefully remove the basket, shake the contents, and reinsert.
7. Power Off: Press the power button (U) to turn off the appliance when cooking is complete.

Image: A close-up view of the Kitchen Elite Air Fryer's digital touchscreen, showing various cooking icons and a finger interacting with the controls.

6. Cooking Modes and Presets

The Kitchen Elite Digital Air Fryer offers 7-in-1 versatility with dedicated presets for common cooking tasks:

• Air Fry: Ideal for achieving crispy textures with minimal oil.
• Roast: Perfect for cooking meats and vegetables to tender perfection.
• Dehydrate: For making dried fruits, vegetables, or jerky.
• Defrost: Gently thaws frozen foods.
• Reheat: Warms up leftovers quickly and efficiently.
• Fries: Optimized setting for perfectly crispy French fries.
• Steak: Preset for cooking steaks to your desired doneness.

Image: The Kitchen Elite Air Fryer's control panel displaying icons for different cooking functions, including air fry, roast, dehydrate, and reheat, emphasizing its multi-functionality.

7. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your air fryer. The nonstick basket and crisper plate are designed for easy cleaning.

Cleaning Steps

1. Unplug: Always unplug the air fryer and allow it to cool completely before cleaning.
2. Remove Basket: Pull out the cooking basket from the main unit.
3. Clean Basket and Plate: The nonstick basket and crisper plate can be washed with warm, soapy water. For stubborn food residue, soak them for a short period. Rinse thoroughly and dry completely. These components are also dishwasher-safe.
4. Clean Interior: Wipe the interior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
5. Clean Exterior: Wipe the exterior of the air fryer with a soft, damp cloth.
6. Storage: Ensure all parts are dry before storing the air fryer in a cool, dry place.

8. Troubleshooting

If you encounter any issues with your air fryer, please refer to the following common problems and solutions:

9. Specifications

• Model Name: AF550GY
• Brand: Kitchen Elite
• Capacity: 5.5 Quarts
• Material: Metal
• Color: Gray
• Product Dimensions (D x W x H): 11.02" x 12.01" x 14.06"
• Wattage: 1500 watts
• UPC: 810138471074

Image: A diagram of the Kitchen Elite Air Fryer with its key dimensions clearly marked for depth, width, and height.

10. Warranty and Support

For warranty information or customer support, please contact Kitchen Elite directly. Refer to your product packaging or the official Kitchen Elite website for the most up-to-date contact details and warranty terms.
