BISSELL SpotClean 4103N Mini Upholstery Cleaner

1. Introduction

Thank you for purchasing the BISSELL SpotClean 4103N Mini Upholstery Cleaner. This compact and portable device is designed for effective spot and stain removal from carpets, upholstery, and car interiors. Its lightweight design and powerful suction make it ideal for quick clean-ups.

Please read this manual thoroughly before operating your SpotClean Mini to ensure safe and efficient use. Keep these instructions for future reference.

2. Important Safety Instructions

When using an electrical appliance, basic precautions should be observed, including the following:

• Always connect to a properly grounded outlet.
• Unplug from outlet when not in use and before cleaning or servicing.
• Do not leave appliance when plugged in.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not immerse in water or liquid.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Do not use cleaning solution that is not specifically designed for this appliance.

3. Package Contents

Your BISSELL SpotClean 4103N package includes the following items:

• BISSELL SpotClean Mini Upholstery Cleaner (Model 4103N)
• 10cm Stain Brush
• HydroRinse Self-Cleaning Tool
• Bristle Block
• Multi-Surface Nozzle
• 8 oz Sample of BISSELL Spot & Stain Oxy Cleaning Solution
• User Manual

Please ensure all components are present and undamaged. If any items are missing or damaged, contact BISSELL customer service.

4. Product Overview

Familiarize yourself with the components of your SpotClean Mini.

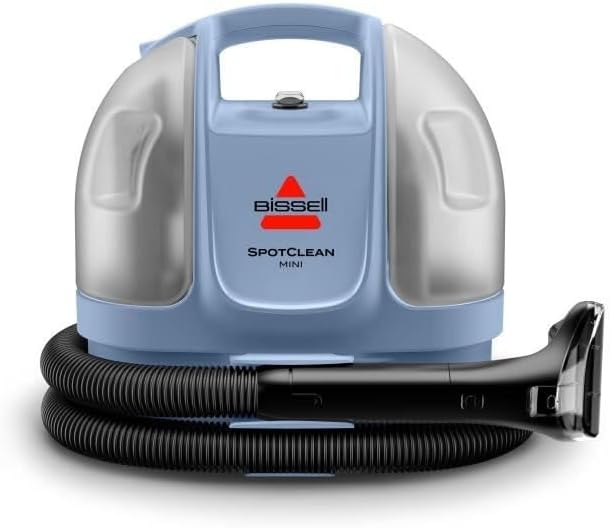

Figure 1: Front view of the BISSELL SpotClean 4103N Mini Upholstery Cleaner, showing the clean water tank, dirty water tank, and hose with cleaning tool.

• Clean Water Tank: Holds water and cleaning solution. Capacity: 0.5 Liters.
• Dirty Water Tank: Collects extracted dirty water. Capacity: 0.43 Liters.
• Flexible Hose: Connects the unit to the cleaning tool. Length: 4.5 feet (approx. 1.37 meters).
• Cleaning Tool: For spraying solution and scrubbing/suctioning stains.
• Power Cord: Provides continuous power. Length: 3.7 meters.
• Integrated Handle: For easy portability.

5. Setup

5.1 Filling the Clean Water Tank

1. Remove the clean water tank from the back of the unit by lifting it straight up.
2. Unscrew the cap at the bottom of the tank.
3. Fill the tank with warm tap water (max 60°C/140°F) to the indicated water fill line.
4. Add the BISSELL Spot & Stain Oxy Cleaning Solution to the indicated formula fill line. Do not overfill.
5. Replace the cap and tighten securely.
6. Place the clean water tank back onto the unit, ensuring it is seated firmly.

5.2 Attaching the Cleaning Tool

1. Select the desired cleaning tool (e.g., 10cm Stain Brush or Multi-Surface Nozzle).
2. Attach the tool firmly to the end of the flexible hose until it clicks into place.

6. Operating Instructions

6.1 Preparing the Area

• Vacuum the area to be cleaned to remove loose dirt and debris.
• Test a small, inconspicuous area for colorfastness before cleaning. If color is affected, do not use.

6.2 Spot and Stain Cleaning

1. Plug the power cord into a grounded electrical outlet.
2. Turn on the unit using the power switch.
3. Hold the cleaning tool approximately 1 inch above the stained surface.
4. Press the spray trigger to apply cleaning solution to the stain.
5. Gently scrub the stain with the brush on the cleaning tool.
6. Release the spray trigger and apply downward pressure on the tool while pulling it slowly over the stained area to suction up the dirty solution.
7. Repeat steps 4-6 until the stain is removed and no more dirty solution is being extracted.
8. For best results, finish by suctioning excess moisture from the cleaned area.

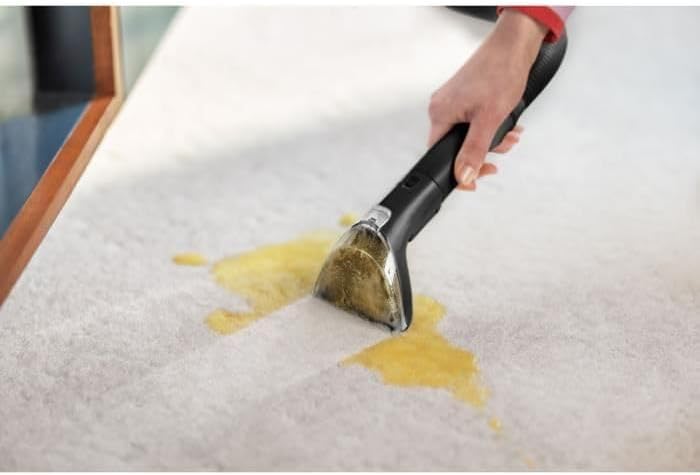

Figure 2: Demonstrating the cleaning process on a spill.

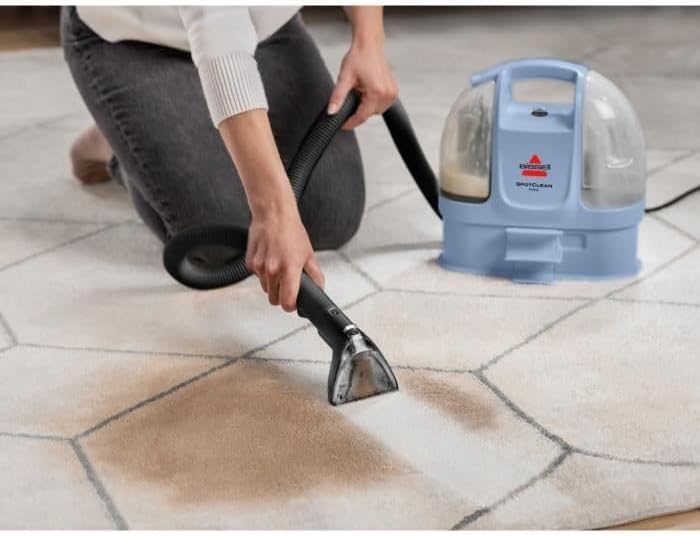

Figure 3: Cleaning a larger carpet stain with the SpotClean Mini.

6.3 Cleaning Different Surfaces

• Upholstery: Use the multi-surface nozzle for delicate fabrics. Do not over-wet upholstery.
• Carpets: The 10cm stain brush is effective for general carpet stains.
• Car Interiors: The compact size and long power cord make it suitable for cleaning car seats and carpets.
• Pet Stains: The powerful suction is effective for removing pet-related stains like muddy paw prints, urine, and vomit.

7. Maintenance

7.1 Emptying and Cleaning the Dirty Water Tank

Empty the dirty water tank after each use or when the dirty water reaches the 'FULL' line.

1. Turn off the unit and unplug it from the power outlet.
2. Remove the dirty water tank by lifting it straight up from the front of the unit.
3. Carefully carry the tank to a sink or drain.
4. Pour out the dirty water.
5. Rinse the tank thoroughly with clean water.
6. Allow the tank to air dry before replacing it on the unit.

7.2 Cleaning the Flexible Hose with HydroRinse Tool

Use the HydroRinse self-cleaning tool to flush out the hose after each use to prevent odors and blockages.

1. Ensure the clean water tank has some clean water (no solution needed for hose rinse).
2. Attach the HydroRinse tool to the end of the flexible hose.
3. Place the HydroRinse tool into the designated holder on the unit.
4. Turn on the unit.
5. Press the spray trigger on the HydroRinse tool for 10-15 seconds to flush water through the hose.
6. Release the trigger and allow the suction to clear any remaining water from the hose.
7. Turn off the unit and detach the HydroRinse tool.

7.3 Cleaning Tools and Storage

• Rinse all cleaning tools under running water after each use.
• Allow tools to air dry completely before storing.
• Store the SpotClean Mini in a dry, protected area. The compact design allows for easy storage in cupboards or small spaces.

8. Troubleshooting

Review this section for common issues you may encounter. If the problem persists, contact BISSELL customer service.

9. Specifications

10. Warranty and Support

Your BISSELL SpotClean 4103N Mini Upholstery Cleaner comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product is free from defects in material and workmanship under normal use.

For warranty claims, technical support, or to purchase replacement parts and cleaning solutions, please contact BISSELL customer service. You can find contact information on the official BISSELL website or through your local retailer.

Please retain your proof of purchase for warranty purposes.
