DIYSET 56-inch Fluted Makeup Vanity Desk - User Manual

1. Introduction and Overview

The DIYSET 56-inch Fluted Makeup Vanity Desk is designed to enhance your beauty space with its comprehensive features. This vanity includes a large 36-inch mirror with Hollywood bulbs, smart RGB lighting, ample storage, and a built-in charging station. Its fluted panels and sleek metal handles contribute to a modern aesthetic, while the tempered glass top provides both visibility and durability. This manual provides essential information for the assembly, operation, and maintenance of your vanity desk.

Image 1.1: The DIYSET 56-inch Fluted Makeup Vanity Desk, showcasing its mirror, lighting, and overall design.

2. Setup and Assembly

Assembly of the DIYSET vanity desk is designed to be straightforward. The package includes easy-to-follow instructions and all parts are labeled to assist with the process. It is recommended to review all instructions before beginning assembly.

• Unpack all components and verify against the parts list provided in the assembly guide.
• Ensure you have adequate space for assembly.
• Follow the step-by-step instructions carefully to ensure proper construction and stability.
• Due to the item's weight (approximately 129 pounds), it is advisable to have assistance during certain assembly stages.

Image 2.1: Dimensional diagram of the vanity desk, illustrating key measurements for planning placement and assembly.

3. Operating Instructions

3.1. Smart RGB Lighting

The vanity features APP-controlled RGB lights integrated into the glass countertop and the two side acrylic cabinets. These lights offer over 6,000 color options and can be controlled via a dedicated mobile application. Functions include:

• Custom Style: Select specific colors to match your preference.
• Breathing Mode: Lights gently fade in and out.
• Music Sync Mode: Lights pulse and change in rhythm with music played through your device.
• Mic Mode: Lights respond to ambient sounds.
• Smart Timer: Schedule when the lights turn on or off.
• Brightness Adjustable: Adjust the intensity of the RGB lighting.

Image 3.1: The vanity desk demonstrating its RGB lighting capabilities, including music sync mode, controlled via a smartphone application.

3.2. Dimmable Hollywood Bulbs

The 36-inch mirror is equipped with 11 dimmable Hollywood bulbs, providing bright and even illumination for makeup application. These bulbs offer three distinct color tones:

• Cool White (6000K): Ideal for precise makeup application.
• Natural Daylight (4000K): Provides a balanced, true-to-color light.
• Warm White (3000K): Suitable for evening or softer lighting.

Brightness can be adjusted to five levels (20%, 40%, 60%, 80%, 100%) using the control button located on the mirror frame. Unlike LED strips, these Hollywood bulbs are individually replaceable, ensuring long-term functionality.

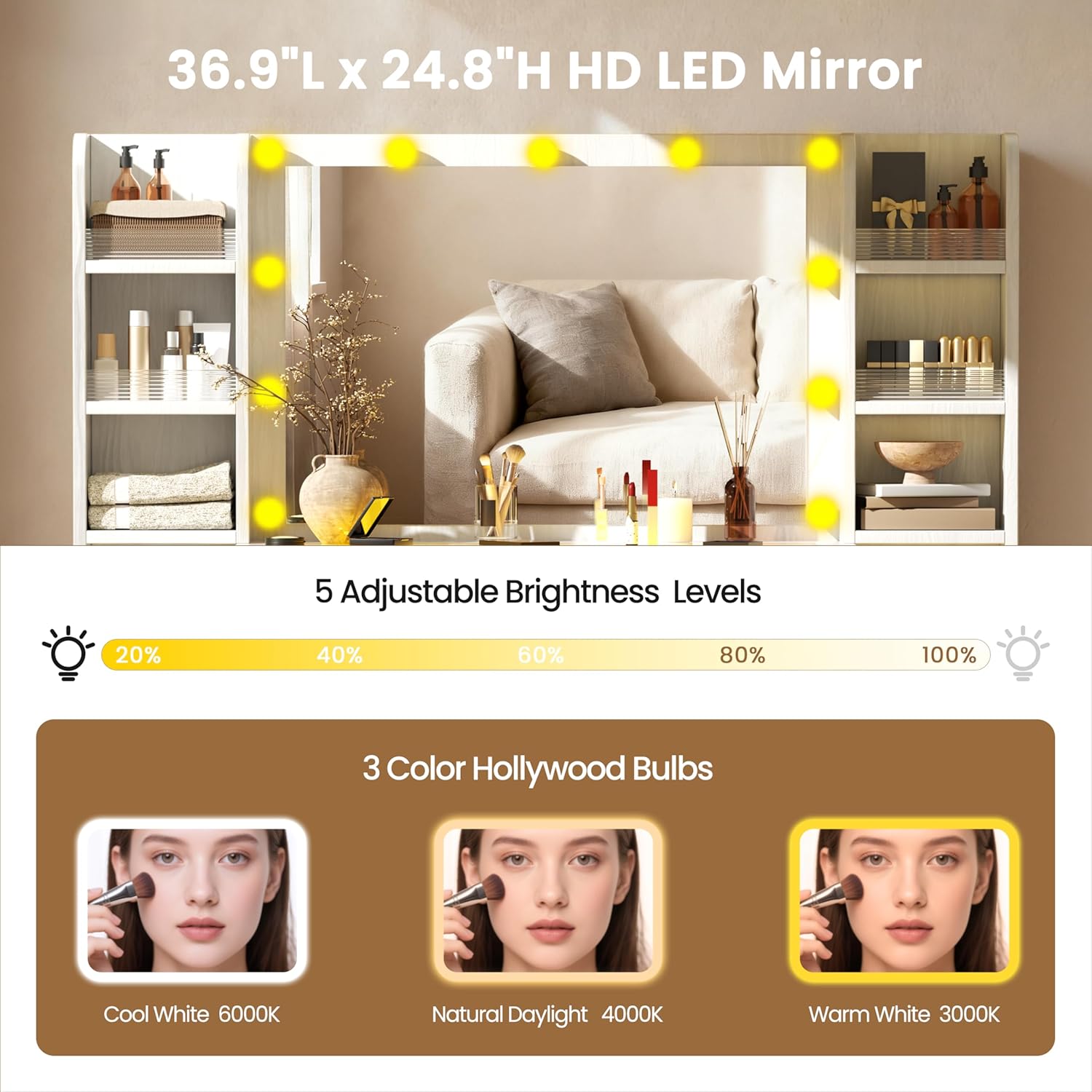

Image 3.2: Close-up of the 36-inch mirror, highlighting the Hollywood bulbs and their adjustable color temperatures (Cool White, Natural Daylight, Warm White).

3.3. Built-in Charging Station

A convenient charging station is integrated into the vanity, featuring a power outlet with two USB ports (5V-2.1A) and two AC outlets (125V/12A). This allows for easy charging of electronic devices or powering small appliances directly from the vanity.

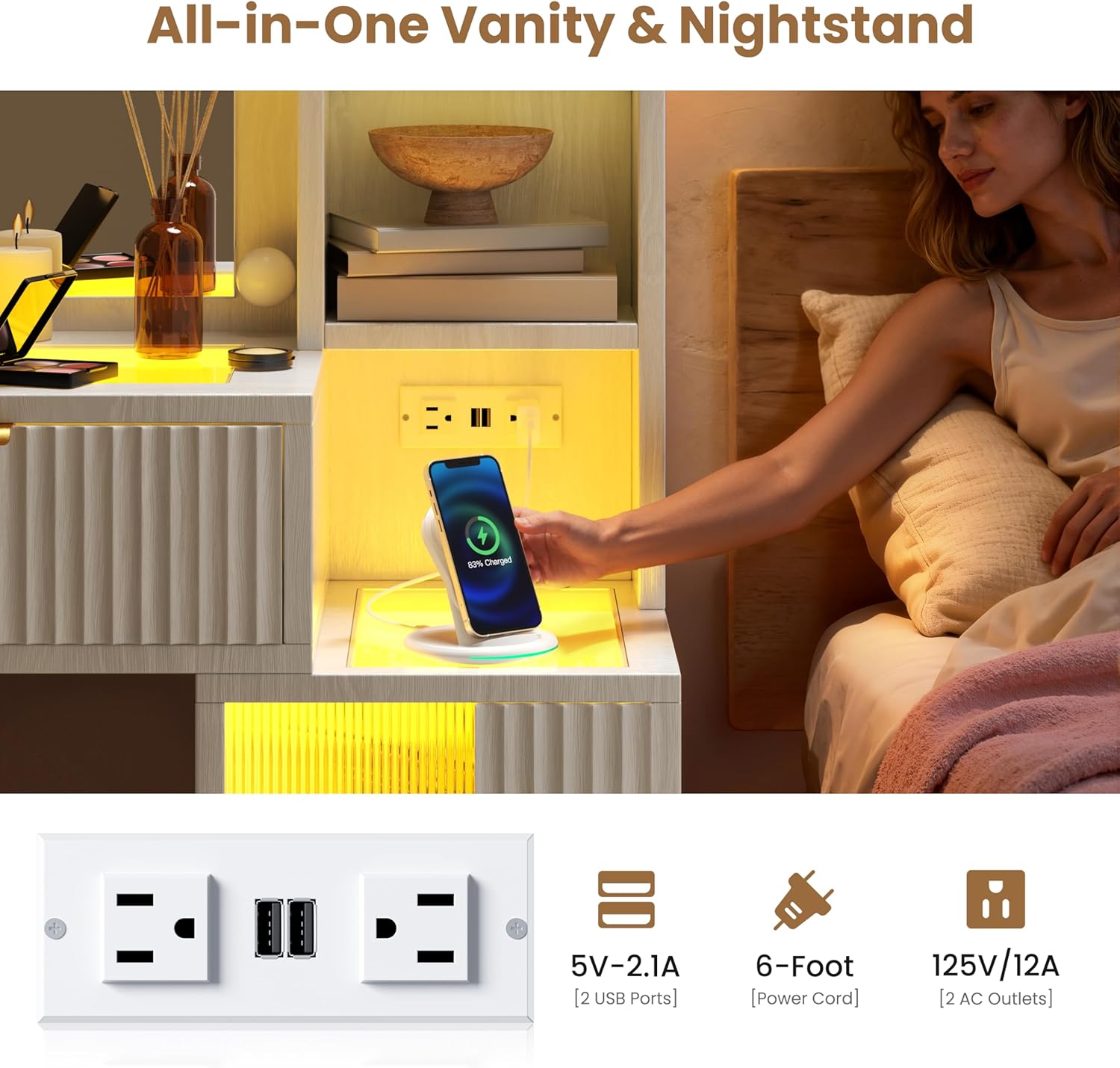

Image 3.3: Detail of the built-in charging station, showing the USB and AC outlets for device connectivity.

4. Storage Features

The vanity desk offers extensive storage solutions to keep your items organized:

• Two See-Through Drawers: Located beneath the tempered glass top, these drawers allow for visible storage of makeup, brushes, and jewelry. They feature smooth metal slides for effortless opening and closing.
• Two 3-Tier Acrylic Cabinets: Positioned on either side of the seating area, these cabinets include adjustable glass shelves, suitable for storing hair tools, handbags, or toiletries. The acrylic doors provide a clear view of contents.
• Eight Open Shelves: Integrated into the mirror frame, these shelves offer quick access to daily skincare products and other frequently used items.
• Tempered Glass Top: The scratch-resistant glass top supports up to 400 lbs and provides a clear view of items stored in the drawers below, contributing to a clean and organized appearance.

Image 4.1: An overhead view illustrating the various storage compartments, including drawers, open shelves, and acrylic cabinets, designed for optimal organization.

5. Maintenance

To ensure the longevity and appearance of your DIYSET vanity desk, follow these maintenance guidelines:

• Cleaning Surfaces: Use a soft, damp cloth for general cleaning of wood and acrylic surfaces. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Glass Care: For the tempered glass top and shelves, use a glass cleaner and a microfiber cloth to prevent streaks.
• Dusting: Regularly dust all surfaces to prevent buildup.
• Spills: Wipe up spills immediately to prevent staining or damage.

6. Troubleshooting

If you encounter any issues with your vanity desk, consider the following common solutions:

• Lights Not Working: Check all power connections. Ensure the vanity is properly plugged into a functional outlet. For RGB lights, verify the mobile application connection. For Hollywood bulbs, check individual bulb connections and the control button.
• Power Outlet Issues: Ensure the main power cord for the charging station is securely plugged in. Test the outlets with another device to confirm functionality.
• Drawers Sticking: Check for any obstructions in the drawer slides. Ensure the slides are clean and free of debris.
• Stability Issues: Verify that all assembly hardware is tightened securely. Avoid placing excessive weight on any single part of the vanity.

If problems persist, please contact customer support for further assistance.

7. Specifications

8. Safety Information

Please adhere to the following safety guidelines to prevent injury or damage:

• Always unplug the vanity before assembly, disassembly, or any electrical maintenance.
• Be cautious of sharp edges and the heavy weight of components during assembly and usage.
• Do not place heavy objects on the glass top beyond the specified load capacity to avoid damage.
• Keep the vanity away from direct heat sources and excessive moisture.
• Always turn off the lights and unplug devices from the charging station before leaving the vanity unattended for extended periods.

9. Warranty and Support

The DIYSET vanity desk is backed by responsive customer support. For any questions regarding assembly, operation, or troubleshooting, please refer to the contact information provided with your purchase or visit the official DIYSET website. Specific warranty details may vary and are typically included with the product documentation.
