1. Product Overview
The CHAOKE Stepper 8712P is a compact and efficient home fitness device designed for full-body workouts. It combines pedal movement with resistance band exercises to engage your core, hips, legs, and arms. This stepper features a silent operation, adjustable intensity levels, and a built-in monitor to track your progress, making it suitable for various fitness levels and home environments.
Image: A woman demonstrates a full-body workout using the CHAOKE Stepper with attached resistance bands.
2. Setup
The CHAOKE Stepper 8712P comes fully assembled, requiring no complex setup. Simply remove it from the packaging, and it is ready for immediate use. Ensure the stepper is placed on a flat, stable surface before beginning your workout.
Image: The CHAOKE Stepper, resistance bands, and instruction manual are shown, highlighting the product's ready-to-use, fully assembled state.
3. Operating Instructions
3.1. Powering On and Off
The built-in monitor automatically activates when you begin stepping. To conserve battery, the monitor will automatically turn off after a period of inactivity.
3.2. Adjusting Intensity
The stepper offers 1 to 11 levels of intensity adjustment. Rotate the dial located on the front of the stepper to increase or decrease the resistance. Start with a lower intensity for warm-up and gradually increase as your fitness improves. The 'P' (Park) position locks the pedals for safe mounting and dismounting, preventing accidental movement.

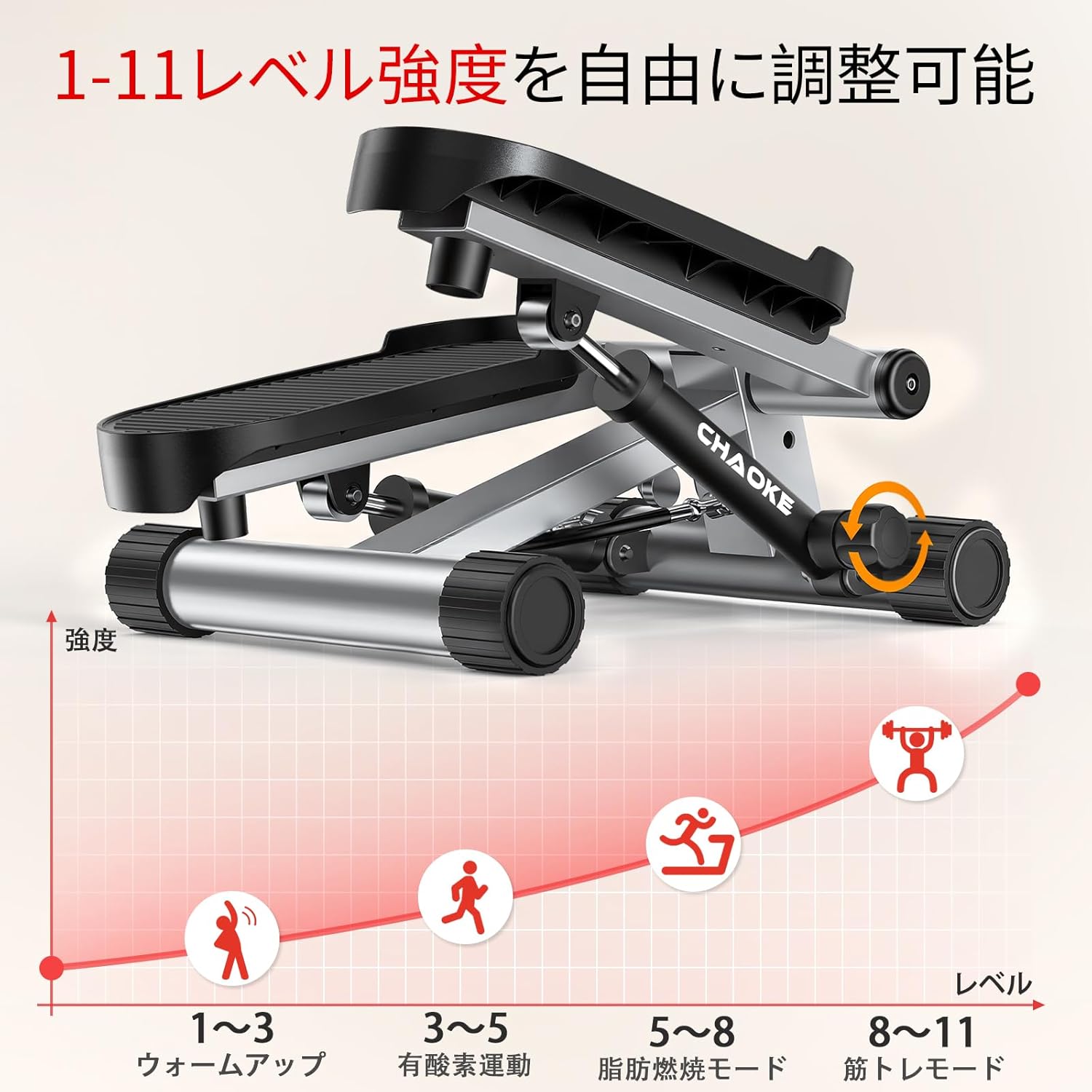

Image: The stepper's intensity dial is visible, along with a graphic illustrating the 1-11 resistance levels for various exercise modes.
3.3. Using the Monitor
The integrated monitor displays key workout data including exercise time, calories burned, and step count. This allows you to track your progress in real-time and manage your fitness goals effectively. Press the button on the monitor to cycle through different display modes or reset the data.
Image: A detailed view of the stepper's monitor, showing tracked metrics like time, calories, and steps.
3.4. Resistance Band Usage
Attach the included resistance bands to the designated points on the stepper. These bands allow for upper body and core exercises, providing a comprehensive full-body workout. Adjust your grip and body position to target different muscle groups.
3.5. Workout Recommendations
- Warm-up (Levels 1-3): Begin with 5-10 minutes of light stepping to prepare your muscles.
- Aerobic Exercise (Levels 3-5): Maintain a steady pace for cardiovascular benefits.
- Fat Burning Mode (Levels 5-8): Increase intensity for sustained calorie expenditure.
- Strength Training (Levels 8-11): Focus on higher resistance for muscle building.
Image: A comparison chart illustrating the calorie burn equivalence of 15 minutes on the stepper versus other common exercises.
Image: Various scenarios demonstrating the stepper's versatility for use during daily activities like cooking, working, or watching TV.
4. Maintenance
4.1. Cleaning
Wipe down the stepper with a damp cloth after each use to remove sweat and dust. Avoid using abrasive cleaners or solvents that could damage the finish.
4.2. Lubrication
The stepper utilizes an air+oil drive system designed for smooth operation. Regular lubrication is generally not required under normal use. If you notice any squeaking or stiffness, consult the troubleshooting section or contact customer support.
4.3. Storage
The compact design of the CHAOKE Stepper allows for easy storage. Store it in a dry place away from direct sunlight and extreme temperatures. Its dimensions (approximately 39cm x 39cm x 25cm) make it suitable for storage in small spaces.

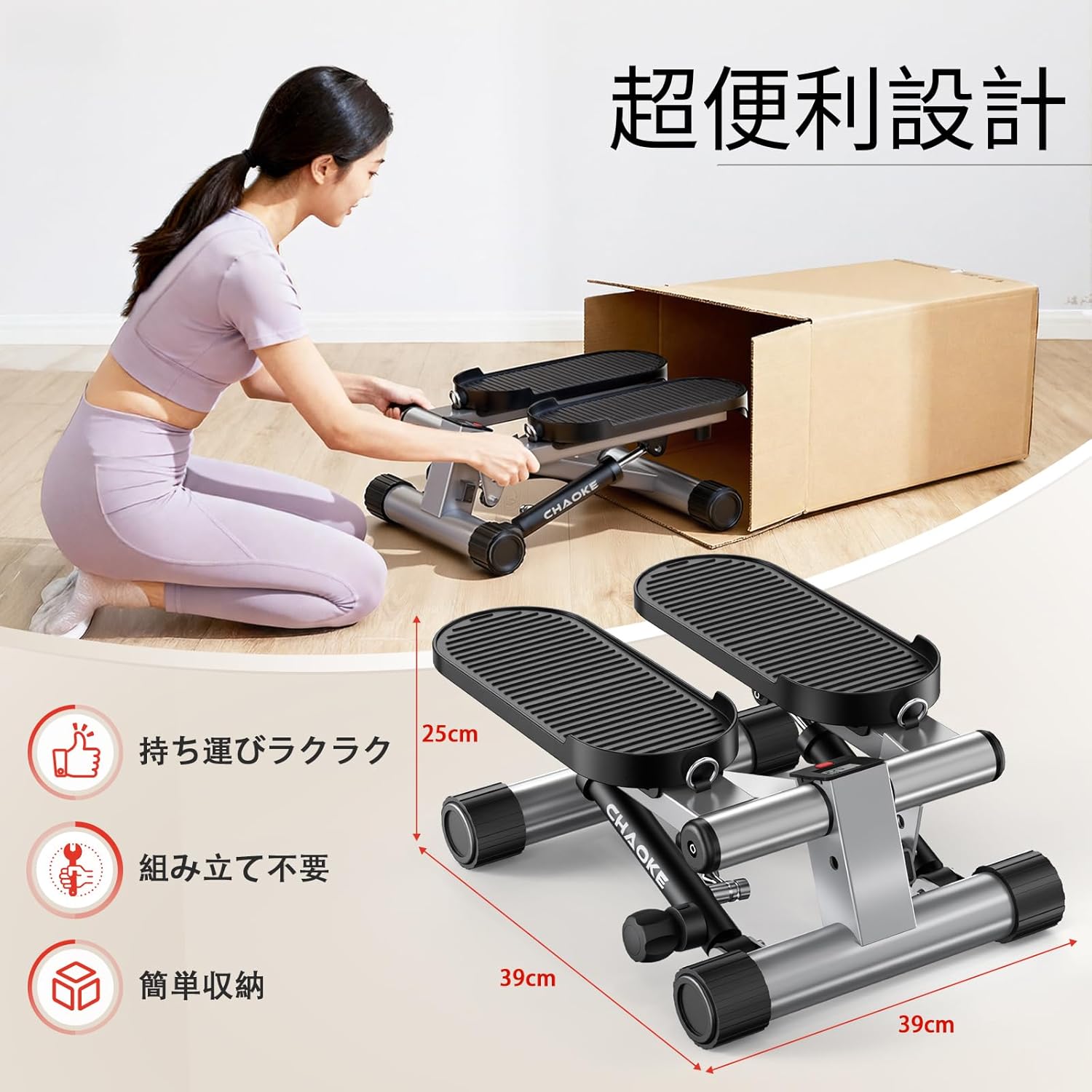

Image: A woman demonstrates the compact storage of the stepper, highlighting its small footprint.
5. Troubleshooting
- No display on monitor: Check if the battery is correctly installed or needs replacement. The monitor uses 1 alkaline button battery.
- Squeaking noise during operation: Ensure all bolts are tightened. If the noise persists, apply a small amount of silicone-based lubricant to the pivot points. Avoid oil-based lubricants.
- Pedals feel stiff or uneven: Verify that the stepper is on a level surface. Check for any obstructions beneath the pedals. If the issue continues, contact customer support.
- Stepper moves during use: Ensure the stepper is placed on a non-slip mat. The non-slip foot covers should provide adequate grip on most surfaces.
6. Specifications
| Brand | CHAOKE |
| Model Number | 8712P |
| Material | Alloy Steel |
| Max Load Weight | 150 kg |
| Included Components | Stepper, Exercise Band, Instruction Manual |
| Battery Type | 1 Alkaline Button Battery (included) |
| Dimensions (approx.) | 39cm x 39cm x 25cm |

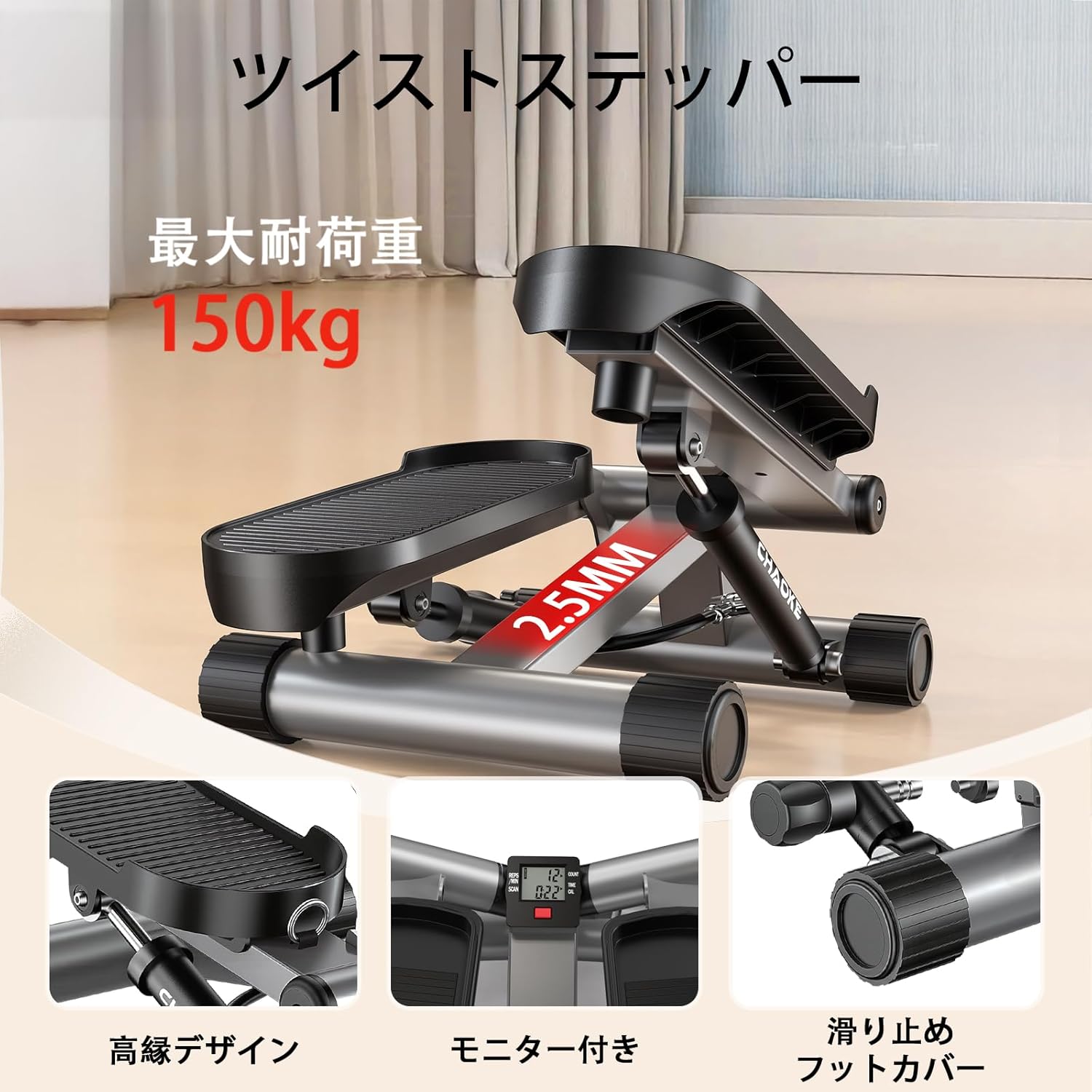

Image: The stepper is shown with an emphasis on its robust construction and 150kg maximum load capacity.
7. Warranty
The CHAOKE Stepper 8712P comes with a 5-year product warranty, covering free parts replacement during this period. This warranty reflects our confidence in the product's quality and durability.
8. Support
For any questions or issues regarding your CHAOKE Stepper, please contact our customer support team. We offer video support from specialized engineers to assist you promptly.
8.1. Contact Information
- Email: To contact us via email, navigate to the product page on Amazon.co.jp. Below the "Add to Cart" button, click on the store name "CHAOKE [Official Shop]". On the top right of the store page, click "Ask a question" to send us an email.
- Reception Hours: 10:00 - 19:00 JST (excluding Saturdays, Sundays, and manufacturer holidays). We aim to respond to inquiries within 24 hours on weekdays, and within 48-72 hours on weekends.
