FUNYET 15.6-inch Laptop Computer User Manual

1. Introduction

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your FUNYET 15.6-inch Laptop Computer, Model NY-12. Please read this manual thoroughly before using your device to ensure proper function and longevity.

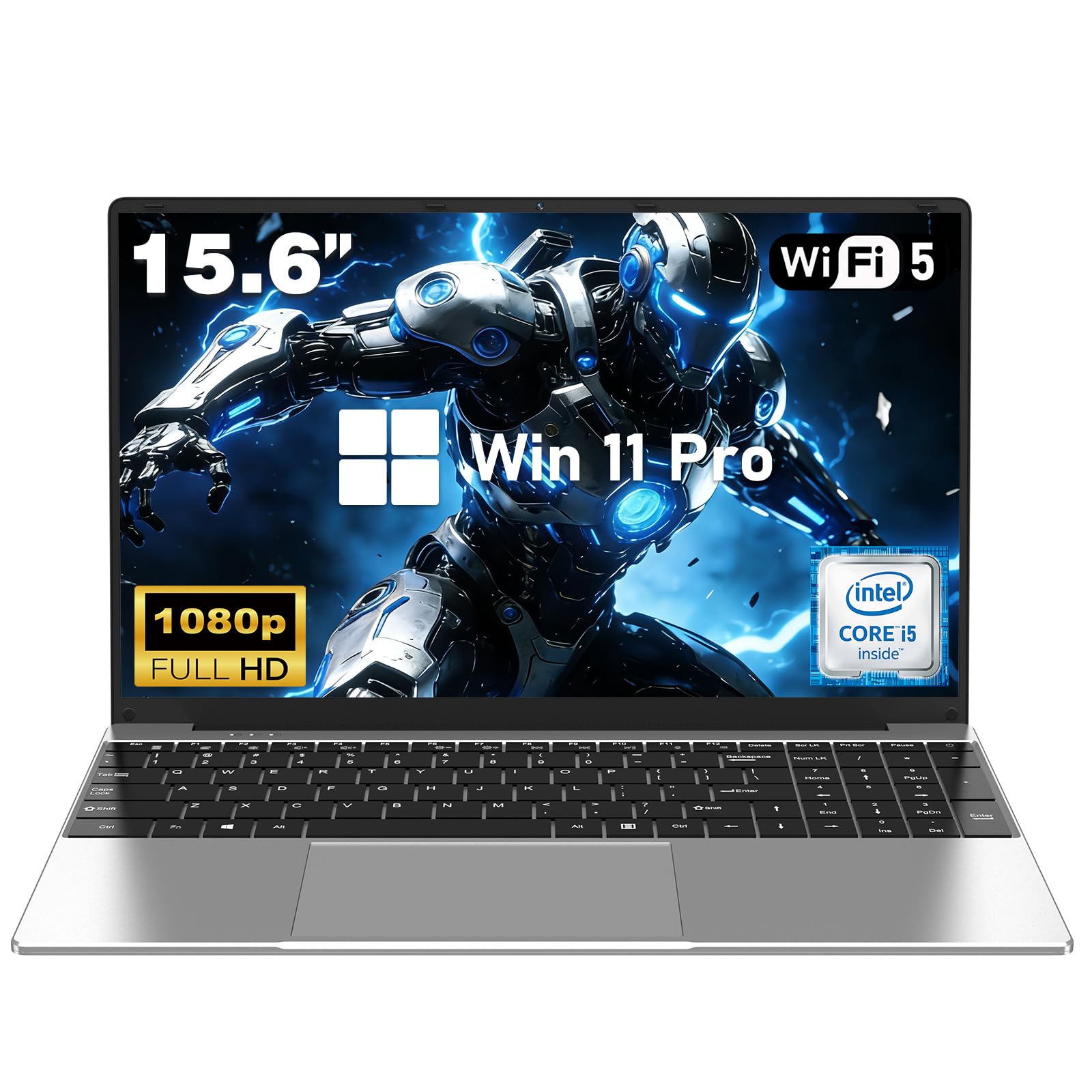

Figure 1.1: The FUNYET 15.6-inch Laptop Computer.

2. Setup

2.1 Unpacking the Laptop

Carefully remove all components from the packaging. Ensure the following items are present:

• FUNYET Laptop Computer
• Power Adapter
• User Manual (this document)

2.2 Initial Power On and Charging

Connect the power adapter to the laptop's DC 19V/3.42A port and then to a power outlet. The laptop may have a partial charge, but it is recommended to fully charge it before first use. Press the power button to turn on the laptop. Follow the on-screen instructions for the initial Windows 11 Pro setup.

Figure 2.1: Laptop displaying the Windows 11 Pro interface during initial setup.

2.3 Connecting Peripherals

Your laptop is equipped with various ports for connecting external devices:

• USB 3.0 Ports: Two ports are available for connecting USB devices such as mice, keyboards, or external storage drives.
• Mini HDMI: Connect an external display or projector using a Mini HDMI cable.
• 3.5mm Headphone Jack: For audio output to headphones or external speakers.
• TF Card Slot: Insert a TF (MicroSD) card for additional storage.

Figure 2.2: Overview of the laptop's multi-functional interface ports.

2.4 Network Connection

The laptop supports wireless connectivity:

• Wi-Fi 5 (802.11ac): To connect to a wireless network, go to Windows Settings > Network & Internet > Wi-Fi, turn Wi-Fi on, and select your desired network.
• Bluetooth 4.2: To pair Bluetooth devices, go to Windows Settings > Bluetooth & devices, turn Bluetooth on, and select 'Add device'.

3. Operating Instructions

3.1 Basic Operation

Your laptop runs on Windows 11 Pro, providing a familiar and intuitive user experience. The full-size backlit keyboard enhances usability in various lighting conditions, and the integrated touchpad offers precise navigation.

Figure 3.1: The full-size backlit keyboard with numeric keypad for comfortable typing.

3.2 Display Features

The laptop features a 15.6-inch Full HD (1920x1080) IPS display. This screen technology provides wide viewing angles and accurate color reproduction. The display is designed to restore true color essence and protect eyesight.

Figure 3.2: The 15.6-inch Full HD IPS display for clear visuals.

3.3 Processor and Performance

Powered by an Intel Core i5-7Y54 processor with a maximum turbo frequency of 3.2GHz, this laptop is designed for smooth, lag-free performance in everyday tasks. Its dual-core, quad-thread architecture and 7W low-power design ensure efficient operation and quiet cooling.

Figure 3.3: Details of the Intel Core i5-7Y54 processor.

3.4 Memory and Storage

The laptop is equipped with 16GB of RAM and a 1TB high-speed SSD. This configuration allows for efficient multitasking and provides ample storage for your files, applications, and media.

3.5 Battery Management

The integrated 5000mAh (38.5Wh) battery provides approximately 5 hours of usage on a single charge, with up to 48 hours of low standby power consumption. For optimal battery life, avoid fully discharging the battery frequently and store the laptop in a cool, dry place when not in use for extended periods.

Figure 3.4: Illustration of the laptop's 5000mAh battery capacity.

3.6 180-degree Lay-Flat Hinge

The laptop features a 180-degree lay-flat hinge, allowing the screen to open completely flat. This design facilitates versatile usage scenarios, such as sharing content with others or collaborating in meetings.

Figure 3.5: The laptop's 180-degree lay-flat hinge.

4. Maintenance

4.1 Cleaning the Laptop

To clean the laptop, use a soft, lint-free cloth. For the screen, use a specialized screen cleaner. Avoid using harsh chemicals or abrasive materials. Ensure the laptop is powered off and unplugged before cleaning.

4.2 Software Updates

Regularly check for and install Windows updates to ensure your system has the latest security patches and performance improvements. Go to Windows Settings > Windows Update to manage updates.

4.3 Storage Management

Periodically review your stored files and uninstall unused applications to free up space on your 1TB SSD. This helps maintain optimal system performance.

5. Troubleshooting

If you encounter issues with your laptop, refer to the following common solutions:

• No Power: Ensure the power adapter is securely connected to both the laptop and a working power outlet. Check if the power outlet is functional.
• Display Issues: If the screen is blank, try connecting an external monitor via Mini HDMI to check if the issue is with the laptop's display or the graphics output.
• Keyboard/Touchpad Not Responding: Restart the laptop. If the issue persists, ensure no external devices are interfering. For the touchpad, check Windows settings for any disabled features.
• Slow Performance: Close unnecessary applications, check for malware, and ensure sufficient free storage space.
• Connectivity Problems (Wi-Fi/Bluetooth): Ensure Wi-Fi and Bluetooth are enabled in Windows settings. Try restarting your router or re-pairing Bluetooth devices.

For further assistance, please contact FUNYET customer support.

6. Specifications

7. Warranty and Support

7.1 Product Warranty

Your FUNYET laptop comes with a 2-year official warranty. This warranty covers manufacturing defects and ensures free repair services for eligible issues. Additionally, we offer 180 days of free exchange for product-related concerns.

7.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact FUNYET customer support. Our professional team is available 24/7 to provide prompt and efficient assistance.

• Phone: +1 800-986-9631 (Phone support available per business day, 4 AM - 10 PM PT)
• Email: funyetstore@outlook.com (Replies within 24 hours)

Figure 7.1: FUNYET customer support details.

8. Official Product Video Guide

Watch the official product video for a visual overview of the FUNYET Windows 11 Pro Laptop, highlighting its key features and design.
