1. Important Safety Information
Please read all instructions carefully before using your KitchenAid Pure Power Blender. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.
- Always unplug the blender from the outlet before cleaning or when not in use.
- Do not immerse the motor base in water or other liquids.
- Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but only when the blender is not running.
- Blades are sharp. Handle with care when cleaning the container.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- Do not use outdoors.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- When blending hot liquids, use caution as steam can escape through the vented lid and cause burns.
2. Product Components
Familiarize yourself with the parts of your KitchenAid Pure Power Blender:
- Blender Base: Houses the motor and control dial.
- 2-Liter BPA-Free Plastic Container: The main blending pitcher with measurement markings.
- Vented Lid: Features a removable ingredient cap and allows steam to escape when blending hot ingredients.
- Tamper: Used to push ingredients towards the blades for smoother blending, especially with thick mixtures.
- Asymmetrical Stainless Steel Blades: Permanently attached inside the container for efficient blending.
Image: The KitchenAid Pure Power Blender 5KSB2073EBM fully assembled, showing the motor base, 2-liter container, and lid.
3. Setup and Assembly
Before first use, wash the container, lid, and tamper in warm, soapy water. Rinse thoroughly and dry. The container, lid, and tamper are also dishwasher safe (top rack only).
- Place the Blender Base: Position the blender base on a clean, dry, and level surface. Ensure it is unplugged.
- Attach the Container: Place the 2-liter blending container onto the motor base. Ensure it is securely seated. The handle should align with the front of the base.
- Add Ingredients: Place your desired ingredients into the container. Do not exceed the maximum fill line.
- Secure the Lid: Place the vented lid firmly onto the container. Ensure the ingredient cap is in place.
- Plug In: Plug the blender into a grounded electrical outlet.
Image: Side view of the KitchenAid Pure Power Blender, illustrating the sleek design and how the container sits on the base.
4. Operating Instructions
The KitchenAid Pure Power Blender features a control dial with 10 speed settings and a pulse function for precise blending.
4.1. Control Dial Functions
- On/Off: Turns the blender on or off.
- Speed Settings (1-10): Rotate the dial to select your desired speed. Speed 1 is the lowest, and Speed 10 is the highest.
- Pulse: For short bursts of power, turn the dial to the 'Pulse' setting and release. This is ideal for chopping or breaking down larger pieces.
- Smoothie: A pre-programmed setting for creating smooth beverages.
- Ice Crush: A pre-programmed setting optimized for crushing ice.
- Clean: A pre-programmed setting for the self-cleaning cycle.

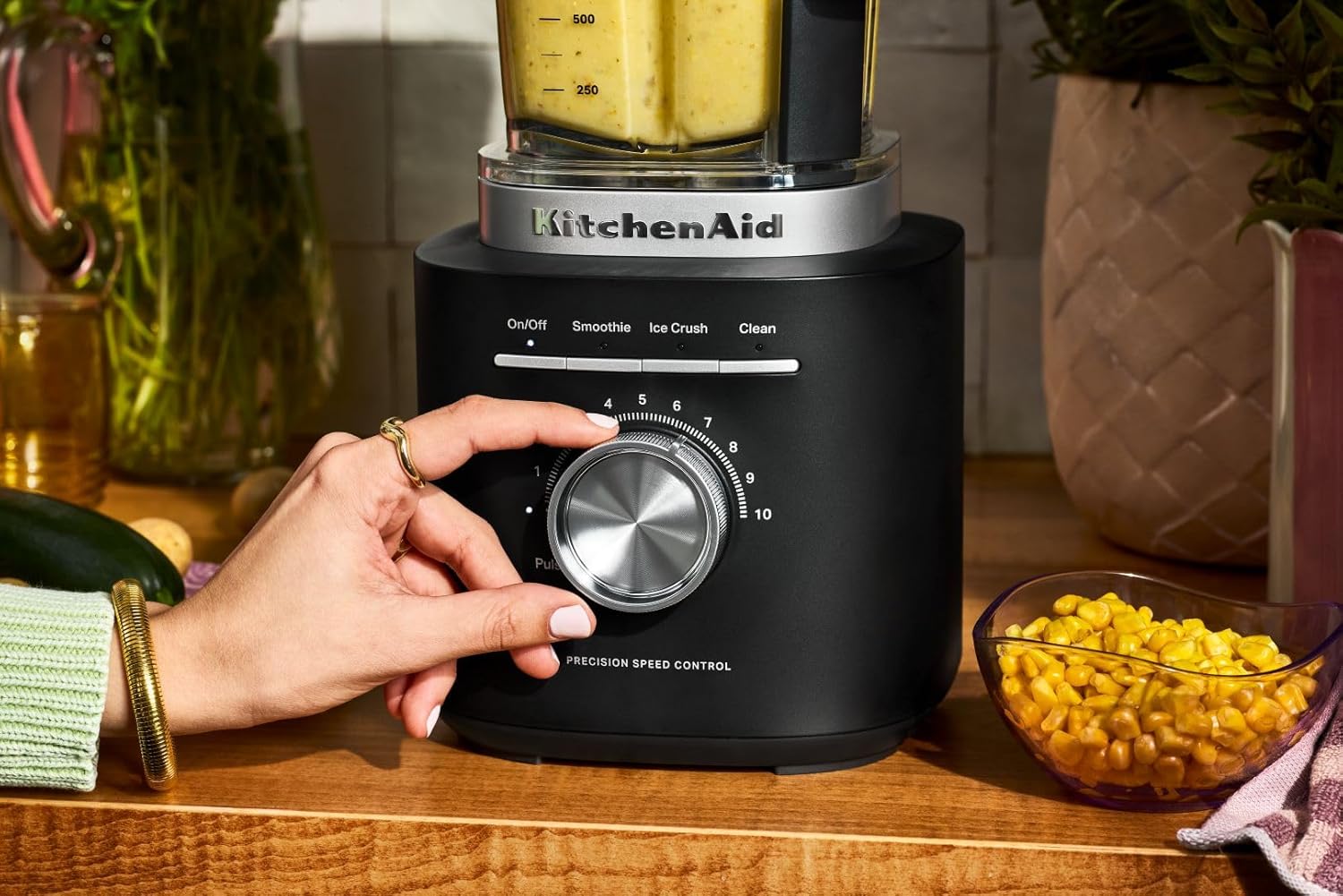

Image: A hand adjusting the precision speed control dial on the blender base, showing the various settings including On/Off, Smoothie, Ice Crush, Clean, and Pulse.
4.2. Blending Process
- Ensure the blender is properly assembled and plugged in.
- Add ingredients to the container. For best results, add liquids first, then soft ingredients, followed by hard ingredients and ice.
- Secure the lid with the ingredient cap.
- Turn the blender on using the On/Off switch.
- Select your desired speed or pre-programmed setting (Smoothie, Ice Crush).
- Blend until desired consistency is reached. Use the tamper if needed to push ingredients towards the blades, but only through the ingredient cap opening and never when the blender is running without the lid.
- When finished, turn the blender off and unplug it.
4.3. Blending Hot Ingredients
The vented lid allows for safe blending of hot liquids like soups and sauces. Always ensure the vented lid is securely in place to prevent splashes and allow steam to escape.
Image: The blender container with a vented lid, showing steam safely escaping during the blending of hot ingredients. This feature prevents pressure buildup.
4.4. Crushing Ice
The powerful asymmetrical blades are designed to effortlessly crush ice. Use the 'Ice Crush' pre-programmed setting for optimal results, transforming ice into a smooth, fine consistency in seconds.
Image: A top-down view into the blender container, showing finely crushed ice mixed with strawberries, ready for a frozen drink or dessert.
Image: A close-up view of the blender's asymmetrical blades actively crushing ice, demonstrating their efficiency in processing tough ingredients.
5. Maintenance and Cleaning
Proper cleaning ensures the longevity and hygiene of your blender.
5.1. Self-Cleaning Cycle
The blender features a convenient pre-set self-cleaning cycle:
- After use, rinse the container to remove large food particles.
- Fill the container halfway with warm water and add a drop of dish soap.
- Secure the lid.
- Place the container on the motor base and select the 'Clean' setting on the control dial.
- Allow the cycle to complete.
- Empty the container, rinse thoroughly with clean water, and dry.
5.2. Manual Cleaning
- Container, Lid, and Tamper: These parts are dishwasher safe (top rack recommended) or can be hand-washed with warm, soapy water. Be careful when handling the blades.
- Blender Base: Wipe the motor base with a damp cloth. Do not immerse the base in water or spray it with liquids.
6. Troubleshooting
If you encounter issues with your blender, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Blender does not turn on. | Not plugged in; power outlet issue; blender not assembled correctly. | Ensure the power cord is securely plugged into a working outlet. Check if the container is properly seated on the motor base. |
| Ingredients are not blending smoothly. | Too little liquid; ingredients too large; container overfilled. | Add more liquid. Cut ingredients into smaller pieces. Do not exceed the maximum fill line. Use the tamper to push ingredients towards the blades. |
| Blender stops during operation. | Overload protection activated; motor overheating. | Turn off and unplug the blender. Remove some ingredients. Let the motor cool down for 10-15 minutes before restarting. |
| Loud noise or unusual smell. | Foreign object in container; motor strain. | Immediately turn off and unplug the blender. Check for any foreign objects. If the smell persists or noise is excessive, discontinue use and contact customer support. |
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | KitchenAid |
| Model Number | 5KSB2073EBM |
| Color | Matte Black |
| Special Feature | Self-cleaning |
| Capacity | 2 Liters |
| Product Dimensions (DxWxH) | 30.2 x 26 x 41.7 cm |
| Style | Countertop Blender |
| Recommended Uses | Blending |
| Power Source | Corded Electric |
| Number of Speeds | 10 |
| Item Weight | 4 Kilograms |
| Dishwasher Safe Parts | Yes (Container, Lid, Tamper) |
8. Warranty and Support
KitchenAid products are manufactured to high-quality standards and are backed by a comprehensive warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty duration and coverage details.
For technical assistance, replacement parts, or general inquiries, please visit the official KitchenAid website or contact their customer service department. Contact information can typically be found in the warranty documentation or on the KitchenAid website.
Online Support: www.kitchenaid.com/service-and-support
