1. Important Safety Instructions
Please read all instructions carefully before using the ANCHEER Under Desk Elliptical Machine. Retain this manual for future reference.
- Ensure the machine is placed on a stable, flat surface during use.
- Keep children and pets away from the machine during operation.
- Consult a physician before starting any new exercise program.
- Stop exercising immediately if you feel faint, dizzy, or experience pain.
- Do not stand on the elliptical machine. It is designed for seated use only.
- Ensure the power cord is not pinched or damaged.
- Use only the provided power adapter.
- The maximum user weight recommendation for this device is 400 pounds.
2. Product Overview
The ANCHEER Under Desk Elliptical Machine (Model AMA005968) is a compact, 2-in-1 exercise device designed for seated use. It functions as both an elliptical and a mini exercise bike, offering various workout options for home or office environments.
Key Features:
- 21 Adjustable Workout Levels: Combines 12 speed settings and 9 resistance modes for varied intensity.
- Ultra-Quiet Design: Features hyper-quiet magnetic driving for silent operation (below 20 dB).
- Large LCD Display: Shows calories, distance, speed, and time.
- Pre-assembled: No assembly required; ready to use out of the box.
- Remote Control: Adjust speed and resistance without bending. Includes magnetic storage.
- Adjustable Safety Straps: Secure feet to pedals for stable use.
- Compact and Portable: Easy to store and move with a portable handle design.
Product Components:
- Under Desk Elliptical Machine
- Remote Control
- Instruction Manual (this document)
- Power Adapter

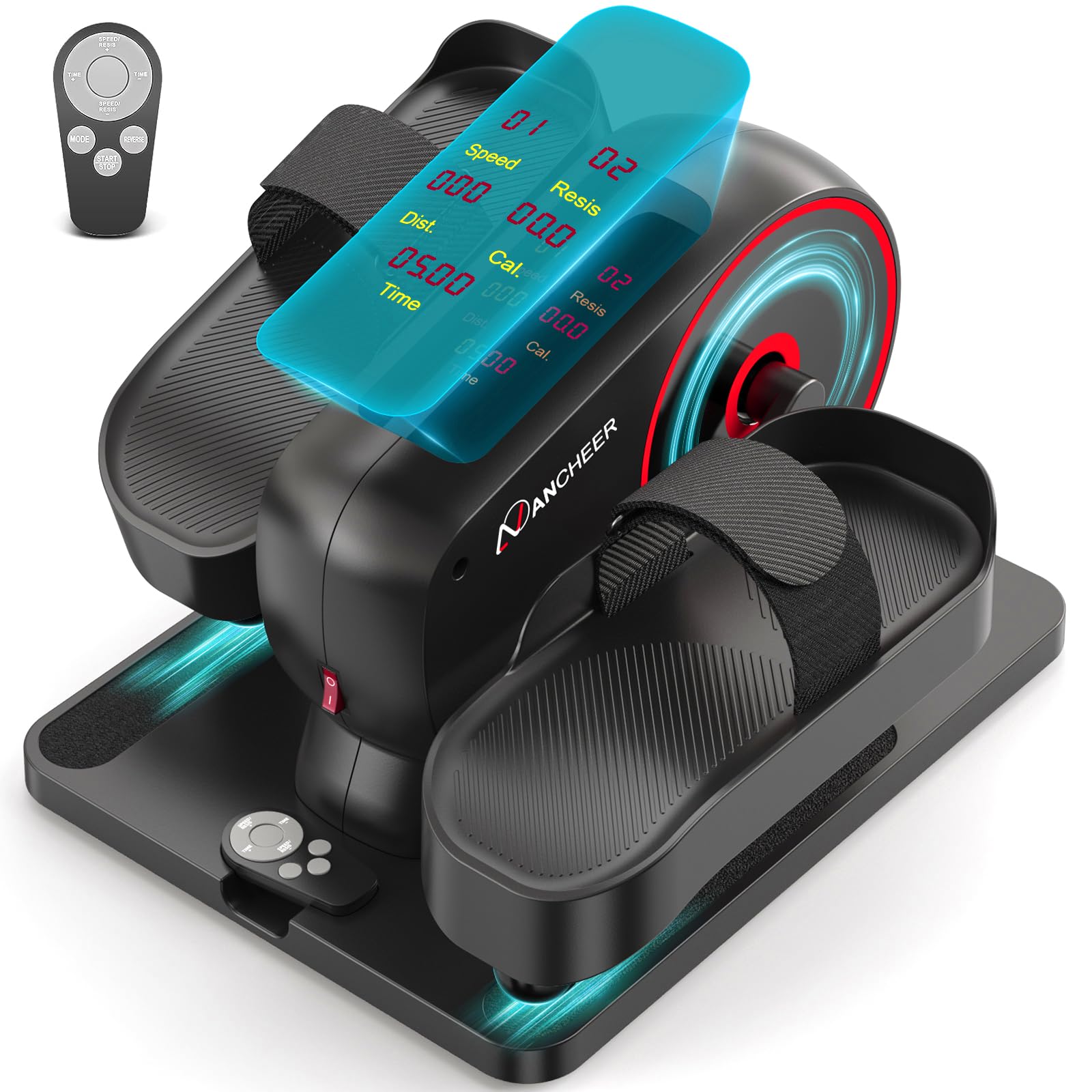

Figure 1: ANCHEER Under Desk Elliptical Machine (Pro-Red model).
Figure 2: Illustrates the low-impact benefits of the elliptical, suitable for seniors, protecting the spine, reducing knee injury, and stretching calves.
Figure 3: The large LCD display clearly shows exercise data such as speed, resistance, distance, calories, and time.
3. Setup
The ANCHEER Under Desk Elliptical Machine comes 100% pre-assembled, requiring no tools for setup. Simply unbox and prepare for use.
- Placement: Place the elliptical on a flat, stable surface where you intend to use it, such as under a desk or in front of a chair.
- Power Connection: Connect the power adapter to the elliptical's power port and then plug it into a standard electrical outlet.
- Foot Straps: Adjust the Velcro straps on the pedals to comfortably and securely hold your feet in place. Ensure your feet are centered on the pedals.
- Remote Control: Locate the remote control. It can be stored magnetically on the machine for easy access.
Figure 4: The elliptical is 100% pre-assembled and features a portable handle for easy transport and storage.
Figure 5: Adjustable safety straps ensure secure and stable foot placement, preventing foot injuries.
4. Operation
The ANCHEER Under Desk Elliptical offers both automatic and manual modes, controlled via the included remote.
4.1 Remote Control Functions
The remote control allows you to power on/off, switch modes, adjust speed, and change resistance levels.
- Power Button: Turns the machine on or off.
- MODE Button: Toggles between Auto Mode and Manual Mode.
- SPEED +/-: Adjusts the speed level in Auto Mode or Manual Mode.
- RESIS +/-: Adjusts the resistance level in Manual Mode.
- START/STOP Button: Starts or pauses the exercise.
- TIME +/-: Adjusts the workout duration.
4.2 Auto Mode
In Auto Mode, the machine automatically adjusts the speed. There are 12 speed levels to choose from.
- Press the MODE button until "Auto" or a similar indicator appears on the LCD.
- Use the SPEED +/- buttons to select your desired speed level (1-12).
- Press START to begin your workout.
4.3 Manual Mode
In Manual Mode, you have independent control over both speed and resistance. There are 9 resistance levels and 12 speed levels.
- Press the MODE button until "Manual" or a similar indicator appears on the LCD.
- Use the SPEED +/- buttons to set your desired speed.
- Use the RESIS +/- buttons to set your desired resistance level (1-9).
- Press START to begin your workout.
4.4 LCD Display
The integrated LCD screen provides real-time feedback on your workout progress:
- Speed: Current speed level.
- Resis (Resistance): Current resistance level.
- Dist (Distance): Estimated distance covered.
- Cal (Calories): Estimated calories burned.
- Time: Elapsed workout time.
Figure 6: Auto Mode offers 12 speed levels, while Manual Mode allows adjustment of 9 resistance levels and speed.
Video 1: Demonstrates the setup and operation of the ANCHEER Under Desk Elliptical Machine, including remote control functions and mode switching.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your elliptical machine.
- Cleaning: Wipe down the machine with a damp cloth after each use. Avoid abrasive cleaners or solvents.
- Storage: Store the machine in a cool, dry place away from direct sunlight and extreme temperatures. Its compact size and portable handle make storage easy.
- Inspection: Periodically check all parts for wear and tear. Ensure the foot straps are secure and undamaged.
- Power Cord: Inspect the power cord for any cuts, fraying, or damage. If damaged, discontinue use and contact customer support.
Figure 7: The high-precision, whisper-quiet design ensures smooth and durable operation, requiring minimal maintenance.
6. Troubleshooting
If you encounter any issues with your ANCHEER Under Desk Elliptical, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | Power cord not connected, outlet not working, or power switch off. | Ensure the power cord is securely plugged into the machine and a working outlet. Check the main power switch on the machine. |
| Remote control not responding. | Dead batteries, remote out of range, or signal obstruction. | Replace remote control batteries. Ensure no obstructions between the remote and the machine. Point the remote directly at the machine's sensor. |
| Resistance levels do not change. | Not in Manual Mode, or internal mechanism issue. | Ensure the machine is in Manual Mode (use the MODE button). If the issue persists, contact customer support. |
| Unusual noise during operation. | Loose parts or internal component issue. | Check for any loose screws or components. If the noise continues, discontinue use and contact customer support. |
| Feet slip off pedals. | Foot straps not secured or adjusted correctly. | Ensure the adjustable Velcro straps are tightened securely over your feet. |
7. Specifications
Detailed technical specifications for the ANCHEER Under Desk Elliptical Machine.
| Feature | Detail |
|---|---|
| Model Name | AMA005968 |
| Brand | ANCHEER |
| Color | Pro-Red |
| Product Dimensions (D x W x H) | 18"D x 17"W x 12"H |
| Material | Aluminum |
| Item Weight | 19 Pounds |
| Resistance Mechanism | Magnetic |
| Number of Resistance Levels | 9 (Manual Mode) |
| Number of Speed Levels | 12 (Auto Mode) |
| Maximum Stride Length | 15 Inches |
| Maximum Weight Recommendation | 400 Pounds |
| UPC | 840533802562 |
8. Warranty and Support
ANCHEER is committed to providing excellent customer service and product support.
- Warranty: Lifetime warranty on the product.
- Returns: 30-day complimentary returns.
- Parts Replacement: 12-month unconditional parts replacement.
- Customer Service: 24/7 online service. For product-related issues, reach out to our support team.
- Contact: Email: suppporthappy@gmail.com
Figure 8: ANCHEER's premium after-sales service includes comprehensive support and warranty details.
