plplaaoo Electric Scooter Seat for M365 User Manual

1. Introduction

This manual provides instructions for the proper installation, operation, and maintenance of your plplaaoo Electric Scooter Seat, designed specifically for the M365 scooter model. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

2. Product Features

• Simple Installation: Designed for easy attachment and detachment without drilling or modifications, preserving scooter integrity.
• Flexible Adjustment: Offers multiple height and angle settings for customized riding positions.
• Stable and Comfortable: Soft, comfortable seat material resistant to sweat and rain, maintaining elasticity.
• Lightweight Design: Constructed with lightweight materials to avoid hindering scooter performance.
• Stylish Appearance: Elegant design with classical color combinations, complementing the M365 electric scooter.

3. Safety Information

WARNING: Always prioritize safety when operating an electric scooter. Read and understand all safety warnings and instructions provided with your scooter before using this seat accessory.

• Ensure all fasteners are securely tightened before each ride.
• Do not exceed the weight limit of your scooter or the seat.
• Adjust the seat height and angle only when the scooter is stationary.
• Regularly inspect the seat and its mounting hardware for any signs of wear or damage.
• Wearing appropriate safety gear, including a helmet, is always recommended.

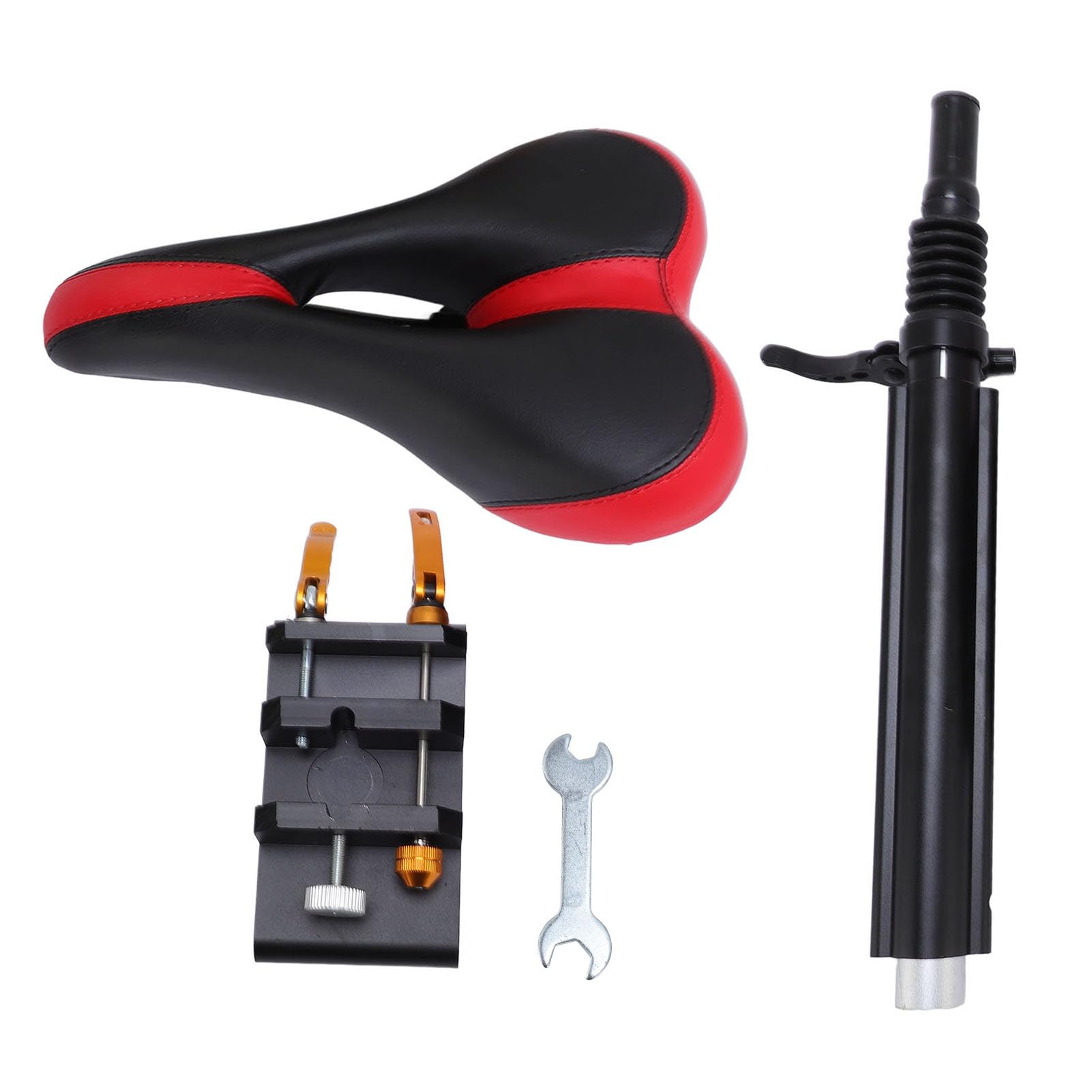

4. Package Contents

Verify that all components are present in the package:

• 1 x Electric Scooter Seat
• 1 x Seat Post
• 1 x Seat Clamp
• 1 x Wrench
• 1 x Fixing Screw

5. Setup and Installation

Follow these steps to install the electric scooter seat onto your M365 scooter:

1. Prepare the Scooter: Ensure your M365 scooter is turned off and on a stable surface.
2. Attach the Base: Position the seat base onto the scooter's deck. Use the provided fixing screws and wrench to secure the base firmly.
3. Insert the Seat Post: Slide the seat post into the base.
4. Secure the Seat Post: Use the seat clamp to secure the seat post at your desired initial height. Ensure the quick-release lever is fully engaged.
5. Attach the Seat: Mount the seat onto the top of the seat post. Tighten any bolts to ensure the seat is stable and does not wobble.

Image 1: Assembled plplaaoo Electric Scooter Seat.

Image 2: Close-up view of the seat base and quick-release clamps for attachment to the scooter.

Image 3: Side view of the seat, highlighting the quick-release lever for height adjustment.

6. Operation and Adjustment

The seat offers flexible adjustment for optimal comfort:

• Height Adjustment: To adjust the seat height, open the quick-release lever on the seat post. Slide the seat post to the desired height and firmly close the quick-release lever to secure it. Ensure it is locked in place before riding.
• Angle Adjustment: The seat saddle can be tilted to your preferred angle. Loosen the bolt beneath the seat, adjust the angle, and then re-tighten the bolt securely.

Image 4: The scooter seat installed, demonstrating its flexible adjustment capabilities.

7. Maintenance

To ensure the longevity and performance of your scooter seat:

• Cleaning: Wipe the seat surface with a damp cloth. Avoid harsh chemicals that may damage the material.
• Inspection: Periodically check all bolts, screws, and quick-release mechanisms for tightness. Re-tighten as necessary.
• Storage: Store the seat in a dry place when not in use to prevent material degradation.

8. Troubleshooting

If you encounter issues with your scooter seat, consider the following:

• Seat Wobbles: Ensure all mounting screws and the seat post clamp are fully tightened. Check for any loose connections.
• Difficulty Adjusting Height: Loosen the quick-release lever completely. If still stiff, clean the seat post and apply a small amount of silicone lubricant.
• Uncomfortable Ride: Experiment with different seat height and angle adjustments to find your optimal riding position.

9. Specifications

10. Warranty and Support

This plplaaoo Electric Scooter Seat comes with a manufacturer warranty for 90 days from the date of purchase. For warranty claims or technical support, please contact the seller or refer to your purchase documentation for contact information.
