1. Introduction
Thank you for choosing the VOXON Heavy Duty 10-Spray Pattern Metal Garden Hose Nozzle. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new hose nozzle. Please read it thoroughly before first use and retain it for future reference.

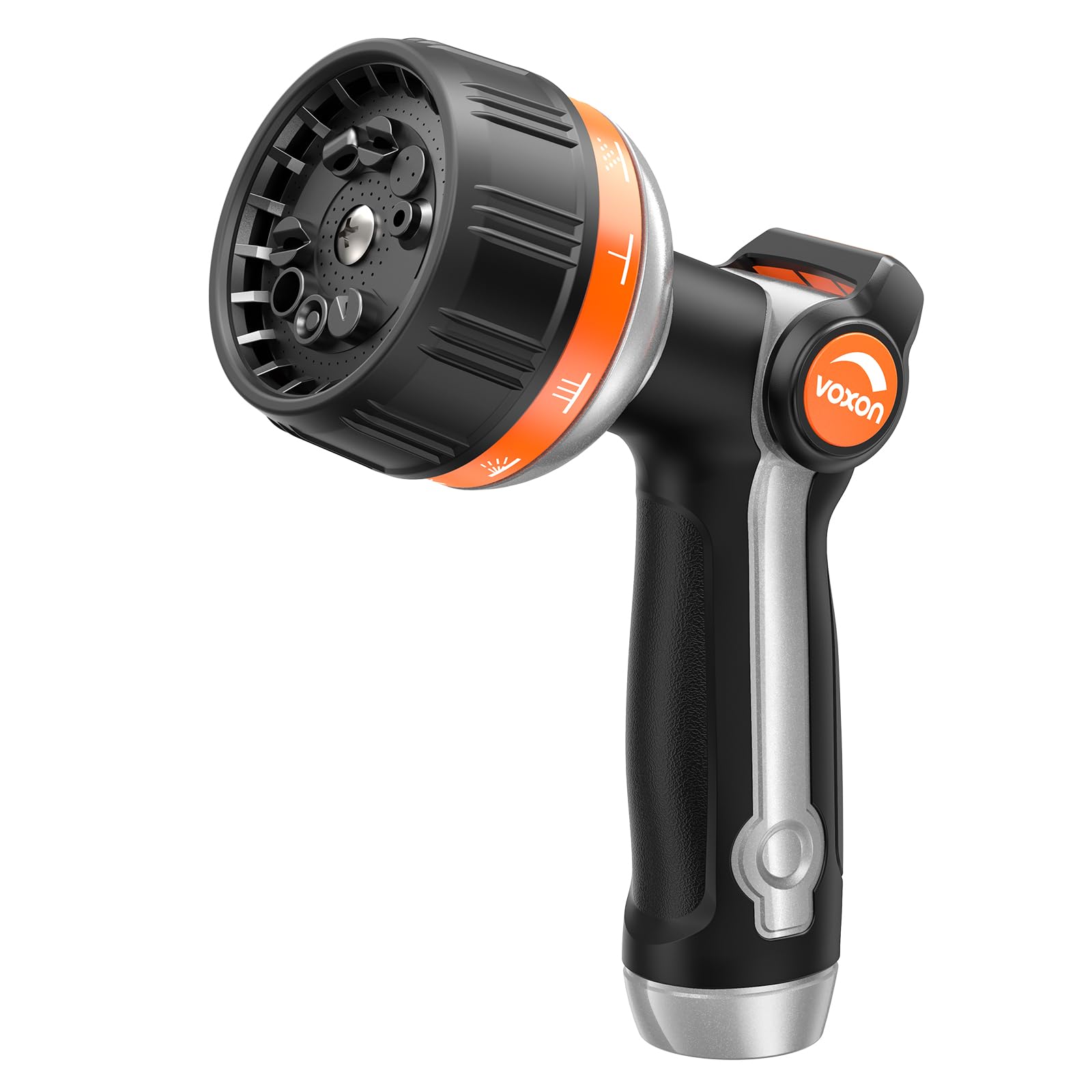

Image 1: The VOXON Heavy Duty 10-Spray Pattern Metal Garden Hose Nozzle.
2. Setup
The VOXON hose nozzle is designed for easy attachment to standard 3/4-inch US garden hoses. No additional adapters are typically required.
- Inspect Gaskets: Ensure a rubber seal gasket is properly seated inside the nozzle's inlet connection. Three replacement gaskets are included with your purchase.
- Attach to Hose: Screw the nozzle onto the threaded end of your garden hose. Hand-tighten until secure. Avoid over-tightening, which can damage the threads or gasket.
- Check for Leaks: Turn on the water supply to the hose. Check for any leaks at the connection point. If leaks occur, tighten slightly or replace the rubber gasket.
Image 2: Detailed view of the nozzle's components, highlighting the 3/4" hose thread and included replacement rubber seal gaskets.
3. Operating Instructions
3.1. Thumb Flow Control
The nozzle features an ergonomic thumb-operated flow control for easy water pressure adjustment and instant shut-off, reducing hand fatigue during extended use.
- To Turn On/Increase Flow: Push the thumb control lever forward (towards the nozzle head) to open the valve and increase water flow.
- To Turn Off/Decrease Flow: Pull the thumb control lever backward (towards the hose connection) to reduce water flow or completely shut off the nozzle.
Image 3: Demonstrating the advanced thumb control for precise water flow adjustment, ideal for tasks like pet washing.
3.2. Spray Patterns
The nozzle offers 10 distinct spray patterns to suit various watering and cleaning needs. To change the spray pattern, rotate the rubber dial on the nozzle head.
- Shower: Gentle, wide spray for delicate plants and pet bathing.
- Vertical: Flat, vertical spray for cleaning or watering narrow areas.
- Full: Broad, powerful spray for general watering or cleaning large surfaces.
- Cone: Conical spray, good for watering plants and shrubs.
- Angle: Angled flat spray for reaching under leaves or specific areas.
- Center: Concentrated spray from the center, useful for targeted watering.
- Jet: Powerful, focused stream for heavy-duty cleaning tasks like washing cars or driveways.
- Mist: Fine, soft mist for seedlings, delicate flowers, or cooling.
- Flat: Wide, flat spray for efficient watering of lawns or rinsing surfaces.
- Stream: Continuous, steady flow for filling buckets or deep watering.
Image 4: Visual representation of the 10 distinct spray patterns, adjusted by twisting the nozzle head.
3.3. Product in Use Videos
Video 1: This video demonstrates the VOXON Metal Garden Water Hose Sprayer with its thumb control feature, showcasing its ease of use and various spray patterns in a garden setting.
Video 2: A guide on how to effectively use the heavy-duty hose nozzle sprayer, illustrating its functionality for different tasks.
Video 3: This video highlights the robust construction and features of the VOXON Heavy Duty Metal Garden Hose Nozzle, emphasizing its durability.
Video 4: Showcasing the Garden Hose Nozzle with its 10 spray patterns and 100% metal construction, demonstrating its versatility and strength.
4. Maintenance
Proper maintenance ensures the longevity and optimal performance of your VOXON hose nozzle.
- Cleaning: Periodically rinse the nozzle head to remove any dirt, debris, or mineral buildup that may affect spray patterns. For stubborn clogs, use a small brush or needle to clear the spray holes.
- Gasket Inspection: Regularly check the rubber seal gasket at the hose connection for wear or damage. Replace it with one of the included spare gaskets if you notice leaks or signs of deterioration.
- Winter Storage: Before freezing temperatures, disconnect the nozzle from the hose and drain any remaining water. Store the nozzle in a dry, protected area to prevent damage from freezing.
5. Troubleshooting
If you encounter issues with your VOXON hose nozzle, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from hose connection | Loose connection, worn or missing gasket | Tighten the connection. Replace the rubber gasket if damaged or missing. |
| Weak or inconsistent spray | Low water pressure, clogged nozzle holes | Check water supply pressure. Clean the nozzle head and spray holes. |
| Difficulty changing spray patterns | Debris in the rotating mechanism, mineral buildup | Rinse the nozzle head thoroughly. Gently rotate the dial to dislodge debris. |
| Thumb control is stiff or stuck | Dirt or mineral buildup in the mechanism | Flush the control mechanism with water. Apply a silicone-based lubricant if necessary. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | VX-GH001 |
| Material | Zinc Alloy (body), TPR (grip, dial) |
| Dimensions (L x W x H) | 4.7 x 2.5 x 6.7 inches |
| Inlet Connection Size | 3/4 Inches (US Hose Thread) |
| Maximum Operating Pressure | 8 Bars |
| Number of Spray Patterns | 10 |
| Included Components | Metal Hose Nozzle x1, Replacement Rubber Seal Gaskets x3 |
7. Warranty and Support
The VOXON Heavy Duty 10-Spray Pattern Metal Garden Hose Nozzle comes with a 36-month manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact VOXON customer service through the retailer where you purchased the item or visit the official VOXON website for contact information.
