1. Introduction
Thank you for choosing the Oraimo CordForce Plus 500W Corded Stick Vacuum, model OSV-553A. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and keep it for future reference.
The Oraimo CordForce Plus OSV-553A is designed for versatile cleaning across various surfaces, featuring a powerful 500W motor, a 6-meter power cord for extended reach, and an advanced HEPA filtration system to capture fine dust and allergens.
This image displays the Oraimo CordForce Plus OSV-553A Corded Stick Vacuum, highlighting its overall dimensions of 1110mm height and 240mm width at the base.
2. What's in the Box
Carefully unpack all components and check against the list below. If any items are missing or damaged, please contact customer support.
- 1x Main Vacuum Unit
- 1x Extension Wand
- 1x Floor Brush Head (with 40W Electric Brush and Anti-tangle V-roller)
- 1x HEPA Filter (pre-installed or separate)
- 1x Short Brush Head
- 1x Long Suction Nozzle
- 1x Filter Cleaning Brush
- 1x Welcome Guide (User Manual)
This image illustrates the components included in the Oraimo CordForce Plus OSV-553A package: a HEPA filter, short brush head, welcome guide, filter cleaning brush, and long suction nozzle.
3. Setup and Assembly
- Attach the Extension Wand: Insert the extension wand into the main vacuum unit until it clicks securely into place.
- Connect the Floor Brush Head: Attach the floor brush head to the other end of the extension wand, ensuring it locks firmly.
- Install HEPA Filter: If not pre-installed, open the dust cup, insert the HEPA filter, and close the dust cup securely. Refer to the 'Maintenance' section for filter access.
- Select Accessories: For handheld use or specific cleaning tasks, attach the short brush head or long suction nozzle directly to the main unit or the extension wand.
4. Operating Instructions
4.1 Powering On/Off
- Connect to Power: Plug the 6-meter power cord into a suitable 220V electrical outlet.
- Turn On: Press the power button located on the main unit handle to start the vacuum.
- Turn Off: Press the power button again to switch off the vacuum.
4.2 Using the Vacuum
- Floor Cleaning: Use the assembled vacuum with the floor brush head for carpets and hard floors. The 40W electric brush and anti-tangle V-roller are designed for efficient dirt pickup.
- Extended Reach: The 6-meter power cord provides ample reach for cleaning large areas without needing to frequently change power outlets.
- Handheld Cleaning: Detach the extension wand and floor brush to use the main unit with the short brush head or long suction nozzle for upholstery, car interiors, or tight spaces.
- Self-Standing Design: The vacuum features a self-standing design, allowing you to pause cleaning and store the unit upright without leaning it against a wall.
The Oraimo CordForce Plus vacuum's 6-meter power cord allows for extensive cleaning reach across different areas of a room without frequent unplugging.
The self-standing design of the Oraimo CordForce Plus vacuum allows it to be paused and stored upright anywhere, providing convenience during cleaning breaks.

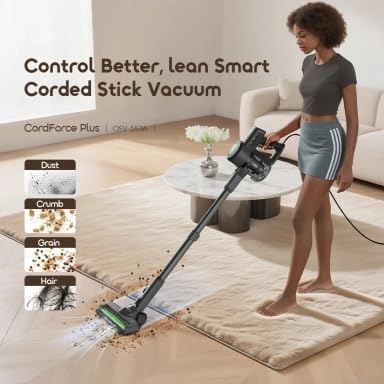

This image demonstrates the Oraimo CordForce Plus vacuum's capability to effectively clean various types of debris, including dust, crumbs, grain, and hair, from carpets and other surfaces.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
5.1 Emptying the Dust Cup
- Ensure the vacuum is unplugged from the power outlet.
- Locate the dust cup release button on the main unit.
- Press the button to detach the dust cup.
- Empty the contents of the dust cup into a waste bin.
- Reattach the dust cup to the main unit until it clicks securely.
5.2 Cleaning the HEPA Filter
The HEPA filter should be cleaned regularly to maintain suction power and air quality. It is recommended to clean the filter after every 3-5 uses, or more frequently depending on usage.
- Unplug the vacuum.
- Remove the dust cup as described above.
- Carefully remove the HEPA filter from the dust cup.
- Use the provided filter cleaning brush to gently remove dust and debris from the filter. Do not wash the HEPA filter with water unless specified in the welcome guide.
- Ensure the filter is completely dry before reinserting it into the dust cup.
- Reassemble the dust cup and attach it to the main unit.
5.3 Cleaning the Brush Head
Periodically check the floor brush head for tangled hair or debris.
- Unplug the vacuum.
- Turn the floor brush head upside down.
- Use scissors or a brush to carefully cut and remove any tangled hair or fibers from the V-roller brush.
- Ensure the brush is free of obstructions before resuming operation.

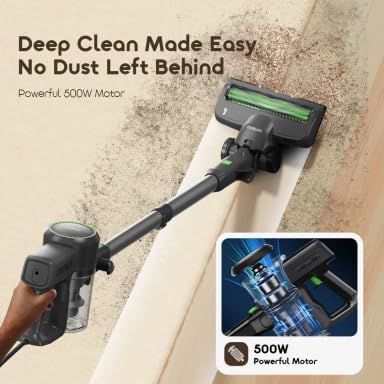

The Oraimo CordForce Plus vacuum is equipped with a powerful 500W motor, ensuring deep cleaning and efficient dust removal from surfaces.
This image shows the 40W electric brush head of the Oraimo CordForce Plus vacuum, featuring an anti-tangle V-roller brush designed for effective cleaning on various surfaces.
6. Troubleshooting
If you encounter any issues with your Oraimo CordForce Plus vacuum, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | No power supply Power cord not fully plugged in | Check power outlet Ensure power cord is securely plugged into both the vacuum and the outlet |
| Low suction power | Dust cup full HEPA filter clogged Brush head obstructed Hose/wand blocked | Empty dust cup Clean HEPA filter Remove debris from brush head Check and clear any blockages in the hose or wand |
| Unusual noise during operation | Foreign object in brush head Motor issue | Turn off and unplug, then inspect brush head for obstructions If noise persists, contact customer support |
| Brush head not rotating | Brush roll tangled Brush roll motor issue | Clean brush roll of tangled hair/debris Contact customer support |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Oraimo |
| Model Number | OSV-553A |
| Color | Black and Green |
| Power / Wattage | 500 Watts |
| Voltage | 220 Volts |
| Capacity | 5.3 Liters |
| Noise Level | 75 dB |
| Filter Type | HEPA Filter |
| Power Source | Corded Electric |
| Cord Length | 6 Meters |
| Surface Recommendation | All Surfaces |
| Product Weight | 30 Grams (Note: This weight seems unusually low for a vacuum cleaner and might refer to a specific component or be an error in the source data. Please refer to product packaging for accurate total weight.) |
| Package Dimensions | 51 x 32.1 x 19.7 cm |
| Included Components | Welcome Guide, Long Brush Head, Short Brush Head, Filter Cleaning Brush, HEPA Filter |
8. Safety Information
Please read and follow these safety precautions to prevent electric shock, fire, or injury:
- Always unplug the vacuum cleaner from the electrical outlet before cleaning or performing any maintenance.
- Do not use the vacuum cleaner outdoors or on wet surfaces.
- Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
- Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without the dust cup and filters in place.
- Inspect the power cord and plug for any damage before each use. Do not use if the cord or plug is damaged.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
9. Warranty and Support
For warranty information, please refer to the specific warranty card included with your product or contact the retailer where the product was purchased. Oraimo provides customer support for product inquiries, technical assistance, and warranty claims.
Please retain your proof of purchase for any warranty-related services.
