1. Introduction
Thank you for choosing the AlpsWolf T100 Rechargeable Spotlight Flashlight. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.

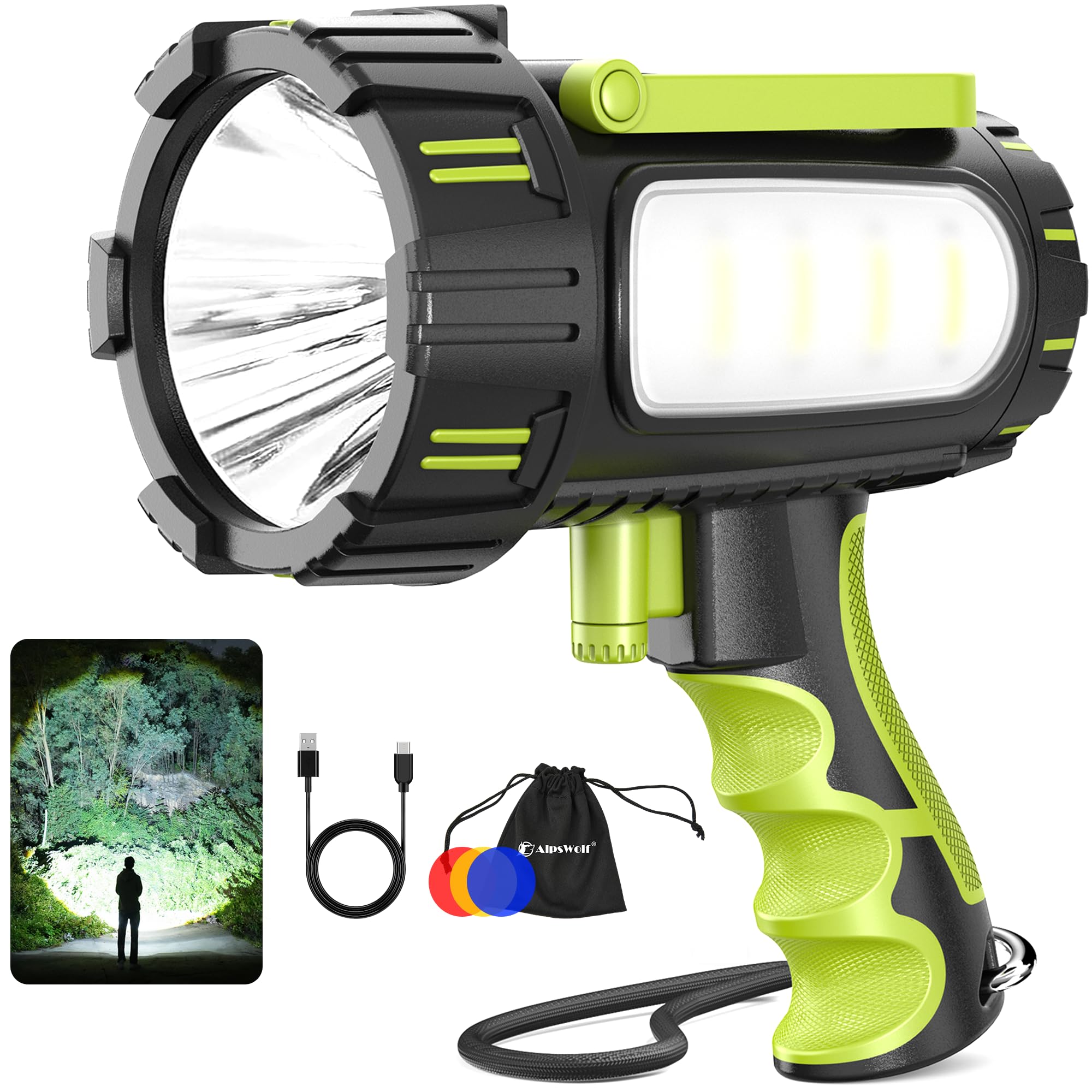

Image: The AlpsWolf T100 Rechargeable Spotlight Flashlight, showcasing its robust design.
2. What's in the Box
Upon unpacking, please ensure all items listed below are present and in good condition:
- AlpsWolf T100 Rechargeable Spotlight Flashlight
- Wrist Lanyard
- Three (3) Colored Lenses (Red, Yellow, Blue)
- Lens Storage Bag
- Type-C Charging Cable
- User Manual
Image: A visual representation of all components included in the AlpsWolf T100 package.
3. Product Features
- Powerful Beam & Multiple Light Modes: Projects a high-intensity beam up to 1600 ft. Features High, Low, and Strobe modes for the main light, and High, Low, and Red-Blue flash for the independent side light. Includes red, yellow, and blue lenses for varied utility.
- Durable & Weather-Resistant Design: Constructed with shock-absorbent ABS and a soft rubber grip for durability and comfortable handling. The Hall-effect magnetic switch enhances water resistance, ensuring reliable performance in rain and snow.
- High Capacity Battery & Power Display: Equipped with a 10000mAh rechargeable battery, offering 8 to 24 hours of runtime depending on the mode. Features convenient Type-C charging and an LED indicator (red for low battery/charging, green for full charge).
- Versatile for Various Scenarios: Ideal for camping, hiking, home security, power outages, and roadside emergencies. Strobe modes with colored lenses can serve as distress signals or high-visibility alerts.
Image: The AlpsWolf T100 demonstrating its IP68 waterproof capability.
Image: The AlpsWolf T100 highlighting its 10000mAh battery and power bank feature.
Image: Illustration of the 6 light modes and the 3 included color lenses.
Image: The AlpsWolf T100 being used in diverse situations, emphasizing its versatility.
4. Setup
4.1 Initial Charge
Before first use, fully charge your AlpsWolf T100. The device features a 10000mAh rechargeable battery. To charge:
- Locate the charging port cover at the rear of the flashlight.
- Unscrew the cover to reveal the Type-C input port.
- Connect the provided Type-C charging cable to the input port and a suitable USB power adapter (not included).
- The LED indicator will show a red light while charging. It will turn green when fully charged.
Image: Detailed view of the USB-C input port and LED charging indicator on the AlpsWolf T100.
4.2 Attaching the Lanyard
Attach the wrist lanyard to the designated loop on the handle for secure carrying and to prevent accidental drops.
5. Operating Instructions
5.1 Main Light Operation
The main spotlight is controlled by the top button:
- Press once for High brightness.
- Press again for Low brightness.
- Press a third time to turn the main light Off.
- To activate Strobe mode, press and hold the top button for 2 seconds.
5.2 Side Light Operation
The independent side light is operated by the dedicated knob:
- Rotate the knob once for High brightness.
- Rotate again for Low brightness.
- Rotate a third time to turn the side light Off.
- To activate the Red-Blue Flash emergency mode, hold the knob for 2 seconds.
Image: Diagram illustrating the controls for the main spotlight and side light modes.
5.3 Using Color Lenses
The included red, yellow, and blue lenses can be used with the main light to adapt to different environments or signaling needs:
- Ensure the main light is off.
- Gently press the desired color lens onto the outside of the main light's bezel. Ensure it is securely fitted.
- To remove, gently pull the lens off. Store unused lenses in the provided storage bag.
Image: Visual guide on how to attach and use the three color lenses for the main spotlight.
5.4 Power Bank Functionality
The AlpsWolf T100 can also serve as an emergency power bank:
- Unscrew the charging port cover at the rear.
- Connect your external device (e.g., smartphone) to the USB-A output port using a compatible cable.
- The flashlight's internal battery will provide power to charge your device.
Image: The AlpsWolf T100 charging a smartphone, illustrating its emergency power bank capability.
5.5 Built-in Stand
The flashlight features a foldable stand for hands-free operation. Simply extend the stand from the body of the flashlight to position it on a flat surface or hang it.
5.6 Video Demonstration
For a visual guide on the functions of your AlpsWolf T100 Spotlight, please watch the official demonstration video below:
Video: An official demonstration of the AlpsWolf Spotlight T100's various functions and modes.
6. Maintenance
- Cleaning: Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the flashlight in a cool, dry place away from direct sunlight when not in use. For long-term storage, ensure the battery is partially charged (around 50%) to prolong its lifespan.
- Battery Care: Avoid fully depleting the battery frequently. Recharge promptly when the low battery indicator is shown.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Low battery. | Charge the flashlight fully. |
| Light is dim. | Low battery. | Charge the flashlight fully. |
| Device not charging from USB-A output. | Flashlight battery is too low. Incompatible cable/device. | Ensure flashlight is sufficiently charged. Try a different USB cable or device. |
| Water ingress. | Charging port cover not securely closed. | Ensure the charging port cover is tightly screwed on before exposing to water. |
8. Specifications
- Model Number: T100
- Light Source Type: LED
- Power Source: Battery Powered (Lithium Polymer)
- Battery Capacity: 10000mAh
- Runtime: 8-24 hours (depending on mode)
- White Brightness: 2000 Lumens
- Material: ABS, Soft Rubber
- Water Resistance Level: Water Resistant (IP68)
- Mounting Type: Handheld
- Item Dimensions (L x W x H): 7" x 3.5" x 6.4"
- Included Components: 3 Lenses & Storage bag, Charging Cable, Lanyard, Manual
9. Warranty and Support
The AlpsWolf T100 Rechargeable Spotlight Flashlight comes with a 1-year manufacturer's warranty. For technical assistance, service support, or any inquiries regarding your product, please contact AlpsWolf Direct. Our team is always ready to assist you with direct technical assistance and reliable service support.
Please refer to your purchase documentation for specific contact details or visit the official AlpsWolf website for more information.
