Introduction
Welcome to your LANDERPOW 24V-3000W Pure Sine Wave Inverter. This manual provides essential information for safe and efficient operation, ensuring you get the most out of your power solution for RVs, trucks, solar setups, homes, and off-grid applications.
Important Safety Instructions
Please read and understand all safety instructions before installation and operation to prevent injury or damage to the inverter.
- Always read all instructions and cautions in this manual before installation and use.
- This product contains no user-serviceable parts. Do not attempt to disassemble or repair the inverter.
- The inverter is designed for a 24V DC input. Connecting to batteries with a different voltage (e.g., 12V or 48V) will cause permanent damage and void the warranty.
- Always disconnect all AC and DC connections before carrying out maintenance or servicing the product.
- Consult your battery manufacturer's information to ensure compatibility and proper usage.
- Never use the product in areas with a risk of gas or dust explosions.
- The DC input cable should be fused and fitted with a circuit breaker.
- Install the product in a well-ventilated, cool, and dry environment. Ensure adequate space (at least 10 inches / 25cm) for wiring and ventilation.
- Securely mount the inverter. Horizontal mounting is preferred for optimum cooling. Avoid placing the inverter vertically on a surface that could block fan openings.
- After installation, check all wiring connections for tightness to avoid overheating and ensure proper operation.
Package Contents
Verify that all items listed below are included in your package:
- 1x LANDERPOW 24V-3000 Watt Pure Sine Wave Inverter
- 2x 1AWG Battery Cables (2FT)
- 1x Ground Cable (1.65FT)
- 1x Remote Controller (15FT)
- 1x Professional User Manual

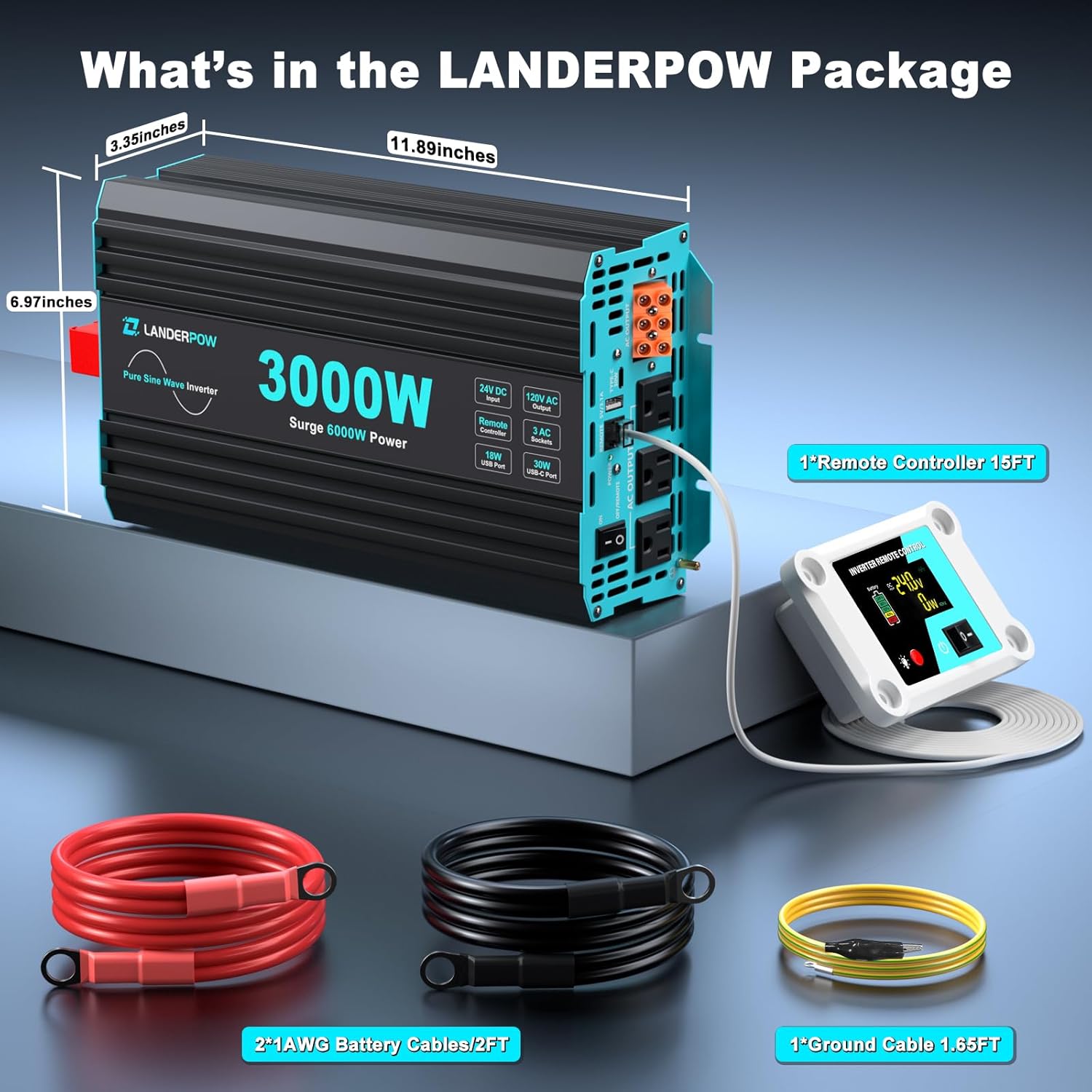

Image: The LANDERPOW 24V-3000W Pure Sine Wave Inverter and its included accessories, neatly laid out.
Video: An overview of the LANDERPOW Pure Sine Wave Inverter and its components, demonstrating the unboxing and initial setup.
Product Features
The LANDERPOW 24V-3000W Pure Sine Wave Inverter is engineered with advanced features for reliable and versatile power delivery:
- High Power Output: Provides 3000W continuous clean DC to AC power with a 6000W surge capability, ensuring efficient operation for various appliances.
- Pure Sine Wave Technology: Delivers grid-quality AC power, protecting sensitive electronics from damage and eliminating hum or flicker.
- Versatile Connectivity: Equipped with 3 AC outlets, a hardwired terminal for high-current appliances, a 5V/3.1A USB port, and a 30W USB-C port for fast device charging.
- Enhanced Safety Cables: Includes two 1AWG/2FT high-quality thickened pure copper battery cables for efficient power transfer and safety.
- Smart Remote Control: Features a 15ft wired remote controller with an LED screen to monitor battery levels, output, and error states in real-time.
- Comprehensive Protection: Built-in safeguards against undervoltage, overvoltage, overload, overheating, short circuit, and reverse connection.
- Durable Design: Constructed with a rugged, heat-dissipating full metal shell for long-term durability and reliability in various environments.
Image: The inverter connected to a 24V battery, highlighting its compatibility with multiple battery chemistries.
Image: Visual comparison of pure sine wave output versus modified sine wave, demonstrating the inverter's clean power delivery for various appliances.
Image: The inverter integrated into RV and home solar systems, powering common household appliances.
Image: A visual representation of the inverter's multiple AC and USB charging ports, emphasizing its versatility.
Image: The inverter's continuous and surge power capabilities, along with its hardwired terminal for heavy loads.
Image: An internal view of the inverter's intelligent cooling system, highlighting its quiet and efficient operation.
Image: Close-up of the remote control's LED screen, detailing the various real-time monitoring features.
Setup and Installation
Follow these steps to properly set up and install your LANDERPOW Pure Sine Wave Inverter:
- Choosing a Location: Select a well-ventilated, cool, and dry area for installation. Ensure at least 10 inches (25cm) of clearance around the inverter for proper airflow and wiring. Avoid direct sunlight, high temperatures, and moisture.
- Battery Connection:
- Position the inverter as close to the 24V battery bank as possible to minimize cable voltage loss.
- Ensure the inverter's ON/OFF switch is in the OFF position before connecting any cables.
- Connect the red positive (+) battery cable to the inverter's positive terminal and then to the battery's positive terminal.
- Connect the black negative (-) battery cable to the inverter's negative terminal and then to the battery's negative terminal.
- Tighten all connections securely to prevent loose contacts and overheating.
- Grounding: Connect the included ground cable to the inverter's ground terminal and to a suitable earth ground point (e.g., vehicle chassis, ground rod).
- Remote Control Connection: Plug the 15ft wired remote controller into the designated "REMOTE" port on the inverter.
- Power On: Once all connections are secure, switch the inverter's ON/OFF switch to the "ON" position. The remote control's LED screen will illuminate, displaying real-time operational status.
Video: A demonstration of connecting the inverter to a battery and powering it on, including the remote control setup. (Note: While the video may show a 12V battery, the connection principles apply to the 24V model.)
Operating Instructions
Once your inverter is installed and powered on, follow these guidelines for operation:
- Connecting AC Appliances: Ensure the inverter is ON. Plug your AC appliances into the three standard AC outlets. For high-current electrical tools or appliances, utilize the hardwired AC terminal.
- USB Charging: Use the 5V/3.1A USB port or the 30W USB-C port to fast-charge your smartphones, tablets, and other compatible devices.
- Real-time Monitoring: The 15ft wired remote control features an LED screen that displays real-time information such as DC input voltage, AC output wattage, battery remaining capacity, and frequency. This allows for timely battery swaps and power management.
- One-Touch Control: The remote control includes a one-touch button for convenient shutdown and restart of the inverter.
Video: Demonstrates the inverter powering various household appliances like coffee machines, hair dryers, and circular saws, showcasing its capability for heavy startups.
Video: Shows the LED screen of the remote control in action, displaying real-time power metrics and battery status.
Video: Illustrates the inverter powering electrically sensitive equipment, highlighting its pure sine wave output for safe operation.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your inverter:
- Cleaning: Keep the inverter's exterior clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
- Ventilation: Periodically check that the cooling fans and ventilation openings are not blocked. Ensure proper airflow to prevent overheating.
- Connection Checks: Regularly inspect all electrical connections, including battery cables, ground wire, and AC output connections, to ensure they remain tight and free from corrosion.
- Storage: When not in use for extended periods, store the inverter in a cool, dry, and well-ventilated location.
Troubleshooting Common Issues
If you encounter any issues with your inverter, refer to the table below for potential solutions:
| Error Code/Status | Potential Issue | Solutions |
|---|---|---|
| Fault 2 (Alarm beeps) | Input voltage is below 21.0 ± 0.5V (for 24V system) | Keep input voltage above 21.0 ± 0.5V |
| Fault 3 (Red LED lit) | Input voltage is above 30.0 ± 0.5V (for 24V system) | Keep input voltage below 30.0 ± 0.5V |
| Fault 4 (Red LED lit) | Overload protection | Reduce the load power |
| Fault 7 (Red LED lit) | The temperature is above 113°F (45°C) | 1. Cool down the inverter to 113°F (45°C). 2. Check for adequate venting. 3. Reduce the load on inverter. |
| Fault 8 (Red LED lit) | Short circuit | Disconnect and check the load, make sure the load is correct, reconnect and then restart the inverter. |
| No output voltage | Switch off | Turn on the switch of inverter or remote control. |
| Poor connections with the battery | Loose or corroded battery terminals | Make sure the connection is tight and clean. |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | LANDERPOW |
| Model Name | LANDERPOW-24V-3000W-PSW |
| Continuous Wattage | 3000 watts |
| Peak Output Power | 6000 watts |
| Input Voltage | 24 Volts (DC) |
| Output Voltage | 120 Volts (AC) |
| Electrical Output Waveform | Pure Sine Wave |
| Conversion Efficiency | > 91% |
| AC Outlets | 3 |
| USB-C Output | 30W |
| USB Output | 5V 3.1A |
| Remote Control Cable Length | 15ft |
| Battery Cables | 2x 1AWG/2FT |
| Ground Cable | 1x 1.65FT |
| Item Dimensions L x W x H | 11.89"L x 6.97"W x 3.35"H |
| Item Weight | 7.45 Pounds |
| Safety Certifications | UL, FCC |
Warranty and Customer Support
Your LANDERPOW 24V-3000W Pure Sine Wave Inverter is backed by an Extra Long 3-Year Total Coverage, which includes:
- 1-Year No-hassle Replacement
- 2-Year Extended Support
Should you have any questions, require technical assistance, or need to claim warranty support, please contact our professional customer service team via email. We are committed to providing a response within 12 hours.
Image: A customer service representative ready to assist with inquiries.
